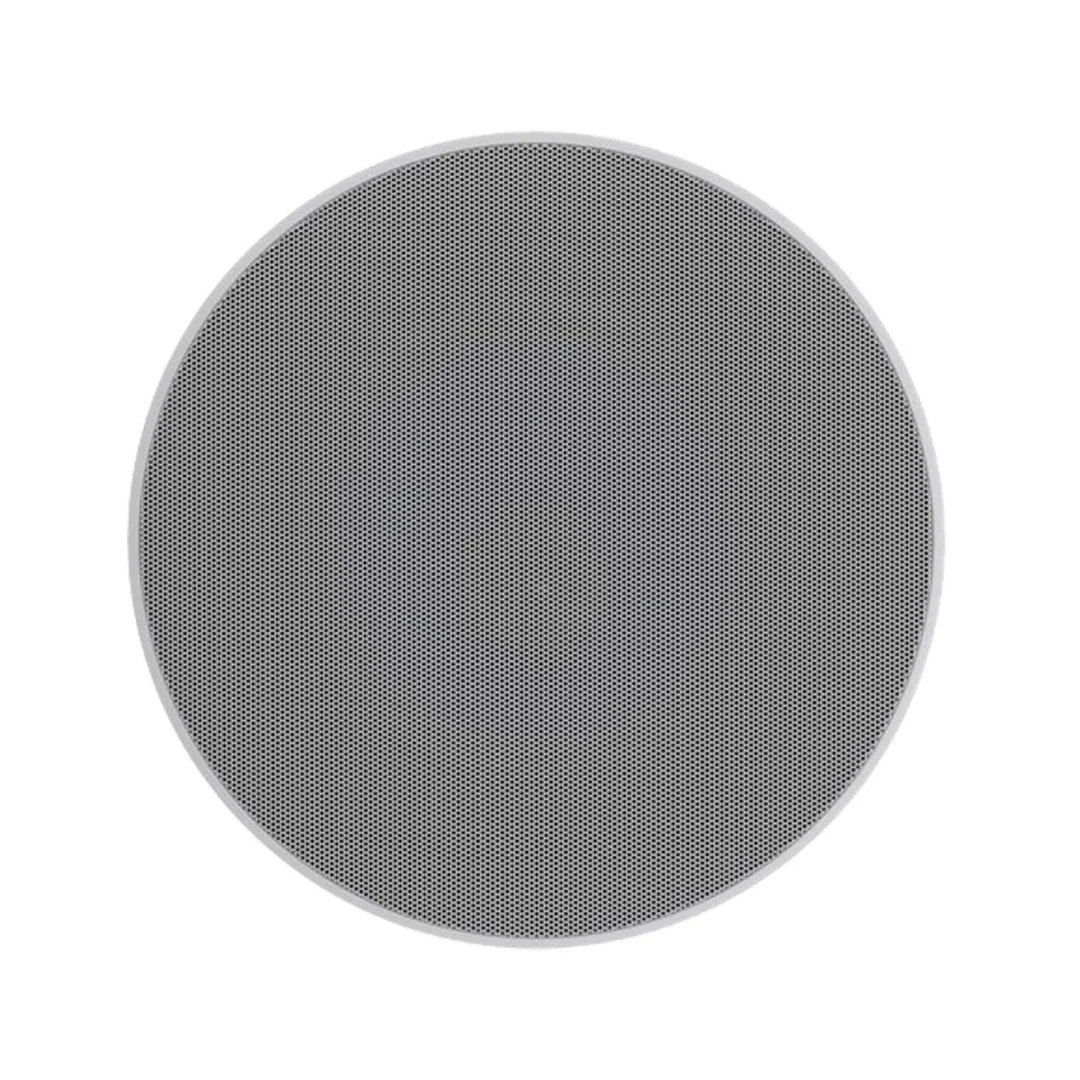

Bowers & Wilkins CCM664SR - In-Ceiling Speaker (each)

Immersive sound from above, with the Bowers & Wilkins CCM664SR In-Ceiling Speaker.

The CCM664SR is a high-performance in-ceiling speaker that delivers exceptional sound quality for your home theater or audio system. Featuring a 6-inch woven glass fiber cone bass/midrange driver and two offset 1-inch soft dome tweeters, the CCM664SR produces detailed, room-filling sound.

Key features:

• Dual, two-way design for stereo or surround sound
• 6-inch woven glass fiber cone bass/midrange driver for deep, accurate bass
• 1-inch soft dome tweeters for clear, detailed highs
• Two-position stereo/surround switch for versatile placement
• QuickDogs™ and plug-and-play functionality for easy installation

Whether you're looking for a discreet in-ceiling speaker for your home theater or a high-quality solution for multi-room audio, the Bowers & Wilkins CCM664SR is a perfect choice.

Bowers & Wilkins CCM664SR Specifications

Speaker Specifications

• Type: 2-way dual channel in-ceiling system
• Drivers:
  • Tweeters: 2x ø20mm (1in) soft dome tweeter
  • Woofer: 1x ø150mm (6in) black glassfibre cone bass/midrange
• Frequency Range: 48Hz – 30kHz
• Recommended Amp Power: 25 – 80w (per channel)
• Sensitivity:
  • Per Channel: 82dB
  • Both Channels Driven: 88dB
• Impedance: 8Ω (nominal), 4Ω (minimum) (per channel)
• Dimensions:
  • Frame Diameter: 240mm (9.5in)
  • Cut-out Diameter: 202mm (8in)
  • Depth Behind Surface: 133mm (5.2in)
  • Protrusion: 4mm (0.2in)
• Mounting:
  • Pre-mount Kit: C6
  • Back Box: 6C

B&W CCM664SR Manual

B&W CCM664SR Info Sheet

B&W CCM664SR Drawing
