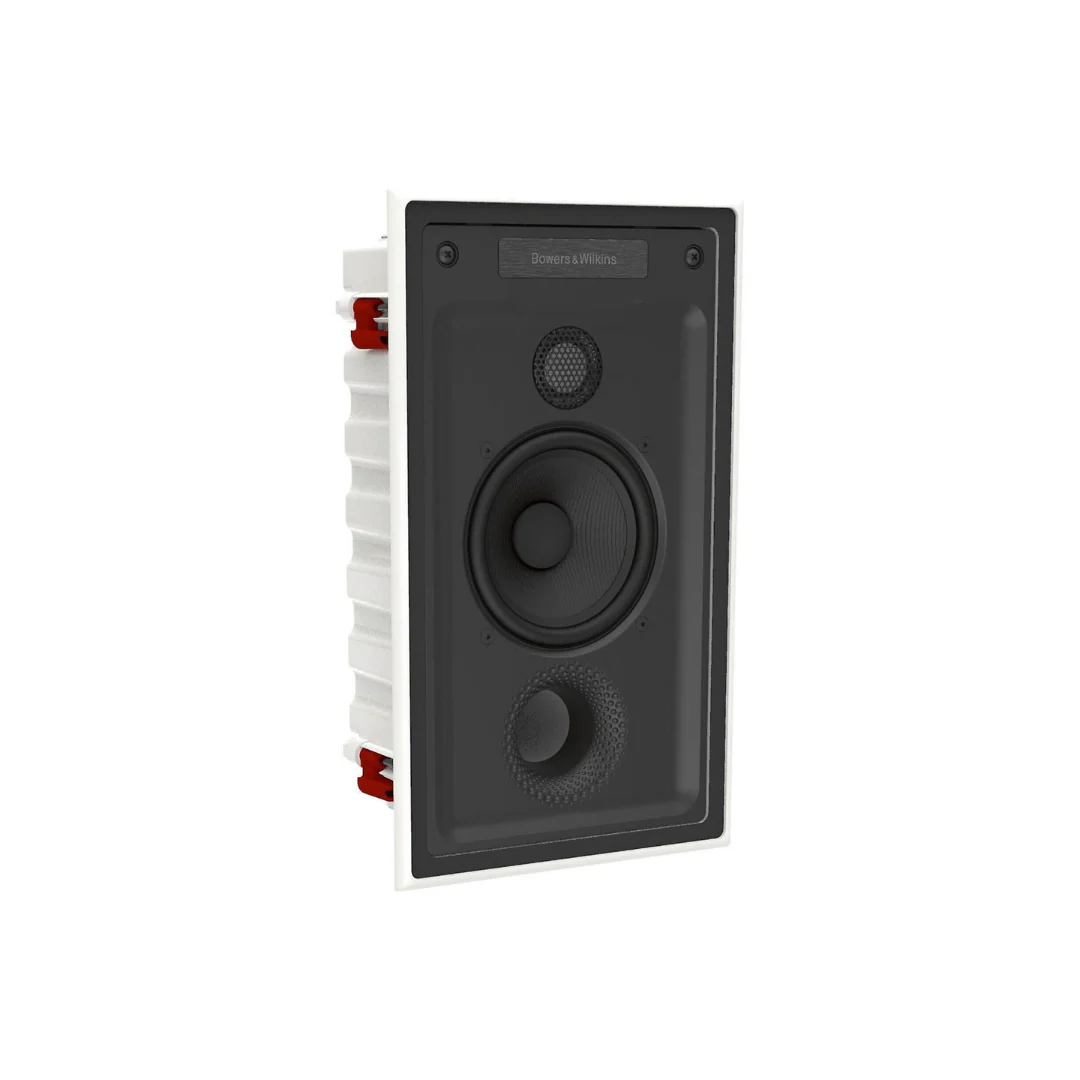

Bowers & Wilkins CWM7.5 S2 - In-wall Speaker (each)

Bowers & Wilkins CWM7.5 S2 In-Wall Speaker: Discreet, High-Fidelity Sound for Your Home

The Bowers & Wilkins CWM7.5 S2 is a high-performance in-wall speaker that delivers exceptional sound quality without sacrificing valuable floor space. It features a 2-way driver design with a 1" Carbon Dome tweeter for crisp highs and a 5" Continuum cone mid/bass driver for rich, detailed midranges and impactful bass.

Key features:

• High-Resolution Sound: The CWM7.5 S2 utilizes Bowers & Wilkins' renowned driver technology, including the Carbon Dome tweeter and Continuum cone mid/bass driver, to deliver clear, accurate audio reproduction.
• Space-Saving Design: This in-wall speaker installs flush to your wall, freeing up floor space for a more streamlined look in your home theater or listening area.
• Versatile Placement: The CWM7.5 S2 can be mounted in either landscape or portrait orientation, making it suitable for a variety of applications.
• Easy Installation: The integrated backbox ensures a simplified installation process, even in existing walls.

Ideal for:

• Stereo listening
• Multi-room audio systems
• Surround sound systems (rear speakers)

Whether you're looking for a high-fidelity solution for your home theater or a discreet way to fill your home with music, the Bowers & Wilkins CWM7.5 S2 In-Wall Speaker is an excellent choice.

Bowers & Wilkins CWM7.5 S2 Specifications

System Type: 2-way in-wall

Drive Units:

• 1x 1-inch (ø25mm) Carbon Dome high-frequency tweeter
• 1x 5-inch (ø130mm) Continuum cone mid/bass

Frequency Response:

• -6dB at 43Hz and 33kHz
• -3dB 45Hz - 28kHz ±3dB

Sensitivity: 86dB spl (2.83Vrms, 1m)

Impedance: 8Ω (minimum 3.8Ω)

Recommended Amplifier Power: 25W - 150W into 8Ω on unclipped programme

Dimensions:

• Height: 14 inches (356mm)
• Width: 8.5 inches (212mm)

Cut-out Requirements:

• Depth in wall: 4 inches (102mm)
• Height: 13 inches (331mm)
• Width: 7.4 inches (187mm)

Protrusion from Wall: 0.32 inches (8mm)

Mounting Accessories:

• Pre-mount Kit: PMK 7.5W

B&W CWM7.5 S2 Manual

B&W CWM7.5 S2 Info Sheet

B&W CWM7.5 S2 Drawing
