SVS SB-5000 R|Evolution Sealed Subwoofer

SVS SB-5000 R|Evolution Subwoofer

The SVS SB-5000 R|Evolution is a reference-grade sealed subwoofer built for listeners who want chest-thumping low-end impact and the speed, texture, and control that make bass sound real. A formidable front-firing 15-inch high-excursion driver is powered by a conservatively rated 2,000W continuous (5,000+W peak) dual-mono Class D amplifier, delivering room-pressurizing output with tight transient response and pinpoint accuracy. With extension down to 17Hz (±3dB), it brings cinematic LFE to life while staying musically precise for two-channel systems. At the center is an advanced 295MHz Analog Devices DSP that constantly monitors and optimizes performance so the sub stays clean, consistent, and controlled at any volume. Fine-tune everything from your seat with the SVS Subwoofer Control App (Bluetooth) for iOS, Android, and Amazon Fire—ideal for dialing in perfect bass integration, creating presets, and adapting the subwoofer to your room and listening preferences. The SVS SB-5000 R|Evolution is part of ListenUp's SVS Sealed Subwoofers Collection.

What It's Good At:

• Delivering deep, sealed-subwoofer bass with speed, control, and musical detail
• Producing cinema-level slam and room pressurization without bloat or muddiness
• Seamless integration with AV receivers and stereo systems via app-based DSP tuning
• Custom-tailoring bass using six PEQs, phase, polarity, room gain compensation, and presets
• Maintaining clean output with advanced DSP monitoring, thermal/current management, and low distortion
• Flexible installs with RCA/XLR connections, trigger, IR integration, and optional wireless adapter power via USB

SVS SB-5000 R Full Specifications:

• Model: SVS SB-5000 R|Evolution (sealed subwoofer)
• Design: Sealed box cabinet for tighter, more musical bass and a more compact footprint than comparable ported designs

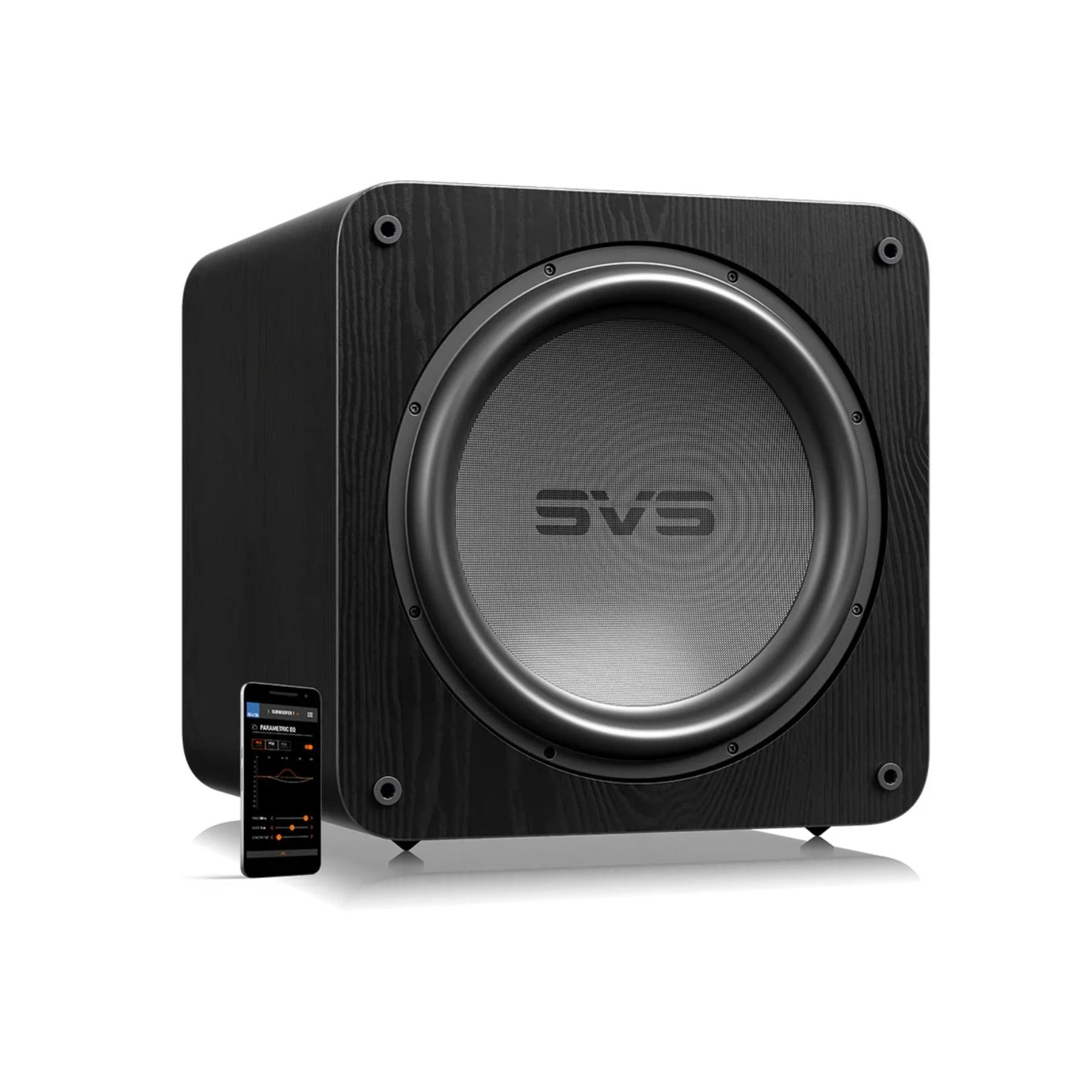

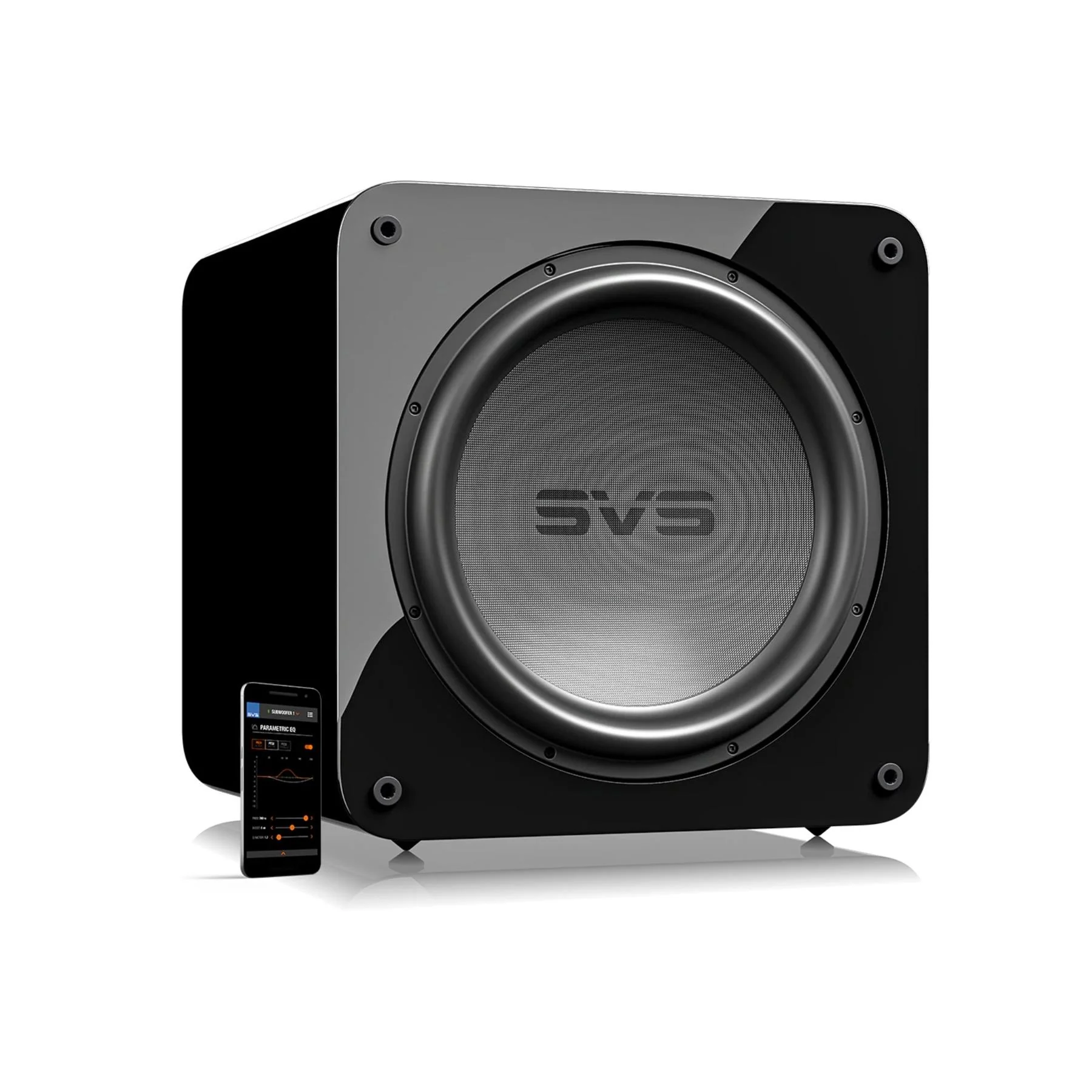

• Finish options (as listed on product page): Premium Black Ash, Piano Gloss Black, Piano Gloss White
• Front-firing driver: 15-inch high-excursion driver
• Frequency response / acoustic data:
  • 17Hz to 280Hz ±3dB
  • Expect 2–3Hz deeper extension in small to mid-size rooms
  • Roll-off slope optimized to maximize available room gain
  • 2-meter ground plane away from reflective structures (quasi-anechoic)
• Dimensions (with grille): 18.3” (465mm) H × 17.8” (453mm) W × 19.5” (495mm) D
• Dimensions (without grille): 18.3” (465mm) H × 17.8” (453mm) W × 18.4” (468mm) D
• Shipped dimensions: 23.2” (588mm) H × 23.5” (598mm) W × 28.0” (712mm) D
• Weight (unboxed): 102.1 lbs (46.3kg)
• Shipped weight: 120.7 lbs (54.8kg)
• Cabinet / build:
  • Double-thick 2-inch MDF front baffle with rigid internal bracing
  • Reinforced internal design with acoustic insulation to reduce coloration/resonance
  • Robust MDF cabinet construction with internal bracing for resonance-free performance
  • Protective non-resonant extra-thick ABS grille frame with fabric mesh cover
  • Custom elastomer feet reduce noise artifacts within a room
  • Screw-in iso-elastomer feet reduce noise artifacts and improve stability

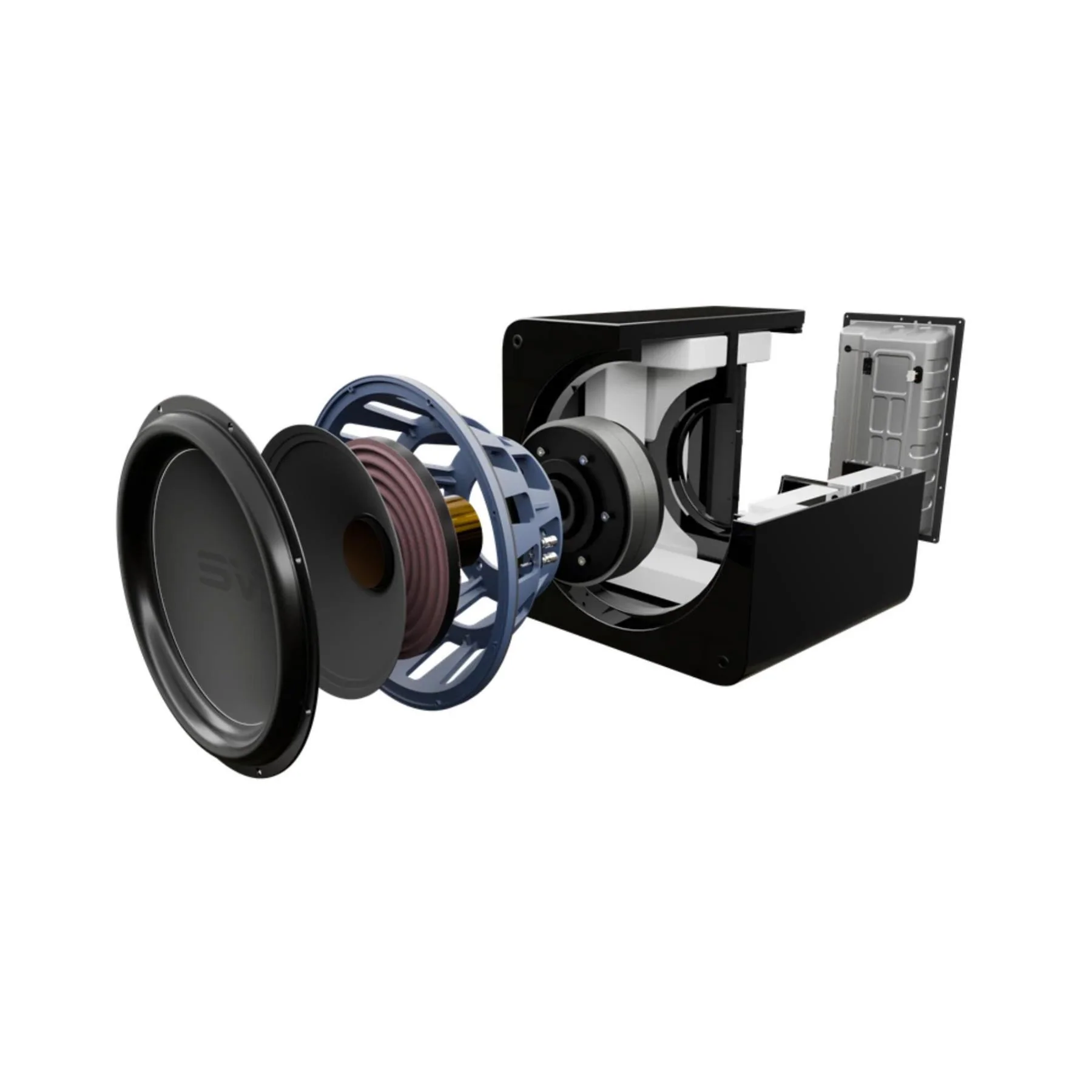

• Driver specifications:
  • All-new proprietary 15-inch long-throw driver with high-precision tuned overhung motor configuration
  • 46.3 lb (21kg) woofer with 38.4 lb (17.46kg) motor
  • 46.32mm Xmax, 77.44mm Xmech precision-aligned excursion
  • 3” diameter voice coil with 6-layer bifilar flat edge-wound aluminum wire windings
  • Dual voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output
  • High temperature glass-fiber composite former/bobbing
  • Two-piece high-grade oversized Y30 ferrite magnet motor
  • Copper shorting sleeve around T-yoke reduces gap inductance and lowers distortion
  • Dual 24-strand silver-plated copper-alloy and Nomex composite high-temperature leads woven through the spider
  • Precision machined top-plate and oversized T-yoke with integrated pole-piece extension (zinc-plated low carbon 1010 steel)
  • Dual Nomex-composite extreme excursion linear suspension spiders
  • Injection-molded extreme-excursion parabolic NBR rubber surround for pistonic motion
  • Premium glass-fiber laminated dustcap and vented composite cone sub-structure
  • High-density 15” powder-coated cast aluminum basket (FEA optimized)
• Amplifier / DSP specifications:
  • 2,000W continuous Class D design with 5,000+W peak power
  • 295MHz Analog Devices Audio DSP with double precision 56bit filtering
  • DSP monitoring and power management with thermal/voltage/current systems
  • DACs with 120 dB signal-to-noise ratio
  • Dual-mono discrete Class D amps with eight 60A 200V MOSFETs
  • SMPS with two-stage 100V–240V active PFC; pre-regulates to 390V DC and maintains 160V rail voltage
  • Onboard AC line conditioner reduces waveform distortion and interference
  • Convective cooling plate design (no external heatsinks required)
  • Customer EQ and DSP limiter settings tuned for the 5000 series
• Connectivity / control / power:
  • Unbalanced RCA 10kohm input impedance (up to 4Vrms)
  • Balanced XLR 14kohm input impedance (up to 4Vrms / +14dBu)
  • RCA and XLR inputs/outputs; LFE input support
  • OLED and control interface with Display Flip support
  • USB Type A for firmware updates and power for SVS SoundPath Wireless Audio Adapter (sold separately)
  • Auto/On and Trigger options via app
  • 3.5mm trigger input: 3–12V AC/DC
  • 3.5mm IR input for control system integration (powered IR repeater required; NEC format)
  • Low standby power consumption: 0.5W (standby)
  • RoHS compliant, lead-free construction, worldwide safety certifications
• App features / DSP control ranges:
  • Compatible with Apple iOS, Google Android, and Amazon Fire (Bluetooth)
  • Controls include volume, low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management, and more
  • Three memory presets for fast system-wide adjustments
  • Auto Room Equalization (coming soon) using smartphone mic or accessory mic
  • Low pass frequency: 30Hz to 200Hz (1Hz steps)
  • Low pass slope: 6dB, 12dB, 18dB, 24dB
  • Polarity: Positive / Negative
  • PEQ frequency: 20Hz to 200Hz (1Hz steps)
  • Room Gain Compensation frequency: 25Hz, 31Hz, 40Hz
  • Room Gain Compensation slope: 6dB, 12dB
  • Total Harmonic Distortion (THD): ≤ 1.00%
  • Power off mode: < 0.3W
  • Auto standby mode: < 0.5W
  • Network (Bluetooth connected) standby: < 2.0W
• Included accessories:
  • Protective non-resonant extra-thick ABS grille frame with fabric mesh cover
  • Iso-elastomer feet
  • Extra heavy-duty, high current 6’ power cord
  • Quick Start Guide

SVS SB-5000 R Q&A:

What makes the SB-5000 R|Evolution a sealed subwoofer, and why does that matter?

A sealed cabinet is designed for tight, accurate bass with excellent transient response. It’s ideal for music realism while still delivering serious movie impact.

How deep does the SB-5000 R|Evolution play?

It’s rated at 17Hz to 280Hz (±3dB), with the potential for 2–3Hz deeper extension in small to mid-size rooms due to room gain.

Is it powerful enough for home theater?

Yes. The amplifier delivers 2,000W continuous power (5,000+W peak) for high SPL and room-pressurizing low-frequency effects with control.

Can it be used for music-focused stereo systems?

Absolutely. The sealed alignment and DSP tools help it blend smoothly with speakers, adding depth and detail without sounding slow or boomy.

What connections does it support?

It includes RCA line level and balanced XLR inputs/outputs, plus LFE connection support commonly used with AV receivers.

Can I control it from my phone?

Yes. The SVS Subwoofer Control App (Bluetooth) works with iOS, Android, and Amazon Fire, offering control over PEQs, presets, phase/polarity, and more.

Does it work with control systems or automation?

It supports a 3.5mm trigger input (3–12V AC/DC) and a 3.5mm IR input for integration with control systems (powered IR repeater required).

What comes in the box?

Included are the protective grille, iso-elastomer feet, a heavy-duty 6-foot power cord, and a Quick Start Guide.

SVS SB-5000 R Downloads:

SVS SB5000 R Quick Start Guide

SVS SB5000 R Subwoofer Owners Manual
