Klipsch RP-1200SW Subwoofer - 12" 800-watts Subwoofer

Klipsch RP-1200SW 12" High Excursion Subwoofer

The Klipsch RP-1200SW is a 12-inch high excursion powered subwoofer built for serious home theater impact and tight, musical low end. The Klipsch RP-1200SW is part of the Reference Premiere II Series. A front-firing 12" ultra-long-throw Cerametallic™ woofer pairs with a high-efficiency Class D amplifier with an analog preamp stage to deliver deep extension, high output, and clean detail—whether you’re chasing cinematic slam or accurate bass lines. Its bass reflex cabinet with a front-firing Aerofoil slot port helps keep bass crisp and controlled while giving you flexible placement options. For easy integration, it includes dual RCA/LFE inputs, onboard tuning controls, and a WA-2 wireless port (wireless kit sold separately) for cleaner installs.

What It’s Good At:

• Delivering deep, room-filling bass with extension down to 16.5Hz for movies, games, and music
• Producing high output and impact (up to 121dB) while staying detailed and controlled
• Blending smoothly with your system using low-pass crossover and 0/180° phase adjustment
• Easy home theater integration via LFE and dual RCA line inputs

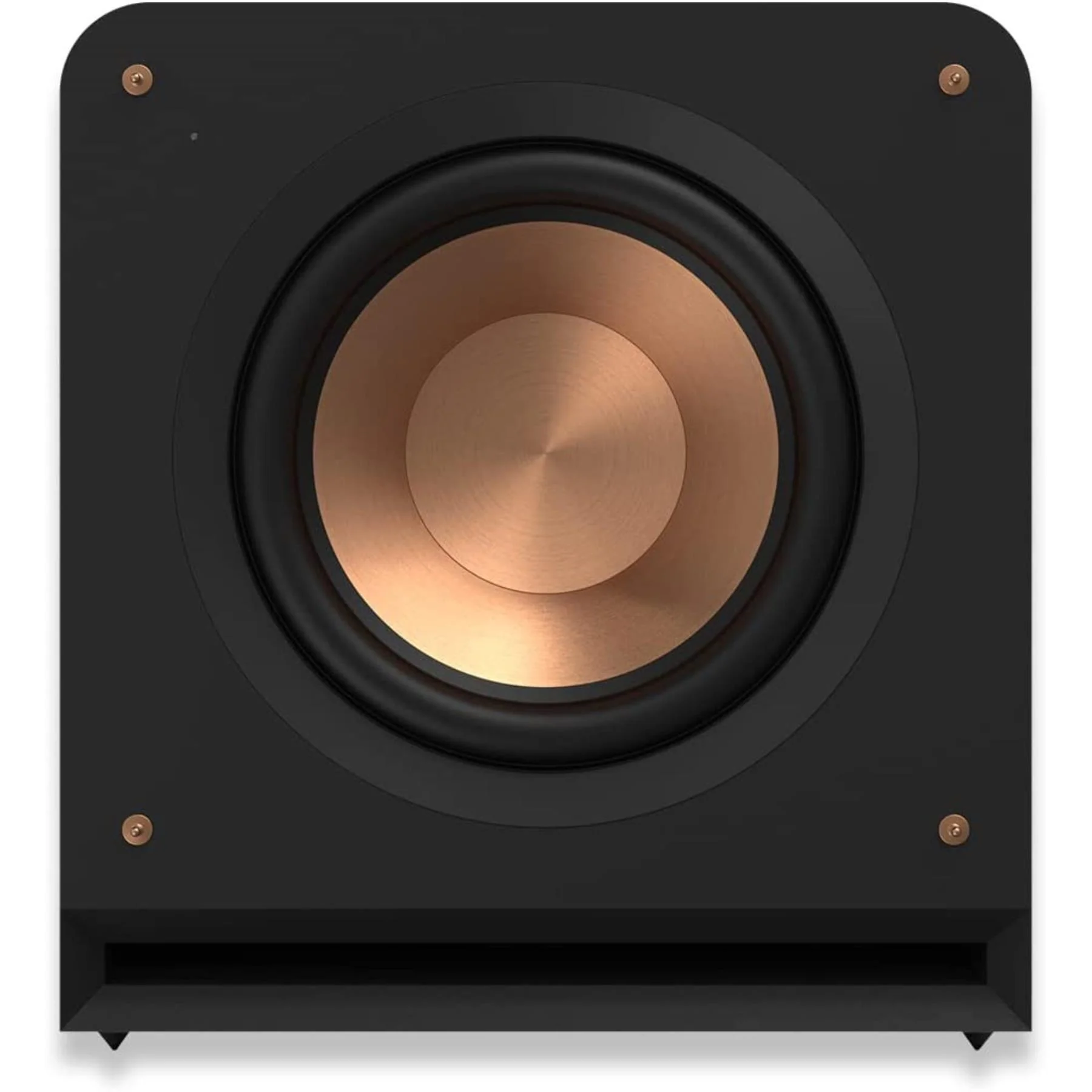

• Flexible placement thanks to a front-firing driver and front slot port design
• Cleaner setups with optional WA-2 wireless capability, including multi-sub wireless possibilities

Performance: The Klipsch RP-1200SW Subwoofer delivers thunderous and precise low-frequency performance, elevating your audio to new heights. Its redesigned Cerametallic woofers and high-efficiency Class D amplifier produce clean, powerful bass that outperforms the competition. With this subwoofer, you'll experience immersive sound that's rich in detail and depth.

Complete Your Home Theater Setup: If you're looking at getting a complete Klipsch Reference Premiere home theater system, ListenUp Klipsch experts recommend pairing the RP-1200SW with the RP-8000F II Floorstanding Speakers, the RP-504C II Center Channel, the RP-502S II Surround Speakers, and the RP-600M II Bookshelf Speakers.

Klipsch RP-1200SW 12" High Excursion Subwoofer Full Specifications:

• Series: Reference Premiere II
• Model: Klipsch RP-1200SW
• Type: Powered subwoofer / 12" High Excursion Subwoofer
• Frequency Response: 16.5Hz – 138Hz (±3dB)
• Maximum Acoustic Output: 121dB
• Amplifier Type: Class D with Analog Preamp Stage
• Amplifier Power: 400W RMS / 800W Peak
• Woofer: 12" Ultra Long Throw Cerametallic™ (front-firing)
• Enclosure Material: MDF
• Enclosure Type: Bass reflex via front-firing Aerofoil slot port
• Inputs: Dual RCA/LFE Line In, WA-2 Wireless Port
• Input Use: RCA and wireless inputs can be used simultaneously
• Controls / Adjustments:
  • Level (Gain) control
  • Lowpass (crossover) control (manual guidance includes Lowpass to 160Hz when using receiver crossover)
  • Phase: 0° / 180°
  • Power switch: AUTO / ON / OFF
  • Auto standby behavior: enters standby after 15–20 minutes with no signal (Auto mode)
  • Power LED indicator: front baffle; green when on and receiving signal
• Standby Power: 1/2-watt standby mode
• Wireless Ready: Compatible with Klipsch WA-2 Wireless Subwoofer Kit (sold separately)
  • WA-2 operates as a 2.4 GHz wireless solution designed to transmit up to a 50-foot radius
  • Supports connecting up to four WA-2 kits to compatible subwoofers in a single room (for wireless connectivity)
• Finish: Ebony Vinyl (scratch-resistant, wood-like appearance)
• Design Details: Rounded corners, shock-absorbing rubber feet, steel grille posts, durable woven cloth grille
• Dimensions (H x W x D): 18.89" x 17.00" x 25.92" (48 cm x 43.2 cm x 65.8 cm)
• Weight: 68.6 lbs (31.1 kg)
• Warranty: 5-year warranty

Klipsch RP-1200SW Q&A:

What makes the RP-1200SW a strong home theater subwoofer?

It combines a 12" ultra-long-throw Cerametallic™ driver with a 400W RMS / 800W peak Class D amplifier to deliver deep extension down to 16.5Hz and high output up to 121dB for cinematic impact.

How do I connect the RP-1200SW to an AV receiver?

Use the receiver’s subwoofer/LFE output into the subwoofer’s L/LFE input, or connect left/right pre-outs to the L/LFE and R inputs when needed.

Does the RP-1200SW support wireless connectivity?

Yes. It includes a WA-2 wireless port for the optional Klipsch WA-2 Wireless Subwoofer Kit (sold separately), allowing easier placement without running a long cable.

Can I use both wired and wireless inputs at the same time?

Yes. The design allows RCA and wireless inputs to be used simultaneously, which can be useful if you want one subwoofer available to more than one system in the same room.

What do the low-pass and phase controls do?

The Lowpass control helps blend the subwoofer with your speakers by setting where bass hands off, while the 0/180° phase switch helps align bass timing for stronger, smoother response at your listening position.

What is Auto standby and how does it work?

In AUTO, the subwoofer turns on when it senses a signal and drops into standby after about 15–20 minutes without a signal for convenient everyday use.

Is placement easier with this subwoofer design?

Yes. The front-firing driver and front Aerofoil slot port support flexible placement while helping keep bass clean and controlled.

What are the size and weight for planning cabinet or room placement?

The cabinet measures 18.89" (H) x 17.00" (W) x 25.92" (D) and weighs 68.6 lbs, so plan for a stable surface and enough clearance for easy access to controls and connections.
