SVS Prime Satellite Speakers

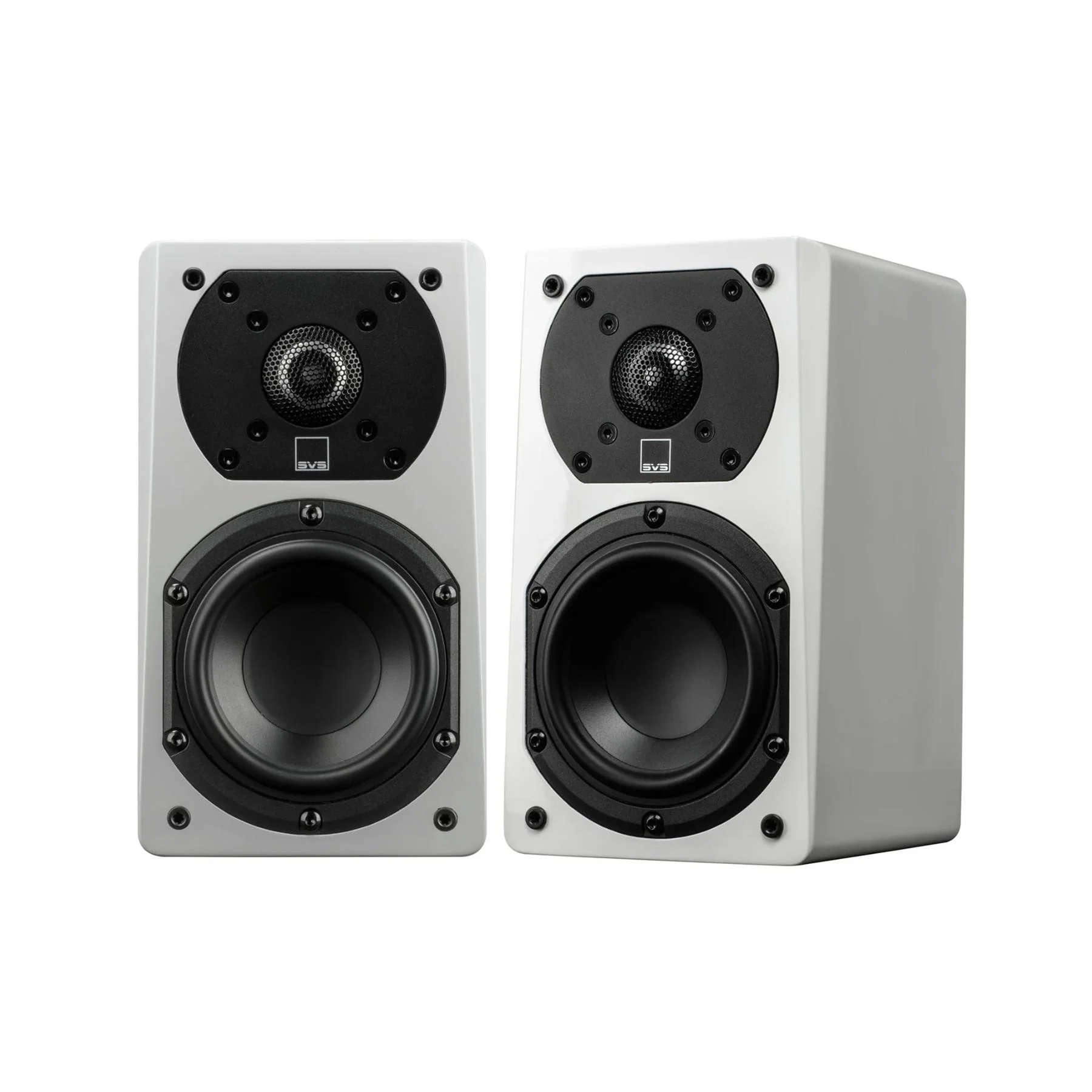

SVS Prime Satellite Speaker

The SVS Prime Satellite is a compact, high-performance satellite speaker that behaves like a true small bookshelf speaker—delivering crisp dialogue, detailed music playback, and surprisingly dynamic output for home theater and stereo systems. Designed to blend seamlessly with SVS Prime and Ultra speakers (and neutral enough to match many other brands), it’s an ideal choice for 5.1/7.1 surround sound as front L/R with a subwoofer, side/rear surrounds, or even as versatile small-room mains. A rigid, resonance-resistant cabinet, precision SoundMatch crossover, and premium driver design help create a wide soundstage with accurate imaging—whether the speaker is placed on a stand, shelf, or mounted to the wall.

What It's Good At:

• Delivering big, room-filling detail from a truly compact satellite speaker cabinet
• Creating pinpoint imaging and an expansive soundstage for surround sound and stereo
• Crisp, intelligible dialogue and clean effects placement in home theater systems
• Flexible placement: shelf/stand-friendly and purpose-built for easy wall mounting
• Seamless blending with SVS Prime/Ultra systems (and neutral matching with other brands)
• Handling real-world dynamics with premium drivers, a refined crossover, and a resonance-controlled cabinet

SVS Prime Satellite Speaker Full Specifications:

• Speaker type: Satellite loudspeaker / compact bookshelf speaker
• Finish options: Piano Gloss Black, Piano Gloss White, Premium Black Ash
• Tweeter: 1" aluminum dome tweeter with FEA-optimized diffuser
• Woofer / mid-woofer: 4.5" woofer with polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket, and vented voice coil former
• Frequency response (rated bandwidth): 69 Hz – 25 kHz (±3 dB)
• Nominal impedance: 8 ohms
• Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300–3kHz)
• Recommended amplifier power: 20 – 150 watts
• Porting: 1" wide-flared rear-firing port
• Inputs / terminals: Single set of (gold-plated) 5-way binding posts
• Grille: Cloth grille with pin/cup retention system; acoustically transparent, FEA-optimized grille design to minimize diffraction
• Mounting: Keyway/keyhole bracket for wall mounting (includes extra bumper pads for wall stand-off)
• Feet: Elastomer stick-on bumper feet (adds 3 mm to height)
• Cabinet engineering highlights:
  • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis high-frequency response
  • FEA-optimized cabinet and internal bracing to reduce resonances
• Cabinet dimensions: 8.75" (H) × 4.9" (W) × 5.53" (D)
• Overall dimensions: 8.85" (H) × 4.9" (W) × 6.3" (D) (includes grille, bracket, binding posts, and bumper feet)
• Weight (unboxed): 6.5 lb
• Crossover network: SoundMatch 2-way crossover with premium-grade capacitors, air-core inductors, heavy-trace PCBs; designed for phase coherency and time-domain performance
• Crossover point: Tweeter-to-woofer crossover at 2.3 kHz (12 dB/octave slopes)

SVS Prime Satellite Speaker Q&A:

What is the SVS Prime Satellite best used for in a home theater system?

It works exceptionally well as surround speakers in a 5.1/7.1 setup, and it can also serve as front left/right speakers when paired with a subwoofer for deeper bass.

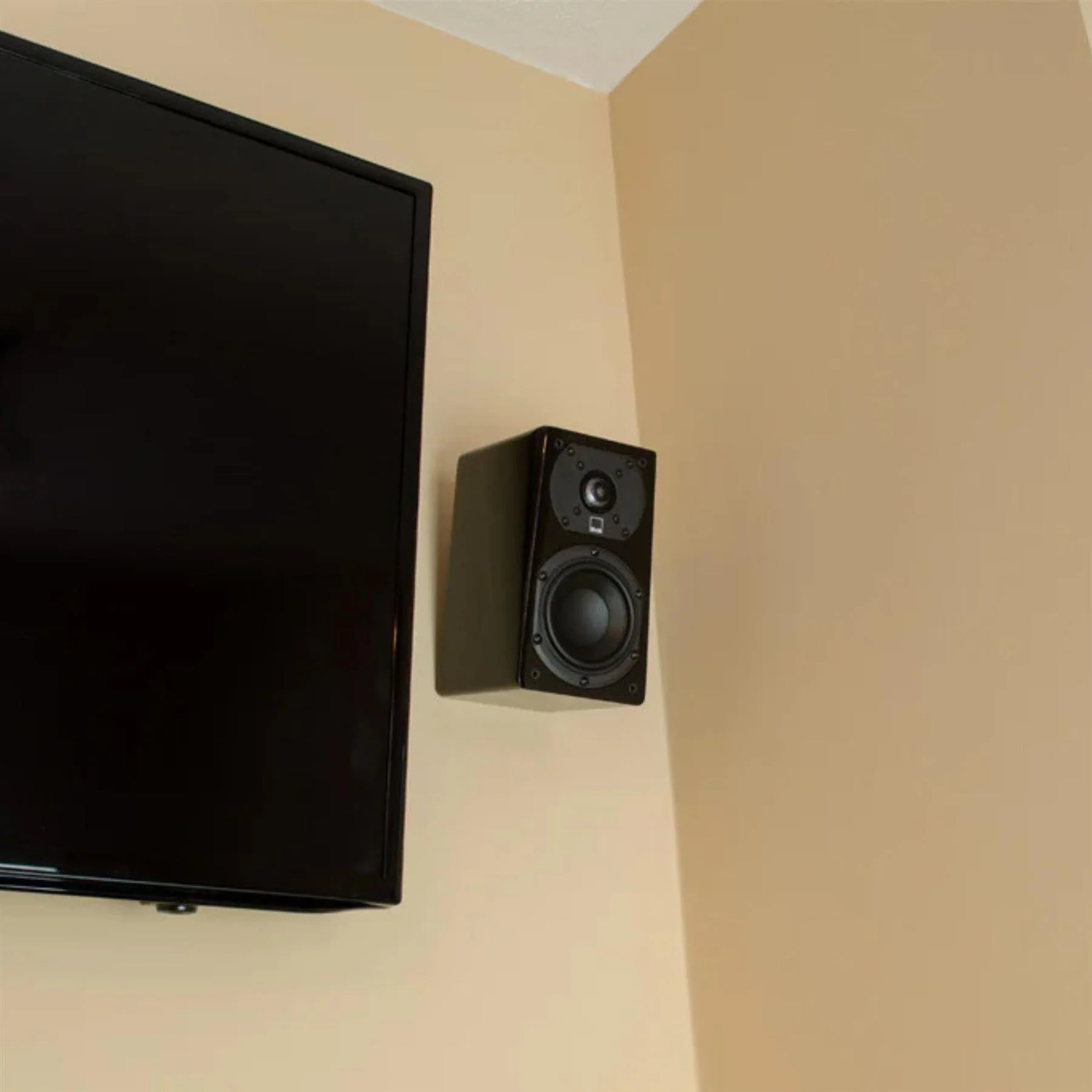

Can the Prime Satellite be wall-mounted?

Yes. It includes a built-in keyway/keyhole bracket for easy wall mounting, plus extra bumper pads to provide proper wall stand-off and stability.

Does the Prime Satellite need a subwoofer?

For full-range impact in movies and music, a subwoofer is strongly recommended since the rated bandwidth begins at 69 Hz; pairing it with a subwoofer fills in the lowest bass for a complete system.

What kind of amplifier or receiver power is recommended?

SVS recommends 20–150 watts of amplifier power, making it an easy match with most AV receivers and many stereo amps.

Will these speakers match with non-SVS speakers?

Yes. The Prime Satellite is voiced to be neutral and integrates smoothly with many other brands, which helps when building or upgrading a mixed-speaker home theater.

What connections do the speakers use?

They use a single set of 5-way binding posts, compatible with banana plugs, spades, pins, or bare wire.

How large are the Prime Satellite speakers?

The overall dimensions are 8.85" (H) × 4.9" (W) × 6.3" (D), including the grille, bracket, binding posts, and bumper feet.

What finishes are available?

Finish options include Piano Gloss Black, Piano Gloss White, and Premium Black Ash.

SVS Prime Satellite Speaker Downloads:

SVS Prime Satellite Speaker Manual
