SVS Prime Pinnacle Floor Standing Speaker

SVS Prime Pinnacle Tower Speaker

Built to deliver true full-range performance without the bulk of traditional floorstanders, the SVS Prime Pinnacle combines audiophile-grade refinement with the scale and punch home theater demands. Its 3-way driver array (a 1" aluminum-dome tweeter, 5.25" glass-fiber midrange, and three 6.5" woofers) is engineered for seamless handoffs across the frequency spectrum, so vocals lock in, instruments stay textured, and effects hit with effortless dynamics. A triple rear-ported cabinet and SoundMatch 3-Way Crossover help the speaker play loud, clean, and controlled—ideal for two-channel listening, immersive surround systems, or anyone chasing big-room sound from a slim tower design. The SVS Prime Pinnacle Tower Speakers are part of ListenUp's SVS Floor Standing Tower Speakers Collection.

What It’s Good At:

• Deep, room-energizing bass from a slim tower thanks to triple 6.5" woofers and triple rear ports
• Clear, realistic vocals and instruments with a dedicated 5.25" composite glass-fiber midrange driver
• Crisp, detailed highs with wide dispersion from a 1" aluminum-dome tweeter with an FEA-optimized diffuser
• Seamless driver blending and a wide “sweet spot” using a precisely tuned 3-way SoundMatch crossover network
• High output and cinematic dynamics without strain for action movies, concerts, and reference-level listening
• Premium build and resonance control using advanced bracing, sub-enclosures, and diffraction-reducing design details

SVS Prime Pinnacle Tower Speaker Full Specifications:

• Rated bandwidth: 29 Hz–25 kHz (±3 dB)
• Nominal impedance: 8 ohms
• Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300–3kHz)
• Recommended amplifier power: 20–300 watts
• Finish options: Premium Black Ash; Piano Gloss Black

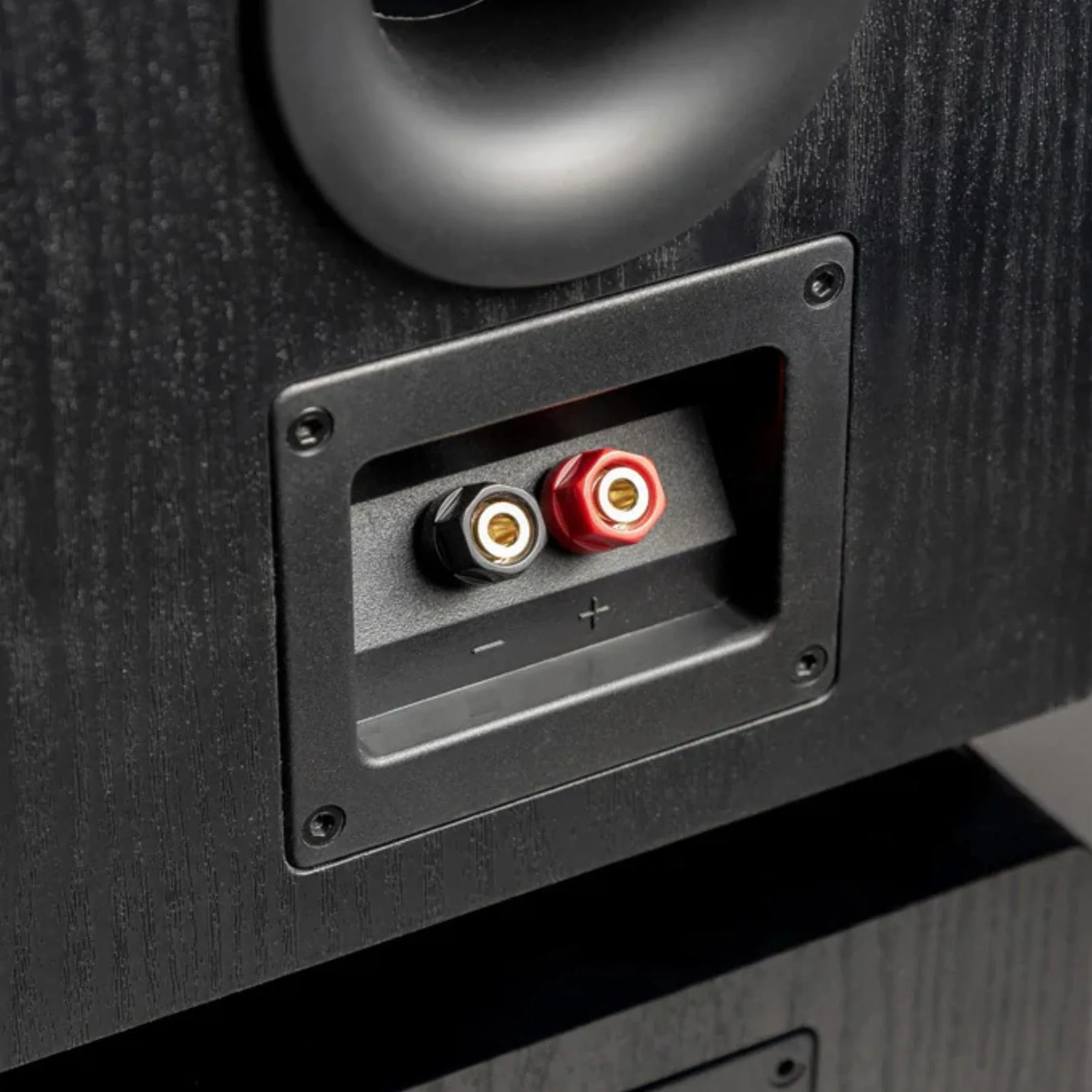

• Terminals: 5-way binding posts

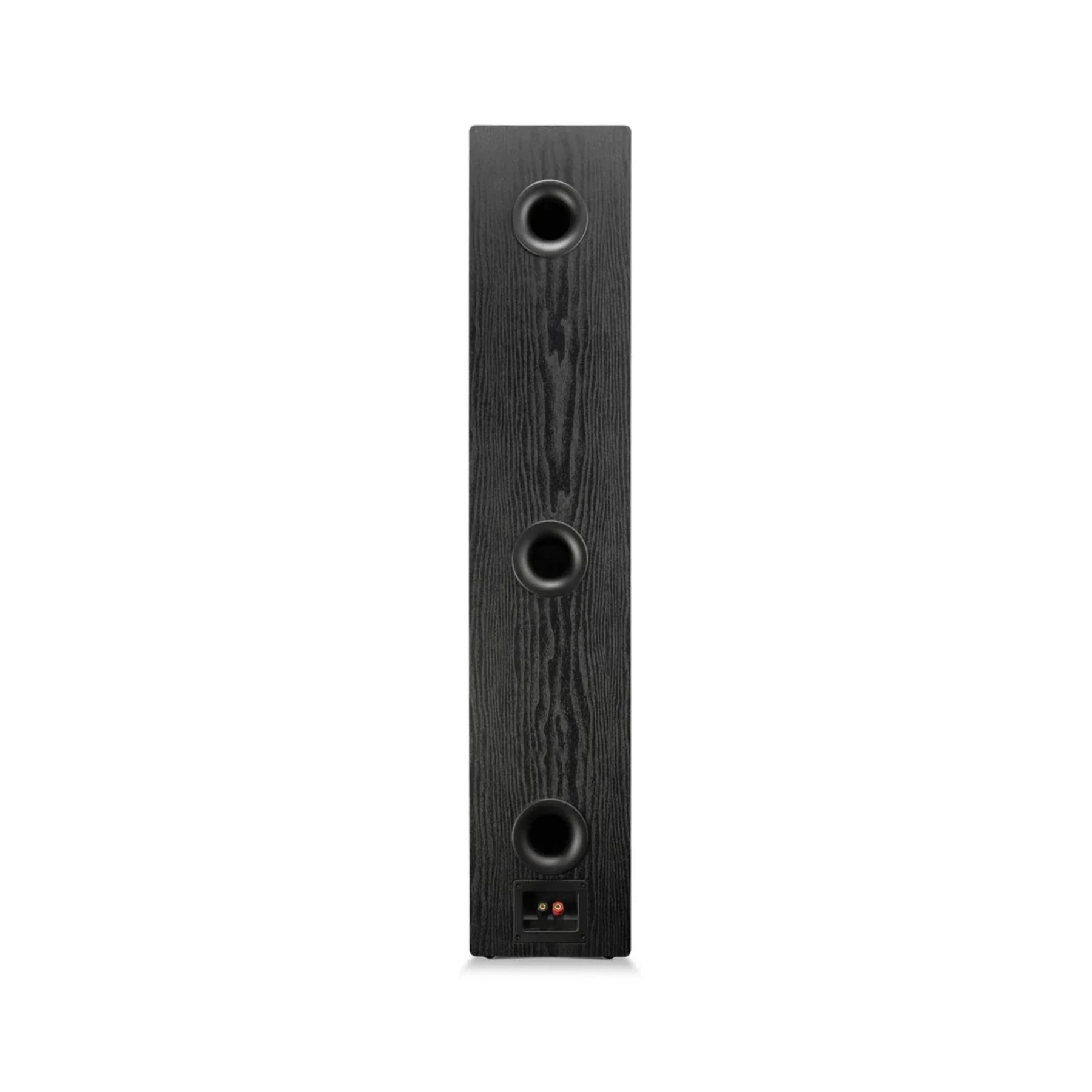

• Ports: Triple 2" wide-flared rear-firing ports
• Grille: Cloth grille with pin/cup retention system
• Cabinet dimensions: 40.5" (H) x 8" (W) x 13.4" (D)
• Overall dimensions: 41.1" (H) x 8" (W) x 13.9" (D) (includes grille, feet and binding posts)
• Weight packaged: 66 lbs (29.9 kg)
• Weight unboxed: 57.1 lbs (25.9 kg)

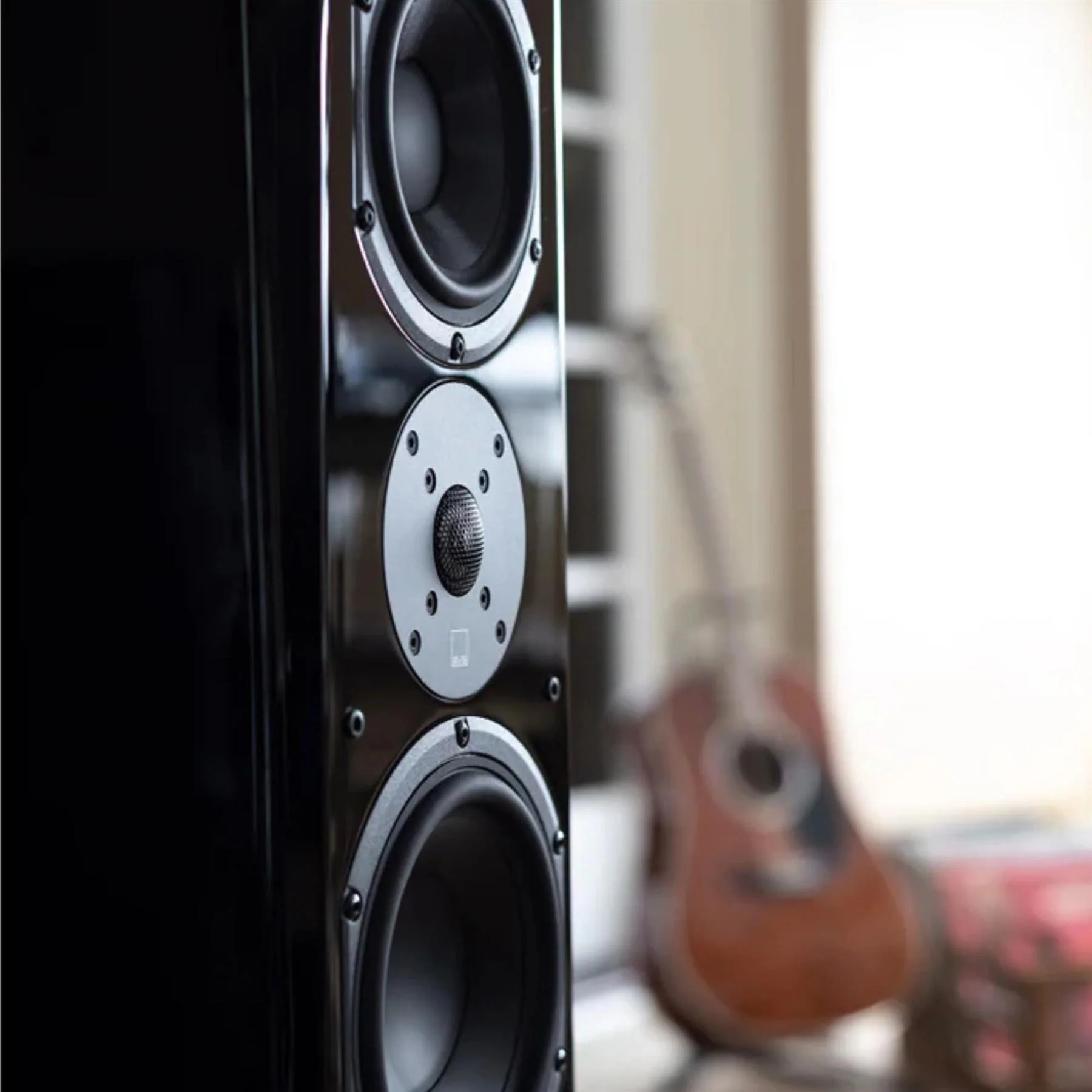

• Tweeter: 1" aluminum-dome tweeter with FEA-optimized diffuser
• Midrange: 5.25" midrange with composite glass-fiber cone, aluminum shorting ring, cast ABS-fiberglass composite basket, and vented voice coil former
• Woofers: Triple 6.5" woofers with long-stroke motor and suspension, polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket, and vented voice coil former
• SoundMatch crossover network: 3-way crossover with premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards
• 2-piece PCB design: Reduces component interference
• Tweeter-to-midrange crossover: 2.1kHz (12 dB/octave slopes)
• Midrange-to-woofer crossover: 300Hz (12 dB/octave slopes)
• Sealed midrange enclosure: Angled bracing diffuses and shifts standing waves beyond the driver pass band for improved sound quality
• Separate woofer enclosures: Three enclosures with optimized port tuning frequencies for smooth, accurate bass response
• FEA-optimized grilles: Acoustically transparent to minimize diffraction
• Diffraction control: Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis high frequency response
• Resonance control: FEA-optimized cabinet and angled bracing eliminates resonances and improves rigidity for an acoustically inert enclosure

SVS Prime Pinnacle Tower Speaker Q&A:

Is the SVS Prime Pinnacle a good choice for both music and home theater?

Yes—its 3-way design is voiced for audiophile musical detail while also delivering the dynamic output and bass impact needed for movies and surround sound systems.

How deep does the Prime Pinnacle play without a subwoofer?

It’s rated to 29 Hz (±3 dB), providing substantial low-end for full-range stereo listening, though a subwoofer can still add more ultra-low bass for large rooms or maximum home theater impact.

What amplifier power works best with these tower speakers?

SVS recommends 20–300 watts, giving you flexibility—from quality AV receivers to dedicated power amps—depending on room size and listening volume.

Are they difficult to drive?

With a nominal 8-ohm load and 88 dB sensitivity, they’re generally amp-friendly while still benefiting from clean power for peak dynamics.

What’s the driver configuration?

It uses a 1" aluminum-dome tweeter, a 5.25" composite glass-fiber midrange, and three 6.5" woofers for a true 3-way floorstanding design.

Why does it have three rear ports?

The triple rear-ported design supports strong bass output while keeping the cabinet slim, and the internal layout is engineered to keep bass smooth and controlled.

What are the size and weight details?

Overall dimensions are 41.1" x 8" x 13.9" (including grille/feet/posts), and the speaker weighs 57.1 lbs unboxed.

What finishes are available?

It comes in Premium Black Ash or Piano Gloss Black.

SVS Prime Pinnacle Tower Speaker Downloads:

SVS Prime Pinnacle Owner's Manual
