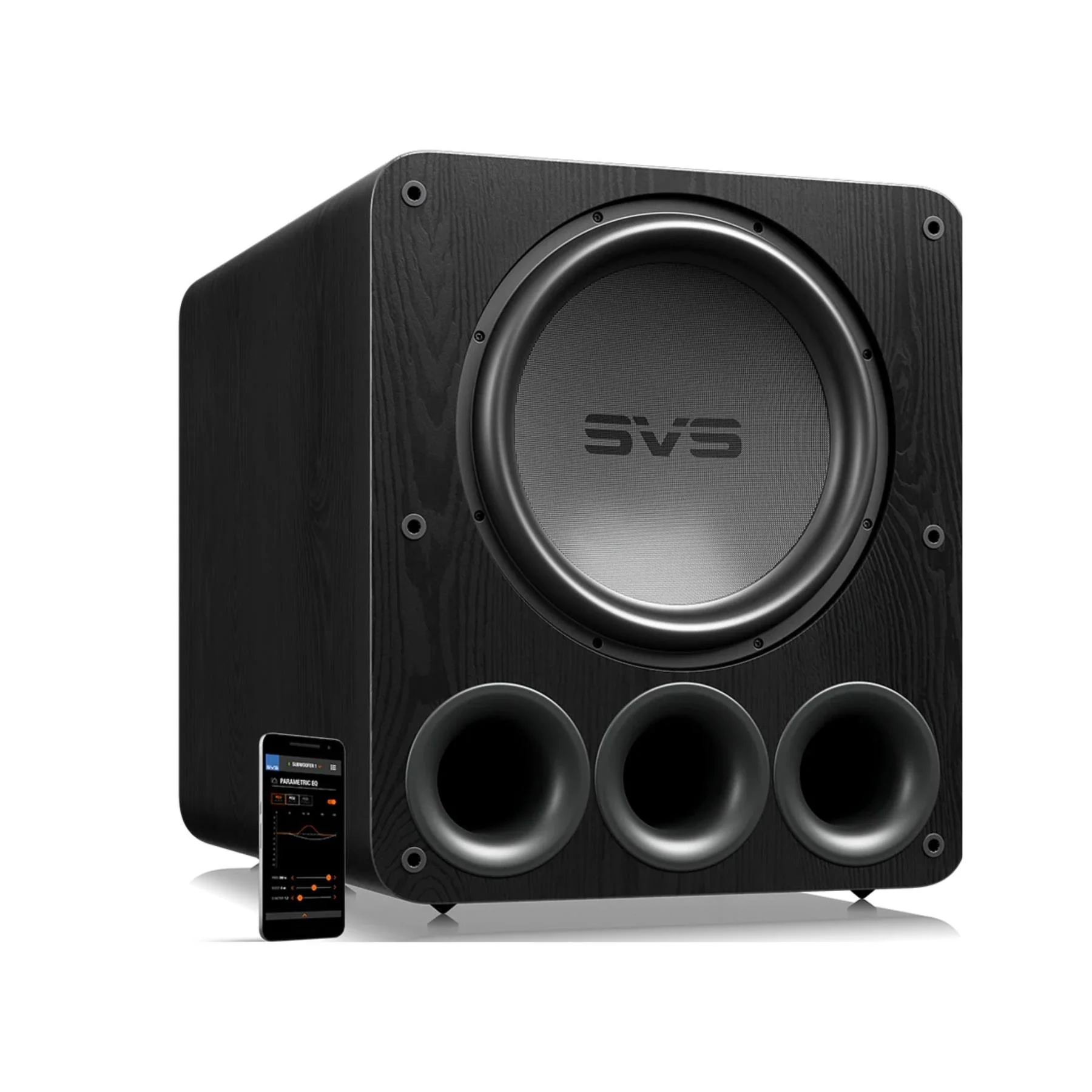

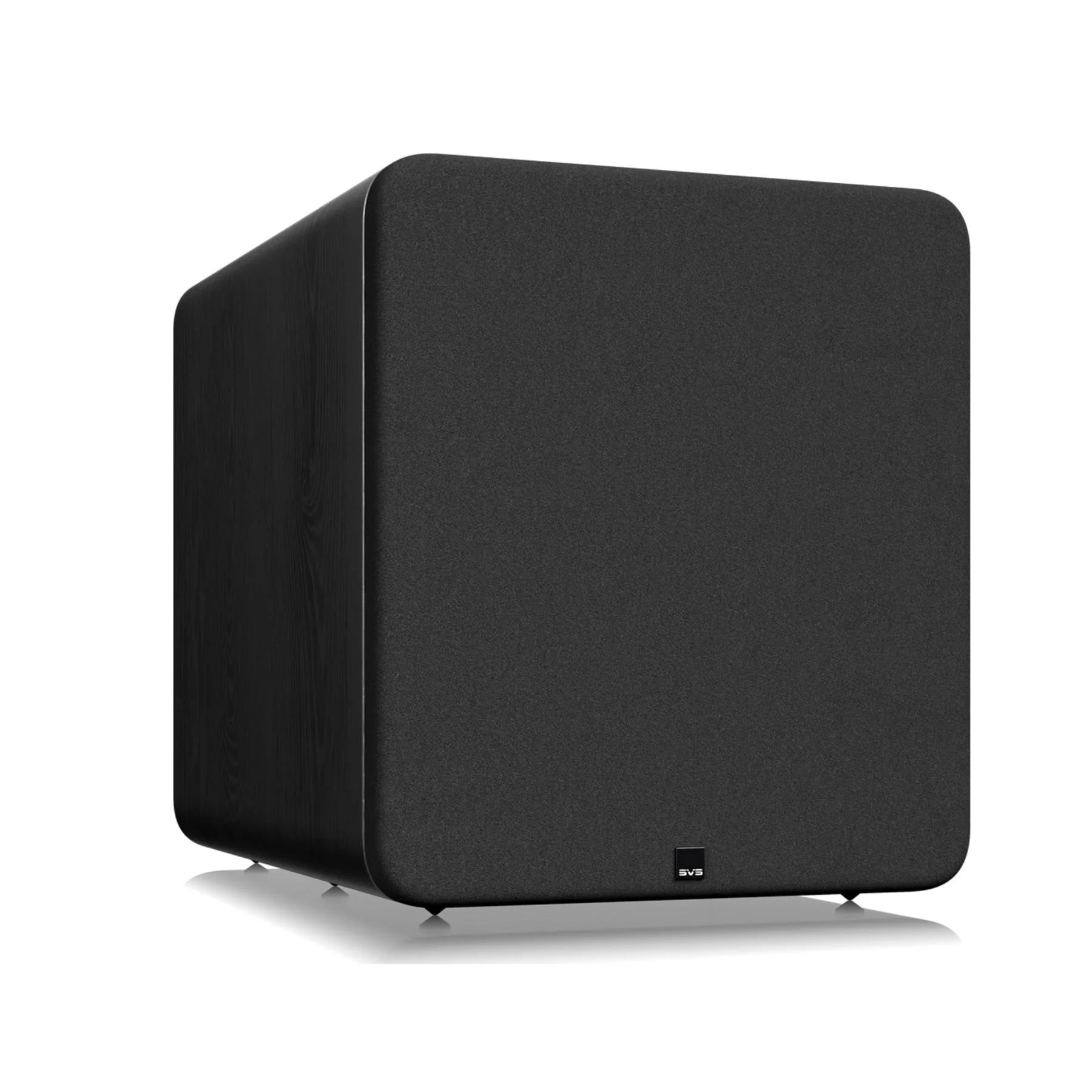

SVS PB-5000 R|Evolution Ported Subwoofer

SVS PB-5000 R|Evolution Subwoofer

The SVS PB-5000 R|Evolution is a reference-grade ported subwoofer engineered to deliver seismic home theater impact with the speed, texture, and control demanded by serious music listening. With a triple-ported cabinet and extension that reaches a staggering 13Hz (extended mode), it pressurizes medium-to-large rooms with effortless slam while keeping bass lines tight, layered, and precise. Power comes from a conservatively rated 2,000W RMS (5,000+W peak) Class D dual monoblock amplifier driving a reimagined 15-inch high-excursion driver with dual edge-wound voice coils, enabling extreme SPLs without strain. A powerhouse 295MHz DSP keeps response accurate and distortion low, and the SVS Subwoofer Control App adds seat-side tuning, personalization, and advanced control so you can optimize performance for movies, music, and everything in between. The PB-5000 R is part of ListenUp's SVS Ported Subwoofer Collection.

What It's Good At:

• Delivering ultra-deep, room-energizing bass down to 13Hz for true cinematic impact
• Producing high-output, low-distortion SPL with confident control at demanding volumes
• Blending seamlessly with speakers for clean, musical bass with excellent detail and texture
• Offering advanced app-based tuning (plus onboard controls) for fast setup and precise room optimization
• Supporting flexible system integration with RCA and balanced XLR inputs/outputs, plus trigger and IR control
• Adapting to different listening goals with multiple operating modes (standard, extended, sealed)

SVS PB-5000 R Full Specifications:

• Model: SVS PB-5000 R|Evolution (ported subwoofer, triple-ported cabinet)
• Driver: 15" high-excursion driver
  • Dual edge-wound voice coils (dual voice coil design)
  • 15" glass fiber composite cone
  • Two-piece toroidal ferrite electromagnetic motor
  • Extreme-excursion catenary SBR surround
  • Six-layer bi-filar dual voice coils; flat edge-wound aluminum coil wire
• Amplifier: STA-2000D dual monoblock amplifier platform
  • 2,000 watts RMS (continuous)
  • 5,000+ watts peak
  • Class D; discrete MOSFET output stage
  • Each monoblock drives one voice coil
• DSP / Processing: 295MHz Analog Devices DSP
• Frequency Response (±3 dB):
  • Standard mode: 15–180 Hz
  • Extended mode: 13–180 Hz
  • Sealed mode: 16–270 Hz
• Dimensions (H × W × D): 23.4" × 20.5" × 28.7"
• Control:
  • SVS Subwoofer Control App (iOS/Android) with advanced control access
  • Rear-panel Intelligent Control Interface (ICI) with OLED display
  • Menu navigation: Volume > Low Pass Filter Frequency > Phase > Power Mode > Flip Display > BT Lock (if enabled) > Firmware Version > Factory Reset
• Connections / I/O:
  • RCA line level inputs and outputs (L/R)
  • Balanced XLR line level inputs and outputs (L/R)
  • 3V–12V trigger input (AC/DC)
  • 3.5mm IR input (powered IR repeater required; NEC format commands)
  • USB Type-A port (firmware updates; powers USB devices such as SVS SoundPath Wireless Audio Adapter receiver)
  • On/Off switch; AC power cord receptacle
• Power Requirements: 100–240V ~ 50–60Hz, 2000W
• Wireless Option: Compatible with SVS SoundPath Wireless Audio Adapter (sold separately; powered via USB)
• Finishes / Variants: Premium Black Ash; Piano Gloss Black
• Warranty / Trial: 5-Year Unconditional Warranty; 45-Day Risk-Free In-Home Trial; Fast & free shipping/returns (as listed on product page)
• Not specified in provided page/manual text extract: Shipping weight, in-box contents list, grille/cabinet material specifics beyond what’s stated above

SVS PB-5000 R Full Q&A:

How deep does the PB-5000 R|Evolution play?

It reaches down to 13Hz in Extended mode (±3 dB), delivering true subsonic extension for modern movie soundtracks and ultra-low musical fundamentals.

How powerful is the built-in amplifier?

It uses a dual monoblock amplifier rated at 2,000W RMS (continuous) with 5,000+W peak power for high-output performance with controlled behavior.

Does it have an app for setup and tuning?

Yes. The SVS Subwoofer Control App (iOS/Android) provides convenient seat-side adjustments and is the only way to access all advanced control features.

What are the available operating modes?

It supports Standard, Extended, and Sealed modes, each with its own response profile to match room size, output needs, and musical preferences.

What inputs does it support (RCA/XLR)?

It includes both unbalanced RCA and balanced XLR line-level inputs and outputs, making it easy to integrate with AVRs, processors, and stereo preamps.

Can it be controlled by a smart home/automation system?

Yes. It includes a 3.5mm IR input (requires a powered IR repeater and NEC-format commands) and a 3V–12V trigger input for auto power control.

Can I run two PB-5000 R|Evolution subwoofers?

Yes. Dual subs can improve in-room response consistency, reduce peaks/nulls, and increase headroom, and the sub includes outputs that can help with multi-sub integration.

Can I make it wireless?

A wireless connection is possible using the SVS SoundPath Wireless Audio Adapter (sold separately), and the sub’s USB port can power the receiver for a clean installation.

SVS PB-5000 R Downloads:

SVS PB-5000 R Quick Start Guide
SVS PB-5000 R Manual
