Rotel S14 Integrated Music Streamer Amplifier

Rotel S14 Integrated Network Streamer

The Rotel S14 is a true “just-add-speakers” hi-fi hub that combines an integrated amplifier with a full-featured network streamer for effortless, high-performance listening. Built around Rotel’s Class AB amplification and a premium 32-bit ESS DAC, the S14 delivers confident power and refined detail—whether you’re streaming high-resolution music, spinning internet radio, or connecting classic source components.

Enjoy modern streaming the way you want: use your favorite music apps, connect via Ethernet or dual-band Wi-Fi, and take advantage of platform-friendly support including Roon Ready, Spotify Connect, AirPlay 2, and Google Cast (Chromecast built-in). The front color display showcases album artwork and track info, while intuitive setup and the included remote make daily operation simple and satisfying.

Beyond streaming, the S14 is ready for real-world systems with a generous selection of inputs for legacy and digital gear, plus aptX HD/AAC Bluetooth for quick wireless playback. Add a subwoofer via the dedicated sub output, feed an external amp with the pre out, or plug in headphones for private listening—this Rotel is designed to anchor a complete, modern stereo system with minimal clutter and maximum musical enjoyment.

The Rotel S14 is part of ListenUp's Rotel Music Streaming Integrated Amplifiers Collection.

What It's Good At:

• Powering a premium 2-channel system with robust Class AB amplification (150W/ch into 4Ω max output)
• Delivering high-resolution streaming with a 32-bit ESS DAC and support for MQA/MQA Studio decoding
• Seamless multi-platform playback with Roon Ready, Spotify Connect, AirPlay 2, and Google Cast
• Flexible installation with Ethernet and dual-band Wi-Fi networking
• Connecting both modern and legacy sources via digital and analog inputs (plus PC-USB and Bluetooth)
• Enhancing system expandability with pre out and dedicated subwoofer output

Rotel S14 Full Specifications:

• Product Type: Integrated Network Streamer / Integrated Streaming Amplifier
• Maximum Power Output: 150 watts/ch (4 ohms)
• Continuous Power Output: 80 watts/ch (8 ohms)
• Total Harmonic Distortion (THD): < 0.04%
• Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%
• Frequency Response (Line Level Inputs): 10 Hz – 100 kHz, ± 0.5 dB
• Damping Factor (20 Hz – 20 kHz, 8 ohms): 400
• Input Sensitivity / Impedance (Line Level Inputs): 200 mV / 47k ohms
• Input Overload (Line Level Inputs): 4.5 V
• Tone Controls (Bass / Treble): ± 10 dB at 100 Hz / 10 kHz
• Signal to Noise Ratio (IHF A-weighted, Line Level Inputs): 100 dB
• DAC: ESS (premium 32-bit DAC architecture)
• Digital Section Frequency Response: 10 Hz – 90 kHz (0 ± 2 dB, Max)
• Digital Section Signal to Noise Ratio (IHF A-weighted): 98 dB
• Input Sensitivity / Impedance (Digital): -20 dBfs / 75 ohms
• Digital Inputs (Coax/Optical): SPDIF LPCM (up to 24-bit / 192 kHz)
• PC-USB: USB Audio Class 2.0 (up to 24-bit / 384 kHz) *Driver installation required
• MQA Support: Supports MQA and MQA Studio (up to 24-bit / 384 kHz)
• Networking: Ethernet + dual-band Wi-Fi
• Wireless: Bluetooth with aptX HD and AAC
• Streaming Support: Roon Ready, Spotify Connect, AirPlay 2, Google Cast (Chromecast built-in), Internet Radio/Podcasts, and service access via apps (including TIDAL and Qobuz)
• Additional Inputs (for sources): Analog (AUX), Optical, Coaxial, PC-USB, Bluetooth, USB (flash drive playback)

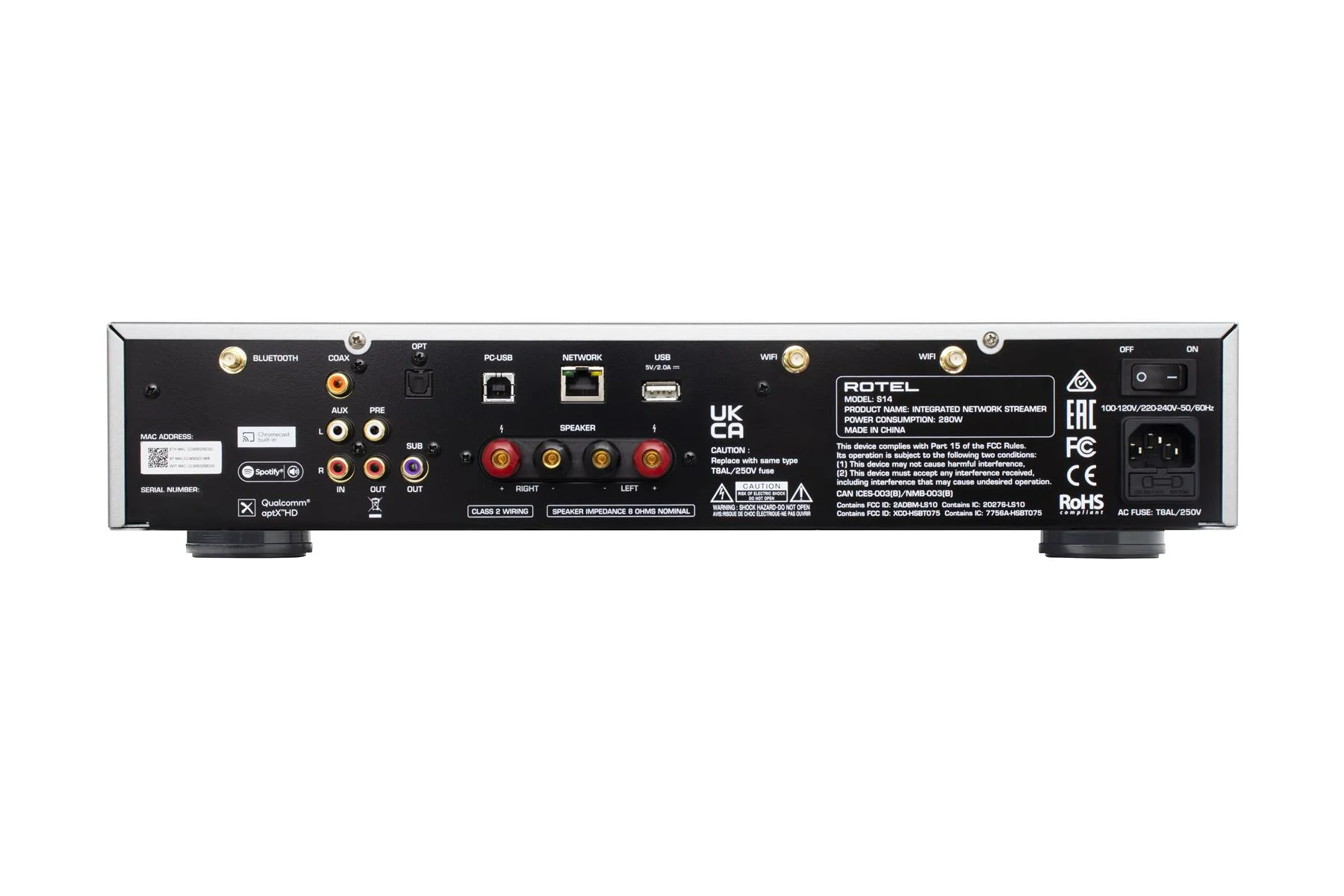

• Outputs: Speaker outputs, Pre Out, Sub Out, Headphone output
• Power Requirements: USA: 120 V, 60 Hz; EC: 230 V, 50 Hz
• Power Consumption: 280 watts
• Standby Power Consumption: < 0.5 watts (Normal)
• BTU (4 ohms, 1/8th power): 733 BTU/h
• Dimensions (W × H × D): 430 × 93 × 345 mm (17" × 3 5/8" × 13 1/2")
• Front Panel Height: 80 mm / 3 1/8"
• Weight (net): 9.15 kg / 20.17 lbs
• Finish: Silver and Black

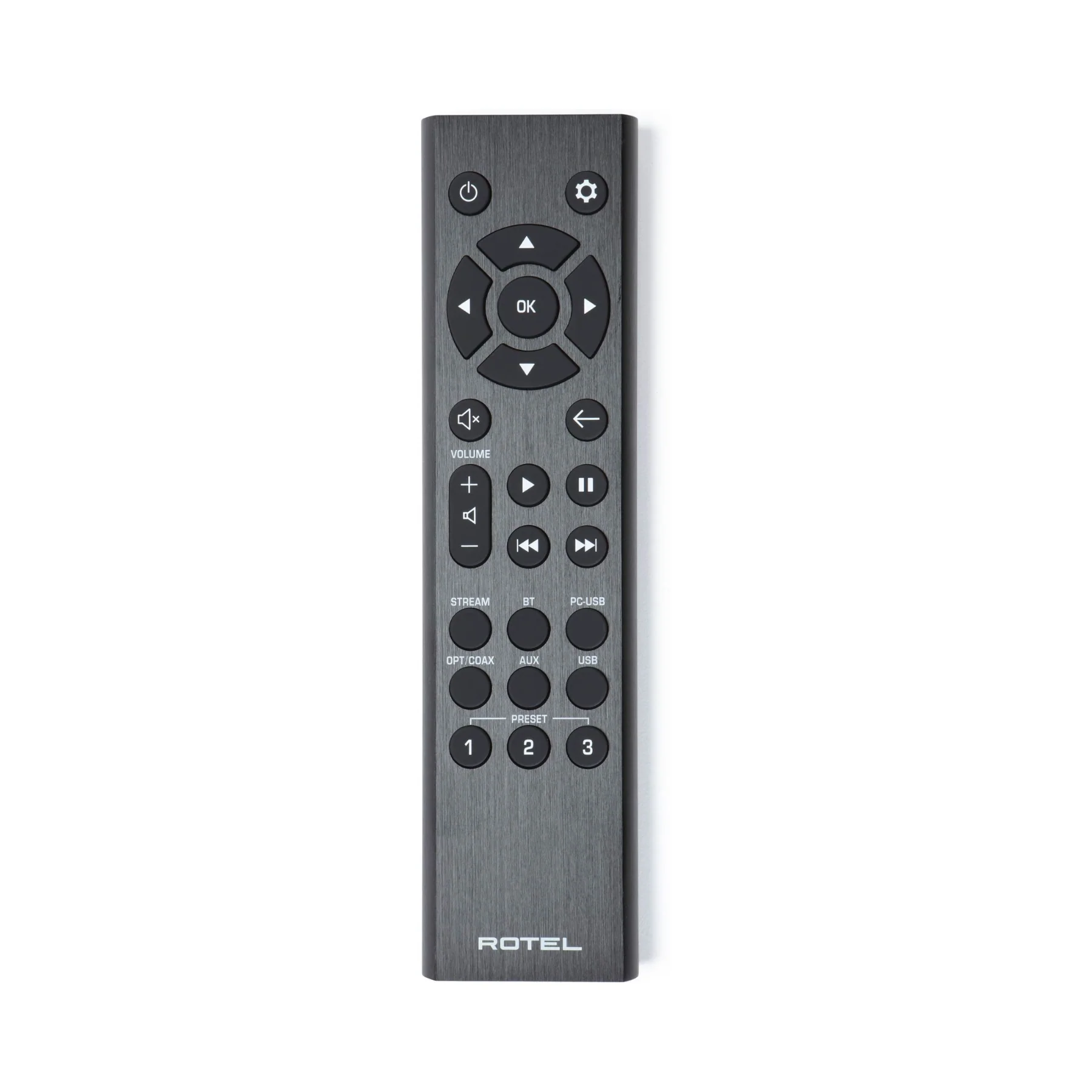

• Included: Remote control

Rotel S14 Q&A:

What is the Rotel S14, and what does it replace in a system?

The S14 combines a stereo integrated amplifier and a network music streamer in one chassis, so you can stream music and power speakers without needing a separate amp or streamer.

How much power does the S14 deliver to speakers?

It provides up to 150 watts per channel into 4 ohms (maximum power output) and 80 watts per channel into 8 ohms (continuous power output).

Which streaming platforms and protocols does the S14 support?

The S14 is Roon Ready and supports Spotify Connect, AirPlay 2, and Google Cast (Chromecast built-in) for easy streaming from many devices and apps.

Can I connect the S14 with Wi-Fi, or does it need Ethernet?

You can use either—connect via hard-wired Ethernet or dual-band Wi-Fi for flexible placement.

Does the S14 play high-resolution audio and MQA?

Yes. It’s designed for high-resolution playback using an ESS DAC and supports MQA and MQA Studio decoding up to 24-bit/384 kHz (where applicable).

What inputs does the S14 have for TVs, CD players, or other gear?

It includes coaxial and optical digital inputs, an analog AUX input, PC-USB, Bluetooth, and USB playback for compatible files on flash drives.

Can I add a subwoofer or expand to external amplification later?

Yes. There’s a dedicated subwoofer output and a pre output for connecting to an external power amp or other downstream equipment.

Is the S14 easy to operate day-to-day?

The front color display shows album artwork and track info, and the included remote plus app control make setup and source switching simple.

Rotel S14 Downloads:

Rotel S14 Manual
Rotel S14 Specifications Sheet
Rotel S14 Drawing
