Klipsch RP-8060FA II Dolby Atmos Floorstanding Speaker

RP-8060FA II Dolby Atmos Floorstanding Speaker

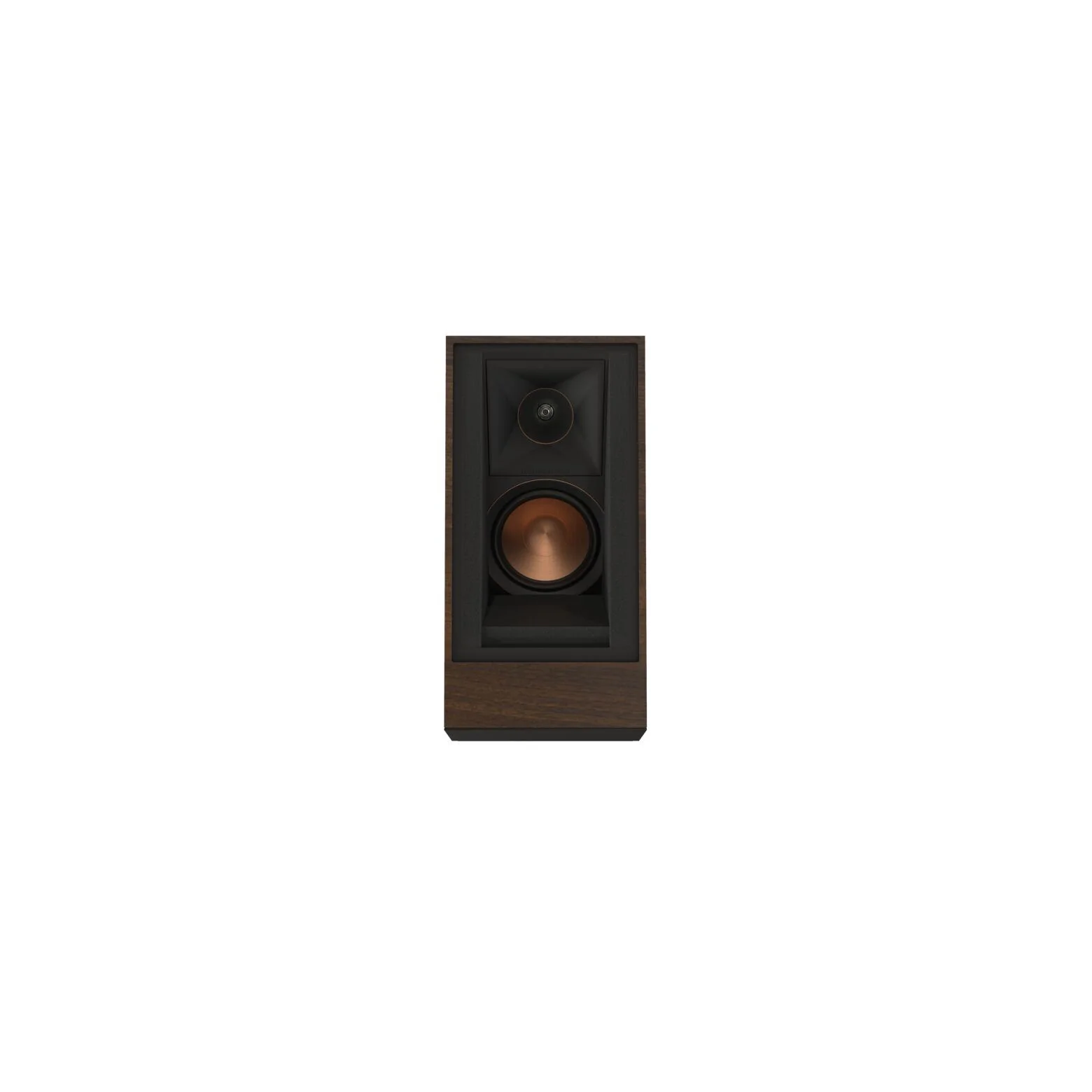

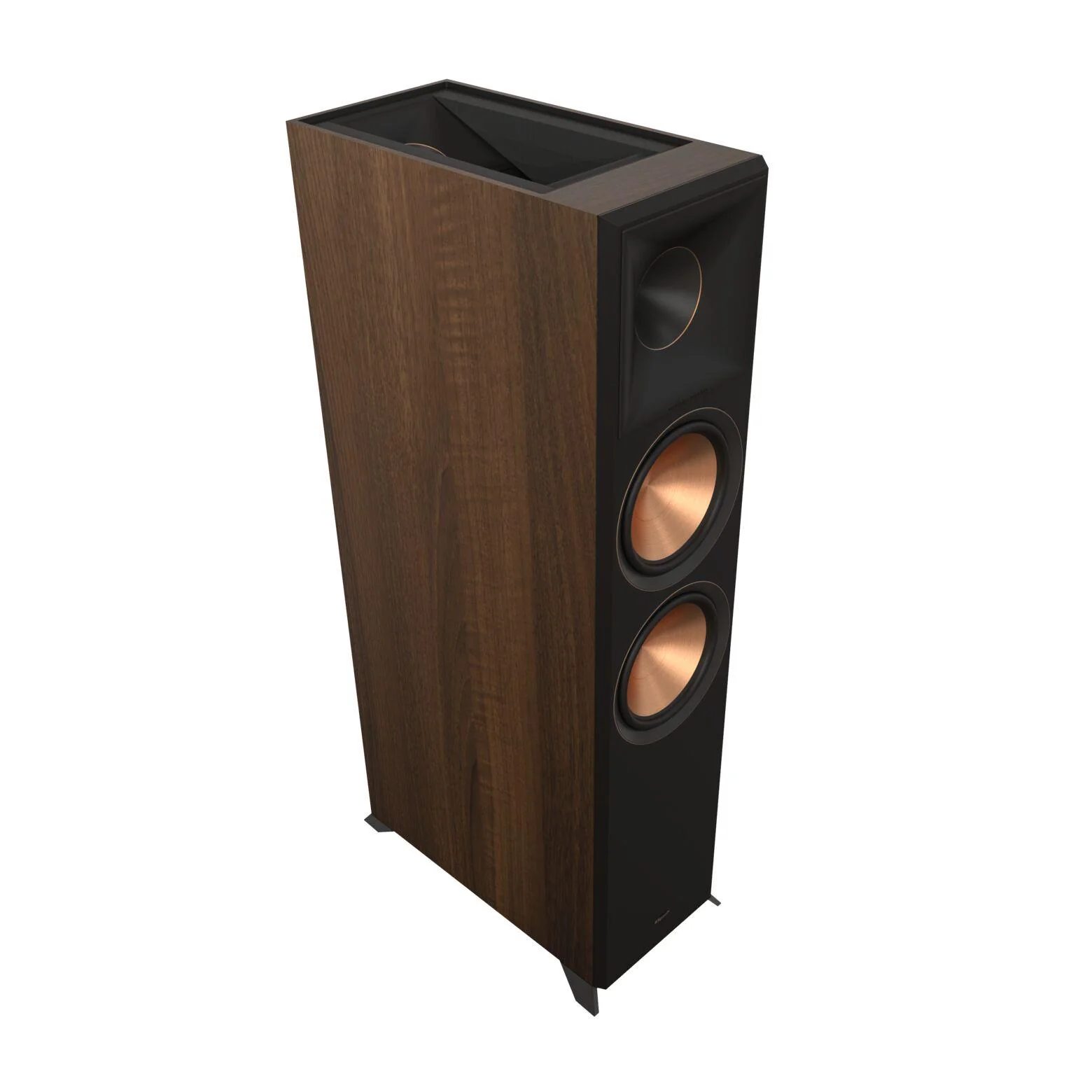

The Klipsch RP-8060FA II is a premium Reference Premiere tower speaker built to deliver a true Dolby Atmos home theater experience without adding separate height modules. A high-performance, 6.5" 2-way up-firing elevation speaker is integrated into the top of each cabinet, creating overhead effects that place sound above and around you for more realistic movies, music, and gaming. For the main channel, Klipsch pairs a larger 90° x 90° silicone composite hybrid Tractrix horn and a 1" LTS titanium vented tweeter for crisp detail and controlled directivity, while dual 8" Cerametallic woofers provide powerful, low-distortion impact. A braced, divided cabinet and rear-firing Tractrix ports reduce resonance and port noise for tighter, cleaner bass. Finished with a scratch-resistant believe, furniture-grade look, plus magnetic grilles and stable feet, the RP-8060FA II is designed to be both a high-output showpiece and a refined, room-friendly upgrade. The Klipsch RP-8060FA II is part of the Reference Premiere II Series.

What It's Good At:

• Creating immersive Dolby Atmos height effects with a built-in up-firing elevation speaker
• Delivering high-efficiency, high-output dynamics for home theater and gaming
• Producing crisp dialogue and detailed highs with a hybrid Tractrix horn and LTS titanium tweeter
• Hitting deep, punchy bass with dual 8" Cerametallic woofers and Tractrix rear ports
• Supporting system tuning and upgrades with bi-wire/bi-amp capable main-channel terminals
• Looking clean and premium in the room with furniture-grade finishes and magnetic grilles

RP-8060FA II Full Specifications:

• Height Channel (Dolby Atmos Elevation)
  • Frequency Response: Conforms to Dolby Atmos Specifications
  • Sensitivity: Conforms to Dolby Atmos Specifications
  • Power Handling: 100W / 400W
  • Nominal Impedance: 8 ohms Compatible
  • Crossover Frequency: 2kHz
  • High Frequency Driver: 1" Titanium LTS Tweeter with Hybrid Tractrix Horn
  • Low Frequency Driver: 6.5" Cerametallic Cone Woofer
  • Enclosure Material: MDF
  • Enclosure Type: Acoustic Suspension
  • Inputs: Single aluminum binding posts
• Main Channel (Tower Speaker)
  • Frequency Response: 35-25kHz +/- 3dB
  • Sensitivity*: 98dB @ 2.83V / 1m*
  • Power Handling (Cont/Peak): 150W / 600W
  • Nominal Impedance: 8 Ohms Compatible
  • Crossover Frequency: 1630Hz
  • High Frequency Driver: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
  • Low Frequency Driver: Dual 8” Cerametallic Cone Woofers with Faraday rings
  • Enclosure Material: MDF (Internally Braced)
  • Enclosure Type: Bass Reflex via dual chamber rear-firing Tractrix® Ports
  • Inputs: Dual aluminum binding posts / bi-wire / bi-amp
• Physical / Finish / In the Box
  • Height (in/mm): 43.11" (109.5 cm)
  • Width (in/mm): 10.84" (27.5 cm)
  • Depth (in/mm): 20.80 (52.8 cm)
  • Product Weight (lb/kg): 75.7 lb (34.35kg)
  • Finish: Ebony, Walnut
  • Included Accessories: Injection molded feet & screws

RP-8060FA II Full Q&A:

What makes the RP-8060FA II different from a standard floorstanding speaker?

It includes a built-in, up-firing Dolby Atmos elevation speaker on top of the tower, so you can add height effects without buying separate Atmos modules.

Do I need special wiring or an AV receiver for Dolby Atmos to work?

For height effects, connect the elevation speaker terminals to an AV receiver’s Atmos/height channels (or an Atmos-capable amplifier channel assignment). The main speaker connects like a normal left/right tower.

Can I use the RP-8060FA II without Atmos and still get great sound?

Yes. The main channel performs as a high-output tower speaker on its own, and you can add the height channels later when you upgrade to an Atmos-capable receiver.

Is this speaker good for large rooms and high volume listening?

Yes. High sensitivity and robust power handling help it play loud with strong dynamics, making it ideal for spacious rooms and cinematic listening levels.

What is bi-wiring/bi-amping, and do I have to use it?

Bi-wiring/bi-amping separates high and low-frequency signal paths for the main channel using the dual binding posts. It’s optional—standard single-wire connection works great.

What kind of bass performance should I expect from the dual 8" woofers?

You’ll get tight, impactful bass with low distortion, enhanced by rear-firing Tractrix ports that help reduce port noise for cleaner low frequencies.

What finishes are available, and will the grilles change the look?

The RP-8060FA II is available in Ebony and Walnut. The grilles are removable and attach magnetically for a clean, modern appearance.

What’s included in the box for setup?

Injection molded feet and screws are included to help stabilize and properly support the tower on your floor.

Klipch RP-8060FA II Downloads:

Klipsch RP-8060FA II Specification Sheet
Klipsch RP-8060FAII User Manual
