Kanto PS300 Single‑Stud Full Motion TV Mount

Kanto PS300 Single‑Stud Full Motion TV Mount - Slim Single‑Stud Full Motion

The Kanto PS300 is a single‑stud full‑motion TV mount that combines strength and versatility for medium‑sized displays. Designed for TVs from 25 to 75 inches and up to 88 pounds, it features a slim profile and a 22 inch extension arm to reach the perfect viewing angle.

This mount swivels up to 90° left or right, tilts +12° forward or −2° back, and provides adjustable horizontal leveling for precise positioning. When retracted, your TV sits just 1.9 inches from the wall. The PS300 includes extension arms to increase VESA compatibility up to 400×400, integrated cable management to keep wires organized, and a convenient hardware kit for simple installation on a single stud.

Key Features

• Single‑stud full motion – Supports 25–75 inch TVs and extends 22 inches (56 cm) from the wall

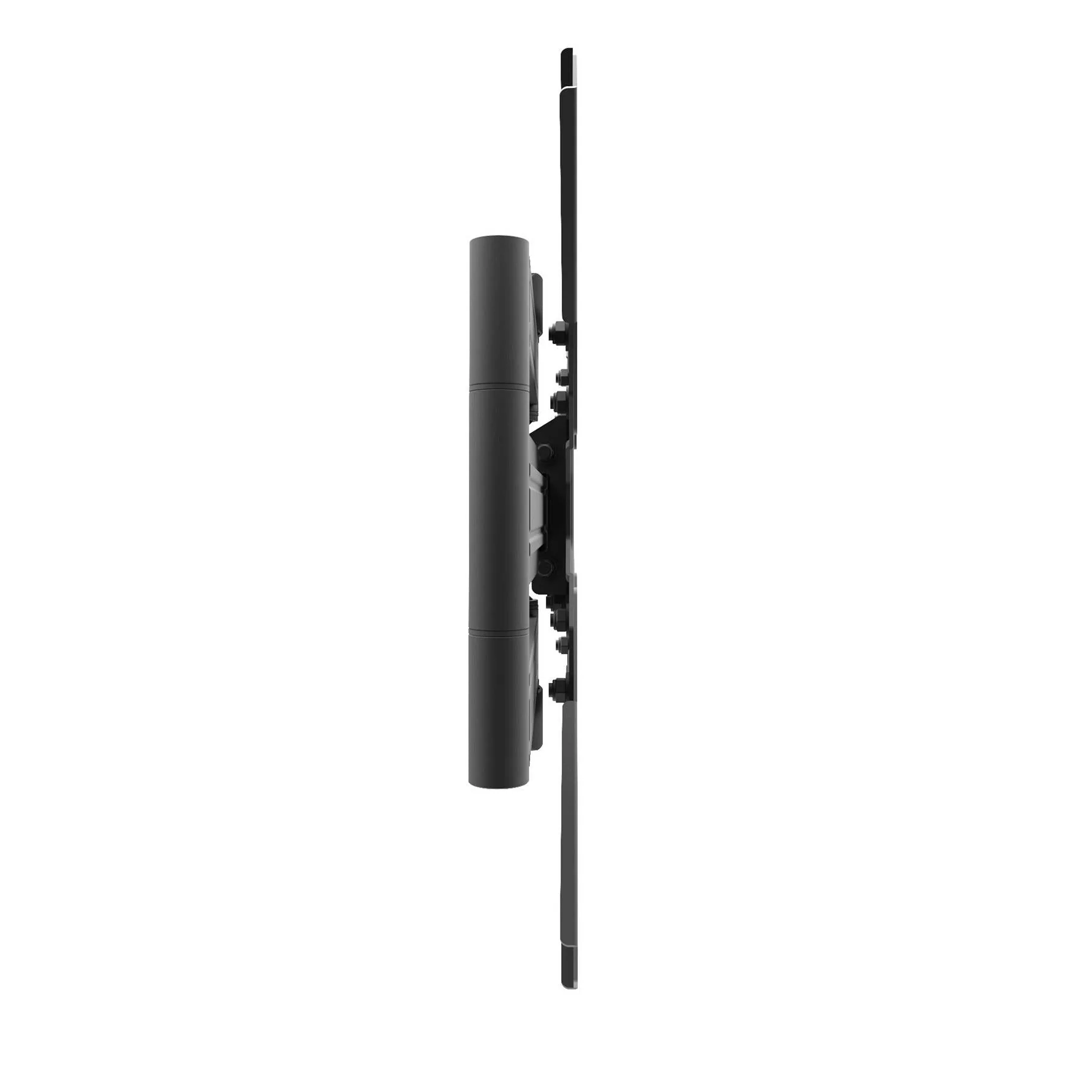

• Slim profile – TV sits just 1.9 inches (4.8 cm) from the wall when retracted

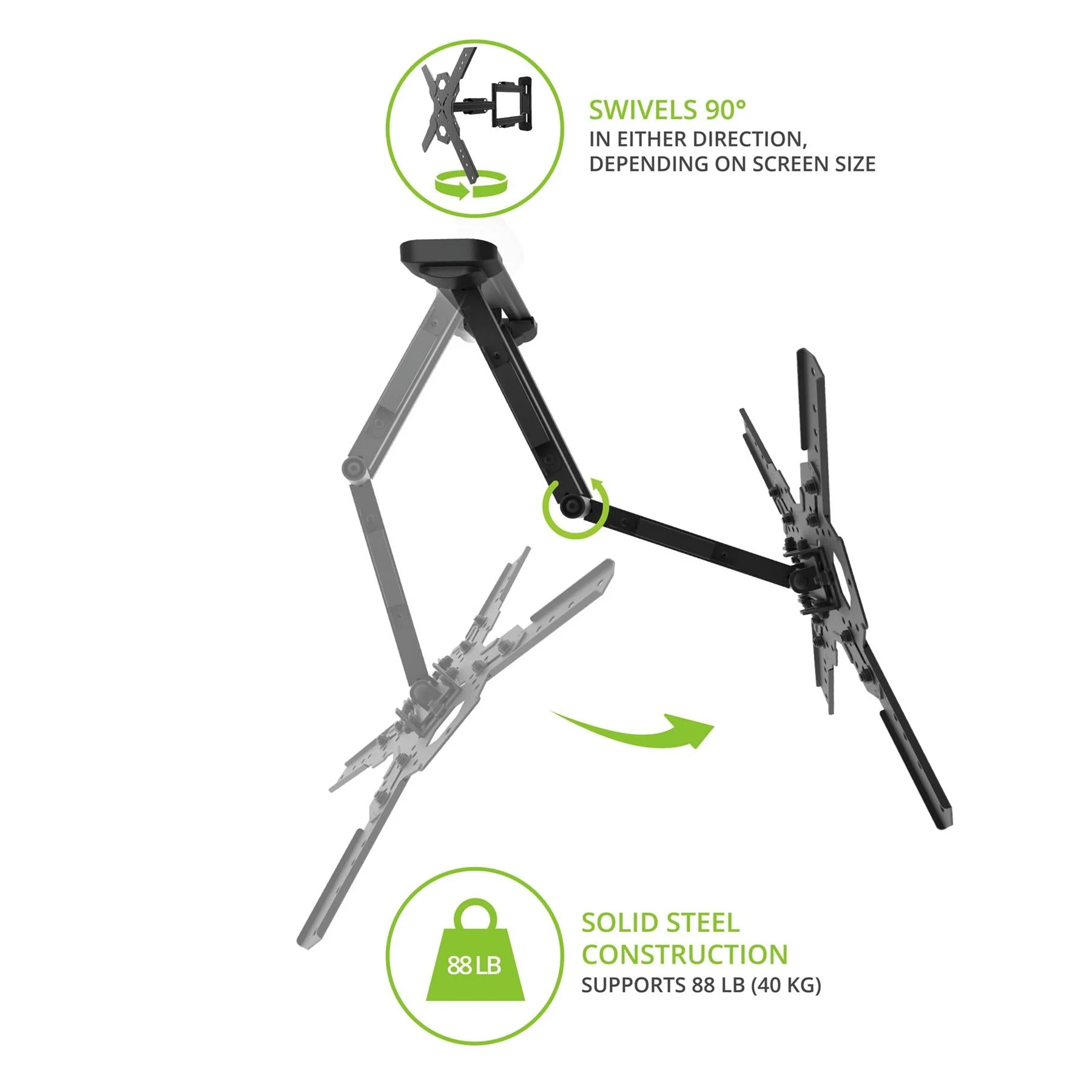

• Wide range of motion – Swivels up to 90° left or right (180° total) and tilts +12° forward/−2° back
• VESA compatibility – Supports patterns 100×100 to 400×400 with included extension arms
• Cable management – Integrated channels and magnetic covers hide wires and lag bolts
• Complete hardware kit – Includes lag bolts, anchors, washers, spacers and organized labels for fast setup

Specifications

• TV size & VESA range – 25 – 75 in; VESA 100×100 – 400×400 mm; extension arms for larger patterns
• Weight capacity & extension – Supports 88 lb (40 kg); extension 1.9 – 22 in (4.8 – 56 cm)
• Tilt & swivel – +12°/−2° tilt; up to 90° swivel each direction
• Mounting – Single stud; adjustable horizontal leveling; low profile design
• Materials – Solid steel with powder‑coated finish; integrated cable management
• Shipping & product – Product weight 13.4 lb; shipping weight 15.9 lb; shipping dimensions 20.5×14×2.8 in; UPC 800152714400

FAQs

What TVs can I mount?

25–75 inches with VESA up to 400×400 mm (extension arms included).

How much weight can it hold?

Up to 88 pounds (40 kg).

What is the extension?

The arm extends up to 22 inches and retracts to 1.9 inches from the wall.

What angles can I adjust?

Tilt +12° forward/−2° back and swivel 90° left or right.

Does it work with a single stud?

Yes. It mounts to a single stud for flexible placement.

Are cables hidden?

Yes. Integrated cable management and magnetic covers conceal cords and lag bolts.

What hardware is provided?

A complete kit of lag bolts, anchors, washers and spacers is included.

Does it have a warranty?

It is backed by a 5‑year limited warranty.
