Kanto PDX650 Full Motion TV Mount

Kanto PDX650 Full Motion TV Mount - Low Profile & Wide Motion

The Kanto PDX650 is a versatile full‑motion TV mount that combines a low‑profile design with broad compatibility. Engineered to support TVs from 37 to 75 inches weighing up to 125 pounds, it lets you extend your display nearly 22 inches from the wall to achieve optimal viewing angles. When retracted, the mount sits just 2 inches from the wall for a sleek appearance and easy cable access.

The articulating arms provide 80° of swivel left or right and allow a +15°/–3° tilt for glare reduction. Adjustable bracket arms accommodate VESA patterns from 100×100 to 600×400, while the 22 inch wall plate fits dual studs up to 16 inches apart. Solid steel construction and a durable powder‑coated finish ensure stability, and integrated cable management channels keep wiring organized. The bolt kit includes lag bolts and concrete anchors for wood or masonry installations.

Key Features

• Low‑profile full‑motion design – Sits 2 inches from the wall yet extends 21.7 inches for flexible viewing
• High weight capacity – Holds TVs up to 125 lb (56.7 kg) from 37–75 inches
• Wide tilt & swivel range – +15°/−3° tilt and up to 80° swivel left or right

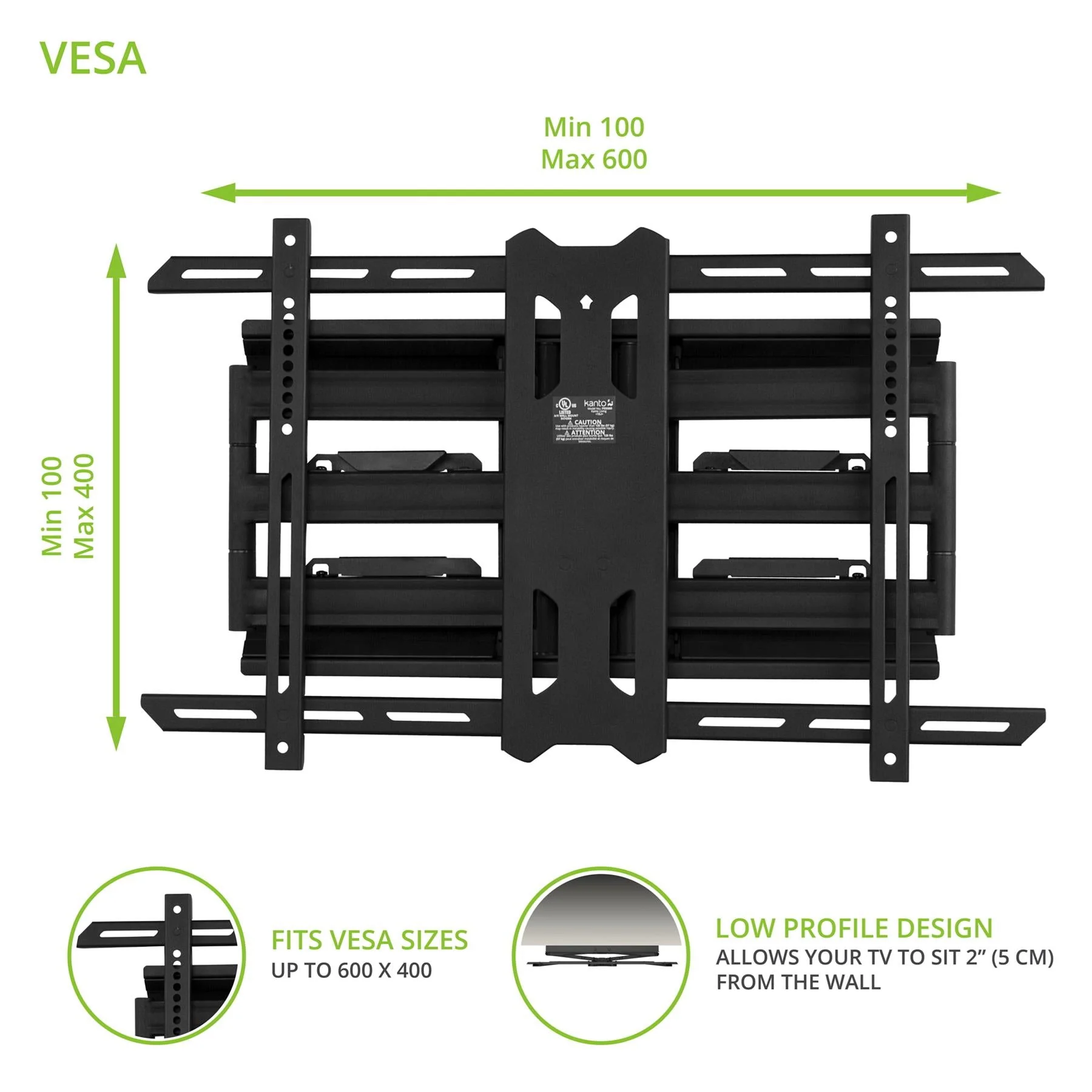

• VESA compatibility – Adjustable arms fit VESA patterns 100×100 to 600×400 mm
• Dual‑stud mounting – 22 in wall plate spans two studs up to 16 in apart and includes leveling screws
• Cable management & hardware – Built‑in raceways conceal wires; bolt kit includes lag bolts and concrete anchors

Specifications

• TV size & VESA range – 37 – 75 in; VESA 100×100 – 600×400 mm
• Weight capacity & extension – Supports 125 lb (56.7 kg); extends up to 21.7 in (55 cm)
• Profile & motion – 2 in profile; +15°/−3° tilt; ~80° swivel
• Wall plate – 22 in plate fits dual studs up to 16 in apart and includes leveling screws
• Materials – Solid steel with powder‑coated finish; integrated cable management
• Shipping – Product weight 22.5 lb; shipping weight 24.7 lb; shipping dimensions 29.4×15×2.8 in.

FAQs

What TV sizes can the PDX650 support?

It supports 37 to 75 inch TVs with VESA patterns from 100×100 to 600×400.

How far does it extend?

Up to 21.7 inches and retracts to 2 inches.

Can I tilt and swivel?

Yes, you can tilt +15° forward/−3° backward and swivel about 80° left or right.

Does it fit dual studs?

Yes, the 22 inch wall plate fits two studs up to 16 inches apart.

What weight can it hold?

Up to 125 pounds (56.7 kg).

Does it come with hardware?

It includes lag bolts, concrete anchors, washers, spacers and instructions.

Are there leveling screws?

Yes, horizontal leveling screws allow minor adjustments after installation.

Kanto PDX650 Full Motion TV Mount - Low Profile & Wide Motion Downloads:

Kanto PDX650 Full Motion TV Mount - Low Profile & Wide Motion - User Manual
Kanto PDX650 Full Motion TV Mount - Low Profile & Wide Motion - Product Sheet
