Kanto M300 Full‑Motion TV Wall Mount

Kanto M300 Full‑Motion TV Wall Mount - Compact Single‑Stud Full Motion

The Kanto M300 is a compact full‑motion TV mount designed for 26 to 55 inch televisions. Its articulating extension arm extends up to 19.6 inches from the wall and supports displays weighing up to 80 pounds. This allows you to position your TV perfectly in corners, on columns or angled seating areas while minimizing wall space usage.

With tilt, pan and swivel capabilities, the M300 makes it easy to reduce glare and achieve the best viewing angle. The low‑profile bracket fits single studs and sits close to the wall when retracted, and the integrated cable management system keeps cords organized. Finished in durable powder‑coated steel, the M300 includes installation hardware and is also available in white (M300W).

Key Features

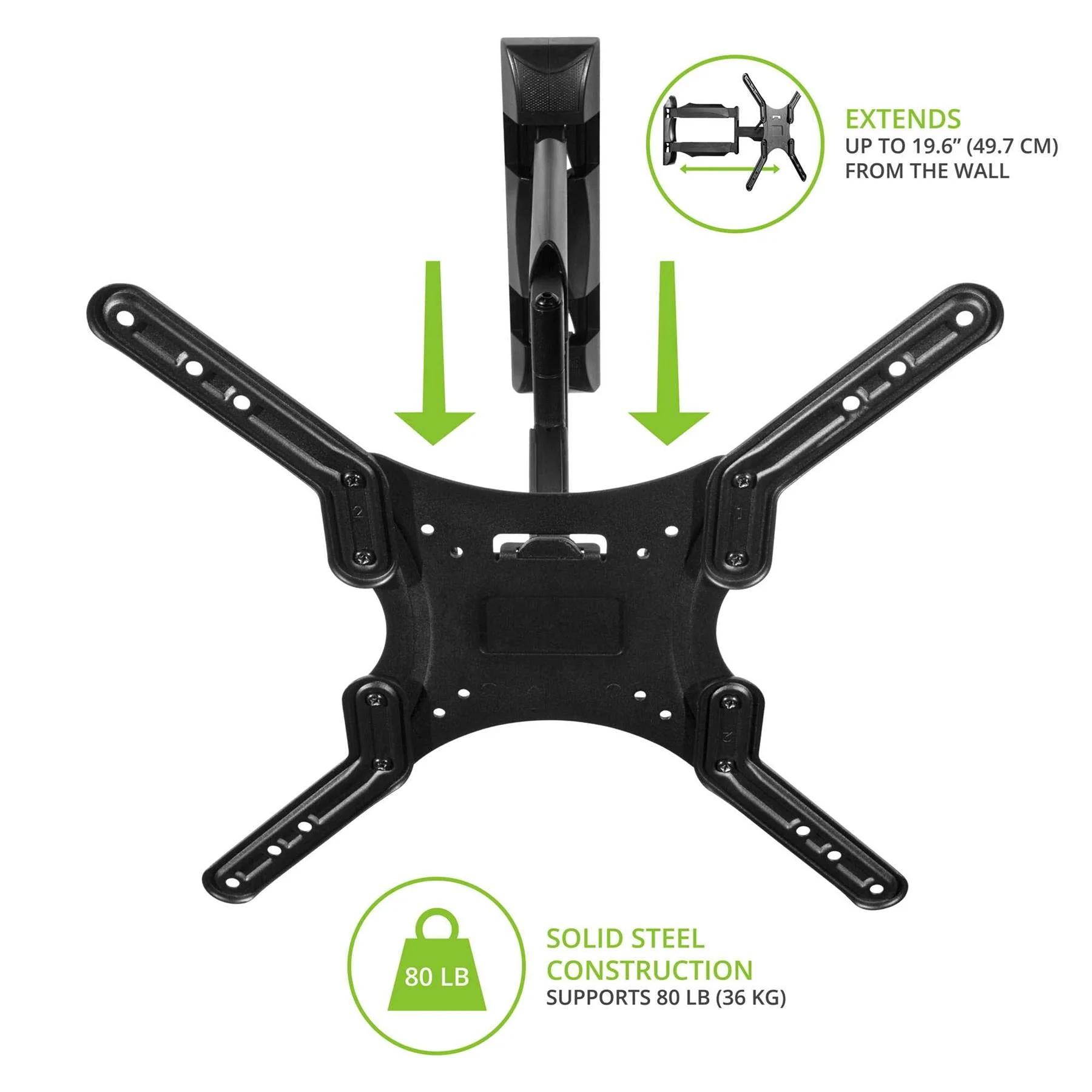

• Compact full‑motion design – Ideal for 26–55 in TVs, providing up to 19.6 inches (49.8 cm) of extension while occupying minimal wall space
• Flexible positioning – Offers tilt, pan and swivel adjustments to accommodate angled seating or corner installations
• High weight capacity – Supports TVs up to 80 lb (36.3 kg) with VESA patterns up to 400×400 mm
• Low‑profile bracket – Retracts close to the wall and mounts to a single stud for simple installation

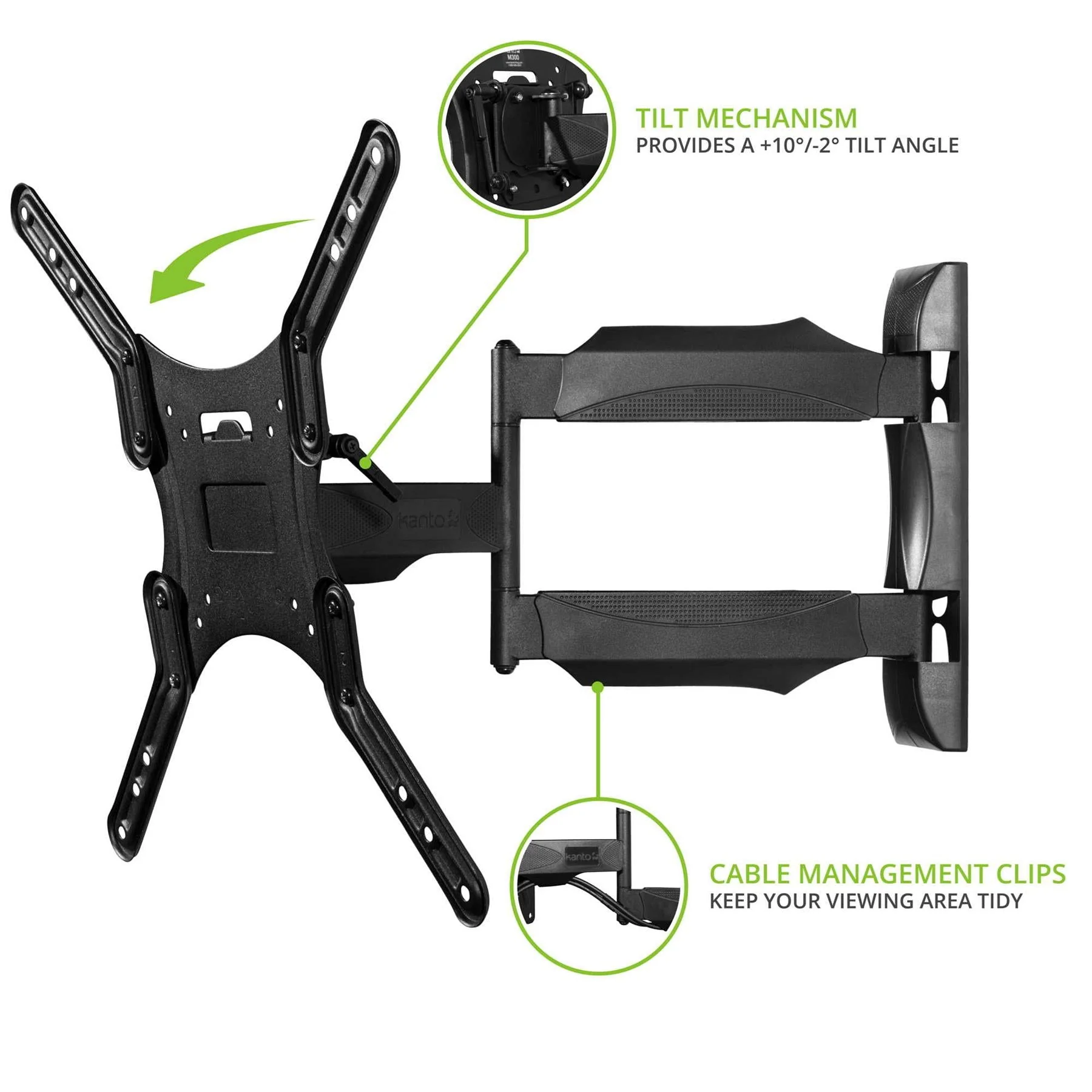

• Cable management – Integrated channels route cables neatly along the arm and bracket
• Durable finish – Powder‑coated steel construction available in black or white (M300W); includes hardware for wood or concrete

Specifications

• TV size & VESA range – 26 – 55 in; VESA up to 400×400 mm
• Weight capacity & extension – Supports 80 lb (36.3 kg); extends up to 19.6 in (49.8 cm)
• Adjustability – Tilt, pan and swivel to achieve the desired viewing angle
• Mounting – Single‑stud design retracts close to the wall for a low‑profile installation
• Materials – Solid steel with powder‑coated finish; integrated cable management
• Included hardware – Installation manual, lag bolts, anchors and washers for wood or concrete

FAQs

What TVs will the M300 support?

It supports 26 to 55 inch TVs with VESA patterns up to 400×400.

How much weight can it handle?

Up to 80 pounds (36 kg).

How far does it extend?

The arm extends up to 19.6 inches from the wall.

Does it tilt and swivel?

Yes. You can tilt, pan and swivel the TV for a perfect view.

Does it work with a single stud?

Yes. It mounts to a single stud for easy placement.

Is cable management included?

Yes. Integrated channels conceal cables.

Is hardware included?

All necessary hardware for wood or concrete walls is included.

Is there a white version?

Yes. The M300W offers a white finish.

Kanto M300 Full‑Motion TV Wall Mount - Compact Single‑Stud Full Motion Downloads:

Kanto M300 Full‑Motion TV Wall Mount - Compact Single‑Stud Full Motion - User Manual
Kanto M300 Full‑Motion TV Wall Mount - Compact Single‑Stud Full Motion - Product Sheet
