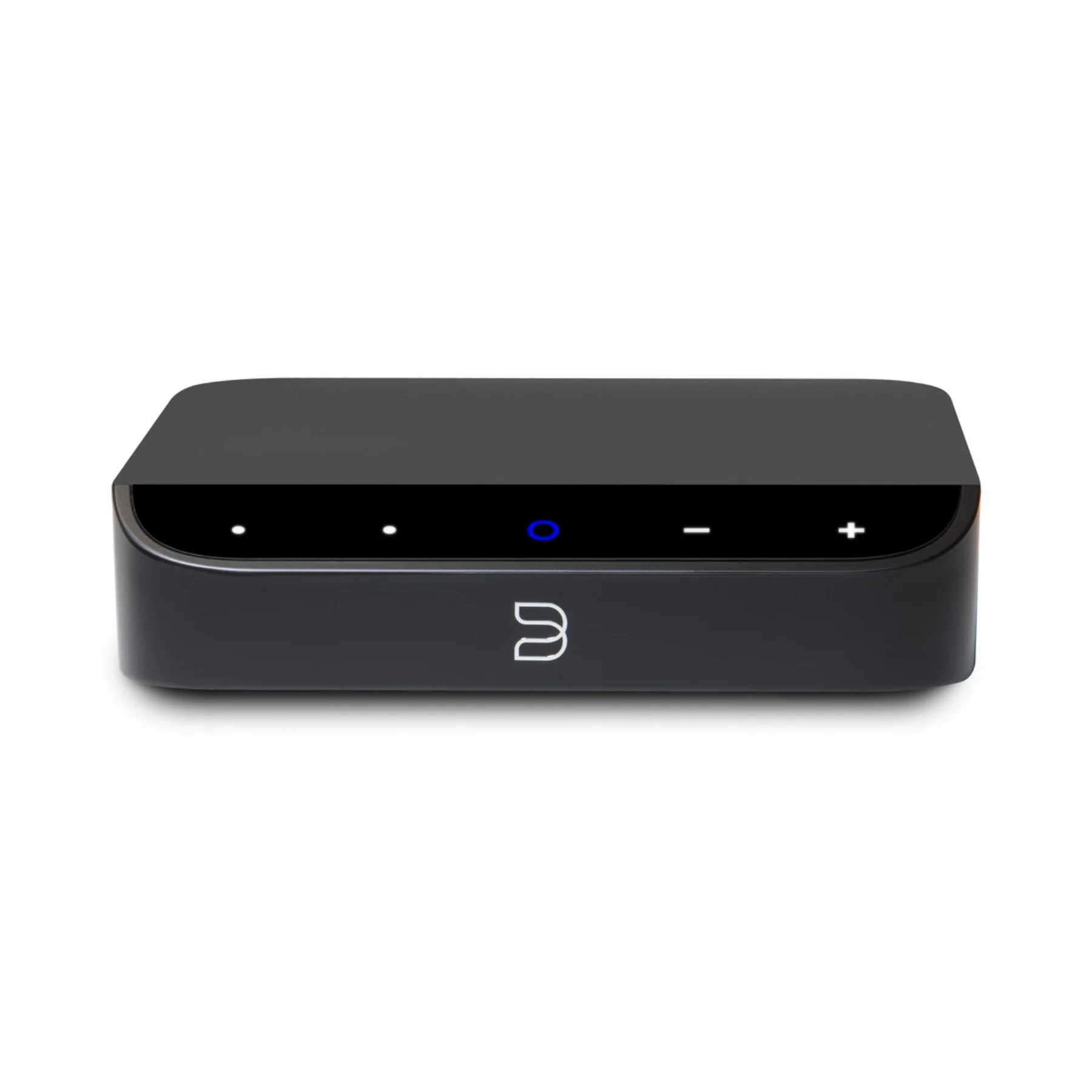

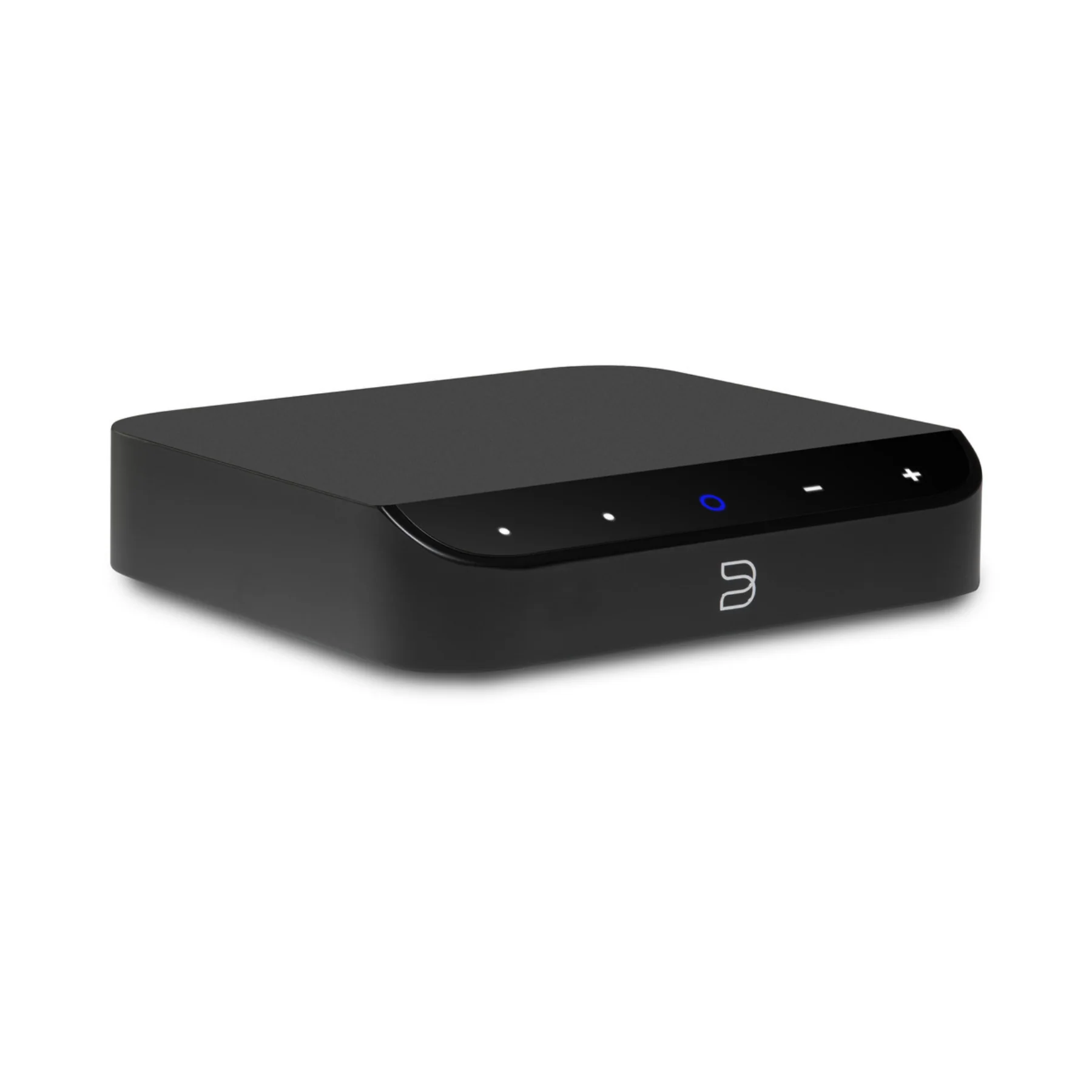

Bluesound NODE NANO Music Streamer-Black

Bluesound NODE NANO Music Streamer

Bring true hi-res streaming to any stereo or powered speakers without replacing your existing gear. The Bluesound NODE NANO connects to Wi-Fi or gigabit Ethernet and turns your system into a modern, app-controlled music hub—ready for today’s top streaming services, internet radio, and local libraries through BluOS. At its core is an audiophile-grade ESS SABRE® DAC (ESS ES9039Q2M) that supports up to 24-bit/192kHz playback, delivering clean detail, strong dynamics, and ultra-low distortion for serious listening. With flexible outputs (RCA analog plus optical, coaxial, and USB audio), quick-touch presets, and smart-home integration, NODE NANO is a compact upgrade that scales from a single room to a full multi-room BluOS system. The Bluesound NODE NANO is part of ListenUp's Bluesound NODE Music Streaming Collection.

What It's Good At:

• Upgrading any existing stereo with modern, hi-res wireless streaming (no new amp required)
• Delivering audiophile-grade clarity with an ESS SABRE® DAC and ultra-low THD+N
• Seamless playback from major platforms with BluOS plus AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz Connect, and Roon Ready support
• Building a flexible multi-room setup by grouping with other Bluesound/BluOS players
• Reliable networking via dual-band Wi-Fi 5 or gigabit Ethernet for uninterrupted streaming
• Quick, everyday control from the backlit touch interface and two programmable presets

Bluesound NODE NANO Full Specifications:

• SKU: N030BLKUNV
• Price: $379.00
• Wireless speaker: No
• Color: Black
• Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
• Native Sampling Rates: up to 192 kHz
• DAC: ESS ES9039Q2M
• Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
• Bit Depth: 16-24
• Signal-to-Noise Ratio: -118 dB
• DSD Support: DSD256
• Audio Controls & EQ: BluOS Controller App
• Distortion: THD+N, 0.0007%
• Operating System: BluOS
• Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
• 3rd-Party Integrations: AirPlay 2, Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Roon Ready
• App Controller Operating System: iOS, Android, Windows, macOS
• Album Art Supported: JPG, PNG
• Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron, Josh.ai
• Processor: ARM® Cortex™-A53, Quad-Core, 1.8GHz per core
• Music Services & Internet Radio: 23+
• Voice Control Integrations: Amazon Alexa Skills
• Power Supply: USB-C (5V-2A)
• Optical/Analog Input: IR Sensor Built In - front panel with IR Remote Learning
• Coaxial Output: RCA
• Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
• IR Input: 3.5mm Jack
• Optical Output: TOSLINK digital optical
• Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
• USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
• Trigger Out: 12 Volt
• Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
• Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
• Headphone Output: Bluetooth
• Bluetooth Connectivity: Two-Way (transmit & receive)
• Subwoofer Output: Wireless to PULSE SUB+
• Status Indicator: LED
• Volume Control Buttons: Touch LED
• Play/Pause Button: Touch LED
• Preset Buttons: Touch LED x 2
• Finish: Black: Matte Satin Paint
• Version: N030
• Product Weight: 0.57kg / 1.26lbs
• Mounting: Bottom-panel keyhole slot
• Product Dimensions: 143 x 36 x 143mm (W x H x D)
• Product Dimensions (approx.): 5.6 x 1.4 x 5.6 in (W x H x D)
• Included Accessories: USB Power Supply; 4x International Plug Adapter; USB-C Power Cable; Stereo RCA to RCA Cable; Ethernet Cable; Safety/Warranty Guide; Quick Setup Guide
• Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
• Operating Environment: 0°C to 40°C

Bluesound NODE NANO Q&A:

What do you need to use the NODE NANO with an existing stereo?

Connect NODE NANO to your amp, receiver, or powered speakers using RCA analog out, or use optical/coaxial/USB audio to feed a compatible DAC or digital input. Then connect it to your network via dual-band Wi-Fi or gigabit Ethernet and control everything in the BluOS app.

Does NODE NANO support hi-res audio?

Yes. It supports playback up to 24-bit/192kHz and includes an ESS ES9039Q2M DAC for high-detail, low-distortion sound.

Which streaming options are supported beyond the BluOS app?

In addition to BluOS streaming and multi-room control, it supports AirPlay 2, Spotify Connect (including support for Spotify Lossless), TIDAL Connect, Qobuz Connect, and it’s Roon Ready.

Can it play files from a NAS or shared folder on a computer?

Yes. It supports SMB network sharing and can index very large libraries (up to 200,000 files).

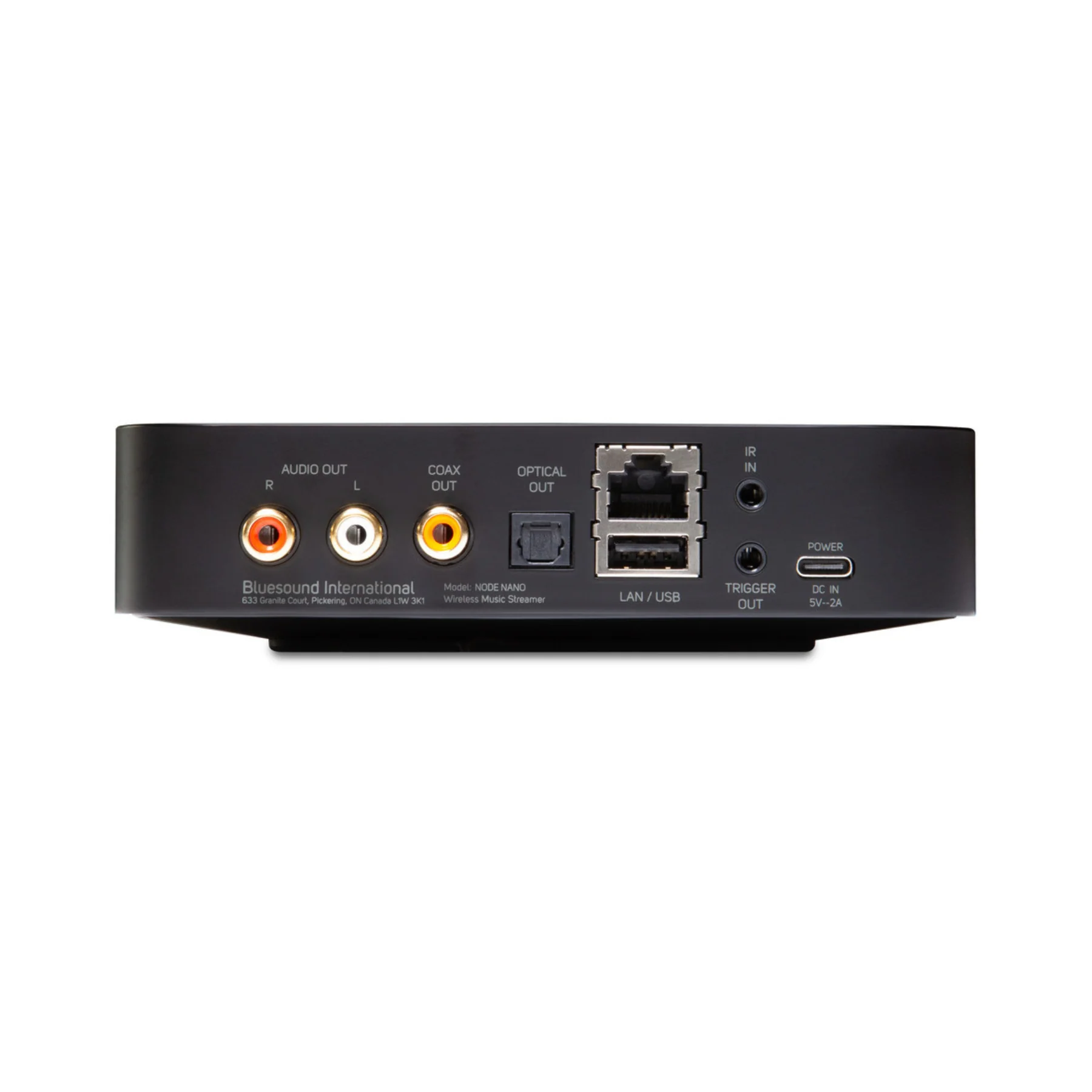

What outputs are available for connecting to audio gear?

NODE NANO offers analog RCA stereo out (with a fixed option), plus digital outputs including TOSLINK optical, coaxial (RCA), and USB Audio 2.0 (Type A).

Can it stream to Bluetooth headphones or receive audio over Bluetooth?

Yes. It supports two-way Bluetooth (transmit & receive) and uses Bluetooth 5.2 with aptX Adaptive for improved quality where supported.

Does it integrate with smart home and custom install systems?

Yes. It supports Amazon Alexa Skills and integrates with control systems including Crestron, Control4, RTI, ELAN, URC, Lutron, and Josh.ai.

What’s included in the box?

It includes a USB power supply, four international plug adapters, a USB-C power cable, stereo RCA-to-RCA cable, Ethernet cable, a safety/warranty guide, and a quick setup guide.

Bluesound NODE NANO Downloads:

Bluesound NODE NANO Manual
Bluesound NODE NANO Data Sheet
Bluesound NODE NANO Quick Start Guide
