Marantz CINEMA 30 - Reference 11.4 Ch AV Receiver
Marantz CINEMA 30 AV Receiver
Marantz CINEMA 30 is a reference-class 11.4-channel AV receiver built for no-compromise home theater and high-end music listening. It delivers 140 watts per channel (8Ω, 20Hz–20kHz, 0.05% THD, 2ch) with a discrete Class A/B amplifier design, Marantz HDAM technology, and a toroidal power transformer for authoritative dynamics and refined detail.
For immersive cinema, CINEMA 30 supports Dolby Atmos (including Height Virtualization and Atmos Music), DTS:X Pro, and Auro-3D, plus IMAX Enhanced processing—backed by up to 13.4-channel preamp processing and a full 13.4-channel pre-out section for system expansion. Video is equally premium with 7 HDMI 2.1 inputs (all 8K capable), 3 HDMI outputs (including eARC), 8K/60 and 4K/120 support, advanced HDR formats (Dolby Vision, HDR10+, Dynamic HDR), and gaming-friendly features like ALLM and VRR.
Setup and optimization are powerful and flexible: Audyssey MultEQ XT32 is included, with Dirac Live support and upgradeability for advanced room correction workflows. With HEOS Built-in, AirPlay 2, Spotify Connect, Bluetooth (including Bluetooth headphone re-transmit with volume control), Wi-Fi, and Ethernet, CINEMA 30 becomes the centerpiece for whole-home streaming and multi-zone listening across up to three zones. The Marantz CINEMA 30 is part of ListenUp's Marantz AV Receivers Collection.
What It's Good At:
- Driving large-scale theaters with 11 powered channels and 140W/ch reference amplification
- Creating a true immersive bubble with Dolby Atmos, DTS:X Pro, Auro-3D, and IMAX Enhanced
- Delivering full-bandwidth next-gen video with 7x 8K HDMI 2.1 inputs, 8K/60, and 4K/120 support
- Fine-tuning performance with Audyssey MultEQ XT32 plus Dirac Live support/upgradeability
- Expanding systems easily via 13.4 pre-outs and 4 independent subwoofer outputs
- Streaming anywhere with HEOS Built-in, AirPlay 2, Spotify Connect, Wi-Fi/Ethernet, and Bluetooth re-transmit
Marantz CINEMA 30 Full Specifications:
- Model: Marantz CINEMA 30
- Type: Reference 11.4 Channel AV Receiver (Powered by HEOS)
- Build: Crafted in Shirakawa, Japan
-
Power Amplifier:
- Number of Powered Channels: 11
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): -
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 140 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 175 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 250 W
- Amplifier Topology: Class A/B
- Bi-Amp Drive: Assignable
-
Multichannel Surround Technologies:
- DTS: DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
- Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Max Number of Processing (Preamp) Channels: 13.4
- IMAX Enhanced
- Auro 3D
- Multichannel Stereo
-
Inputs / Outputs:
- Composite In / Out: 2 / 0
- Component In / Out: 1 / 0
- HDMI In / Out: 7 / 3
- Multi-Room Video Out (Video / HDMI): No / Yes
- Phono (MM) In: Yes
- Digital In (Optical / Coaxial): 2 / 2
- Multi-Room Out (Analog / Digital): 2 / 0
- Subwoofer Out: 4 (independent)
- 7.1 Multichannel Input: No
- Number of Speaker Terminals: 13
- Speaker A / B: Assignable
- Multi-Room Speaker Terminal: Assignable
- USB Audio
- AM/FM Tuner
- DAB+ Tuner: No
- Analog In / Out: 6 / 0
- Multichannel Pre Out: Yes (13.4)
- Front Inputs (USB-A)
-
HDMI / Video:
- Total HDMI Inputs / No. Support 8K: 7 / 7
- HDMI Outputs: Main / Zone 2 / 1
- Audio Return Channel: ARC, eARC
- Variable Refresh Rate / Quick Frame Transport / Quick Media Switching: Yes / Yes / No
- HDMI Pass-Through in Standby Mode
- DSD Audio over HDMI: 2-channel – 5.1-channel
- Auto LipSync
- HDMI Inputs (Back / Front): 7 / -
- HDMI to HDMI Scaling: 1080P/4K to 8K
- HDMI 2.1 (8K/60Hz AB / 4K/120Hz AB)
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
- HDMI 2.0 (3D / 4K / CEC / ARC)
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- DSD Audio Capability
-
Performance Technologies:
- Copper Plated Chassis
- Toroidal Power Supply Transformer
- Hyper Dynamic Amplifier Modules (HDAM)
- Pure Direct Mode
- Clock Jitter Reducer
-
Acoustic Room Correction:
- Audyssey MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume
- Audyssey LFC:
- Dirac Live Support
- Optimized Bass Redirection
- Bass Sync
- Dirac Live Upgradability
-
Music File Support:
- Lossy Formats: MP3 / WMA / AAC
- Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
- DSD Audio: 2.8 MHz / 5.6 MHz
- Gapless Playback: FLAC, WAV, ALAC, DSD
- Compressed Audio Enhancer (MDAX2): Yes
- Network Audio Sharing: Yes
-
Streaming Services:
- AirPlay Audio Streaming: AirPlay 2
- Internet Radio: TuneIn
- Spotify Connect
- Pandora
- SiriusXM
- Other Streaming Services: Amazon Music HD / Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
- Roon Tested
-
Network Connectivity:
- Ethernet Ports
- Wi-Fi
- Bluetooth
- Bluetooth Re-transmit for Bluetooth headphones
-
Smart Home Integration and Control:
- Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
- App (iOS & Android): Marantz AVR Remote
- HEOS Multi-Room Integrated
- HEOS Link Compatibility (IR / IP)
- Multi-Room Zones: 3
- Zone Audio Output (Speaker / Preout)
- Zone HDMI Output from HDMI Source
- Control Connectivity (IP / RS232 / Web / App)
- IR Flasher In
- DC Trigger Output: 3
-
Others:
- Front Display: 2 line FLD + port hole OLED
- GUI Languages: 3
- Setup Assistant
- Firmware Update (Network / USB)
- ECO Mode
- Sleep Timer
- Auto Speaker Setup by Microphone: Audyssey MultEQ XT32 / Dirac Live (upgrade)
- Graphic User Interface (GUI): Modern HD GUI
-
General:

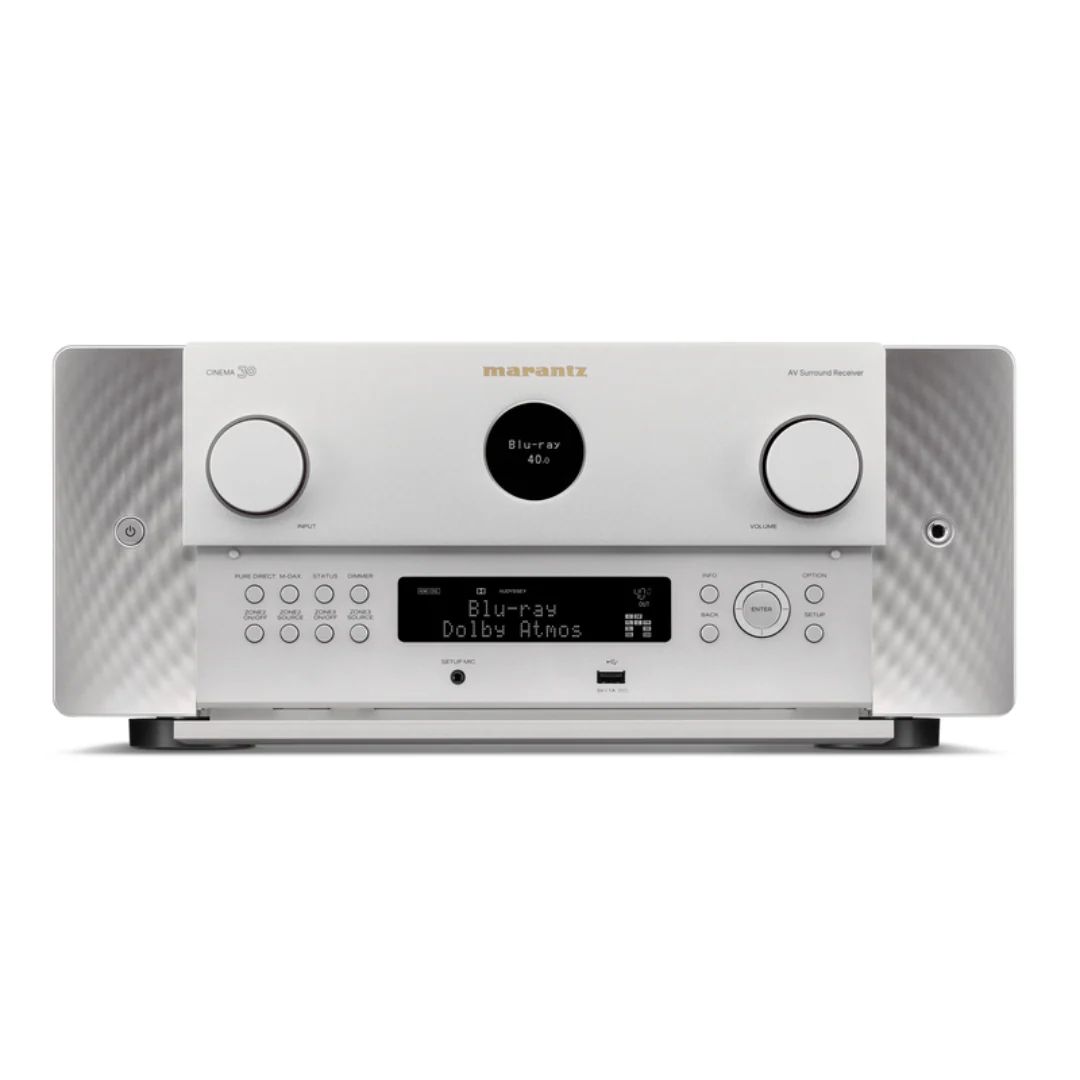

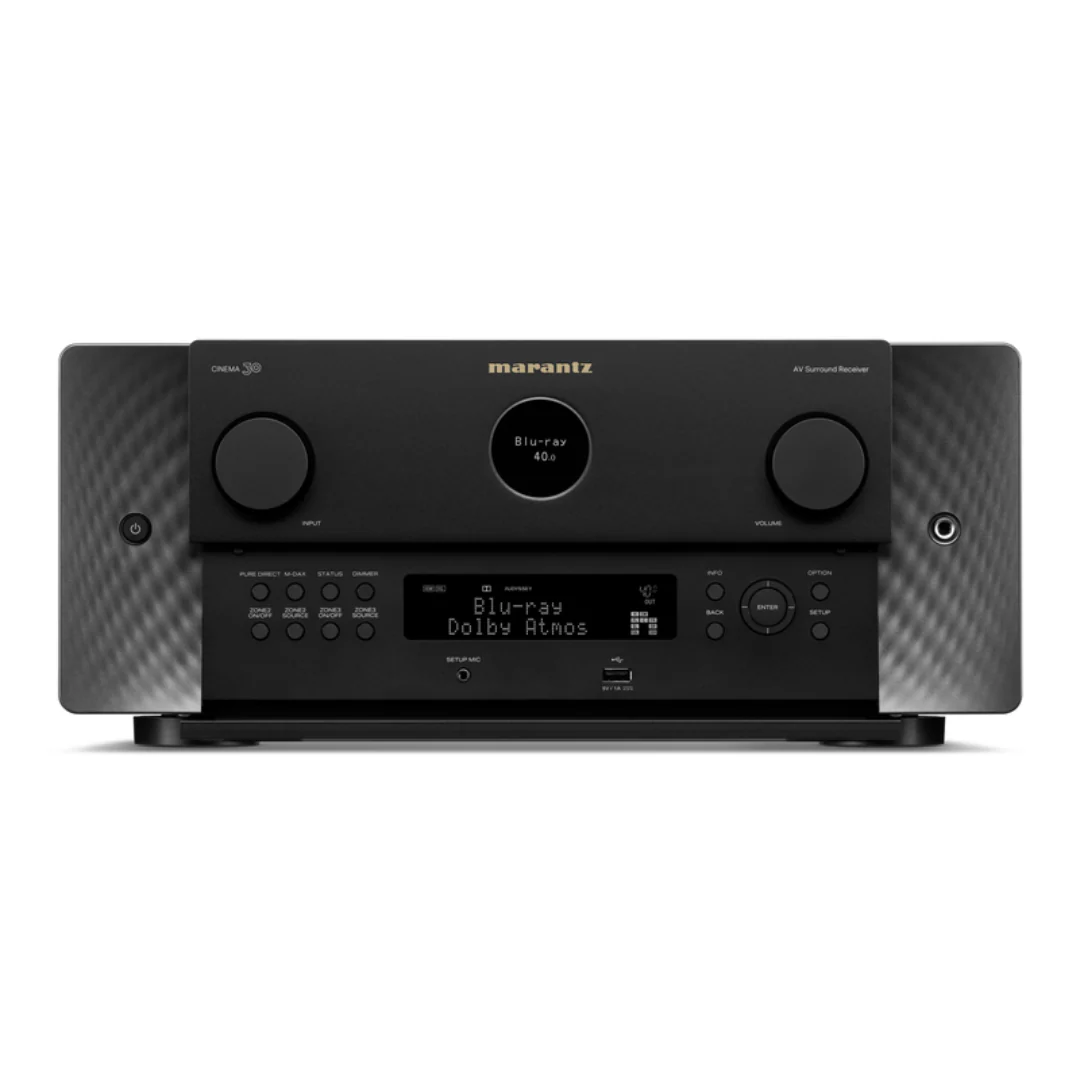

- Available Colors: Black/Silver-Gold

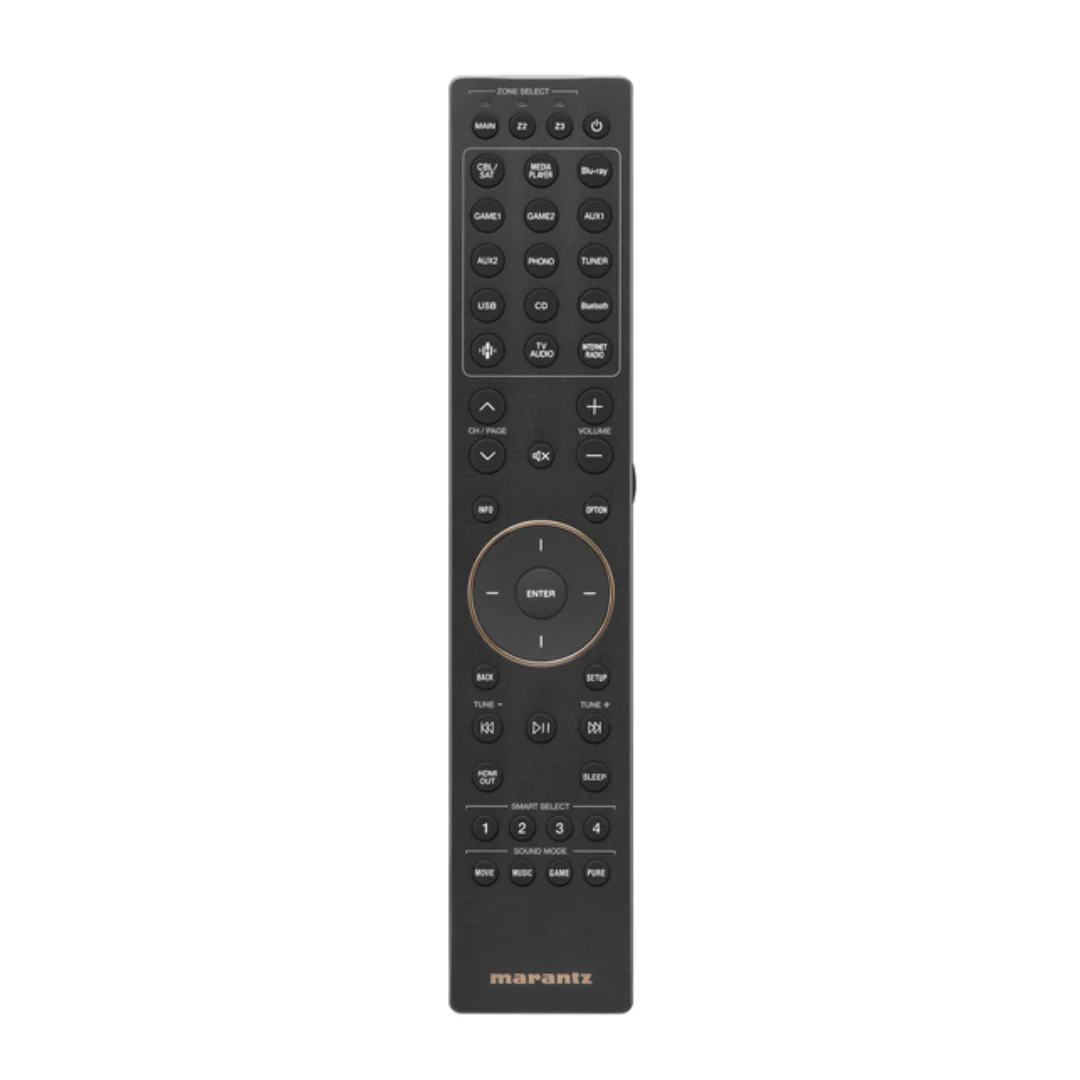

- System Remote Control: RC-051SR
- Power Consumption: 780 W
- Standby Consumption: 0.2 W
- What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 external detachable antennas, AC cord
- Weight: 42.8 lbs
- Maximum Dimensions (W x D x H):
- Antenna Horizontal: 17.4 x 18.0 x 7.5 inches
- Antenna Vertical: 17.4 x 18.0 x 10.2 inches
- Without Antenna: 17.4 x 17.6 x 7.5 inches
Marantz CINEMA 30 Q&A:
- How many speaker channels can the Marantz CINEMA 30 power?
- CINEMA 30 powers 11 amplifier channels and supports up to 13.4-channel processing via its preamp section for expanded systems.
- Does CINEMA 30 support Dolby Atmos and DTS:X Pro?
- Yes—Dolby Atmos (including Height Virtualization and Atmos Music) and DTS:X Pro are supported for immersive 3D surround playback.
- How many HDMI inputs are included, and are they 8K compatible?
- It includes 7 HDMI inputs and all 7 support 8K, along with 3 HDMI outputs and eARC support.
- Is this receiver good for next-gen gaming?
- Yes—HDMI 2.1 features include 4K/120 and 8K/60 support, plus ALLM and VRR for smoother, lower-latency gameplay.
- What room correction options are available?
- Audyssey MultEQ XT32 is included, and Dirac Live is supported with upgradeability for advanced calibration.
- Can I connect multiple subwoofers independently?
- Yes—CINEMA 30 provides four independent subwoofer outputs for more precise bass placement and control.
Marantz CINEMA 30 Downloads:
Marantz CINEMA 30 Owner's Manual
Marantz CINEMA 30 Info Sheet
Marantz CINEMA 30 Quick Start Guide
