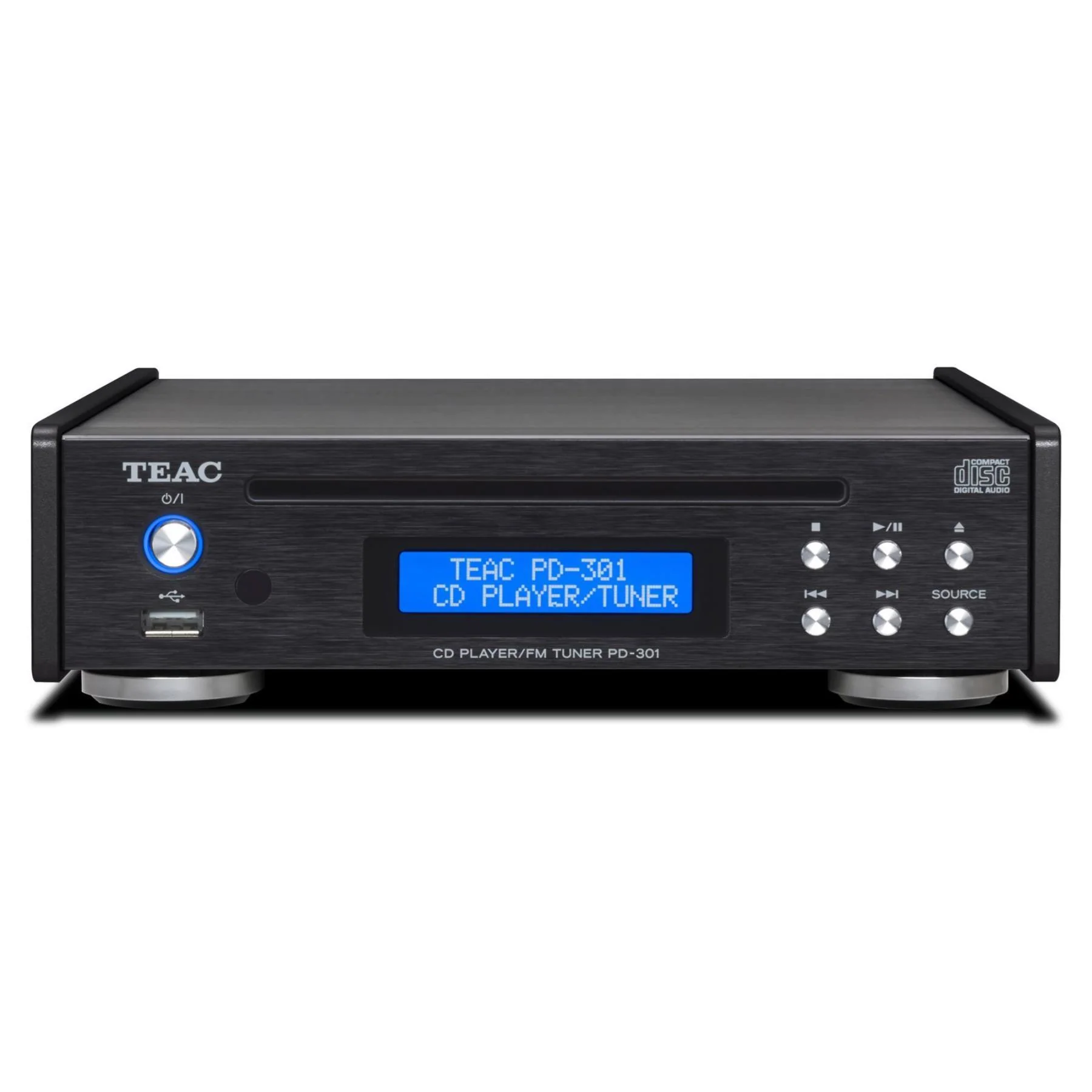

TEAC PD-301-X CD Player and FM Radio

TEAC PD-301-X CD Player and FM Radio

Introducing the TEAC PD-301-X CD Player and FM Radio, a standout component in the renowned Reference 301 series. This versatile, compact device seamlessly integrates a CD player, USB memory player, and FM tuner into your existing desktop audio setup, delivering an exceptional audio experience.

TEAC PD-301-X Features

• Quick Loading & Automatic Playback: The PD-301-X boasts a high-precision, slot-load CD drive mechanism designed for professional audio applications. Enjoy your music within moments thanks to quick loading times and an automatic playback function.

• Supports Multiple Audio Formats: Play MP3, WMA, AAC, and WAV files from CD-ROM, CD-R, CD-RW discs, or USB flash drives. The player’s LC-display shows ID3 tag, song title, and artist information for MP3, WMA, and AAC files.

• 32-Bit High-Performance DAC: Equipped with the Burr-Brown PCM5142 DAC, the PD-301-X ensures silky smooth audio reproduction for an immersive listening experience.

• Full-Metal Body & Compact Design: The aluminum construction of the front, sides, and top panels provides exceptional rigidity, minimizing unwanted vibrations. Its small footprint (215mm x 232mm) fits comfortably on the smallest desktops.

• Built-In FM Tuner: Enjoy the added functionality of an FM tuner within the PD-301-X’s compact design, enhancing your audio entertainment options.

• Digital Outputs for All Sources: The PD-301-X offers both coaxial and optical digital outputs for CD, USB, and FM tuner audio signals, ensuring compatibility with your favorite DAC.

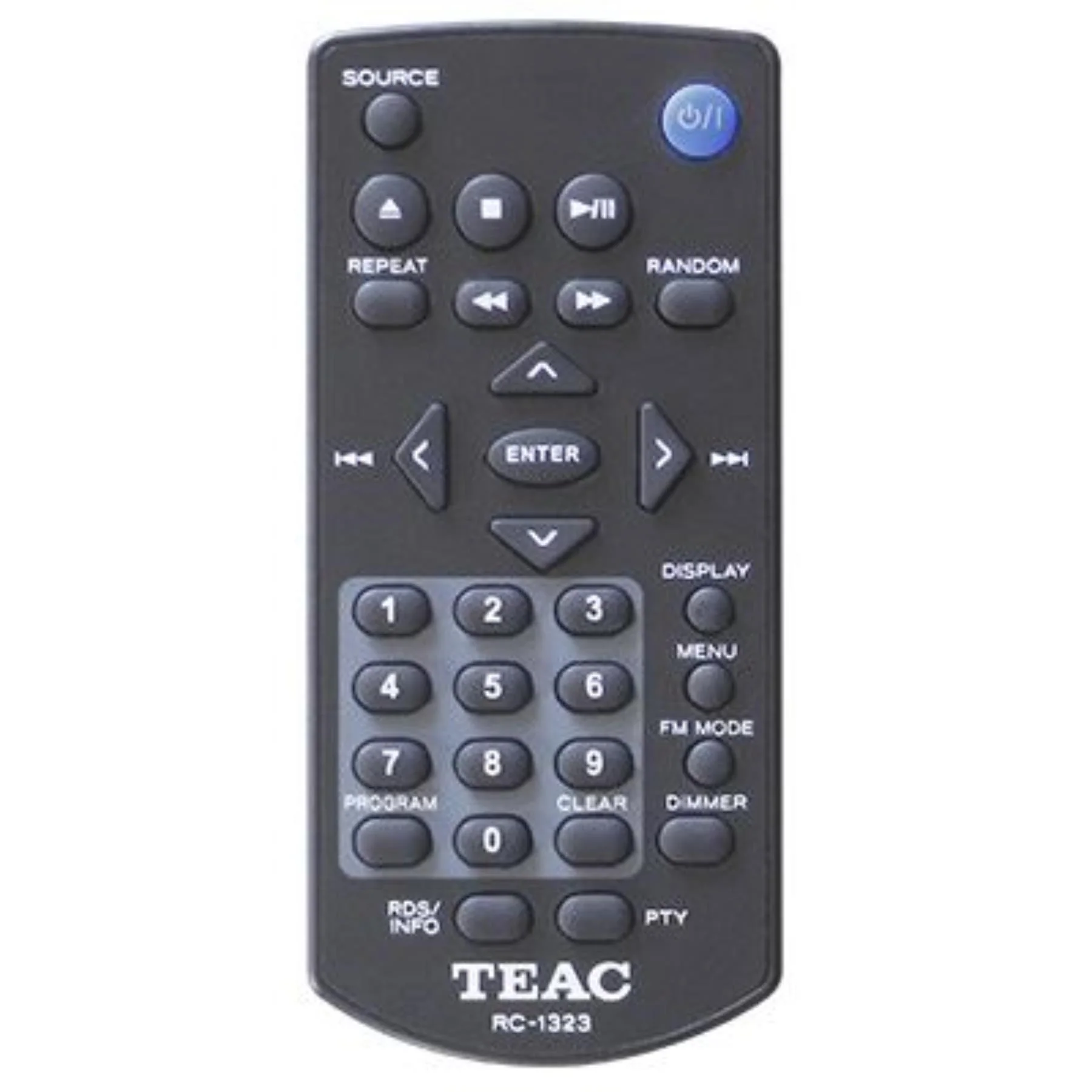

• 10-Key Remote Control: A compact card-type remote control is included, providing convenient operation of your PD-301-X.

TEAC PD-301-X Specifications

• CD Section:

  • Supported Media: CD-DA, CD-ROM, CD-R, CD-RW (8cm CDs not supported)
  • Max Number of Files: 300 (including folders)
  • Max Number of Folders: 50
  • Max Number of Layers: 16

• USB Section:

  • Supported USB Devices: USB Mass Storage device class
  • Interface: USB2.0 (Full-Speed), USB1.0 (High-Speed), USB3.0 compatible
  • File System: FAT16, FAT32
  • Max Number of Files: 300 (including folders)
  • Max Number of Folders: 50
  • USB Bus Power: DC 5V, max 500mA
  • Supported File Formats:
    • WAV (USB only): .wav, .WAV | 16-bit | 44.1k/48kHz
    • MP3: .mp3, .MP3 | 32k to 320k bps and VBR | 16k to 48kHz | MPEG1/2 Audio Layer-3
    • WMA: .wma, .WMA | 32k to 320k bps and VBR | 8k to 48kHz | WMA ver.9 standard (DRM not supported)
    • AAC (USB only): .m4a, .M4A | 8k to 320k bps and VBR | 8k to 48kHz | MPEG4 AAC-LC (Audio stream)

• Tuner Section:

  • Band: FM
  • Frequency Range: FM 76.0 to 108.9MHz
  • Number of Presets: FM 20

• Audio Outputs:

  • Analog LINE Audio: RCA Pin × 1 pair | 470Ω or less | 2.0Vrms (1kHz, Full scale, 10kΩ loaded)
  • Coaxial Digital Audio: RCA Pin × 1 | 75 Ω | 0.5Vp-p
  • Optical Digital Audio: TOS-link × 1 | 44.1kHz | 16-bit

• Power:

  • AC 100 - 230V, 50/60Hz
  • Power Consumption: 8W

• Overall Dimensions:

  • 8.5" × 2.4" × 9.4" / 215 × 61 × 238mm (W×H×D)
  • Weight: 4.6 lbs. / 2.1kg

• Accessories:

  • AC Adapter (GPE-152-120125W)
  • Power Cord for AC Adapter
  • Remote Control (RC-1323)
  • AAA Batteries × 2
  • RCA Audio Cable
  • FM Cable Antenna
  • User Manual (including Warranty)

Optimize Your Audio Experience

Upgrade your desktop audio system with the TEAC PD-301-X, designed for audiophiles who demand high-quality sound and versatile media playback in a compact and stylish package. Order now and immerse yourself in a superior audio experience!
