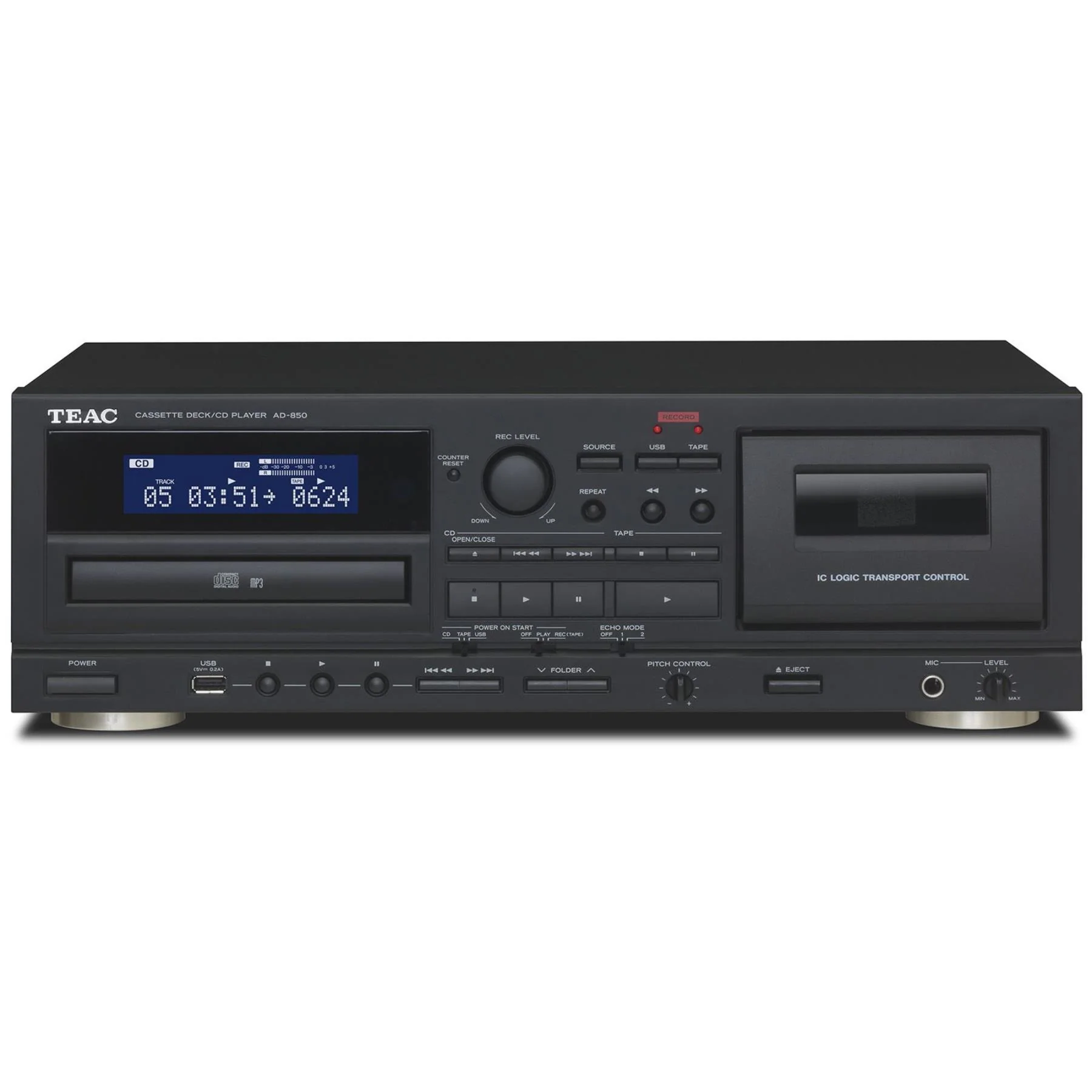

TEAC AD-850-SE Cassette Deck CD Player

TEAC AD-850-SE Cassette Deck CD Player - Multifunctional Audio System with USB Recording and Karaoke Features

Elevate your audio experience with the TEAC AD-850-SE, a versatile cassette deck and CD player that also records to USB flash drives. Perfect for audiophiles and karaoke enthusiasts, this unit combines the nostalgia of cassette tapes with modern digital capabilities.

TEAC AD-850-SE Key Features:

• Triple Media Playback and Recording: Supports CDs, cassette tapes, and USB flash drives for both playback and recording.
• Karaoke Ready: Built-in microphone jack with echo function for seamless karaoke sessions using backing tracks from CD, cassette, or USB.
• Versatile Recording Options: Record from cassette, CD, external input, or microphone to a USB flash drive as MP3 files. Alternatively, record from CD, USB flash drive, external input, or microphone to a cassette tape.
• Playback Modes: Enjoy programmed, repeat, and shuffle playback from CDs and USB flash drives.
• Pitch Control: Adjust playback speed with +/-10% pitch control.
• Timer Functions: Extensive timer options for cassette recording and playback, as well as CD and USB flash drive playback (commercially-available timer required).

TEAC AD-850-SE Specifications:

Cassette Tape:

• Track System: 4-track 2-channel stereo
• Head Construction: Recording/playback head × 1, Erase head × 1
• Tape Type: C-46/C-60/C-90
• Tape Speed: 4.76 cm/sec
• Motor: DC servo motor× 1
• Pitch Control: +/-10% (playback only)
• Wow and Flutter: 0.25% (W.RMS)
• Frequency Response:
  • Chrome: 50 to 12,000Hz +/-3dB
  • Normal: 50 to 12,000Hz +/-3dB
• S/N Ratio: 59dB (3%THD level WTD)
• Winding Time: About 120 seconds (C-60 tape)
• Line Input (RCA): 462mV (50kΩ or higher input impedance)
• Line Output (RCA): 462mV (50kΩ or higher impedance load)

CD Player:

• Pickup: 3-beam semiconductor laser
• Digital Filter: 8x oversampling digital filter
• Frequency Response: 20Hz to 20kHz +/-2dB
• Total Harmonic Distortion: 0.02% or less (1kHz)
• S/N Ratio: 87dB or more (IHF-A)
• Analog Output (RCA): 2.0V

USB:

• Interface: USB 1.1 FULL SPEED (12Mbps)
• Playback Format: MP3
• Playback Frequency Response: 20Hz to 20,000Hz (+/-2dB)
• Playback S/N Ratio: 85dB or less
• Playback Bit Rate: 8k to 320k bps
• Recording Format: MP3
• Recording Frequency Response:
  • CD → USB: 20Hz to 15,000Hz (+/-3dB)
  • LINE IN → USB: 100Hz to 15,000Hz (+/-3dB)
• Recording S/N Ratio: 85dB or more
• Recording Bit Rate: 128kbps

Microphone Input:

• Connector: 6.3mm (1/4") mono phone jack
• Nominal Input Level: 0.78mV (−60dBm)
• Input Impedance: 47kΩ or more
• Power Supply Function: None

Power Supply:

• Power: 100V AC, 50/60Hz
• Europe: AC 230V, 50Hz
• USA/Canada: AC 120V, 60Hz
• Japan: AC 100V, 50/60Hz
• Power Consumption: 13W

Dimensions & Weight:

• Dimensions: 435(W) × 145(H) × 288(D)mm (including protrusions)
• Weight: 4.8kg (10 5/8 lb)

Environmental Conditions:

• Operating Temperature: 5 to 35˚C
• Operating Humidity: 5 to 85% (no condensation)
• Storage Temperature: -20 to 55˚C

Accessories Included:

• Remote control (RC-1329)
• AAA batteries × 2
• Rack RCA audio cables × 2
• Owner’s manual (Warranty card)
• Quick start guide for recording

Why Choose the TEAC AD-850-SE?

The TEAC AD-850-SE combines classic and modern audio technologies, making it a perfect addition to any home audio system. Whether you're digitizing your old cassette collection, enjoying your favorite CDs, or hosting a karaoke night, this versatile unit delivers outstanding performance and functionality.

Order your TEAC AD-850-SE today and bring a world of audio possibilities to your home!
