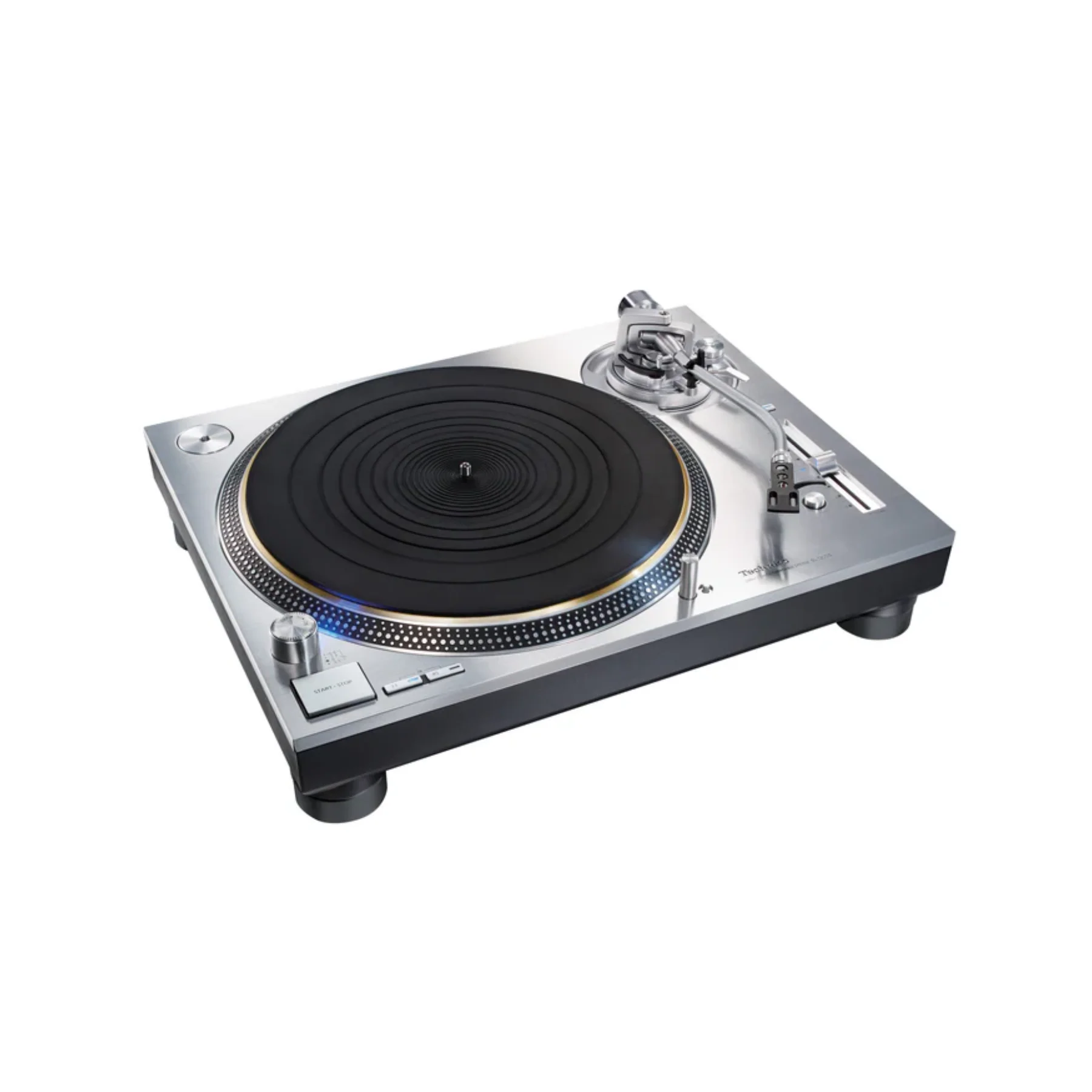

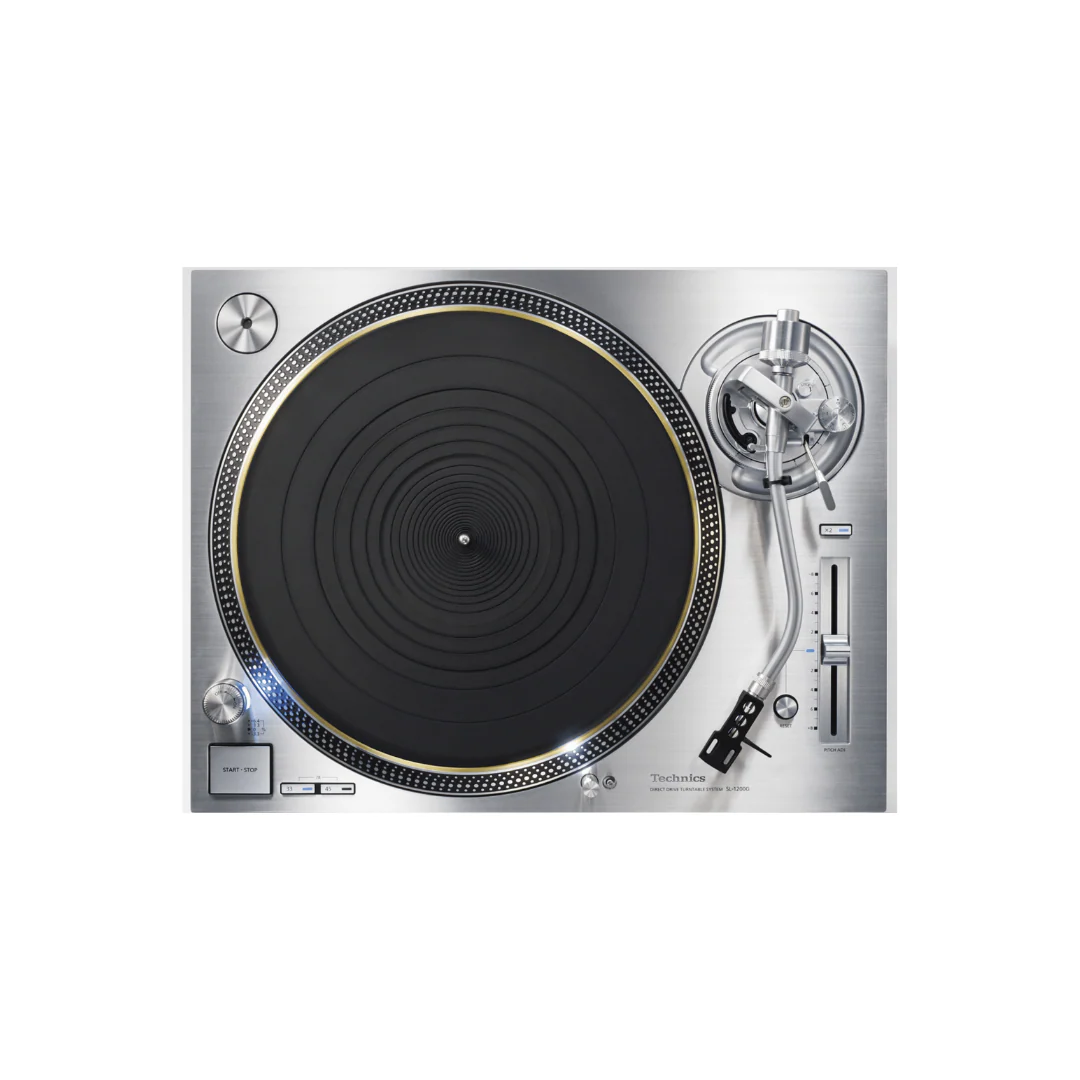

Technics SL-1200G Grand Class Turntable
Technics SL-1200G Grand Class Turntable
Conventional analogue turntables often suffer from sound quality degradation due to issues like speed vibration and rotation irregularity known as "cogging." In the SL-1200G, these problems are addressed through innovative design elements such as a coreless direct-drive motor and twin-rotor construction, resulting in precise reproduction of the intricate details found on analogue records.
The turntable boasts advanced motor control technology derived from Blu-ray devices, ensuring high-starting torque and stable speeds. Its three-layered construction, featuring a brass and aluminum die-cast platter with deadening rubber, enhances rigidity and vibration damping, surpassing industry standards for rotational stability.
Each SL-1200G undergoes meticulous balance adjustment at the factory, minimizing excess vibration and noise during rotation for optimal sound quality. The high-sensitivity tonearm, crafted from lightweight magnesium with precision bearings, further enhances performance, while the four-layered cabinet construction provides both rigidity and a premium finish.
Additionally, the turntable incorporates high-quality terminals with brass-milled, gold-plated connectors and metal shielding to prevent sound degradation and minimize external noise interference, ensuring a superior listening experience.
SL-1200G Specs
- Power Supply: AC120 V, 60 Hz
- Power Consumption: 14 W Approx. 0.2W (Standby)
- Dimensions (W x H x D): 17-27/32 x 6-13/16 x 14-21/32 inch
- Weight: Approx. 39.7lbs
- Accessories: Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight(S), Auxiliary weight(L), Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Screw set for turntable, Owner's Manual
- Audio Output: PHONO (Pin Jack) x 1, EARTH TERMINAL x 1
- Type: Universal Static Balance
- Effective Length: 230mm (9-1/16")
- Overhang: 15mm (19/32")
- Tracking Error Angle: Within 2° 32' (at the outer groove of 30cm(12") record), Within 0° 32' (at the inner groove of 30cm(12") record)
- Offset Angle: 22°
- Arm-height Adjustment Range: 0 - 6 mm
- Stylus Pressure Adjustment Range: 0 - 4 g (direct reading)
- Head Shell Weight: Approx. 7.6 g
-
Applicable Cartridge Weight Range:
- (without auxiliary weight) 5.6 - 12.0g
- 14.3 - 20.7g (including headshell) (with small auxiliary weight)
- 10.0 - 16.4g 18.7 - 25.1g (including headshell) (with large auxiliary weight)
- Cartridge Mounting Dimension: JIS 12.7 mm Interval
- Head Shell Terminal Lug: 1.2 mm φ 4-pin Terminal Lug
- Type: Direct Drive Manual Turntable
- Turntable Speeds: 33 1/3, 45, 78 rpm
- Adjust Range: ±8%, ±16%
- Starting Torque: 3.3 kg･cm (2.8 lb-in)
- Build-up Characteristics: 0.7 s. from standstill to 33 1/3 r/min
- Wow And Flutter: 0.025% W.R.M.S. (JIS C5521)
- Rumble: 78dB (IEC 98A Weighted)
- Turntable Platter: Brass and Aluminum diecast combined, Diameter 332mm (13-5/64"), Weight：About 3.6kg (7 15/16 lb) (Including rubber sheet)
