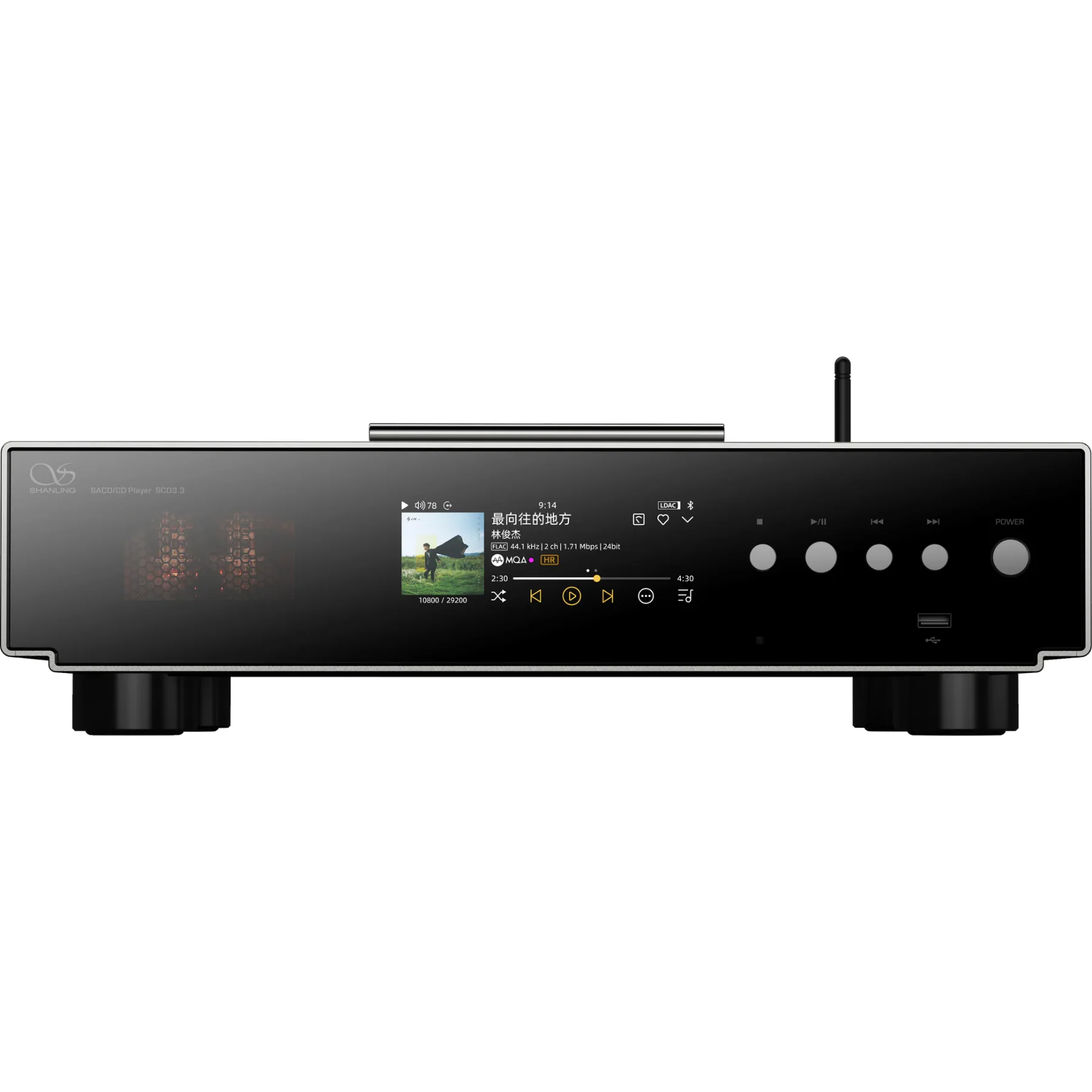

Shanling SCD3.3 High End SACD Player

Shanling SCD3.3 High-End SACD Player

The Shanling SCD3.3 is a masterfully engineered SACD player that blends digital precision with analog warmth for an elite audiophile experience. Built around Shanling’s proprietary HD850 disc mechanism and a second-generation R2R DAC platform, the SCD3.3 offers native DSD output, full MQA-CD decoding, and support for ultra-high-resolution PCM/DSD playback. With a dedicated tube analog stage powered by hand-matched 12AT7 tubes, a CNC-machined chassis, and comprehensive digital and analog connectivity, the SCD3.3 serves as a complete high-end digital hub for your music system.

Specifications

• Disc Mechanism: Shanling HD850 top-loading with precision puck
• Disc Support: SACD (hybrid), CD
• Digital Processing: Native DSD via FPGA-assisted I2S, 10 selectable modes
• MQA-CD: Full 4× unfolding support
• DAC Architecture: R2R ladder DAC with 212 ultra-precision resistors, 24-bit with 4-bit compensation
• Analog Stage: Dual 12AT7 tube amplification (RCA & XLR)
• Low-Pass Filter: OPA1612
• Output Stage: MUSES8920E
• Capacitors: ELNA, Nichicon, Panasonic
• Clocking: Dual oscillators (90/98 MHz for FPGA, 45/49 MHz for XMOS)
• Transformers: Dual R30 (66W) + 15W auxiliary
• Digital Inputs: USB DAC, Coaxial SPDIF, Bluetooth 5.0 (LDAC, aptX HD, aptX, AAC, SBC)
• Digital Outputs: I2S, USB Audio, Coaxial SPDIF
• Analog Outputs: RCA, XLR (line-out & preamp modes)
• USB Playback: PCM up to 768 kHz/32-bit, DSD up to DSD512
• Screen: 5-inch LG touchscreen (854×358)
• Construction: CNC-machined aluminum chassis (9.5 mm), tube display window
• Dimensions: 430 × 319 × 91 mm
• Weight: ~10 kg
• Voltage: Region-locked 100V or 220V
• Remote & App: Included remote and Eddict Player app support

Expanded Key Features List

• Proprietary HD850 Disc System: Delivers stable, accurate playback from SACD and CD using a Shanling-engineered top-loading mechanism.
• True Native DSD Over I2S: Supports full DSD output through FPGA-assisted processing with 10 selectable DSD filter modes.
• High-Resolution USB Playback: Stream audio directly via USB drives up to PCM 768 kHz/32-bit and DSD512 for ultimate resolution.
• Tube-Based Analog Stage: Matched 12AT7 tubes enhance sonic warmth and depth across RCA and XLR outputs.
• Second-Gen R2R DAC Architecture: Utilizes 212 ultra-precision resistors in a push-pull design for smooth, organic analog sound.
• MQA-CD Decoding: Fully unfolds MQA-CDs for high-resolution playback and studio-master quality.
• Dual Oscillator Clocking: Independent clock sources ensure low jitter for both FPGA and XMOS digital audio circuits.
• Premium Construction & Touchscreen: CNC-machined aluminum body with a 5-inch LG display and dedicated tube window for visual appeal and intuitive control.

Q&A Section

Q: What makes the Shanling SCD3.3 different from other SACD players?
A: It combines a proprietary Shanling disc mechanism, true DSD output via I2S, and a second-gen R2R DAC with tube amplification for a unique analog-digital hybrid experience.

Q: Can it decode MQA-CDs?
A: Yes, the SCD3.3 supports full 4x unfolding of MQA-CDs for high-fidelity playback.

Q: Does the SCD3.3 support native DSD output?
A: Absolutely. Native DSD is supported over I2S with 10 selectable digital filters.

Q: Is there Bluetooth streaming support?
A: Yes, it includes Bluetooth 5.0 with support for LDAC, aptX HD, AAC, and more.

Q: What DAC architecture does it use?
A: It uses Shanling’s second-generation R2R DAC system with 212 ultra-precision resistors and 24-bit resolution.

Q: Can I use the SCD3.3 as a preamp?
A: Yes, it includes both line-out and preamp output modes on RCA and XLR.

Q: What is the screen used for?
A: The 5-inch LG touchscreen provides playback control, settings access, and an interface for easy navigation.

Q: Does the tube amplification apply to all outputs?
A: Yes, both RCA and XLR outputs are routed through the tube amplification stage for a warm, rich sound.
