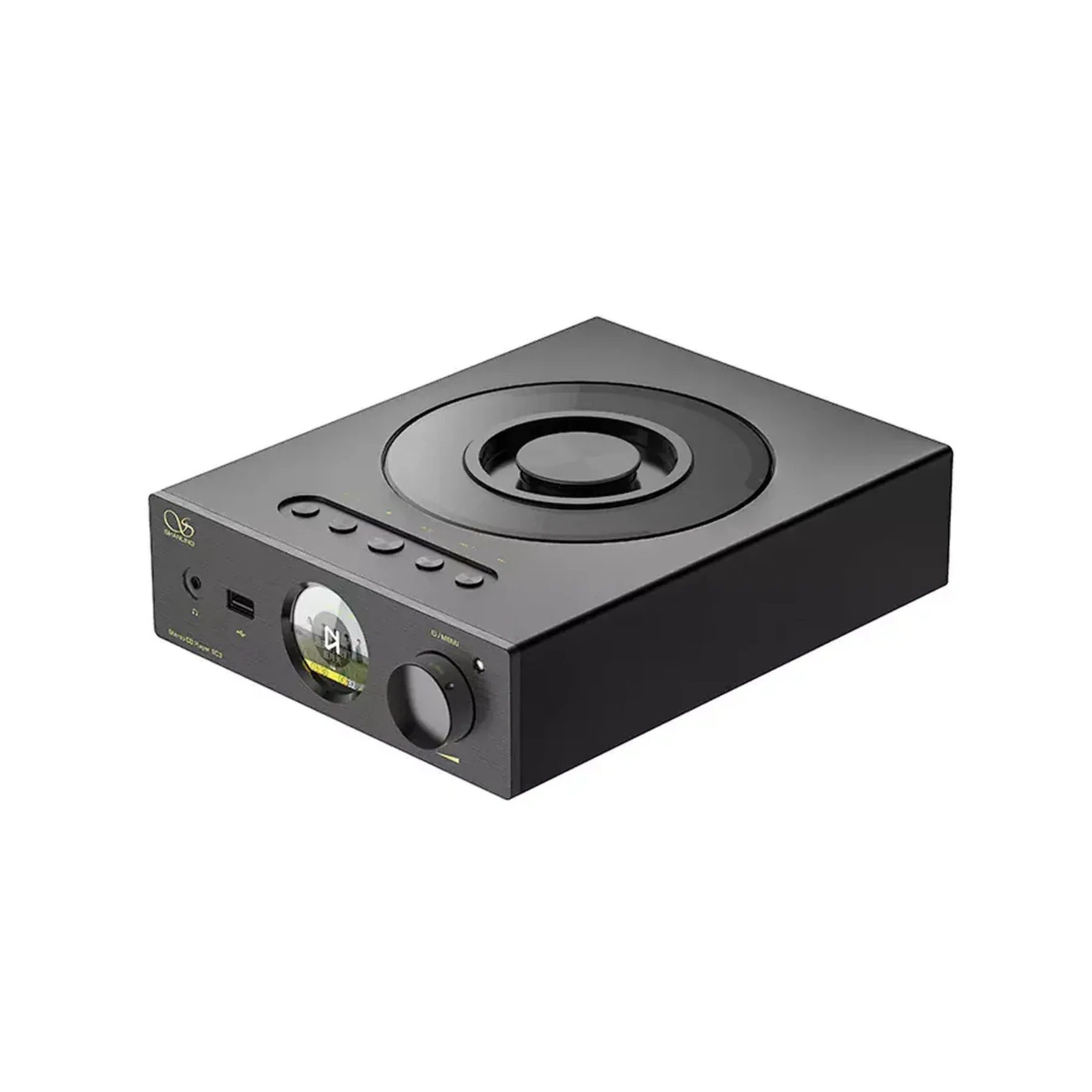

Shanling EC3 Top Loading Compact CD Player

Shanling EC3 Hi-Fi CD Player with Bluetooth & DAC

The Shanling EC3 is a premium CD player that blends traditional Hi-Fi craftsmanship with modern digital enhancements. Built with the Philips CD80 drive and Sanyo HD850 laser head, it ensures stable, error-free disc playback, delivering the same legendary reliability as Shanling’s legacy CD players from over 30 years ago. Featuring the ESS ES9219C Sabre DAC with LTA8092 op-amp, the EC3 delivers Shanling’s signature warm and natural sound, while also supporting high-resolution playback up to 32bit/384kHz and DSD256 from USB drives. With advanced Bluetooth 5.0 connectivity, powered by the Ampak AP6256AC module and LDAC codec support, users can enjoy wireless streaming with uncompromised sound quality, making the EC3 a true hybrid between classic Hi-Fi and modern convenience.

Specifications

• Drive System: Philips CD80 with Sanyo HD850 laser head
• DAC: ESS ES9219C Hi-Fi DAC chip
• Op Amp: LTA8092, tuned for Shanling’s warm and natural sound
• Processor: Ingenic X2000 dual-core platform for smooth UI and fast start-up
• Bluetooth Module: Ampak AP6256AC with Bluetooth 5.0, LDAC and AAC codec support
• Display: Compact 320 × 290 Motorola IPS screen with wide viewing angles
• Dimensions: 25.5 × 18.8 × 6.8 cm (L × W × D)
• Weight: 2.4 kg
• Power Consumption: 15W
• RCA Output: 2.3V output level
• RCA Frequency Response: 20 Hz – 40 kHz (±0.5 dB)
• RCA SNR: 116 dB
• RCA Dynamic Range: 116 dB
• RCA Distortion: <0.001%
• Headphone Output (Low Gain): 20 mW @ 32 Ω
• Headphone Output (High Gain): 70 mW @ 32 Ω
• Headphone Frequency Response: 20 Hz – 40 kHz (±0.5 dB)
• Headphone SNR: 114 dB
• Headphone Dynamic Range: 116 dB
• Headphone Distortion: 0.0015%
• Channel Separation: 65 dB @ 32 Ω
• Headphone Output Impedance: 0.4 Ω
• Inside the Box: Shanling EC3 unit, user manual

Expanded Key Features List

• Philips CD80 Drive & Sanyo HD850 Laser: Ensures accurate, stable, and error-free CD playback with the same legendary quality of Shanling’s classic players.
• ESS ES9219C DAC & LTA8092 Op Amp: Delivers rich, natural, and high-resolution audio up to 32bit/384kHz and DSD256, tuned for Shanling’s signature warmth.
• Ingenic X2000 Dual-Core Processor: Provides fast start-up, smooth user interface, and advanced features not possible in traditional CD players.
• Bluetooth 5.0 with LDAC & AAC: Streams music wirelessly from phones or tablets with high-quality codecs for audiophile-grade sound.
• Motorola IPS Compact Screen: A 320 × 290 display with sharp visuals, wide viewing angles, and clear playback information.
• Precision Outputs: High-grade RCA and headphone outputs deliver low distortion, wide frequency response, and excellent dynamic range.

Q&A Section

Q: Does the Shanling EC3 support high-resolution audio formats?
A: Yes, it supports up to 32bit/384kHz and DSD256 files via USB drive playback.

Q: Can I stream music wirelessly with the EC3?
A: Absolutely. The EC3 features Bluetooth 5.0 with LDAC and AAC codec support for high-quality wireless streaming from phones or tablets.

Q: What makes the CD playback reliable on this player?
A: The EC3 uses a Philips CD80 drive and Sanyo HD850 laser head, ensuring stable and error-free disc reading.

Q: Does the EC3 include a headphone output?
A: Yes, it includes both low and high-gain headphone outputs with excellent clarity and dynamic range.

Q: What type of screen does the EC3 have?
A: It features a compact 320 × 290 Motorola IPS screen with bright visuals and wide viewing angles.

Q: Is the sound signature neutral or colored?
A: Shanling has tuned the EC3 for its signature warm, slightly thicker, and natural sound.

Q: How heavy and large is the unit?
A: The EC3 measures 25.5 × 18.8 × 6.8 cm and weighs 2.4 kg.

Q: What comes in the box?
A: The package includes the Shanling EC3 CD player and a user manual.
