Rotel RAS-5000 Integrated Music Streamer Amplifier

Rotel RAS-5000 Integrated Streaming Amplifier

The Rotel RAS-5000 Integrated Streaming Amplifier blends modern music streaming, TV-friendly HDMI eARC connectivity, and true audiophile amplification into one clean, lifestyle-ready component. At its core is a powerful Class AB amplifier delivering 220 watts per channel into 4 ohms (140 watts per channel into 8 ohms)—the kind of robust, controlled power that brings speakers to life with punchy dynamics and confident bass.

Streaming is built in and effortless: play music directly via Spotify Connect, TIDAL Connect, Qobuz, Internet Radio, or stream from your devices using Apple AirPlay 2, Google Cast (Chromecast built-in), Roon Ready, and Bluetooth with aptX HD and AAC. Digital playback is handled by an ESS premium 32-bit DAC, with support for high-resolution formats through coax/optical SPDIF (up to 24-bit/192kHz) and PC-USB (up to 24-bit/384kHz), including MQA and MQA Studio support.

For home entertainment, HDMI eARC makes the RAS-5000 a natural centerpiece—routing your TV audio back to the amplifier for clear dialogue, wide soundstage, and impactful movie/game playback without clutter. With analog inputs, a subwoofer output, and pre out/main in connectivity, it’s designed to slot into both simple and expanding hi-fi systems while keeping operation intuitive with the included remote and front-panel display.

The Rotel RAS-5000 is part of ListenUp's Rotel Music Streaming Integrated Amplifiers Collection.

What It's Good At:

• Driving real-world speakers with authority thanks to high-current Class AB power (220W/ch @ 4Ω)
• All-in-one streaming convenience with Spotify Connect, TIDAL Connect, Qobuz, AirPlay 2, Chromecast built-in, and Roon Ready
• TV + music hub simplicity via HDMI eARC for easy, high-quality sound from shows, sports, movies, and games
• High-resolution digital audio playback with ESS 32-bit DAC and hi-res support up to 24-bit/384kHz via PC-USB
• Flexible system building using Sub Out, Pre Out, and Main In for expansion and integration
• Clean wireless playback using Bluetooth with aptX HD and AAC for better mobile sound quality

Rotel RAS-5000 Full Specifications:

• Product Type: Amplified Streamer / Integrated Streaming Amplifier
• Amplifier Design: Class AB
• Power Output:
  • 220 Watts/channel (4 Ohms)
  • 140 Watts/channel (8 Ohms)
• Total Harmonic Distortion (THD): < 0.03%
• Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%
• Frequency Response:
  • Line Level Inputs: 10 Hz – 100 kHz, ±0.5 dB
  • Digital Section: 10 Hz – 70 kHz (±3 dB, MAX)
• Damping Factor (20–20 kHz, 8 Ohms): 290
• Input Sensitivity / Impedance:
  • Line Level Inputs: 0.78 V / 46 kOhms
  • Digital Inputs: -8 dBFS / 75 Ohms
• Input Overload (Line Level Inputs): 4.1 V
• Tone Controls (Bass / Treble): ±10 dB at 100 Hz / 10 kHz
• Signal-to-Noise Ratio (IHF “A” weighted):
  • Line Level Inputs: 103 dB
  • Digital Inputs: 105 dB
• DAC: ESS premium 32-bit Digital-to-Analog Converter
• Digital Inputs (Coax/Optical): SPDIF LPCM up to 24-bit / 192 kHz
• PC-USB:
  • USB Audio Class 2.0 up to 24-bit / 384 kHz
  • Driver installation required
  • Supports MQA and MQA Studio (up to 24-bit / 384 kHz)
  • Roon Ready
• HDMI: Supports eARC function
• Streaming / Wireless Support: Spotify Connect, TIDAL Connect, Qobuz, Internet Radio, Apple AirPlay 2, Google Cast (Chromecast built-in), Roon Ready, Bluetooth (aptX HD, AAC)

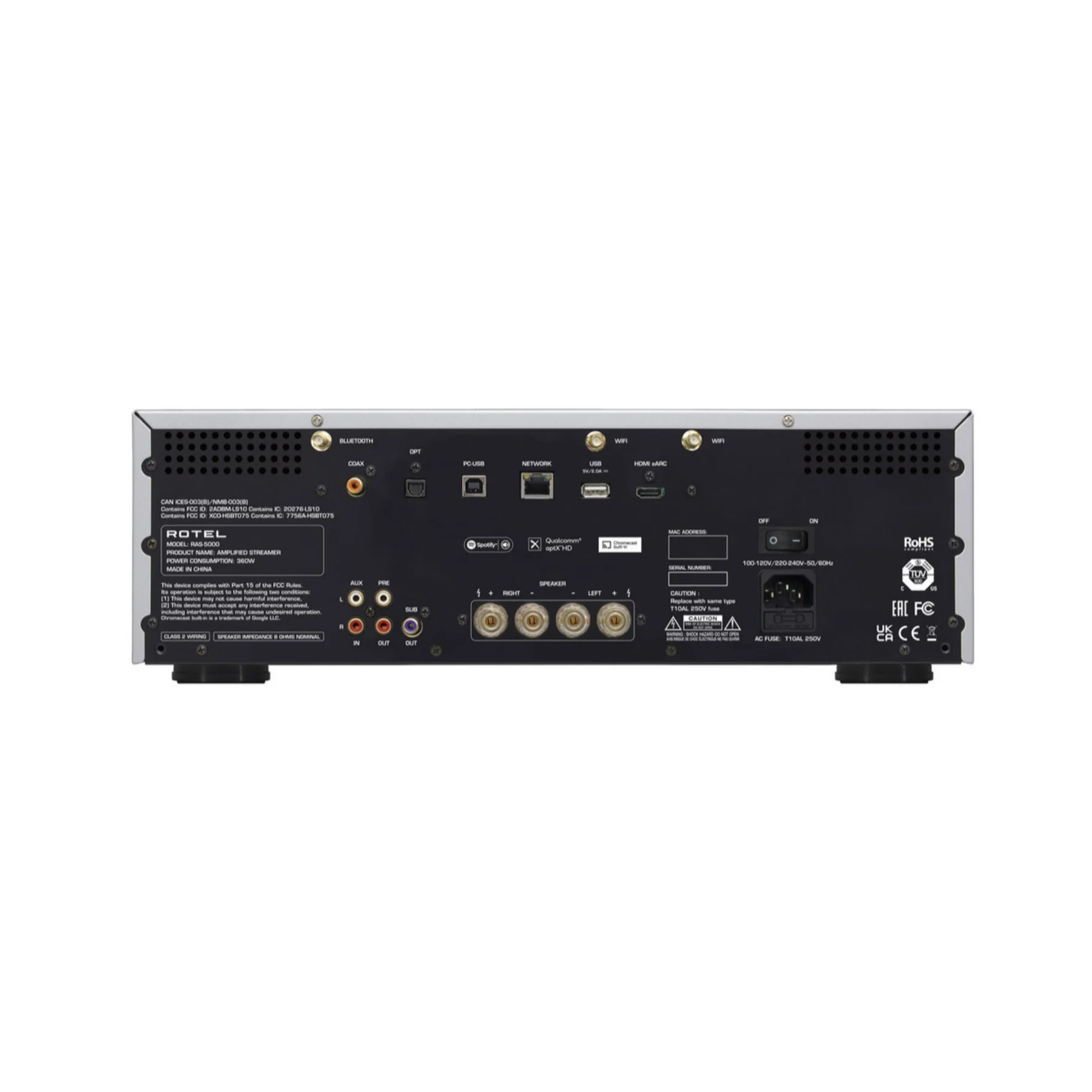

• Rear/Front Connectivity (as shown in manual diagrams):
  • HDMI eARC input
  • Coax digital input
  • Optical digital input
  • PC-USB input
  • Network (Ethernet) port
  • USB port for audio playback (flash drive) + 5V/2.0A
  • AUX analog line-level input (RCA L/R)
  • Pre Out
  • Main In
  • Sub Out
  • Speaker binding posts (L/R)
  • Headphone output (front panel)
  • Wi-Fi antenna connections
  • Bluetooth antenna connection
• Power Requirements:
  • USA: 120 V, 60 Hz
  • Europe/EC: 230 V, 50 Hz
• Power Consumption: 380 W
• Standby Power Consumption: < 0.5 W
• BTU (4 Ohms, 1/8 power): 1027 BTU/h
• Dimensions (W x H x D): 431 x 144 x 425 mm (17" x 5 7/8" x 16")
• Front Panel Height: 3U / 132.6 mm (5 1/4")
• Net Weight: 15.7 kg (34.6 lbs)
• Finish: Black and Silver
• Included Accessory: Remote control

Rotel RAS-5000 Q&A:

What kind of product is the Rotel RAS-5000?

It’s an amplified streamer (integrated streaming amplifier) that combines high-power Class AB amplification, built-in music streaming, and digital/analog connectivity in one component.

How powerful is the RAS-5000 for driving speakers?

It delivers 220 watts per channel into 4 ohms (and 140 watts per channel into 8 ohms), providing strong control and dynamics for a wide range of speakers.

Can I connect my TV to the RAS-5000 with a single cable?

Yes. Use the HDMI eARC connection to send TV audio back to the amplifier for clear, high-resolution sound from shows, sports, movies, and games.

Which streaming options are supported?

It supports Spotify Connect, TIDAL Connect, Qobuz, Internet Radio, Apple AirPlay 2, Google Cast (Chromecast built-in), Roon Ready, and Bluetooth with aptX HD and AAC.

Does it support high-resolution audio playback?

Yes. Coax/optical supports SPDIF LPCM up to 24-bit/192kHz, and PC-USB supports up to 24-bit/384kHz.

Is there a DAC built in, or do I need an external one?

You don’t need an external DAC—an ESS premium 32-bit DAC is built in for detailed, accurate digital playback.

Can I add a subwoofer to this system?

Yes. The RAS-5000 includes a dedicated Sub Out for easy subwoofer integration.

Can it be expanded into a larger system later?

Yes. With Pre Out and Main In connections, you can integrate external amplification or system components as your setup grows.

Rotel RAS-5000 Downloads:

Rotel RAS-5000 Manual
Rotel RAS-5000 Specifications Sheet
Rotel RAS-5000 Drawing
