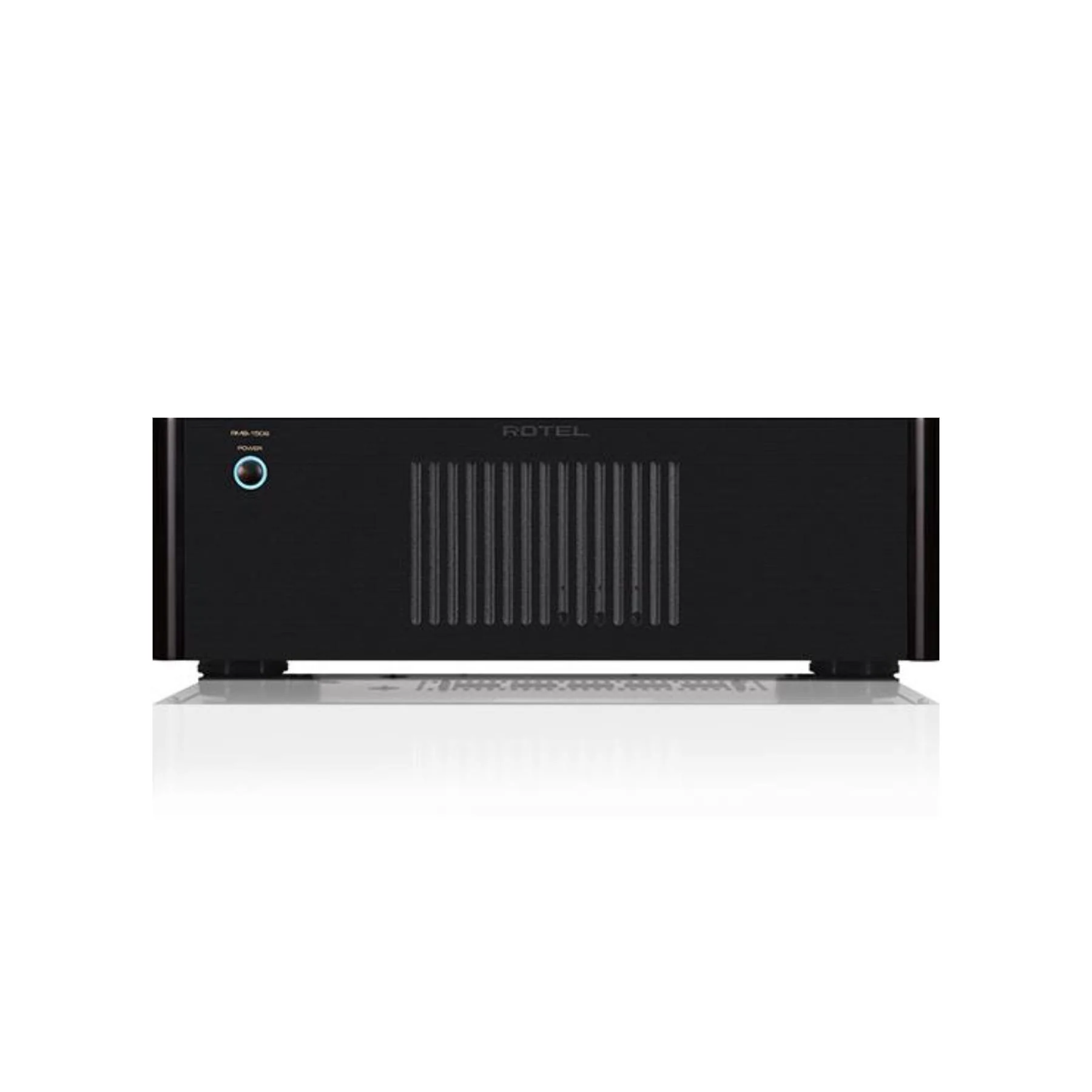

Rotel RMB-1506 6-Channel Amplifier

Rotel RMB-1506 6-Channel Custom Installation Amplifier

Power multiple rooms with confidence using the Rotel RMB-1506, a rugged 6-channel Class AB power amplifier built for clean, dependable multi-zone audio. Delivering 6 x 50 watts per channel into 8 ohms (or 6 x 80 watts per channel into 4 ohms), it’s an ideal solution for distributing music to up to three stereo zones when paired with a surround receiver or a preamp/processor. Custom-install friendly features like automatic signal sensing, 12V trigger input, front-panel level (attenuation) controls, and input linking make it easy to integrate into racks, cabinets, and whole-house systems. A buffered link output lets you expand your system by daisy-chaining additional amplifiers for larger installations, while five-way binding posts and an IEC detachable power cord keep connectivity professional and serviceable.

The Rotel RMB-1506 is part of ListenUp's Rotel Power Amplifiers Collection.

What It's Good At:

• Driving up to 3 stereo zones (6 channels) for whole-home audio and distributed music
• Delivering robust Class AB power with low distortion for smooth, detailed sound
• Custom-install integration with 12V trigger and automatic signal sensing (auto turn-on)
• Rack-friendly setup with included rack ears and 3U front-panel height
• Scaling multi-zone systems using input linking and a buffered link output
• Dialing in each area with front-panel attenuation controls for zone-by-zone level matching

Rotel RMB-1506 Full Specifications:

• Product Type: 6-Channel Custom Installation / Multichannel Power Amplifier (Distribution Amplifier)
• Amplifier Design: Class AB
• Channels: 6
• Continuous Power Output (All channels driven, 8Ω): 6 x 50 W/ch (20 Hz–20 kHz, <0.03% THD)
• Continuous Power Output (All channels driven, 4Ω): 6 x 80 W/ch (DIN, 1 kHz, 1.0% THD)
• Total Harmonic Distortion (THD) (20 Hz–20 kHz, 8Ω):
  • Continuous rated power: <0.03%
  • One-half rated power: <0.03%
  • 1 watt power: <0.03%
• Intermodulation Distortion (60 Hz:7 kHz, 4:1): <0.03%
• Frequency Response: 10 Hz–100 kHz (±1 dB)
• S/N Ratio (IHF “A” Weighted / IHF A): 115 dB
• Gain: 26 dB
• Damping Factor (20–20,000 Hz, 8Ω): >200
• Crosstalk / Separation: >70 dB
• Input Sensitivity: 1.0 V
• Input Impedance: 20 kΩ
• Input Overload Level: 5.0 V
• Peak Current: >25 A
• Speaker Impedance: 4 Ω minimum
• Auto Turn-On Level (via all inputs): 1 mV input signal

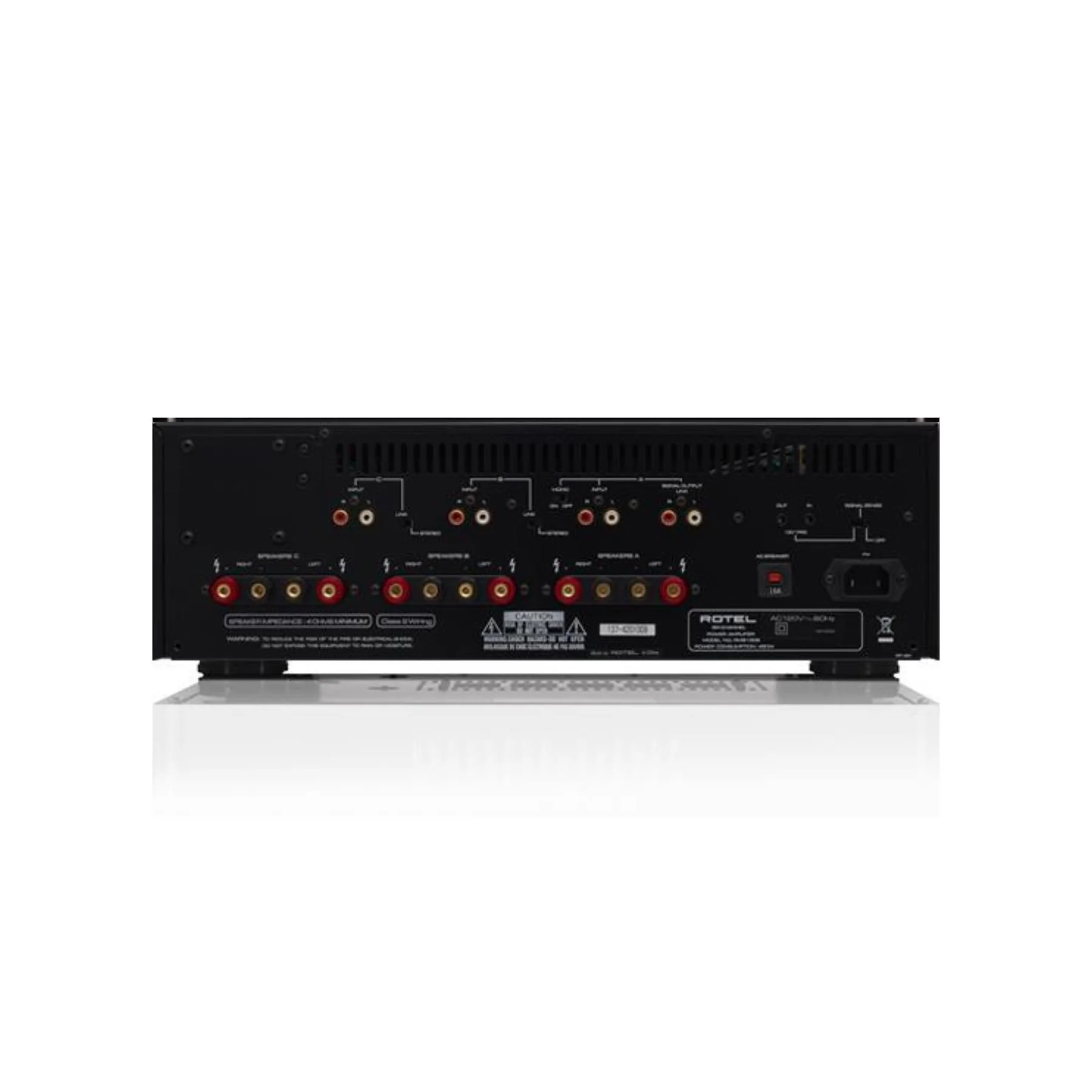

• Custom Installation Features: Front panel attenuation control, input linking, 12V trigger input, buffered link output, automatic signal sensing, five-way binding posts, IEC detachable power cord
• Rack Mounting: Rack ears included
• Dimensions (W × H × D): 431 × 144 × 424 mm (17 × 5.7 × 16.7 in)
• Front Panel Height: 3U / 132.6 mm (5.2 in; also listed as 5.25 in)
• Net Weight: 15.3 kg (34 lb; also listed as 33.75 lb)
• Power Requirements:
  • USA: 120 V, 60 Hz
  • Europe: 230 V, 50 Hz
• Power Consumption: 450 W
• Power Consumption (Idle): 42 W
• Standby Power Consumption: <0.5 W (also listed as 2.6 W)
• BTU Rating (4Ω, 1/8th power): 1680 BTU/h
• Available Color: Black
• Notes / Addendum: Mono switch feature is not installed on this model

Rotel RMB-1506 Q&A:

How many rooms or zones can the RMB-1506 power?

The RMB-1506 provides 6 channels, which is ideal for powering up to three stereo zones in a multi-room audio setup.

How much power does the RMB-1506 deliver per channel?

It delivers 6 x 50 watts per channel into 8 ohms with all channels driven, and 6 x 80 watts per channel into 4 ohms (DIN, 1 kHz).

Can this amplifier turn on automatically when music starts?

Yes. It includes automatic signal sensing with an auto turn-on threshold of 1 mV input signal.

Does the RMB-1506 support 12V trigger control from a preamp or receiver?

Yes. It includes a 12V trigger input for coordinated on/off control with compatible components.

Can I expand my system later with additional amplifiers?

Yes. A buffered link output and input linking allow you to connect additional amplifiers for larger multi-zone applications.

Is the RMB-1506 suitable for rack mounting?

Yes. Rack ears are included, and the amplifier fits a 3U front-panel height.

What speakers can I use with the RMB-1506?

It supports speakers with a minimum impedance of 4 ohms.

Does this model have a mono switch for bridging or mono operation?

No. The manufacturer addendum notes the mono switch feature is not installed on this model.

Rotel RMB-1506 Downloads:

Rotel RMB-1506 Manual
Rotel RMB-1506 Specifications Sheet
Rotel RMB-1506 Drawing
