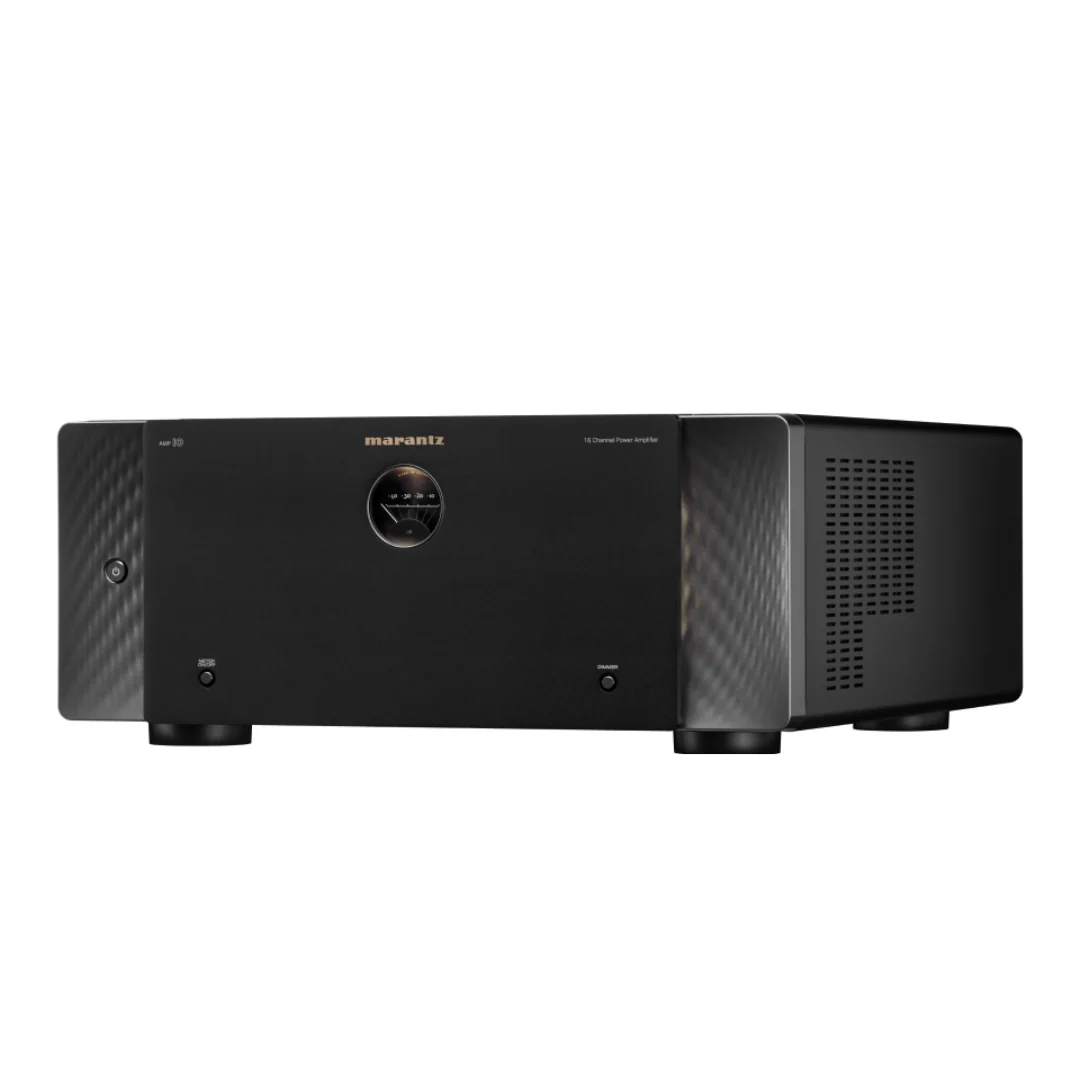

Marantz AMP 10 - 16 Channel Power Amplifier
Marantz AMP 10 Power Amplifier
The Marantz AMP 10 is a reference-grade 16-channel power amplifier built to be the muscle behind elite home cinema systems. Engineered with custom Class D amplification and Marantz HDAM-SA2 circuitry, it delivers the dynamic slam, detail, and musical warmth Marantz is known for—while supplying the channel count needed for modern immersive setups. With selectable output modes (Normal, Bi-Amp, and BTL), AMP 10 adapts to everything from high-channel-count Dolby Atmos theaters to power-hungry speaker configurations that demand extra headroom. Finished with the iconic Marantz porthole level meter and premium build touches—including a copper-plated chassis—AMP 10 is crafted in Shirakawa, Japan for long-term, reference-level performance. The Marantz AMP 10 is part of ListenUp's Marantz AV Separates Collection.
What It's Good At:
- Driving full Dolby Atmos/DTS:X-style speaker layouts with a true 16-channel amplifier platform
- Delivering high-current, high-headroom power for demanding speakers and dynamic movie soundtracks
- Supporting flexible system design with selectable modes: Normal, Bi-Amp, and BTL bridging
- Preserving low-noise, high-resolution detail with Marantz HDAM-SA2 and custom amplification design
- Integrating cleanly into custom theaters via RS-232 control, IR flasher input, and DC trigger I/O
- Adding premium theater aesthetics with a front-panel level meter and signature Marantz design language
Marantz AMP 10 Full Specifications:
- Product name: Marantz AMP 10
- Type: Reference 16-channel power amplifier (home theater / immersive audio)
- Channels / power amps: 16
- Selectable output modes: Normal / Bi-Amp / BTL (bridged)
- Rated output (Normal, Bi-Amp): 200 W x 2 (8 Ω load, 1 kHz, THD 0.05%); 400 W x 2 (4 Ω load, 1 kHz, THD 0.7%)
- Rated output (BTL): 400 W x 2 (8 Ω load, 1 kHz, THD 0.05%)
- Speaker load / output connectors: 4–16 Ω (Normal, Bi-Amp); 8–16 Ω (BTL)
- Frequency response (1 W, 8 Ω): 5 Hz – 70 kHz (±3 dB)
- Input sensitivity / impedance: 1.4 V / 47 kΩ (Unbalanced); 2.8 V / 100 kΩ (Balanced)
- Signal-to-noise ratio (IHF-A): 110 dB
- Voltage amplification level: 29 dB
- Operating temperature: 41°F – 95°F (5°C – 35°C)
- Power supply: AC 120 V, 60 Hz
- Power consumption: 500 W
- Power consumption (no sound): 140 W
- Standby consumption: 0.2 W
- Inputs (Main Amplifier In): Balanced & Unbalanced, 16ch (exclusive use by selector switch)
- Speaker terminal type: SPKT-1+
- Number of speaker terminals: 16
- Bi-Amp drive / BTL drive: Yes / Yes
- Level meter: Yes
- Front display: Level meter
- Chassis: Copper plated
- Metal front panel: Yes
- Auto power off: Yes
- Firmware update (Network / USB / RS232C): No / No / No
- Control / CI features (IP / RS232 / Web / App): No / Yes / No / No
- IR flasher in: Yes
- Marantz remote bus: Yes
- DC trigger input / output: 1 / 1
- Maximum dimensions: 17.4 x 19.2 x 7.4
- Weight: 43.7 lb (19.8 kg)
- Finish shown: Black
- Warranty: 5-year warranty
- Origin / craftsmanship: Crafted in Shirakawa, Japan
- What’s in the box: Main unit, quick start guide, AC cord, amp control cable, remote control cable, SP terminal wrench
Marantz AMP 10 Q&A:
- What is the Marantz AMP 10 designed for?
- AMP 10 is a reference 16-channel power amplifier built to drive high-end home theater systems, including immersive speaker layouts like Dolby Atmos configurations.
- How much power does AMP 10 deliver per channel?
- In Normal or Bi-Amp mode, it’s rated at 200 W x 2 into 8 ohms (1 kHz, 0.05% THD) and 400 W x 2 into 4 ohms (1 kHz, 0.7% THD). In BTL mode, it’s rated at 400 W x 2 into 8 ohms (1 kHz, 0.05% THD).
- What inputs does AMP 10 provide?
- AMP 10 includes 16-channel main amplifier inputs in both balanced (XLR) and unbalanced (RCA) formats, selected via a selector switch for exclusive use.
- What are the selectable output modes and why do they matter?
- AMP 10 supports Normal, Bi-Amp, and BTL (bridged) modes, letting you tailor channel assignment for multi-speaker theaters, bi-amped speakers, or bridged power where needed.
- What speaker impedances are supported?
- In Normal and Bi-Amp modes, AMP 10 supports 4–16 ohms. In BTL mode, it supports 8–16 ohms.
- Does AMP 10 support custom installation control?
- Yes. It supports RS-232 control, has IR flasher input, and includes DC trigger input and output (1/1) for system automation.
- What are the size and weight of AMP 10?
- The maximum dimensions are 17.4 x 19.2 x 7.4, and the unit weighs 43.7 lb (19.8 kg).
- What comes included in the box?
- The package includes the main unit, quick start guide, AC cord, amp control cable, remote control cable, and an SP terminal wrench.
Marantz AMP 10 Downloads:
Marantz AMP10 User Guide
Marantz AMP10 Quick Start Guide
Marantz AMP 10 Video:
