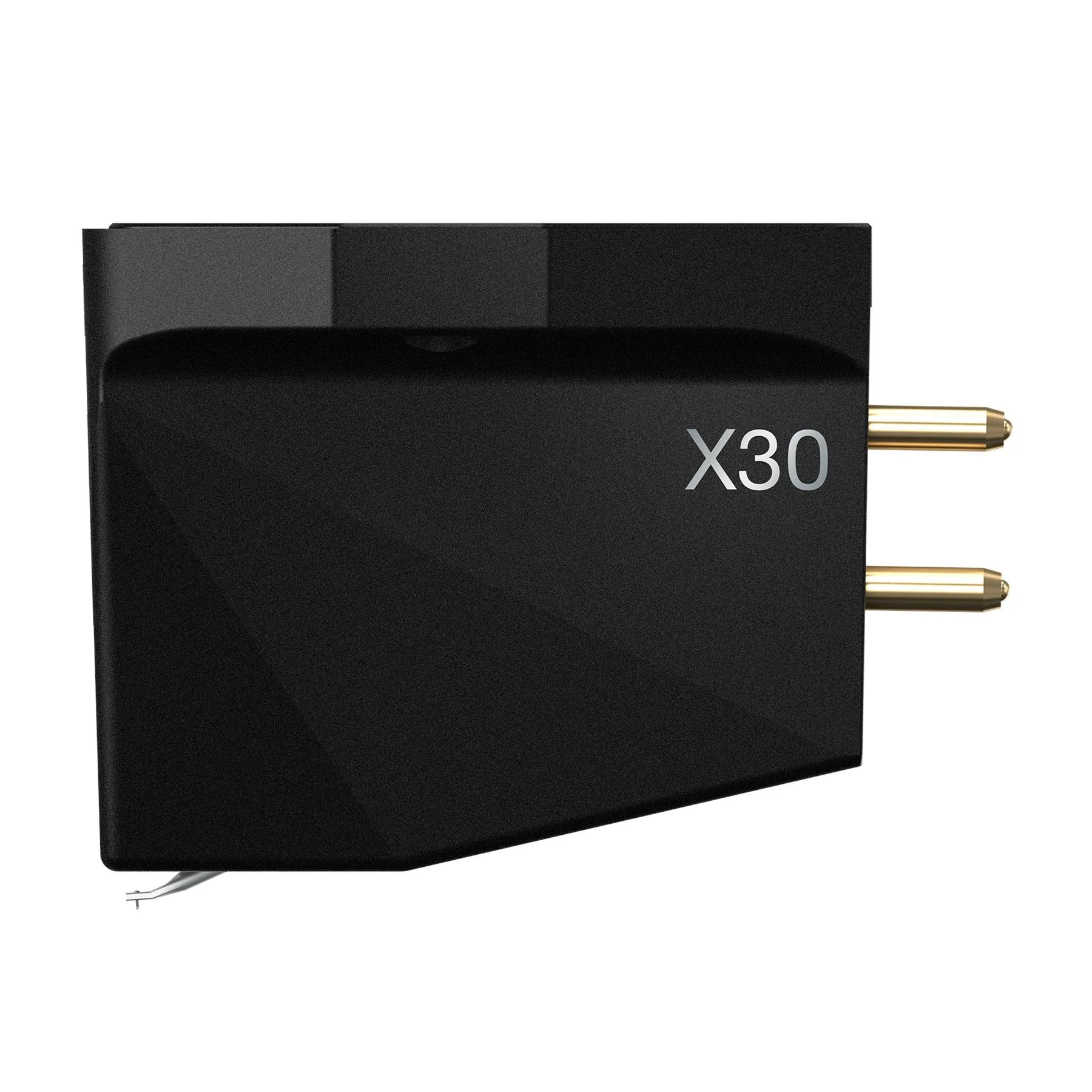

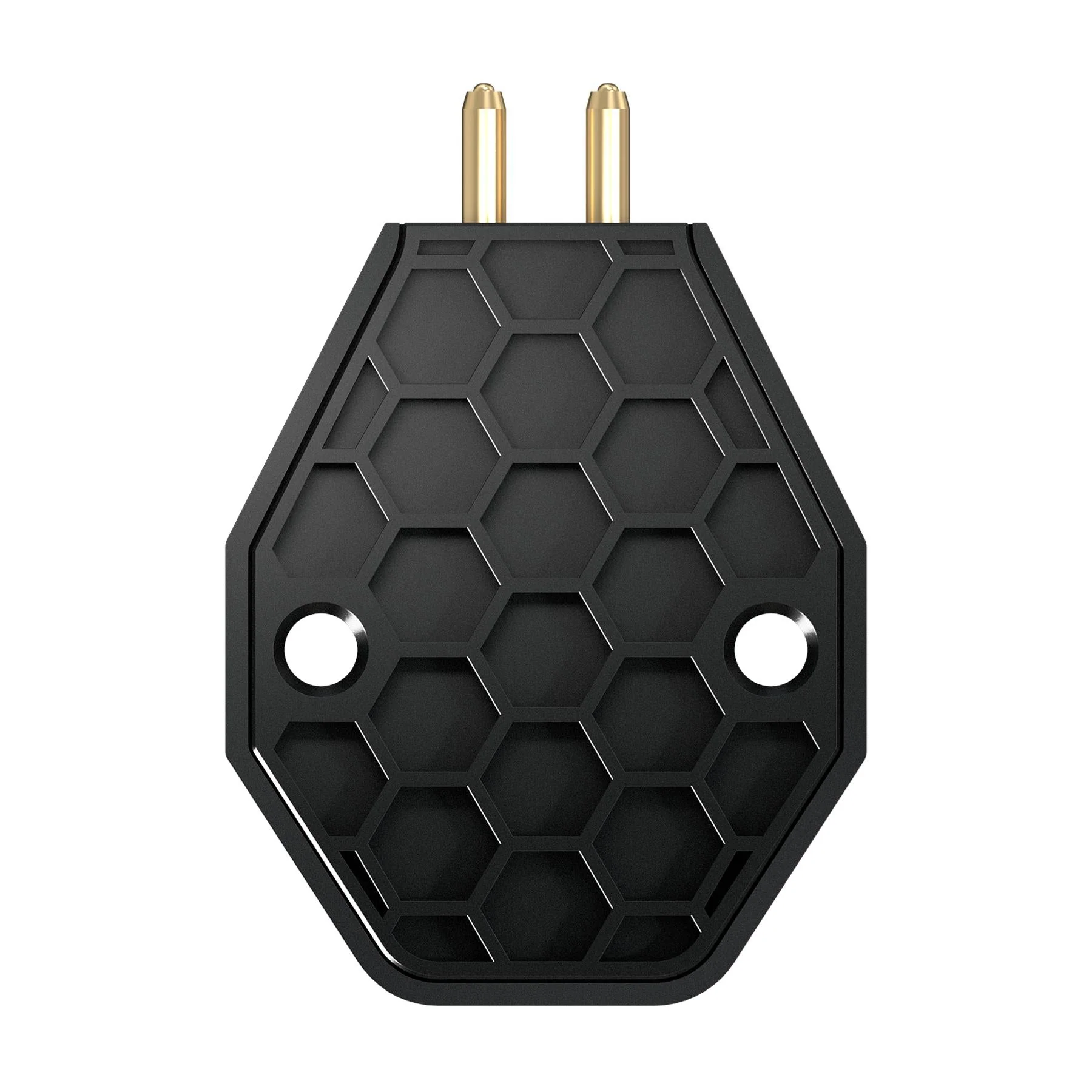

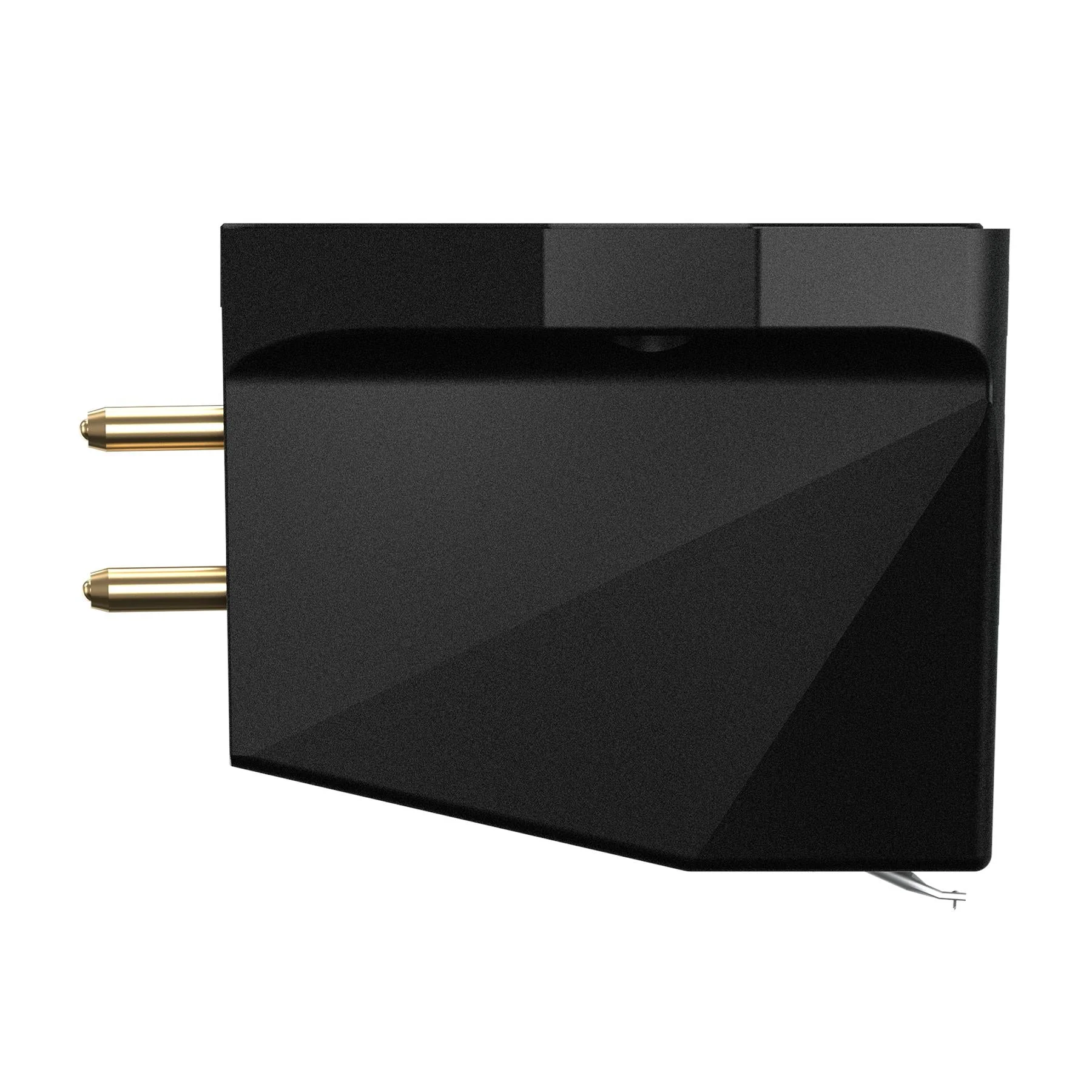

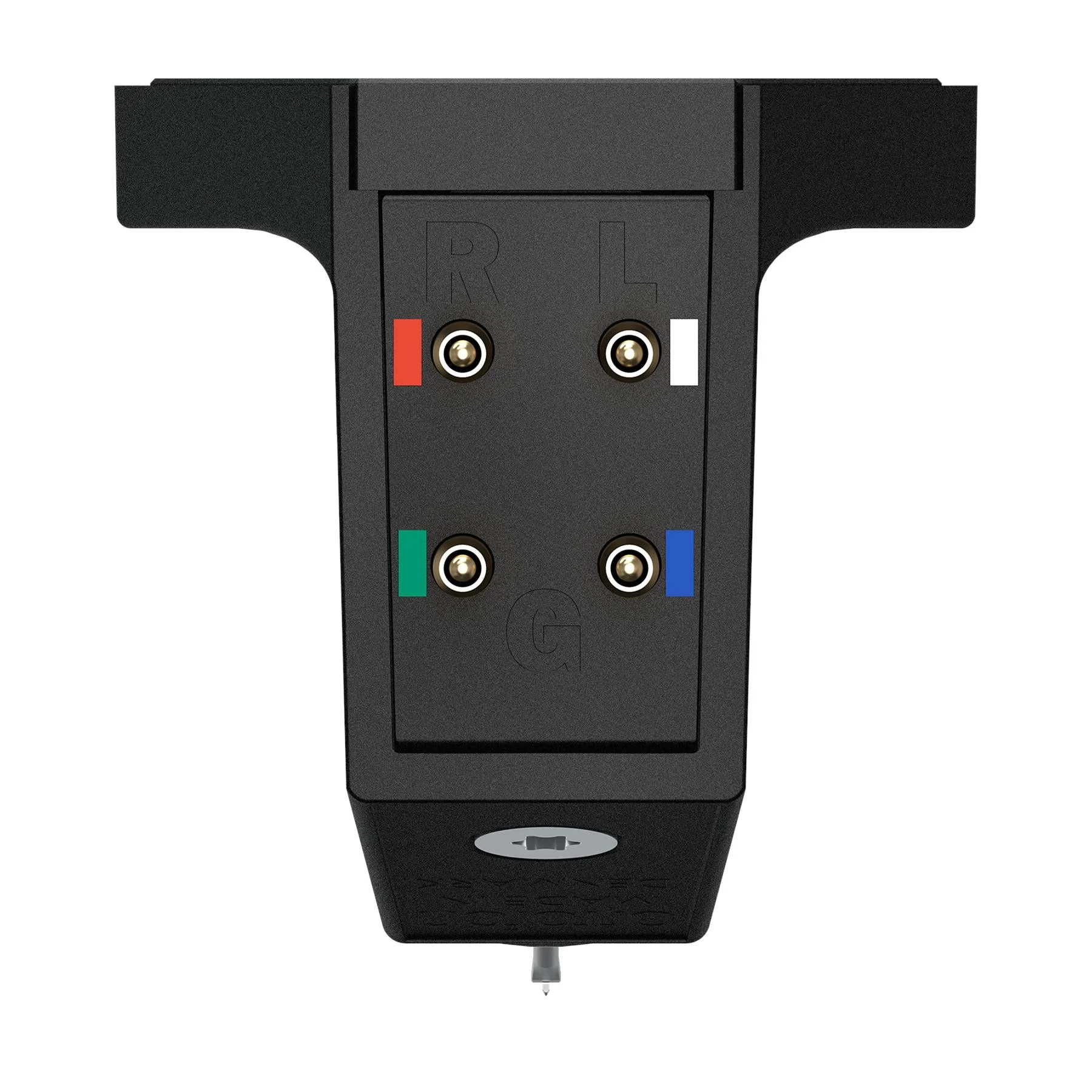

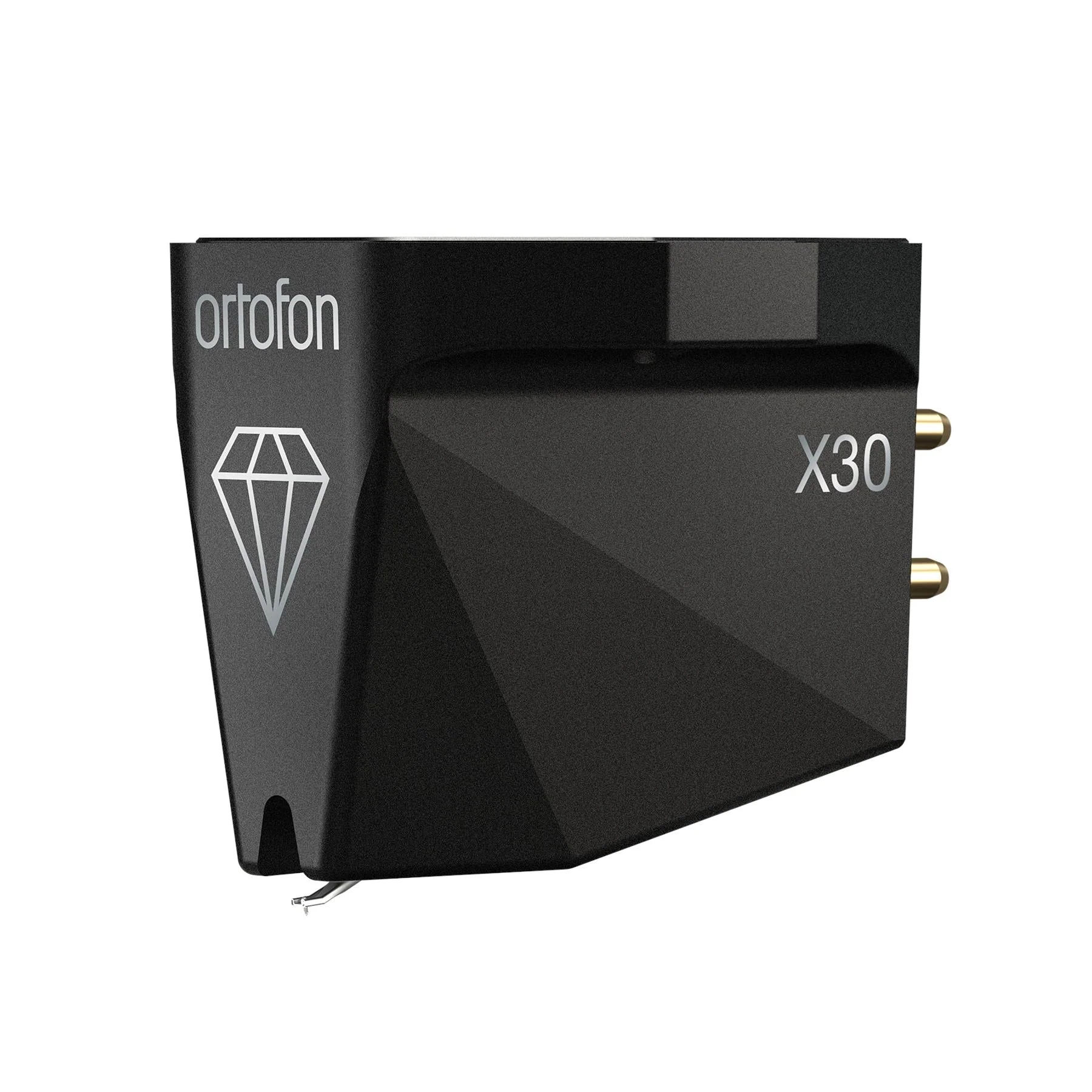

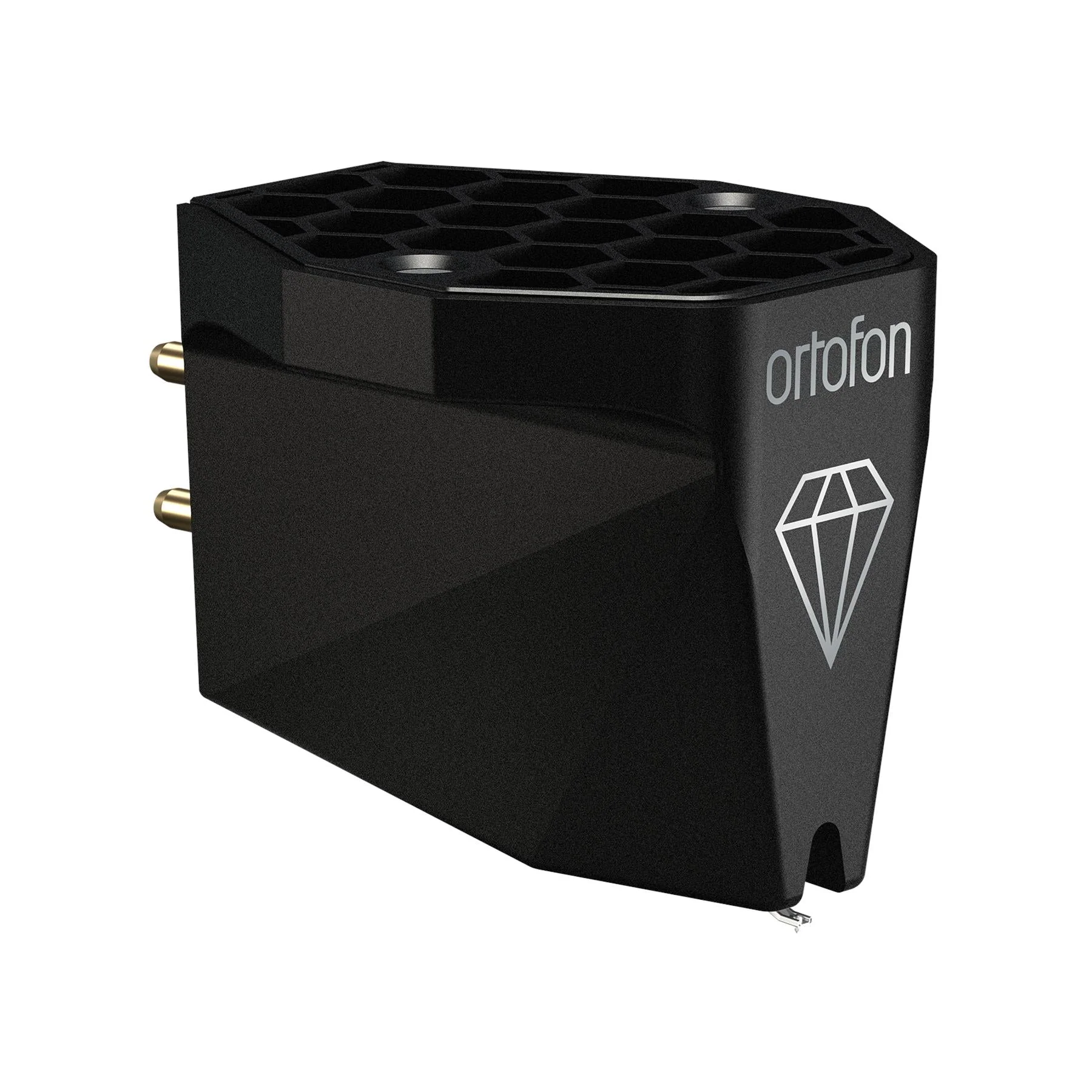

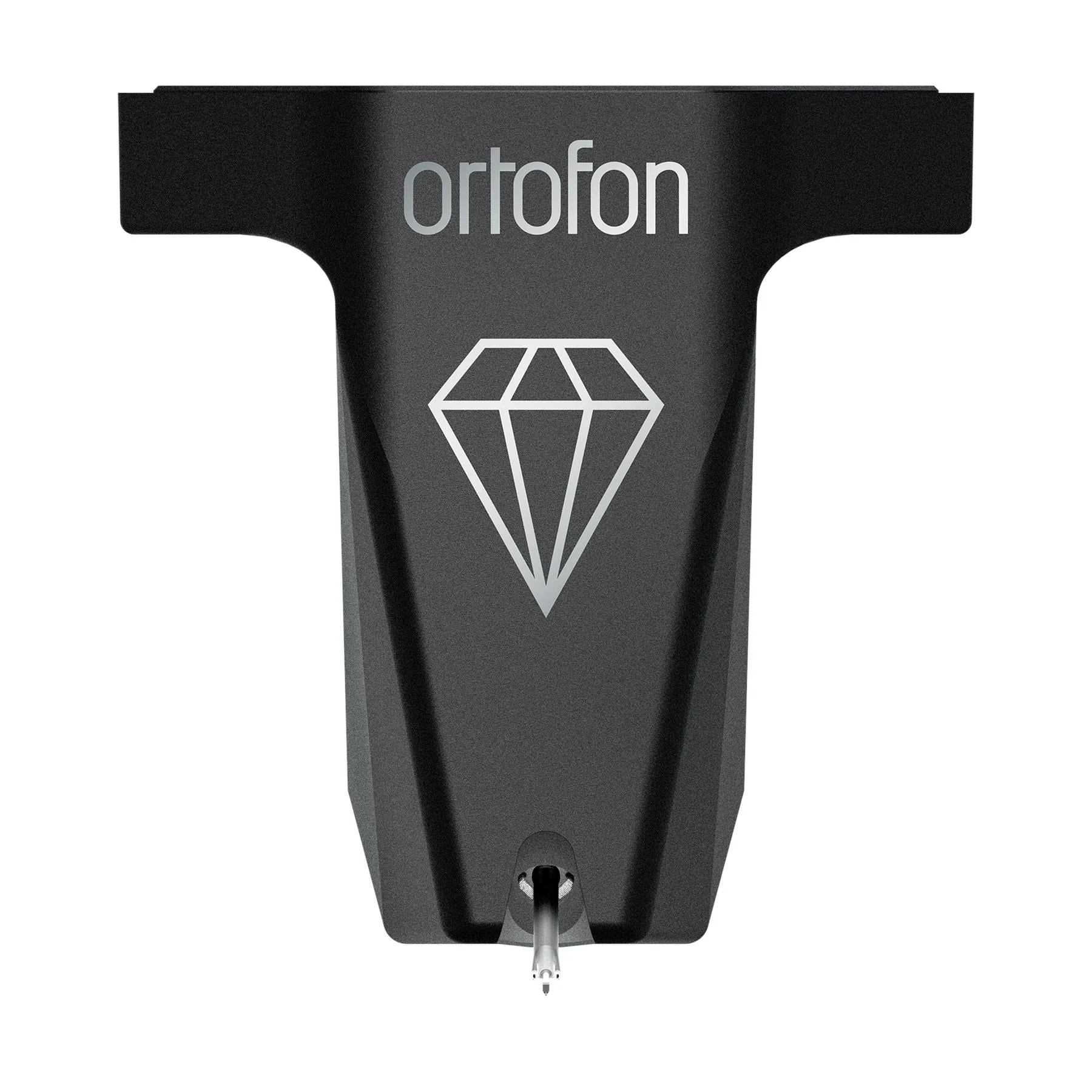

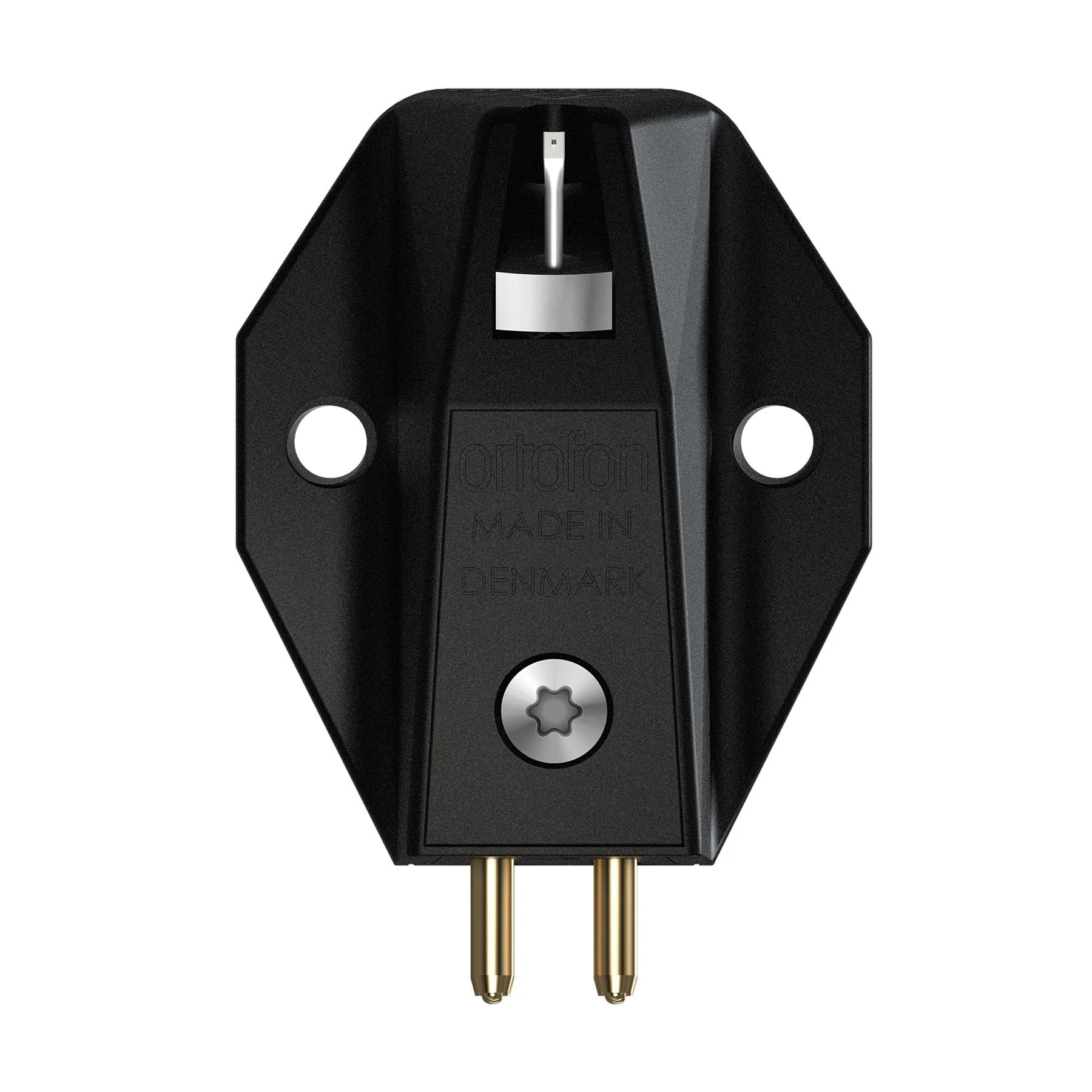

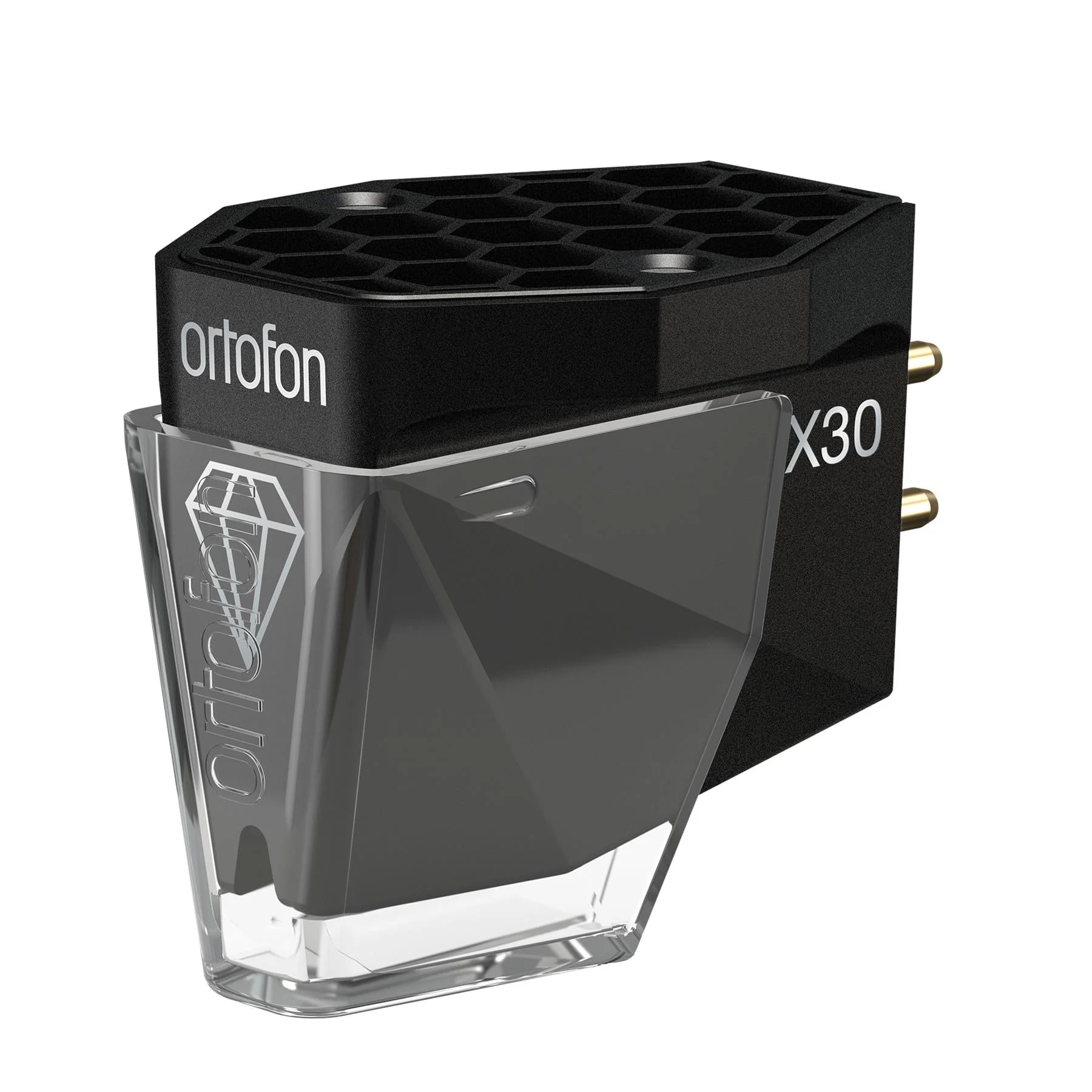

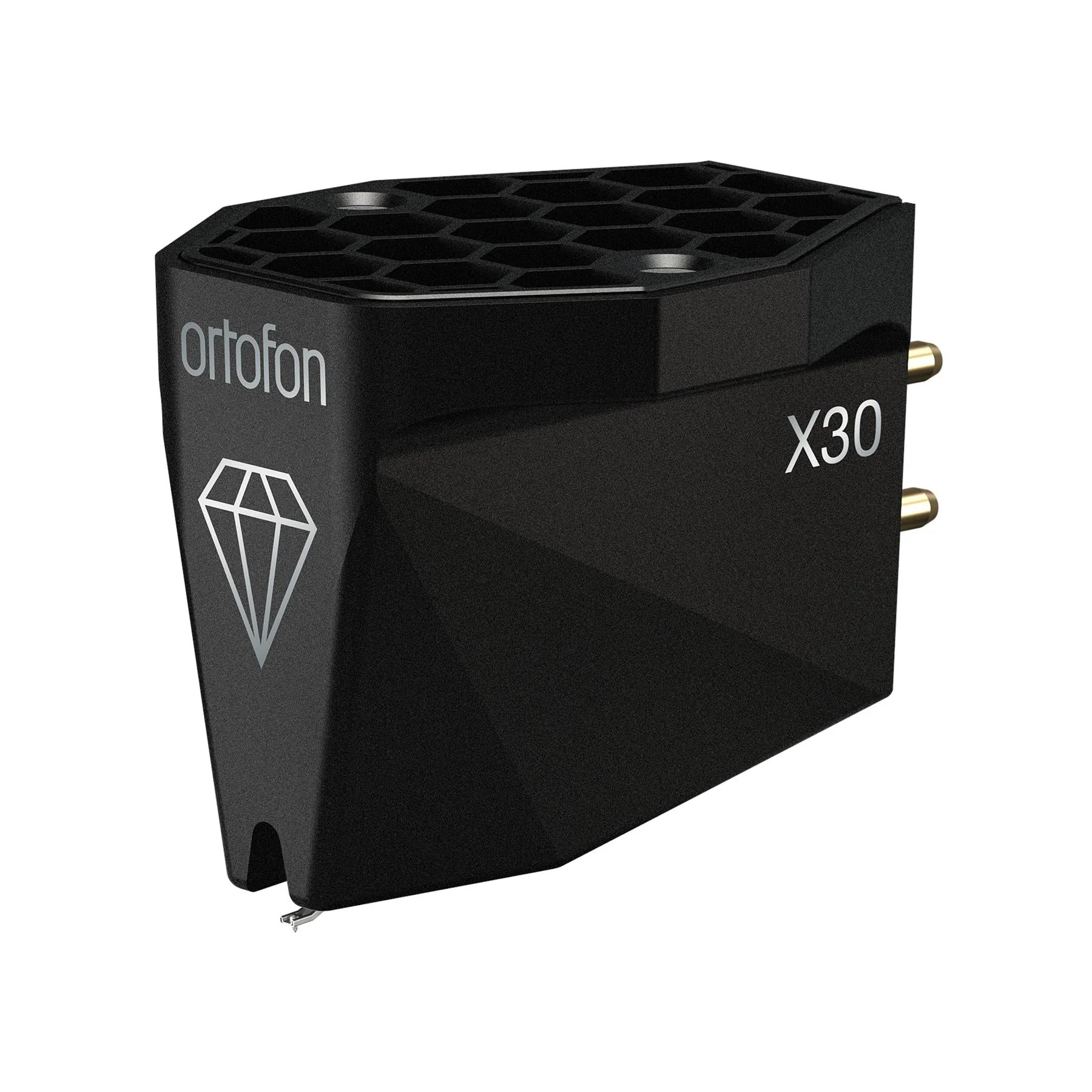

Ortofon MC X30 Moving Coil Cartridge
Ortofon MC X30 Moving Coil Cartridge - Exceptional Sound Quality for Vinyl Enthusiasts
The Ortofon MC X30 is a premium moving coil cartridge designed to elevate your vinyl playback experience with exceptional clarity, resolution, and dynamic range. With a nude fine line diamond stylus, it ensures accurate tracking of grooves, delivering every detail and nuance in your music. The MC X30 is engineered to provide an immersive listening experience, making it a top choice for audiophiles and vinyl enthusiasts who seek the highest quality sound reproduction. Its advanced design, including high-purity silver coils and a precision-engineered magnet system, ensures exceptional signal clarity and performance. The cartridge is built with superior materials for durability and long-lasting reliability, making it an ideal investment for those who value sound quality.
Product Specifications:
- Channel balance at 1 kHz: 0.5 dB
- Output voltage at 1 kHz, 5cm/sec: 0.4 mV
- Channel separation at 1 kHz: 26 dB
- Frequency response 20 Hz - 20 kHz: +/-1 dB
- Compliance, dynamic, lateral: 15 ?m/mN
- Cantilever material: Aluminium
- Stylus type: Nude Fine-Line
- Stylus tip radius: r/R 8/40 ?m
- Stylus suspensions: Ortofon exclusive
- Coil system: Quad coils
- Tracking force, recommended: 2.0 grams
- Internal impedance, DC resistance: 6 ?
- Coil wire material: High-purity silver
- Cartridge weight: 8.6 grams
- Recommended load resistance: > 50 ?
Product Q&A:
- Q: What is the frequency response of the MC X30?
- A: The MC X30 has a frequency response of ±1 dB from 20 Hz to 20 kHz.
- Q: Does the MC X30 have a nude fine line diamond stylus?
- A: Yes, the MC X30 features a nude fine line diamond stylus for precise groove tracking and sound quality.
- Q: What is the recommended tracking force for the MC X30?
- A: The recommended tracking force is 2.0 grams for optimal performance.
- Q: Is the MC X30 compatible with most tonearms?
- A: Yes, the MC X30 is designed to be compatible with a wide range of tonearms and is easy to install.
- Q: What materials are used in the MC X30’s construction?
- A: The MC X30 uses high-purity silver coils, a precision-engineered magnet system, and an aluminium cantilever for superior sound quality and durability.
- Q: Does the MC X30 offer a wide range of sound resolution?
- A: Yes, the MC X30 provides exceptional accuracy and resolution, rendering your music with breathtaking detail and dynamic range.
- Q: Is the MC X30 suitable for high-end audio systems?
- A: Yes, the MC X30 is a premium product designed for high-end audio systems and audiophiles who demand the best sound quality.
- Q: What is the weight of the MC X30?
- A: The MC X30 weighs 8.6 grams, making it lightweight yet powerful for precise sound reproduction.
Ortofon MC X30 Downloads:
Ortofon MC X30 User Guide
The Ortofon MC X Series
The Ortofon MC X30 is part of the Ortofon MC X Series of Moving Coil Cartridges. The MC X Series includes the following models:
- Ortofon MC X10 Moving Coil Cartridge with an Elliptical Diamond Stylus
- Ortofon MC X20 Moving Coil Cartridge with a Nude Elliptical Diamond Stylus
- Ortofon MC X30 Moving Coil Cartridge with a Nude Fine Line Diamond Stylus
- Ortofon MC X40 Moving Coil Cartridge with a Nude Shibata Diamond on Boron Cantilever Stylus
