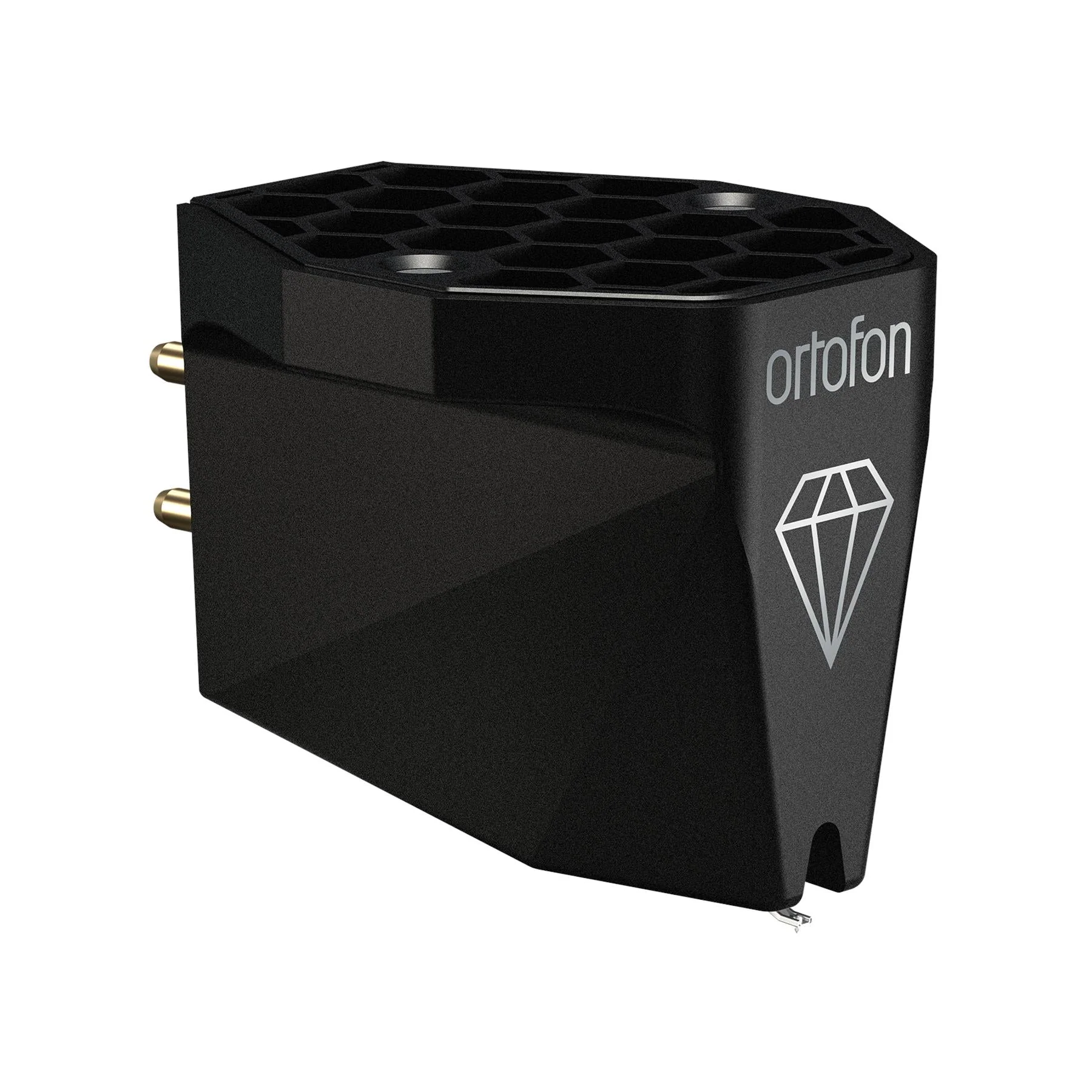

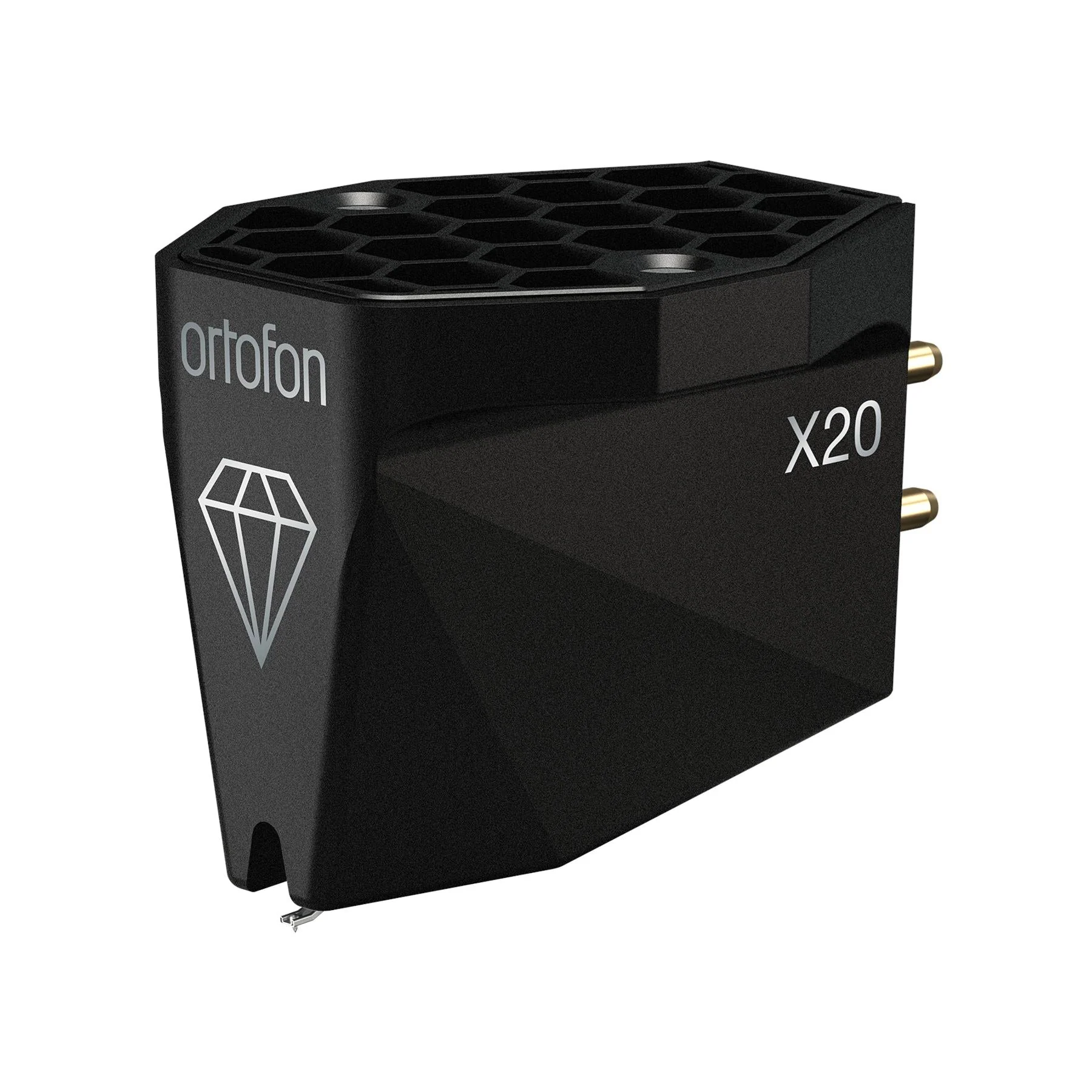

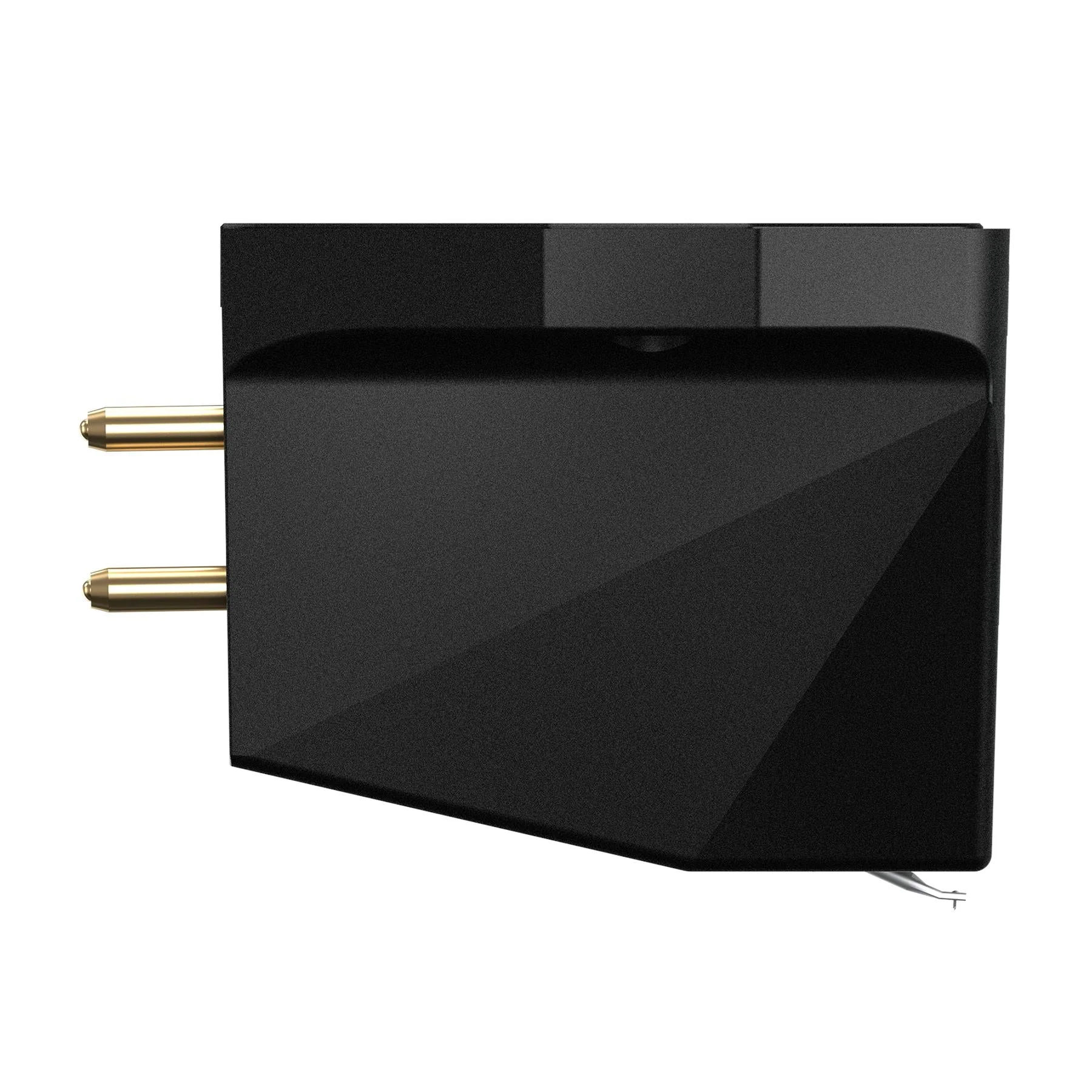

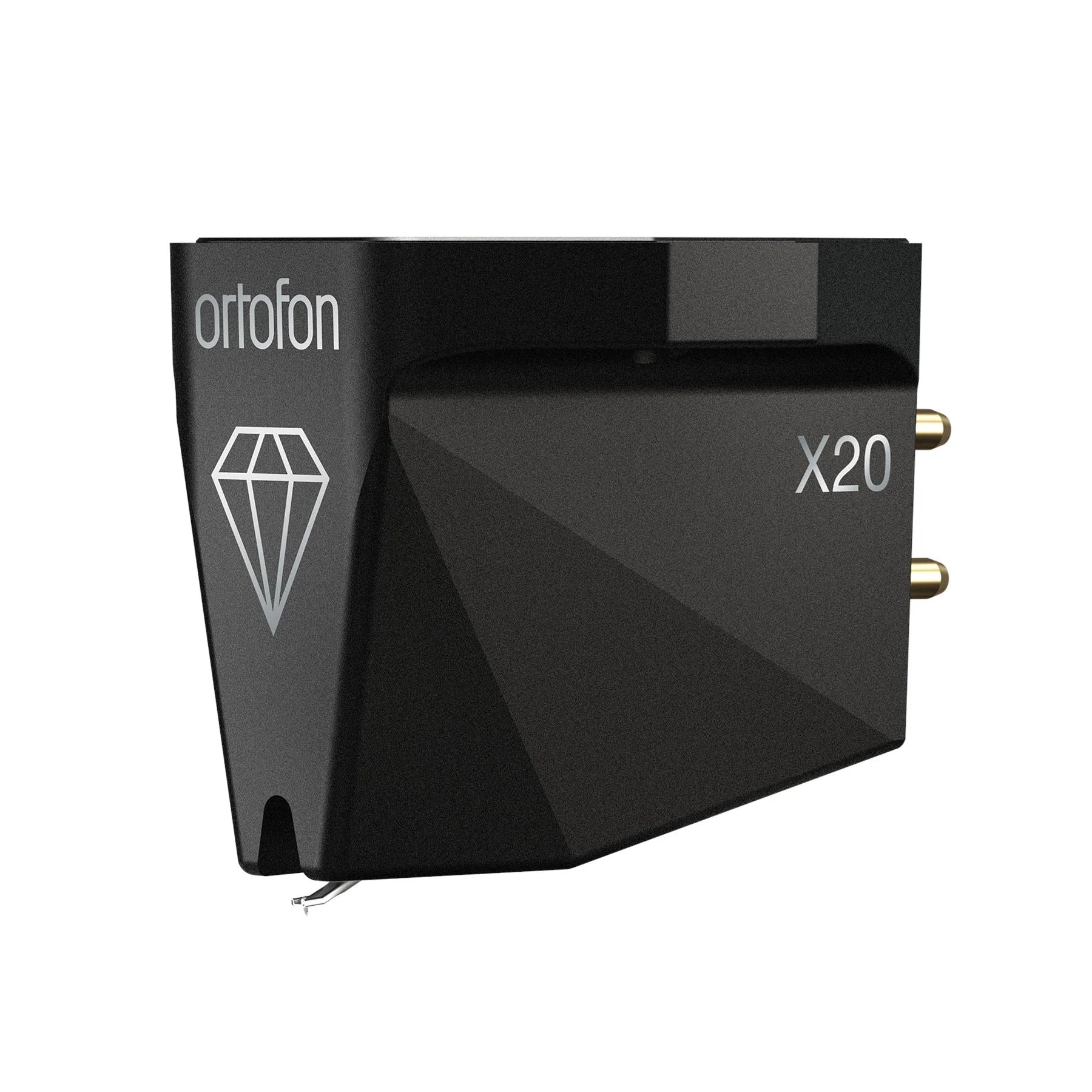

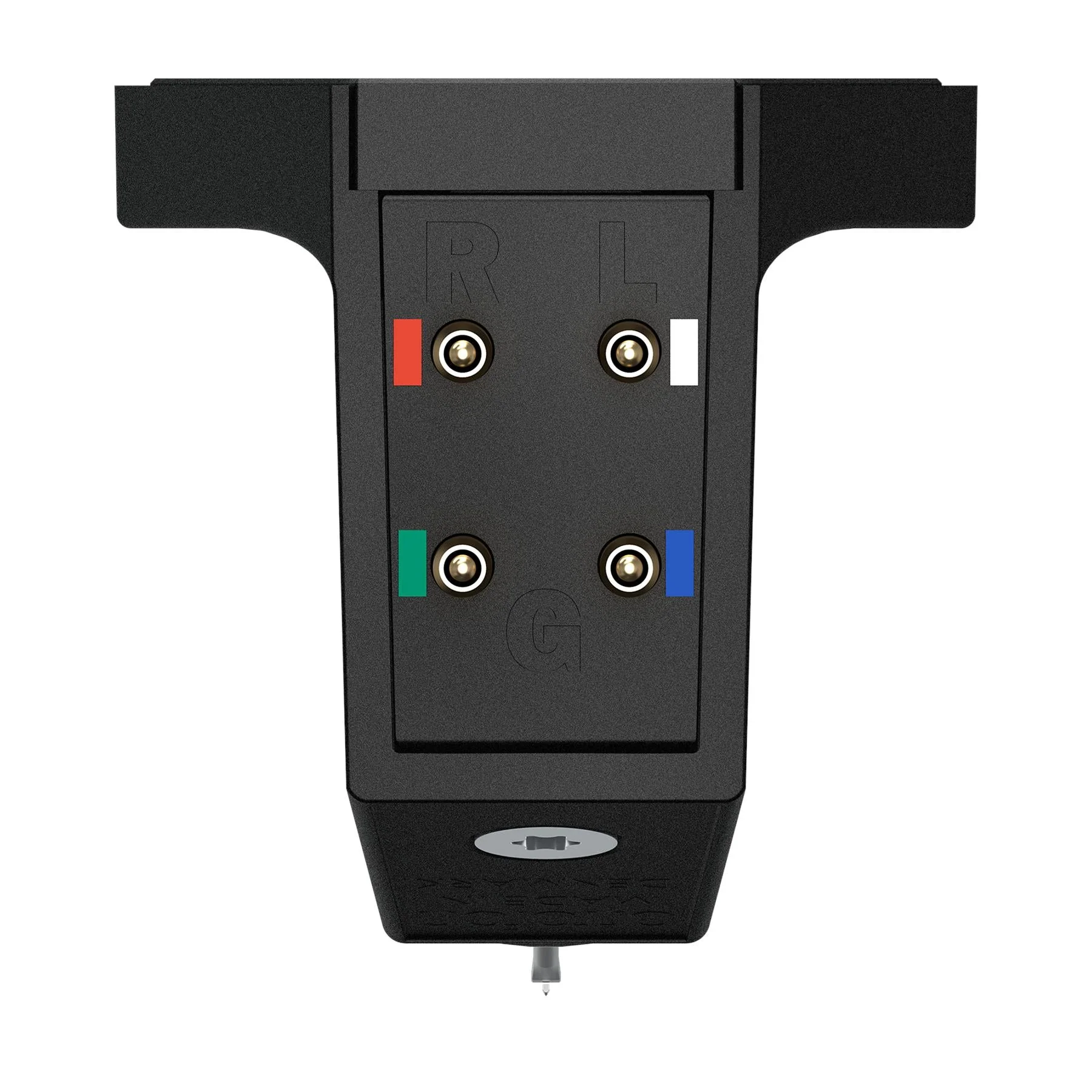

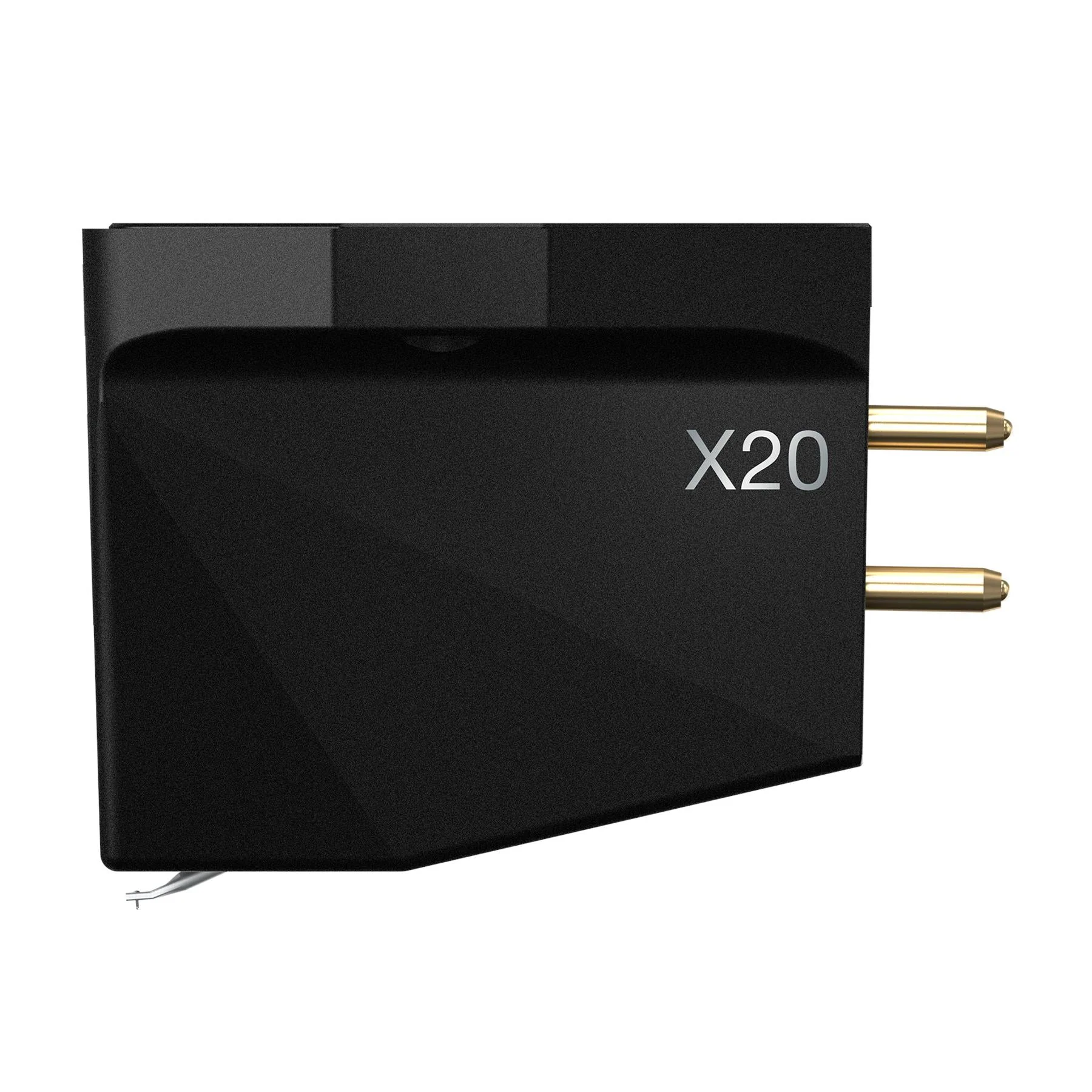

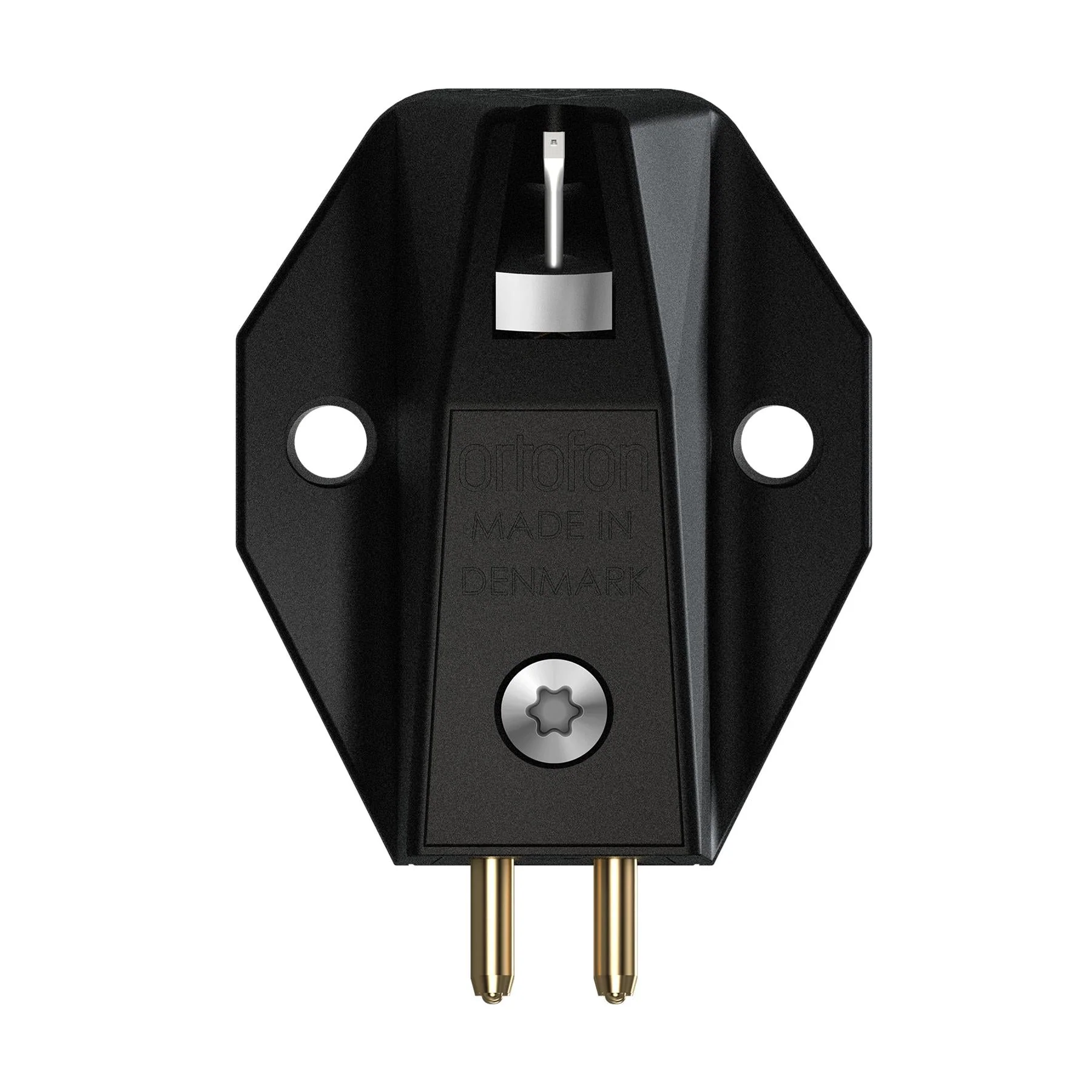

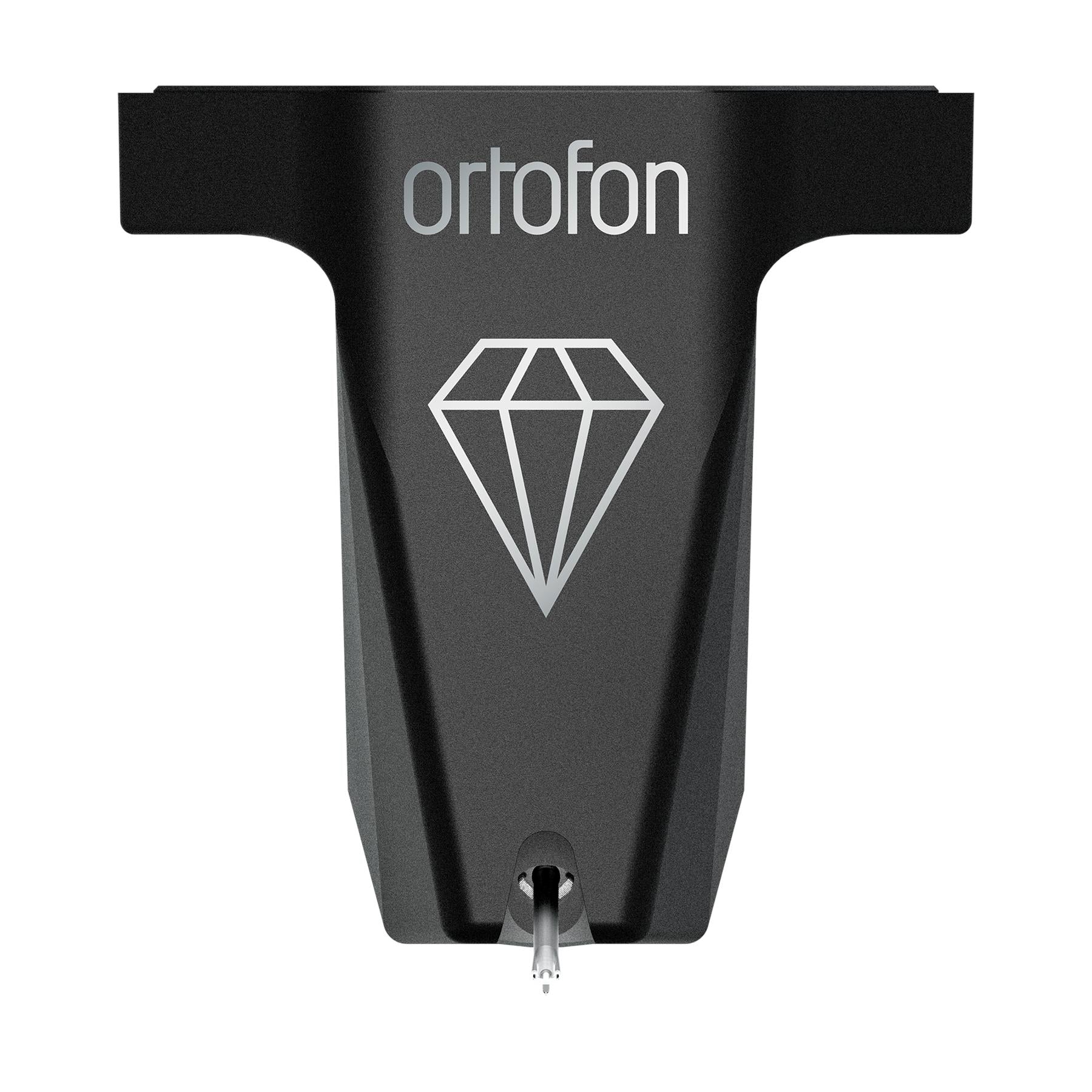

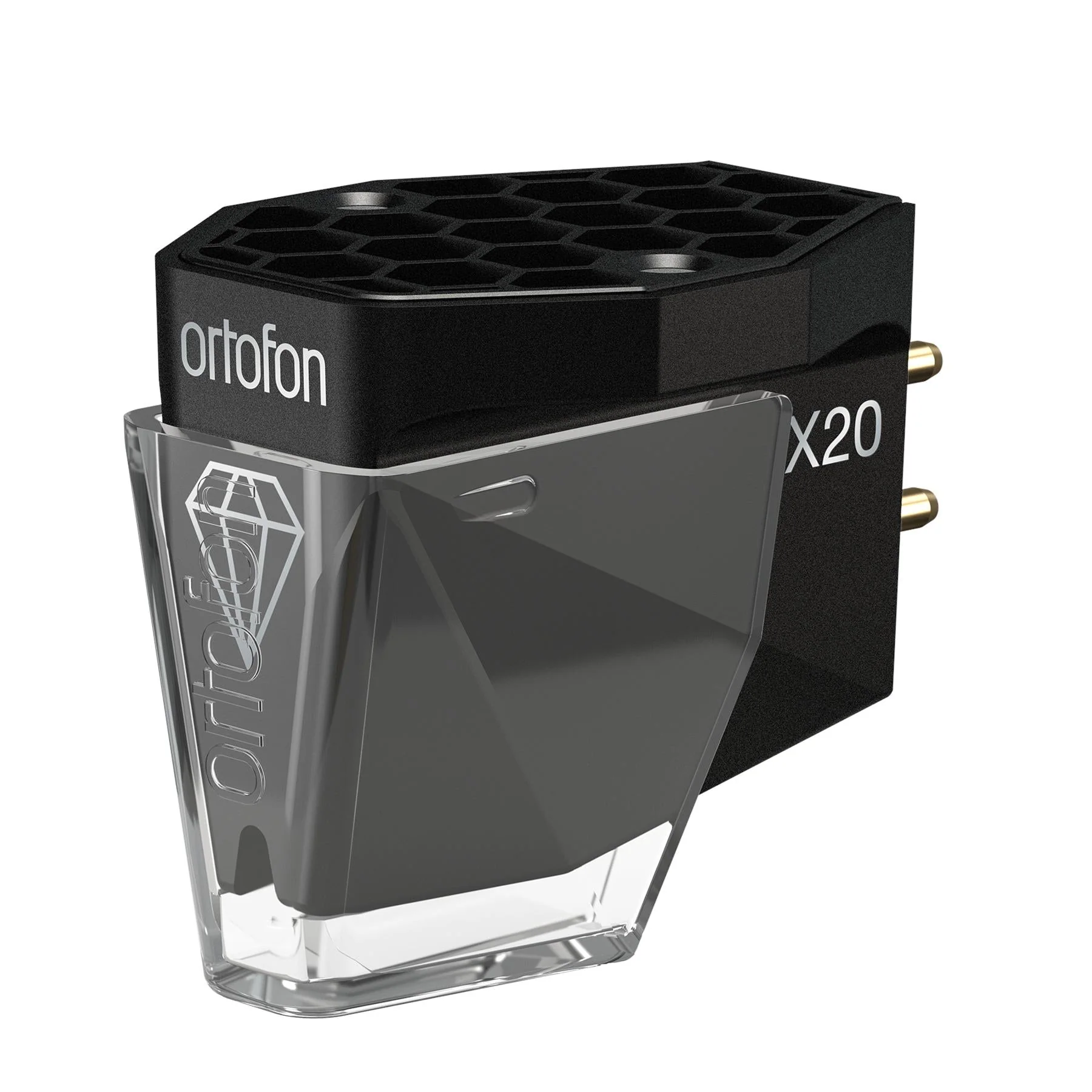

Ortofon MC X20 Moving Coil Cartridge

Ortofon MC X20 Moving Coil Cartridge - High-Performance Analog Audio Component

The Ortofon MC X20 is a premium moving coil cartridge designed to deliver exceptional sound quality and precision in analog playback. With a nude elliptical diamond stylus, it unveils hidden details, offering deeper musical immersion and greater clarity. The MC X20 combines cutting-edge engineering with refined craftsmanship to ensure accurate tracking, reduced distortion, and a rich, dynamic sound across the entire frequency range. Whether you’re an audiophile or a casual listener, the MC X20 elevates your vinyl experience to new heights.

Key Features:

• Nude Elliptical Diamond Stylus: Unveils hidden details for a richer, more nuanced sound.
• High-Purity Silver Coils: Ensures exceptional signal clarity and precision.
• Custom-Developed Rubber Dampers: Minimizes vibrations for superior tracking and musical accuracy.

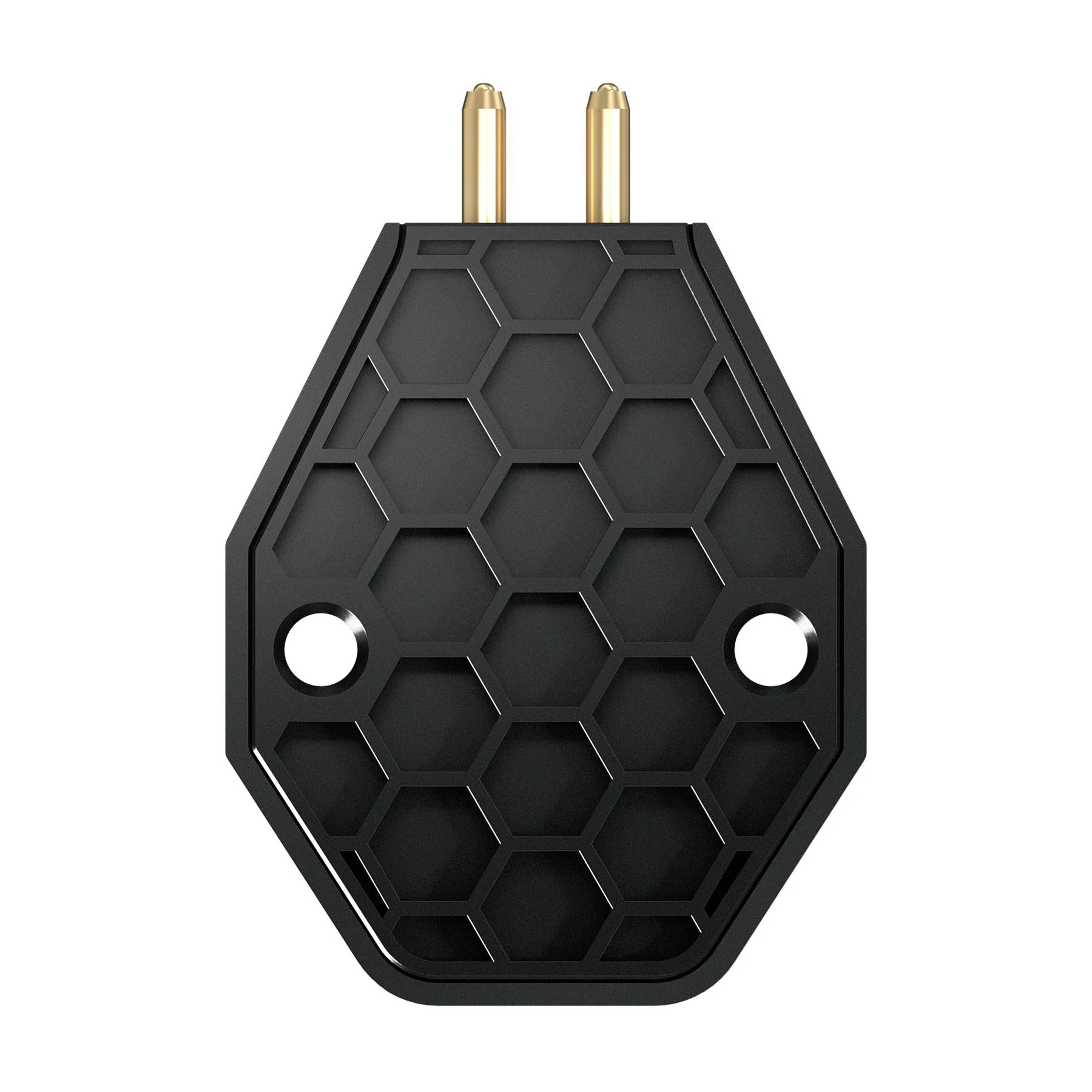

• MIM-Molded Honeycomb-Structured Core: Provides mechanical stability for accurate sound reproduction.
• Advanced Magnet System: Optimized for maximum magnetic efficiency and signal clarity.
• Modern, Elegant Design: Seamless integration with any tonearm for a refined aesthetic.

Product Specifications:

• Channel balance at 1 kHz: 0.5 dB
• Output voltage at 1 kHz, 5cm/sec: 0.4 mV
• Channel separation at 1 kHz: 25 dB
• Frequency response 20 Hz - 20 kHz: +/-1 dB
• Compliance, dynamic, lateral: 15 ?m/mN
• Cantilever material: Aluminium
• Stylus type: Nude Elliptical
• Stylus tip radius: r/R 8/18 ?m
• Stylus suspensions: Ortofon exclusive
• Coil system: Quad coils
• Tracking force, recommended: 2.0 grams
• Internal impedance, DC resistance: 6 ?
• Coil wire material: High-purity silver
• Cartridge weight: 8.6 grams
• Recommended load resistance: > 50 ?

Product Q&A:

Q: What is the recommended tracking force for the MC X20?

A: The recommended tracking force is 2.0 grams, ensuring optimal contact with the record groove for accurate sound reproduction.

Q: What materials are used in the MC X20’s construction?

A: The cartridge features a high-purity silver coil system, custom rubber dampers, and an MIM-molded honeycomb-structured core for superior stability and performance.

Can the MC X20 be used with a wide range of tonearms?

A: Yes, it is designed to work with a variety of tonearms due to its lightweight and balanced design.

How does the nude elliptical stylus improve sound quality?

A: The nude elliptical design allows for better contact with the record groove, reducing distortion and revealing more detail in the music.

What kind of sound quality can I expect from the MC X20?

A: You can expect a rich, dynamic sound with exceptional clarity and precision, revealing the full character of each track.

Is the MC X20 easy to install?

A: Yes, it is designed for straightforward installation and seamless integration with most turntables.

What are the benefits of the advanced magnet system?

A: The magnet system ensures maximum magnetic efficiency, resulting in a cleaner and more powerful signal path for superior sound quality.

Ortofon MC X20 Downloads:

Ortofon MC X20 User Guide

The Ortofon MC X Series

The Ortofon MC X20 is part of the Ortofon MC X Series of Moving Coil Cartridges. The MC X Series includes the following models:

• Ortofon MC X10 Moving Coil Cartridge with an Elliptical Diamond Stylus

• Ortofon MC X20 Moving Coil Cartridge with a Nude Elliptical Diamond Stylus

• Ortofon MC X30 Moving Coil Cartridge with a Nude Fine Line Diamond Stylus
• Ortofon MC X40 Moving Coil Cartridge with a Nude Shibata Diamond on Boron Cantilever Stylus
