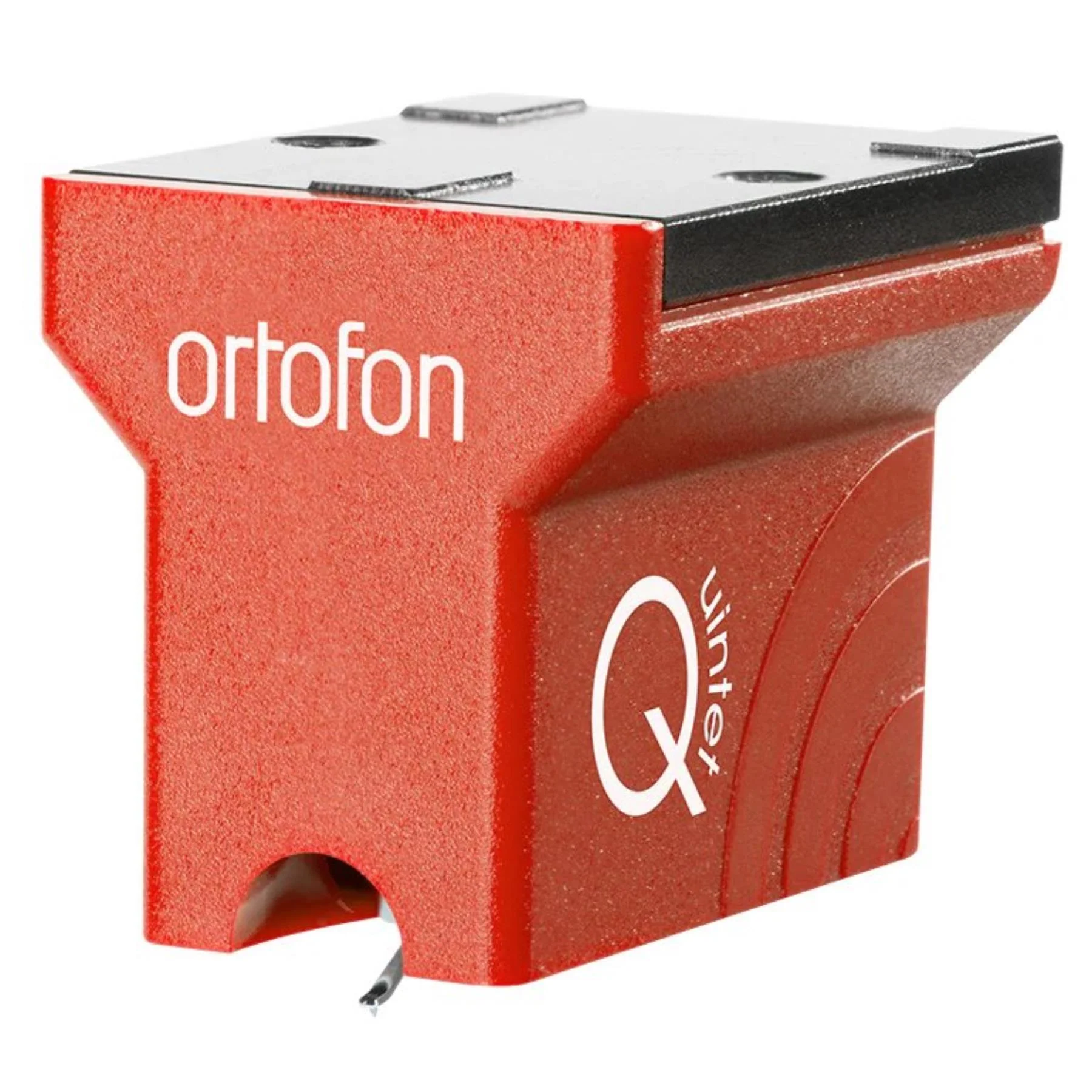

Ortofon MC Quintet Red - Moving Coil Cartridge

Ortofon MC Quintet Red - Moving Coil Cartridge - Experience Pure Analog Sound

Delve into the exclusive world of Ortofon's renowned moving coil sound with the MC Quintet Red. This entry-level MC cartridge boasts an elliptical diamond stylus cut and polished to Ortofon's exacting standards, delivering open, dynamic sound with a subtle touch of warmth. With its exceptional accuracy and high price-to-performance ratio, the Quintet Red is an ideal choice for newcomers to the realm of Moving Coil cartridges, offering a perfect balance of quality and affordability.

MC Quintet Red Specifications:

• Channel balance at 1 kHz: < 1.5 dB
• Output voltage at 1 kHz, 5cm/sec: 0.5 mV
• Channel separation at 1 kHz: > 21 dB
• Channel separation at 15 kHz: > 14 dB
• Frequency response: 20 Hz - 20 kHz (+/- 2.5 dB)
• Tracking ability at 315Hz at recommended tracking force: 65 µm
• Compliance, dynamic, lateral: 15 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 2.1-2.5 g (Recommended: 2.3 g)
• Tracking angle: 20°
• Internal impedance, DC resistance: 7 Ohm
• Recommended load impedance: > 20 Ohm
• Cartridge body material: ABS/Alu
• Cartridge color: Red
• Cartridge weight: 9 g

Ortofon Quintet Downloads

Ortofon Quintet User Guide
Ortofon Quintet Brochure/Data Sheet
