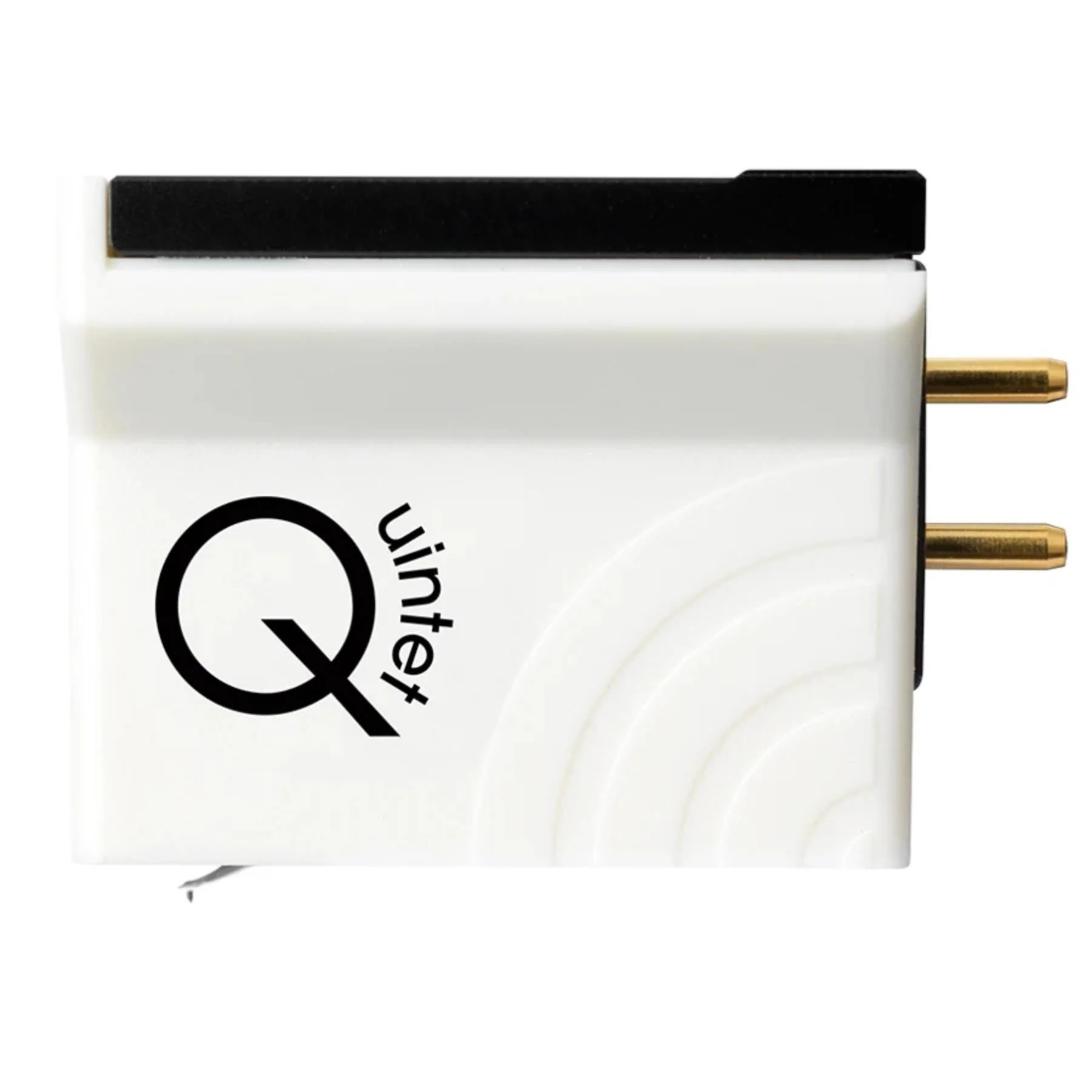

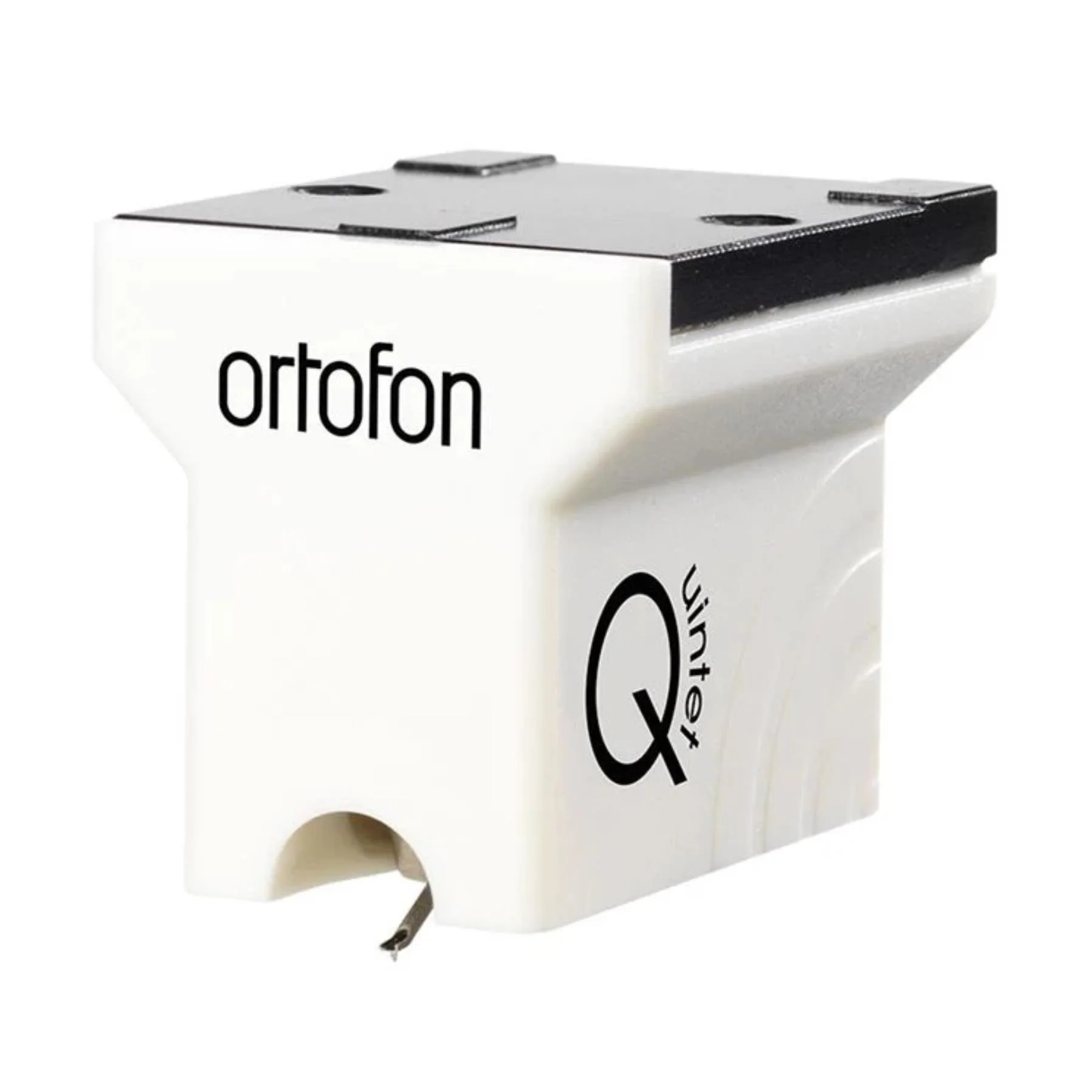

Ortofon MC Quintet Mono - Mono Moving Coil Cartridge
Ortofon MC Quintet Mono - High-Fidelity Mono Moving Coil Cartridge
Experience the purest sound reproduction with the Ortofon MC Quintet Mono, meticulously engineered for playing mono microgroove vinyl records. With its Nude Elliptical stylus and strapped output design, this cartridge ensures impeccable tracking and surface noise control, even on worn or damaged records. Enjoy authentic mono reproduction on any stereo playback system without the need for mono-specific equipment.
Ortofon MC Quintet Mono Features:
- Nude Elliptical r/R 8/18µm stylus for precise tracking on mono microgroove vinyl records
- Strapped output delivers consistent signal from both sets of pole pins, eliminating the need for mono-specific equipment
- Lightweight, impact-resistant PC thermoplastic body for durable scratch-resistant surface
- Neodymium magnets for optimal output and fidelity
- Low internal impedance for compatibility with a wide range of preamps and transformers
- Delivers open, dynamic sound with a touch of warmth
The Quintet Series: Ortofon's commitment to refining analog sound quality is exemplified by the Quintet series, which builds upon decades of expertise in cartridge design. With over 100 different Moving Coil models introduced since 1948, the Quintet series represents the pinnacle of Ortofon's dedication to uncompromising audio performance.
Compatibility: Easy and secure top-mounting with supplied screws Aluminum frame with threaded mounting holes Right angles, straight lines, and stylus visibility for easy alignment Compatible with most common tonearms
Ortofon MC Quintet Mono Specifications:
- Output voltage at 1 kHz, 5cm/sec: 0.3 mV
- Frequency response: 20 Hz - 20 kHz (+/- 2.0 dB)
- Tracking ability at 315Hz at recommended tracking force: 70 µm
- Compliance, dynamic, lateral: 15 µm/mN
- Stylus type: Nude Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 2.1-2.5 g (recommended: 2.3 g)
- Tracking angle: 20°
- Internal impedance, DC resistance: 5 Ohm
- Recommended load impedance: > 20 Ohm
- Coil wire material: Pure 4-nines silver/Ag
- Cartridge body material: PC/Alu
- Cartridge color: White
- Cartridge weight: 9 g
Ortofon Quintet Downloads
Ortofon Quintet User Guide
Ortofon Quintet Brochure/Data Sheet
