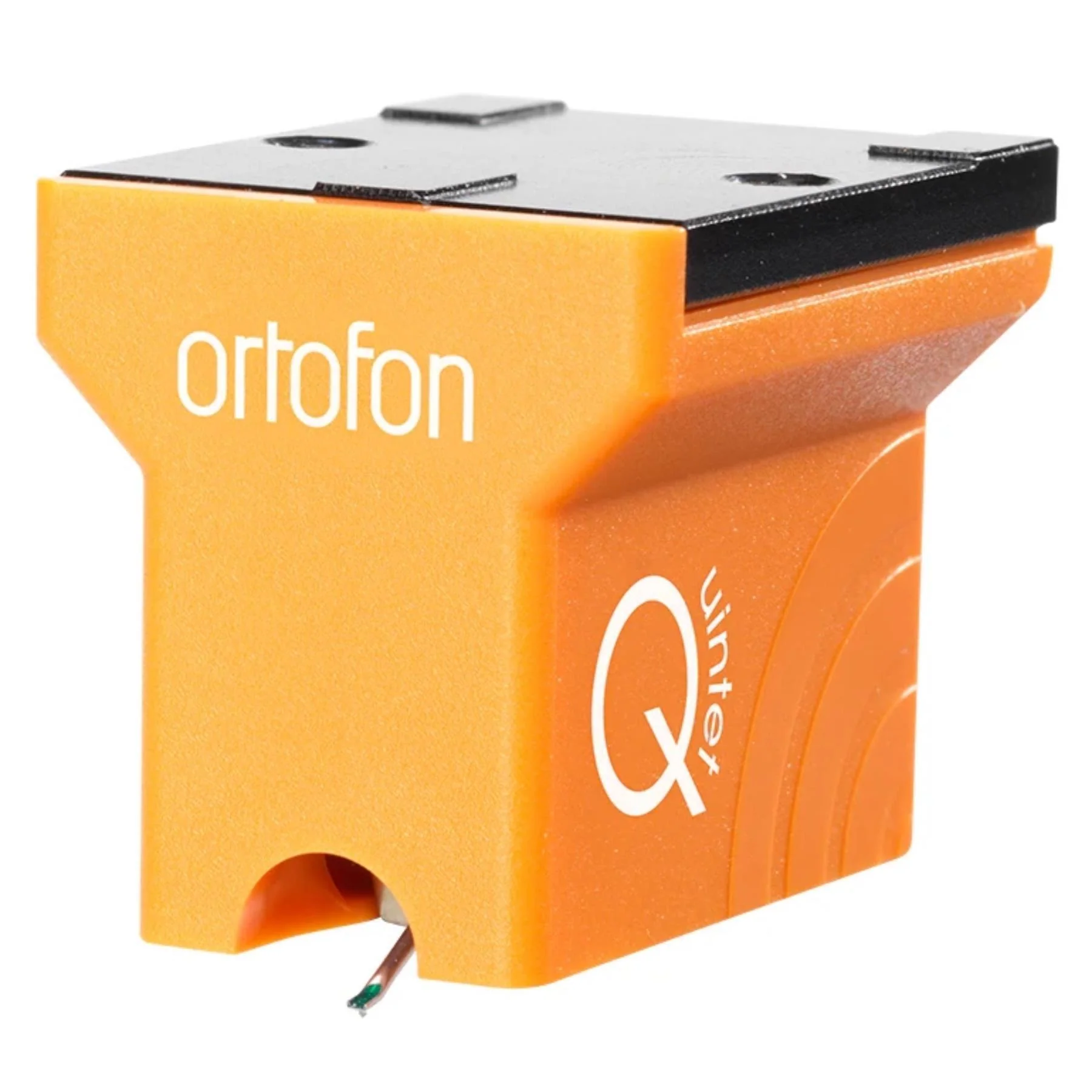

Ortofon MC Quintet Bronze - Moving Coil Cartridge

Ortofon MC Quintet Bronze - Moving Coil Cartridge

Experience the pinnacle of analog sound with the MC Quintet Bronze Moving Coil Cartridge by Ortofon. Elevating your listening experience to new heights, this cartridge delivers unparalleled precision and fidelity, making it a must-have for discerning audiophiles.

Ortofon MC Quintet Bronze Key Features:

• Slim profile Nude Fine Line diamond stylus for precise tracking of high-frequency information
• Larger footprint minimizes distortion and reduces record wear
• Evenhanded sound reproduction with power and open space for classical music
• Special ABS thermoplastic material for lightweight and durable construction
• Neodymium magnets for optimal output
• Low internal impedance for compatibility with a wide range of preamps and transformers

The MC Quintet Bronze enhances every detail and resolution while maintaining a balanced and respectful approach to sound reproduction.

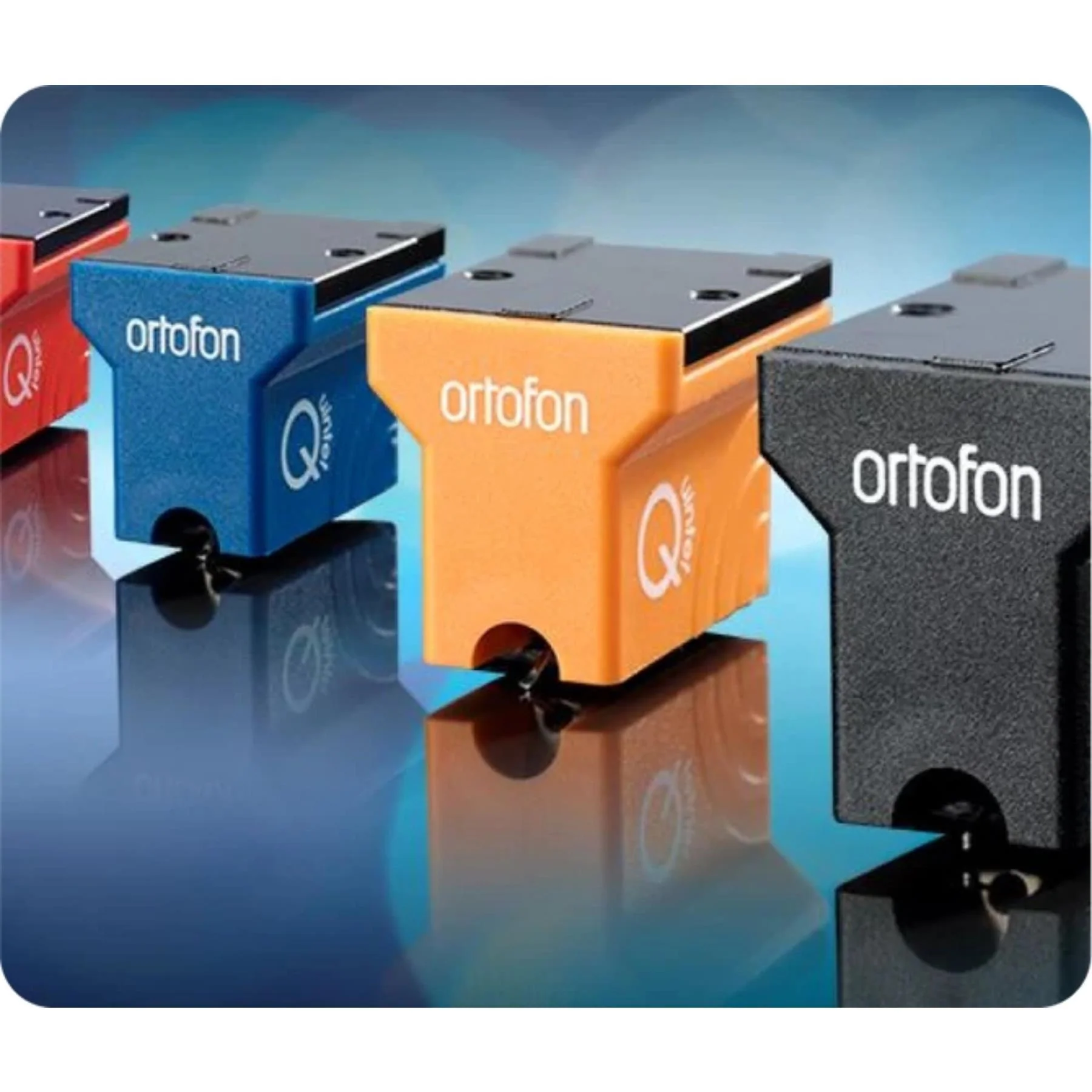

Ortofon's Quintet series exemplifies the brand's dedication to refining analog sound quality. With a legacy dating back to 1948 and a history of introducing over 100 different Moving Coil models, Ortofon continues to lead the industry in phono cartridge innovation.

Ease of use is paramount with the Quintet series. Top-mounting is effortless and secure, thanks to threaded mounting holes and included screws. The cartridge's design features right angles, straight lines, and ample stylus visibility, facilitating easy alignment with most common tonearms.

Ortofon MC Quintet Bronze Specifications:

• Channel balance at 1 kHz: < 1.2 dB
• Output voltage at 1 kHz, 5cm/sec: 0.3 mV
• Channel separation at 1 kHz: > 23 dB
• Channel separation at 15 kHz: > 15 dB
• Frequency response: 20 Hz - 20 kHz (+/- 1.5 dB)
• Tracking ability at 315Hz at recommended tracking force: 80 μm
• Compliance, dynamic, lateral: 15 µm/mN
• Stylus type: Nude Fine Line
• Stylus tip radius: r/R 8/40 µm
• Tracking force range: 2.1-2.5 g (recommended: 2.3 g)
• Tracking angle: 20°
• Internal impedance, DC resistance: 5 Ohm
• Recommended load impedance: > 20 Ohm
• Coil wire material: Pure 4-nines copper
• Cartridge body material: ABS/Alu
• Cartridge color: Bronze
• Cartridge weight: 9 g

Elevate your listening experience with the Ortofon MC Quintet Bronze Moving Coil Cartridge. Experience the true essence of your favorite music with unparalleled clarity and precision.

Ortofon Quintet Downloads

Ortofon Quintet User Guide
Ortofon Quintet Brochure/Data Sheet
