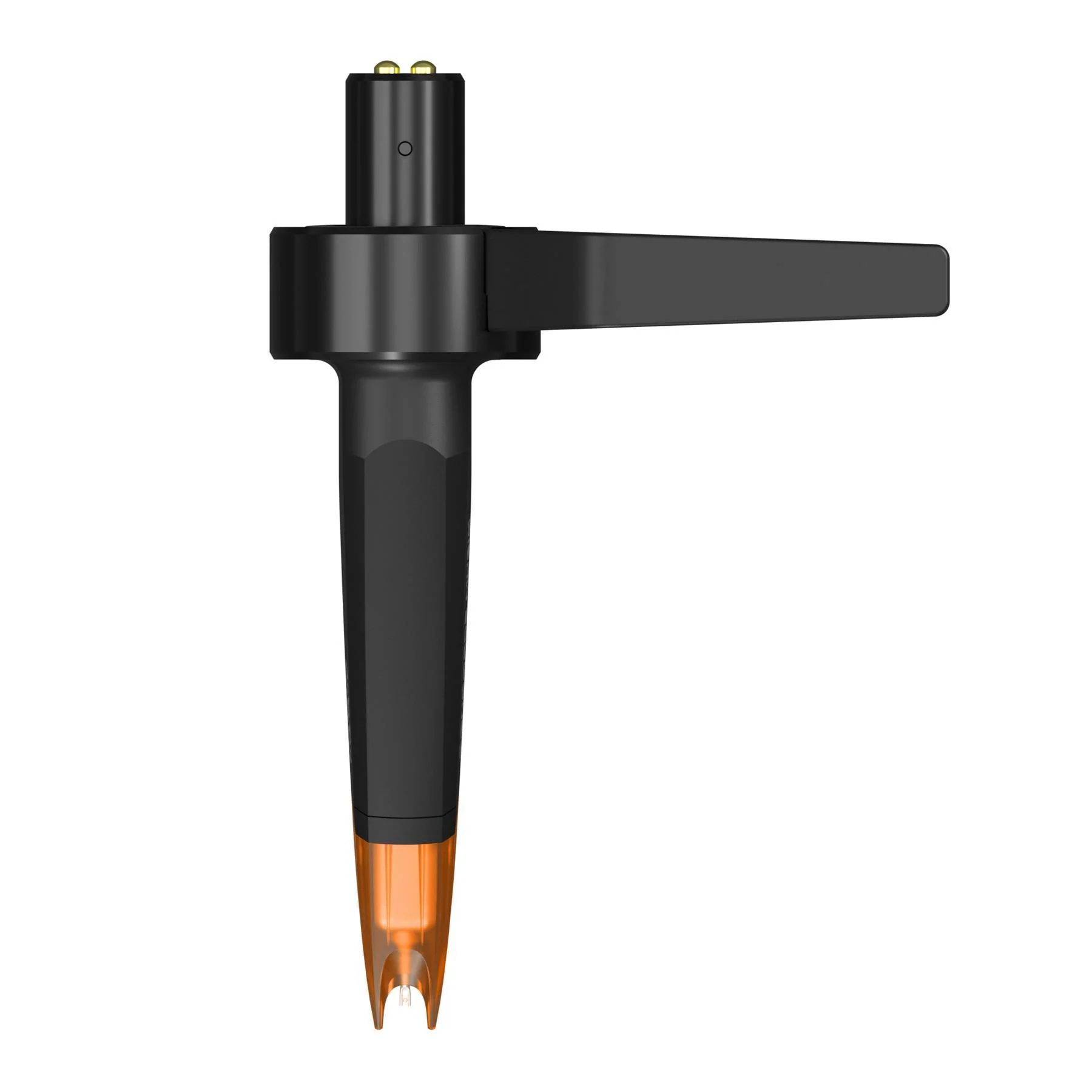

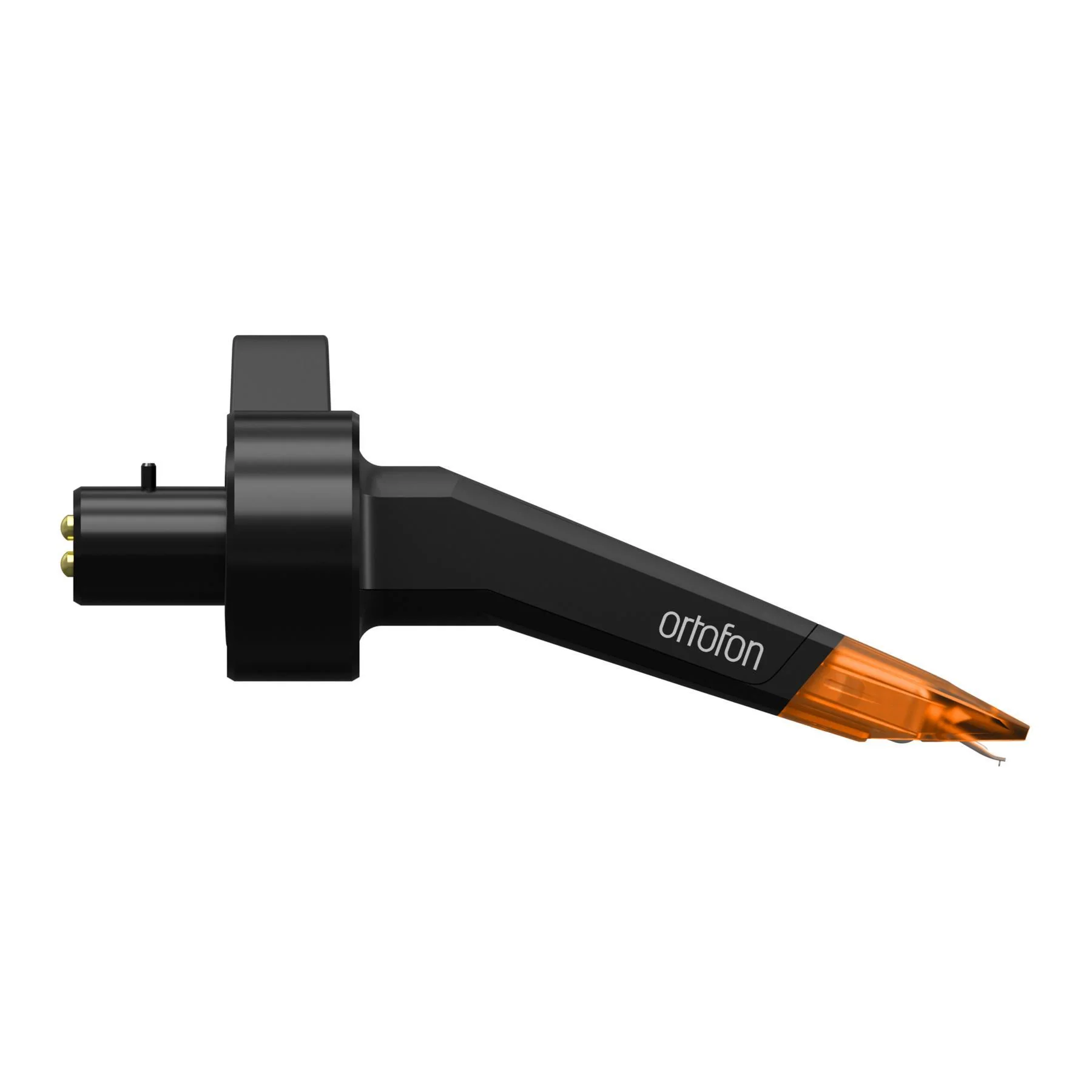

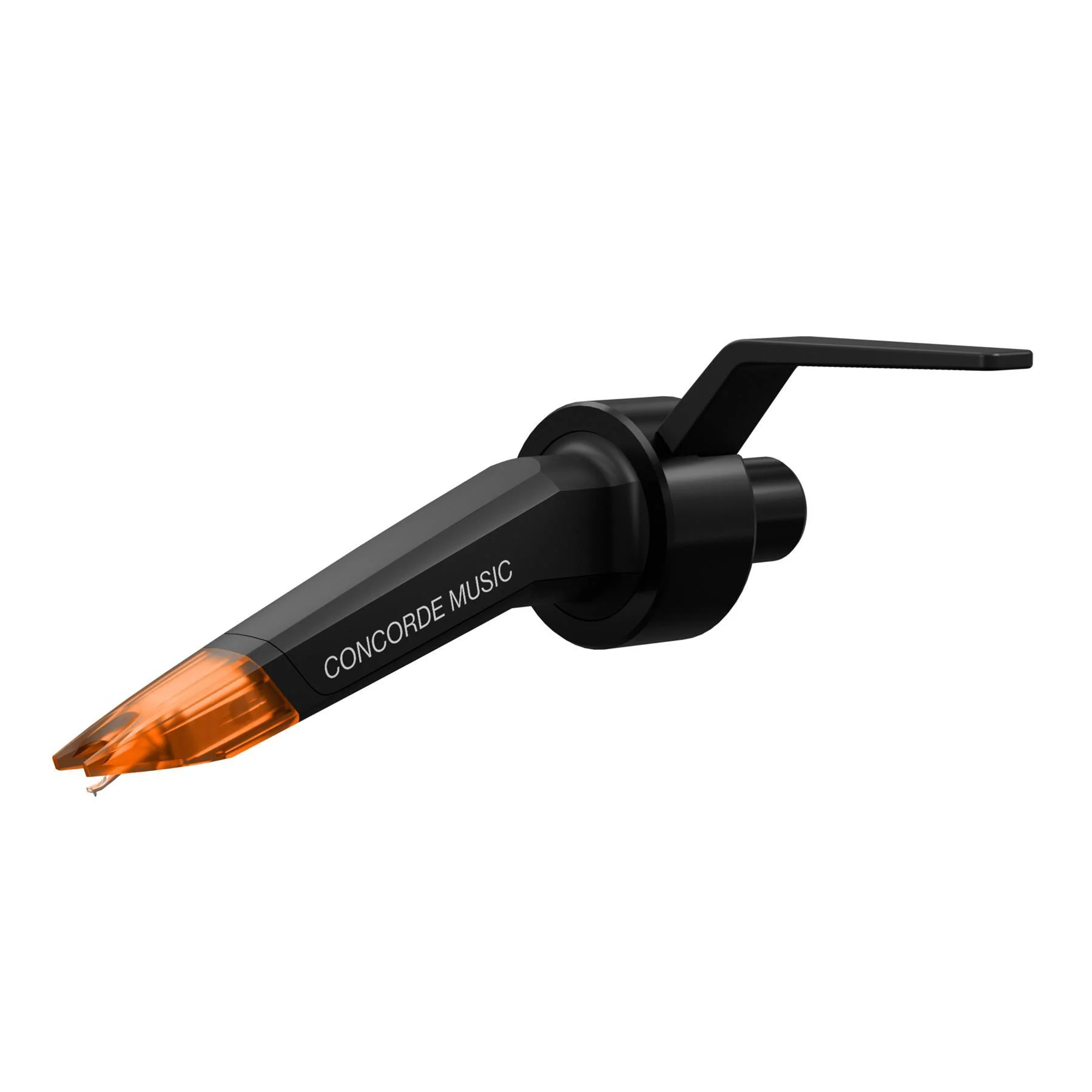

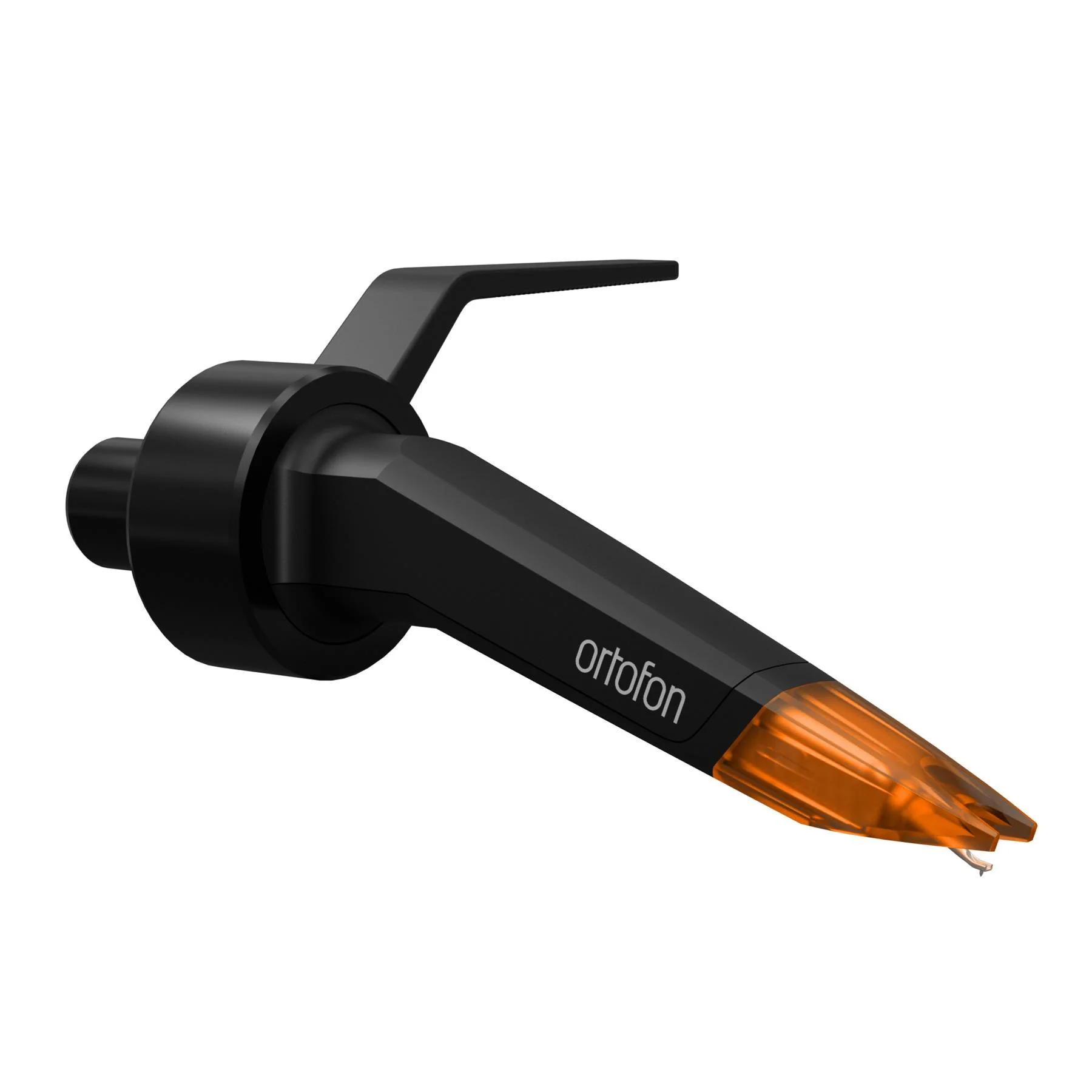

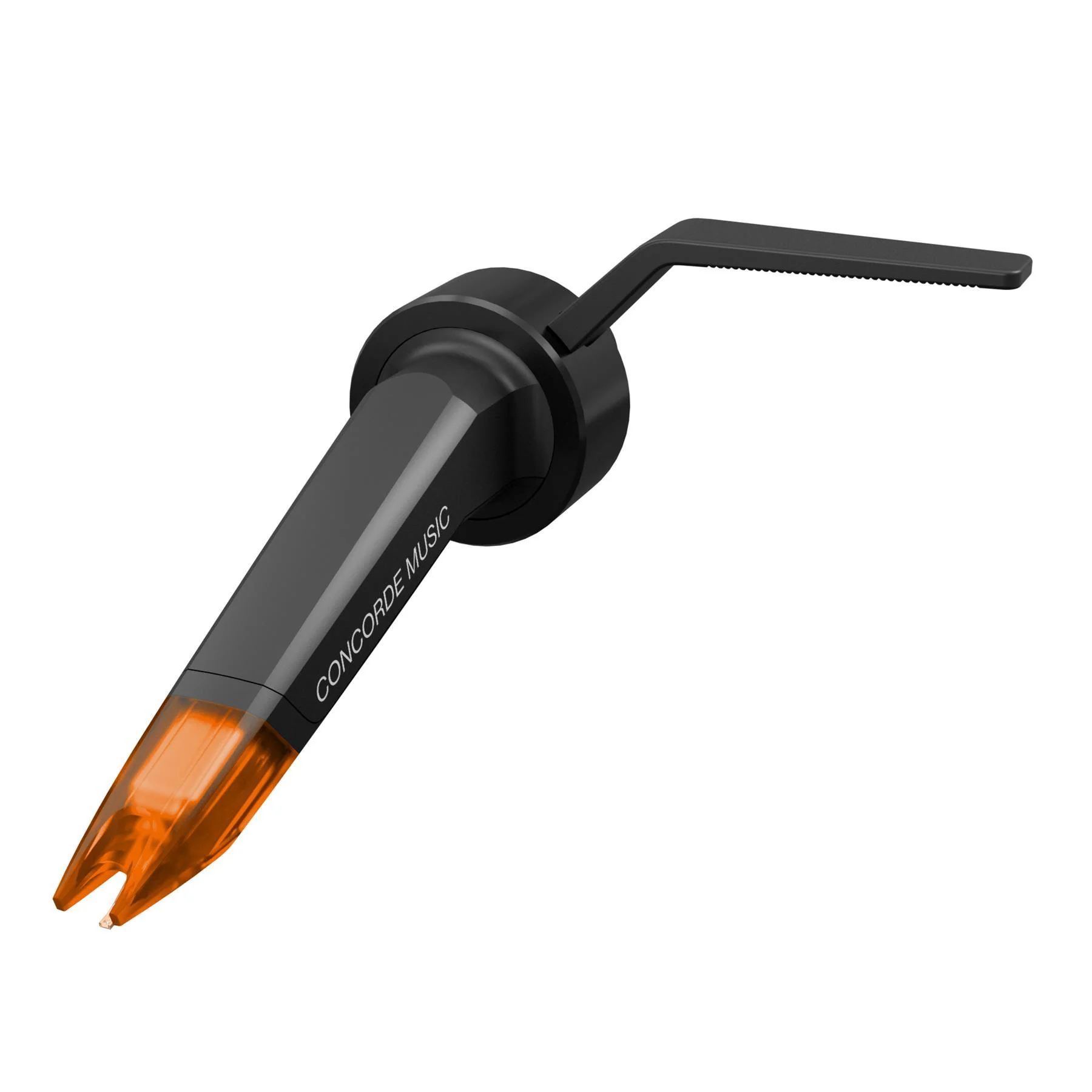

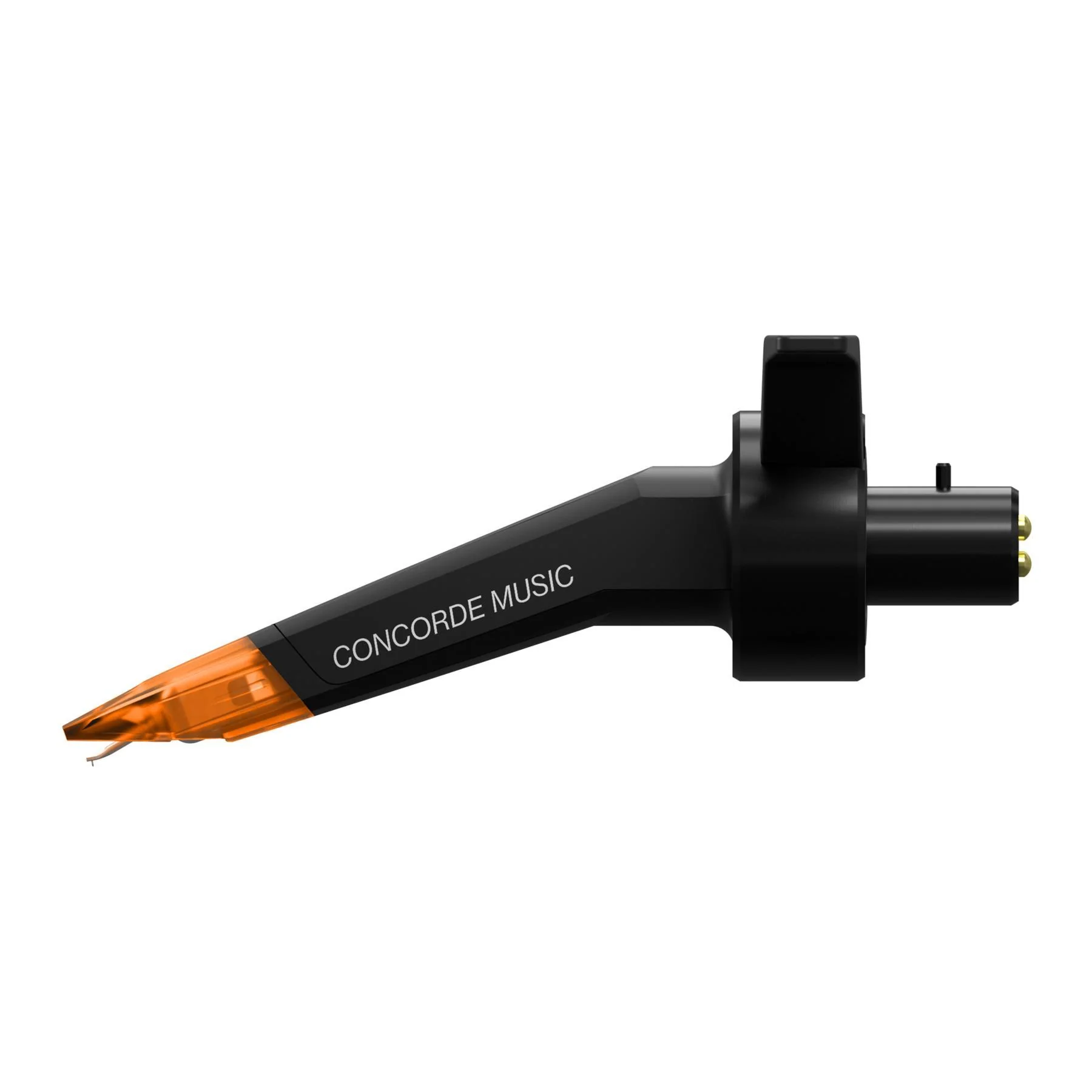

Ortofon Concorde Music Bronze Moving Magnet Cartridge
Ortofon Concorde Music Bronze Cartridge for S-Shaped Tonearms
Ortofon Concorde Music Bronze Cartridge. Featuring a Nude Fine Line stylus on an Aluminum cantilever, this cartridge delivers unparalleled sound quality and precision, making it the perfect choice for audiophiles and music enthusiasts alike.
The Concorde Music Bronze is designed as an upgrade from the Concorde Music Blue, offering seamless transition and enhanced performance. With Ortofon's exclusive rubber suspension and quad-coil system featuring four split pole pins and Silver-plated OFC coil wire, this cartridge ensures exceptional channel balance, separation, and dynamic sound reproduction.
Built upon a rich legacy of award-winning design, the Concorde Music series is a testament to Ortofon's dedication to delivering premium audio solutions. Easy to install with no tools required, thanks to its bayonet/SME connector, this cartridge is compatible with all S-shaped tonearms, ensuring hassle-free setup for all users.
Upgradeability is key with the Concorde Music Bronze, as it can be replaced or upgraded with any Concorde Music stylus, offering a pathway to enhanced performance throughout the series.
Ortofon Concorde Music Bronze Specifications:
- Channel balance at 1 kHz: 1 dB
- Output voltage at 1 kHz, 5cm/sec: 6mV
- Channel separation at 1 kHz: 26 dB
- Channel separation at 15 kHz: 17 dB
- Frequency response: 20 Hz - 20 kHz (+2 / 0 dB)
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 15 µm/mN
- Stylus type: Nude Fine Line diamond on Aluminum cantilever
- Stylus tip radius: r/R 8/40 µm
- Tracking force, recommended: 1.8 g
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.27 kΩ
- Cartridge color: Black/Bronze
- Cartridge weight: 18 g
- Recommended load resistance: 47 kΩ
- Internal inductance: 815 mH
- Recommended load capacitance: 150-300 pF
Transform your listening experience with the Ortofon Concorde Music Bronze Cartridge, where every note is brought to life with unparalleled clarity and fidelity.
Ortofon Concorde Music Userguide
Original: $499.99
-65%$499.99
$175.00More Images
