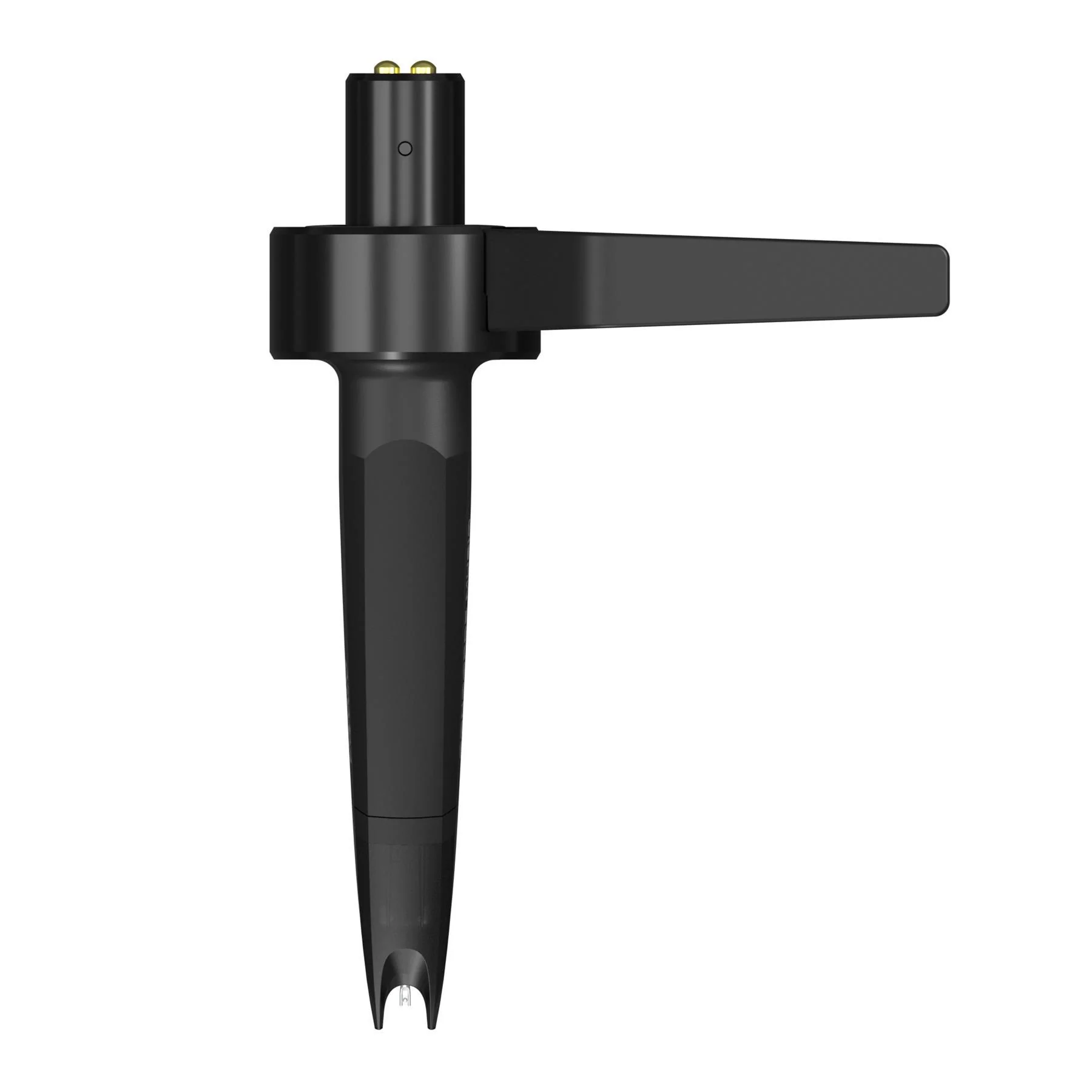

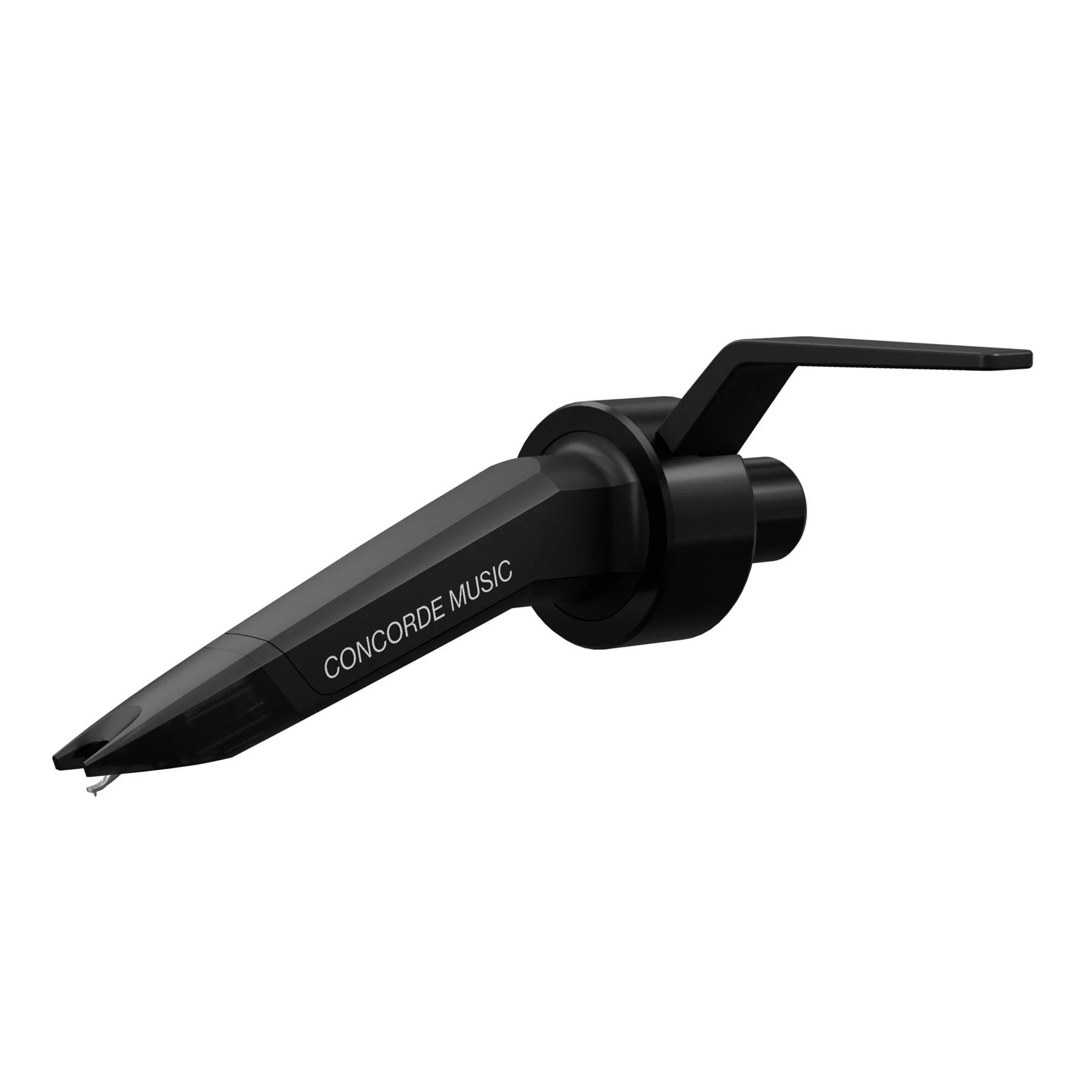

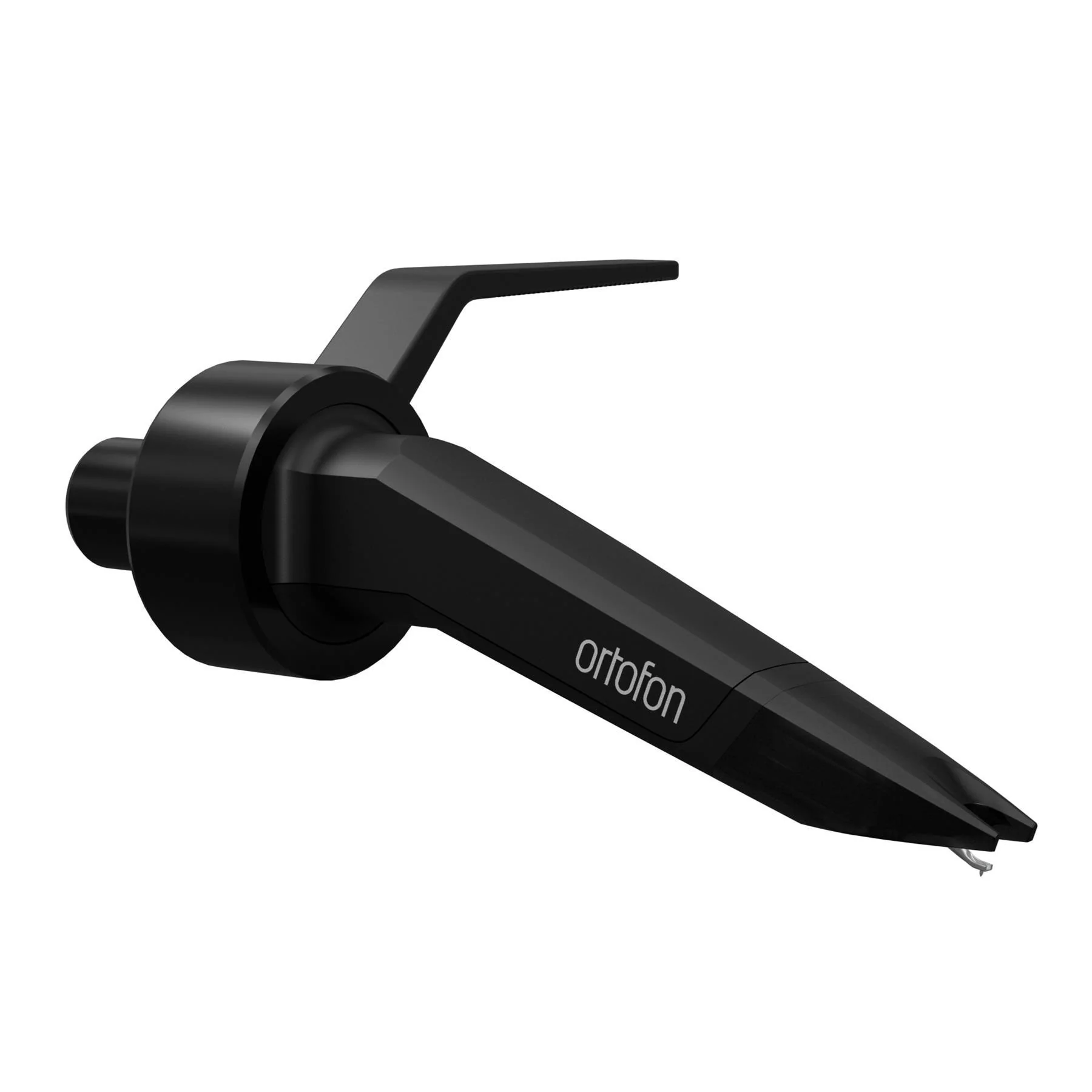

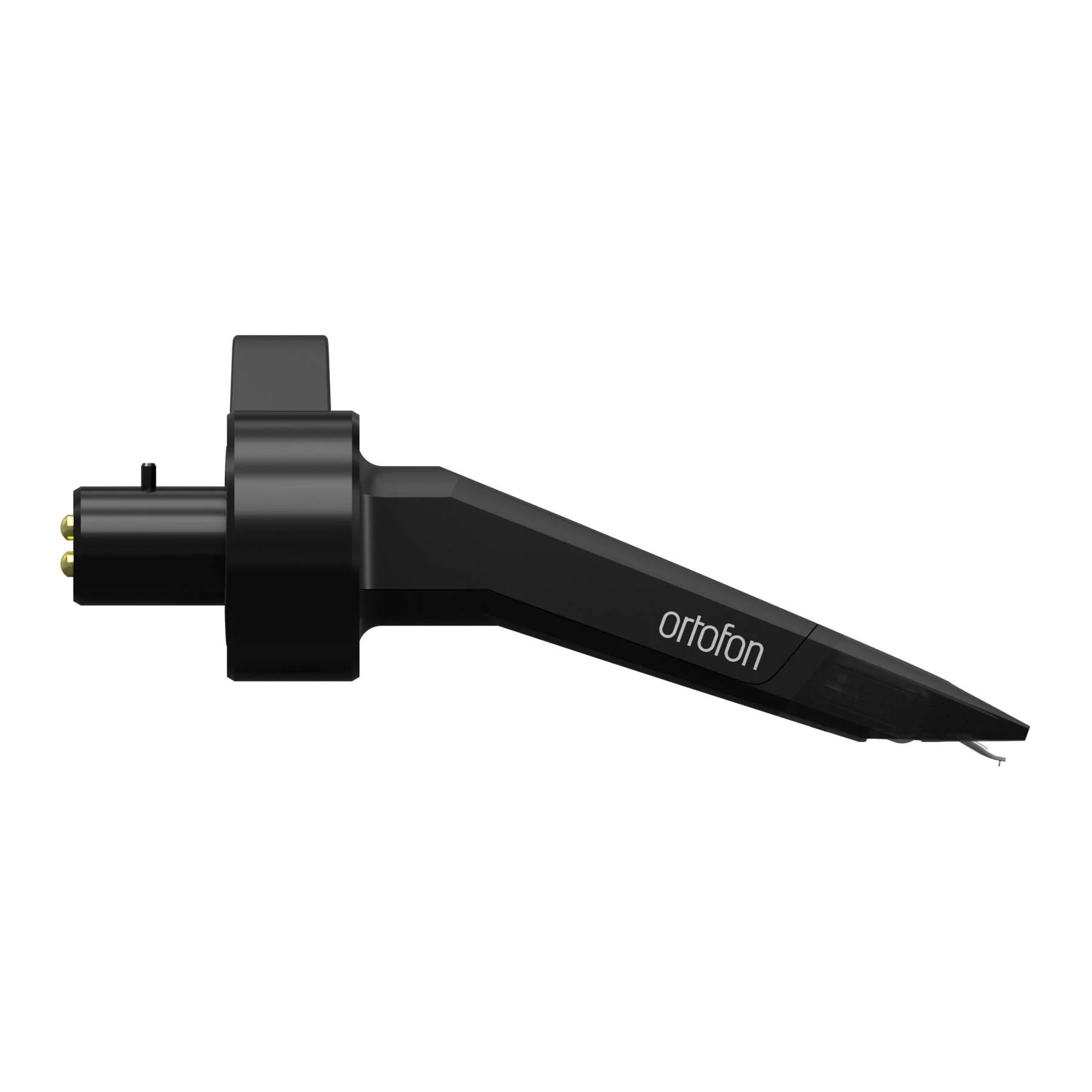

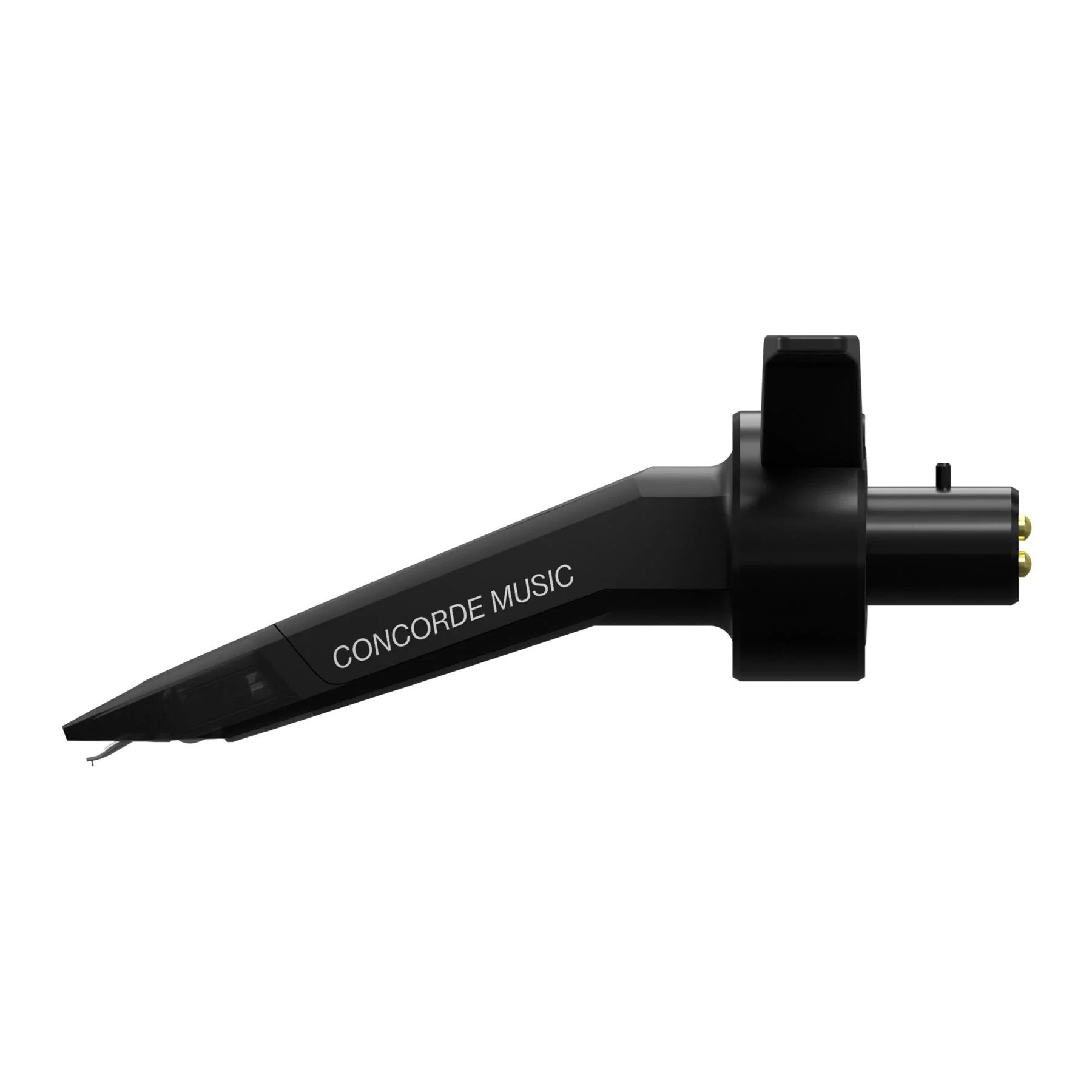

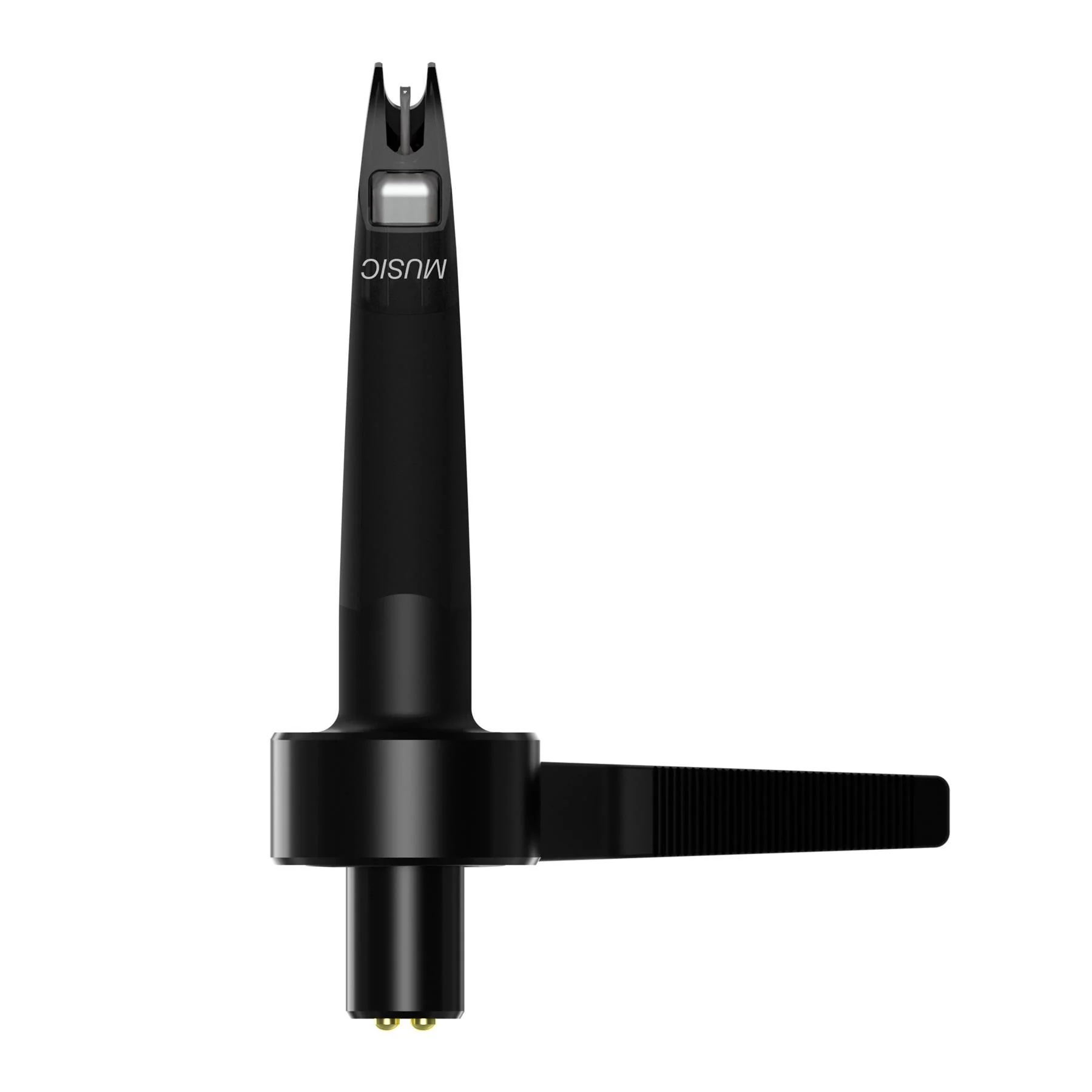

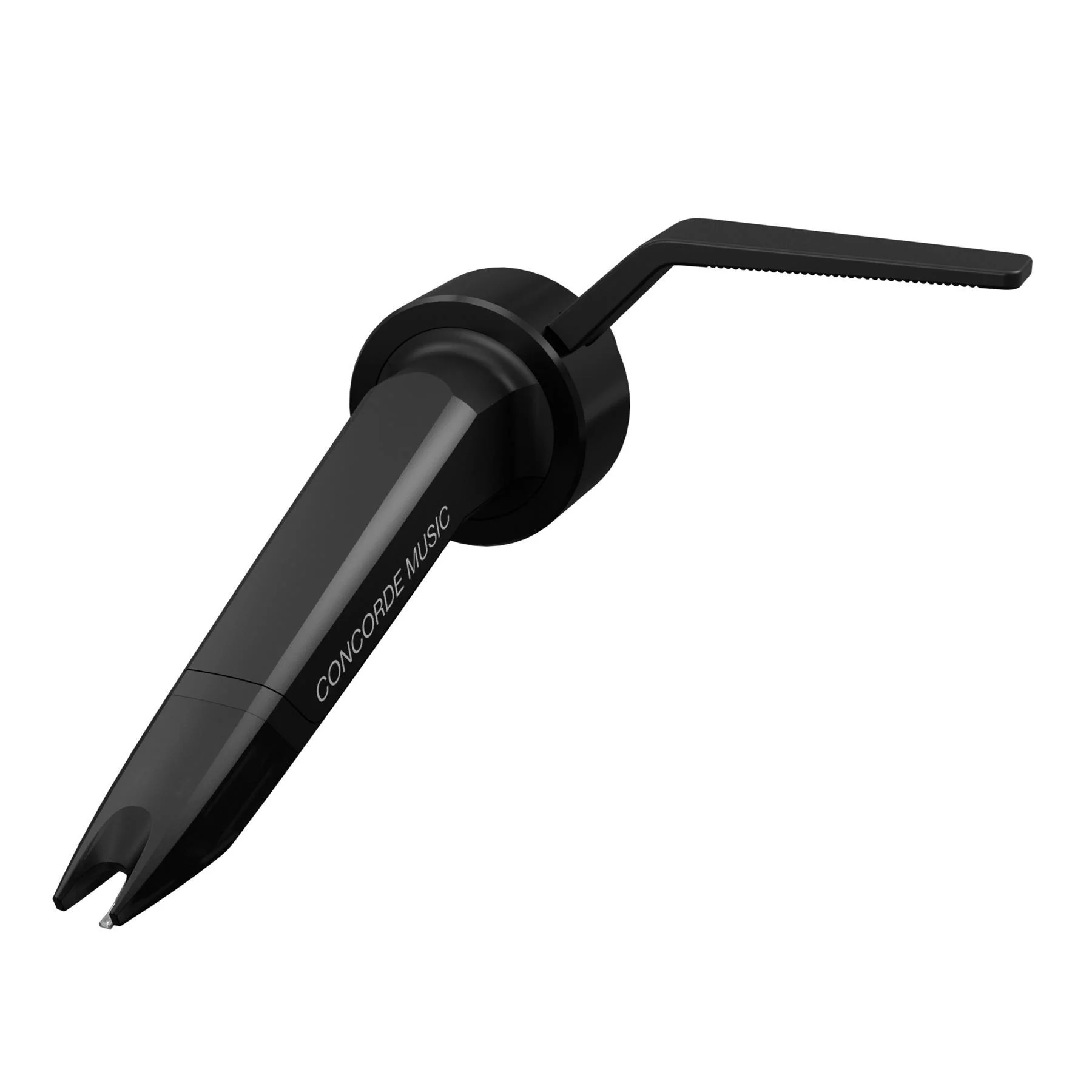

Ortofon Concorde Music Black Moving Magnet Cartridge

Ortofon Concorde Music Black Cartridge for S-Shaped Tonearms

Experience the pinnacle of sound clarity and precision with the Ortofon Concorde Music Black. Crafted for audiophiles by audiophiles, this cartridge redefines your listening experience with its exceptional performance and iconic design.

Ortofon Concorde Music Black Features:

• Nude Shibata Stylus: Delivers transparent and articulate sound reproduction, ensuring every note is heard with stunning clarity.
• Quad Coil System: Incorporates four split pole pins and silver-plated OFC coil wire, providing exceptional channel balance and separation for a precise and dynamic sound image.

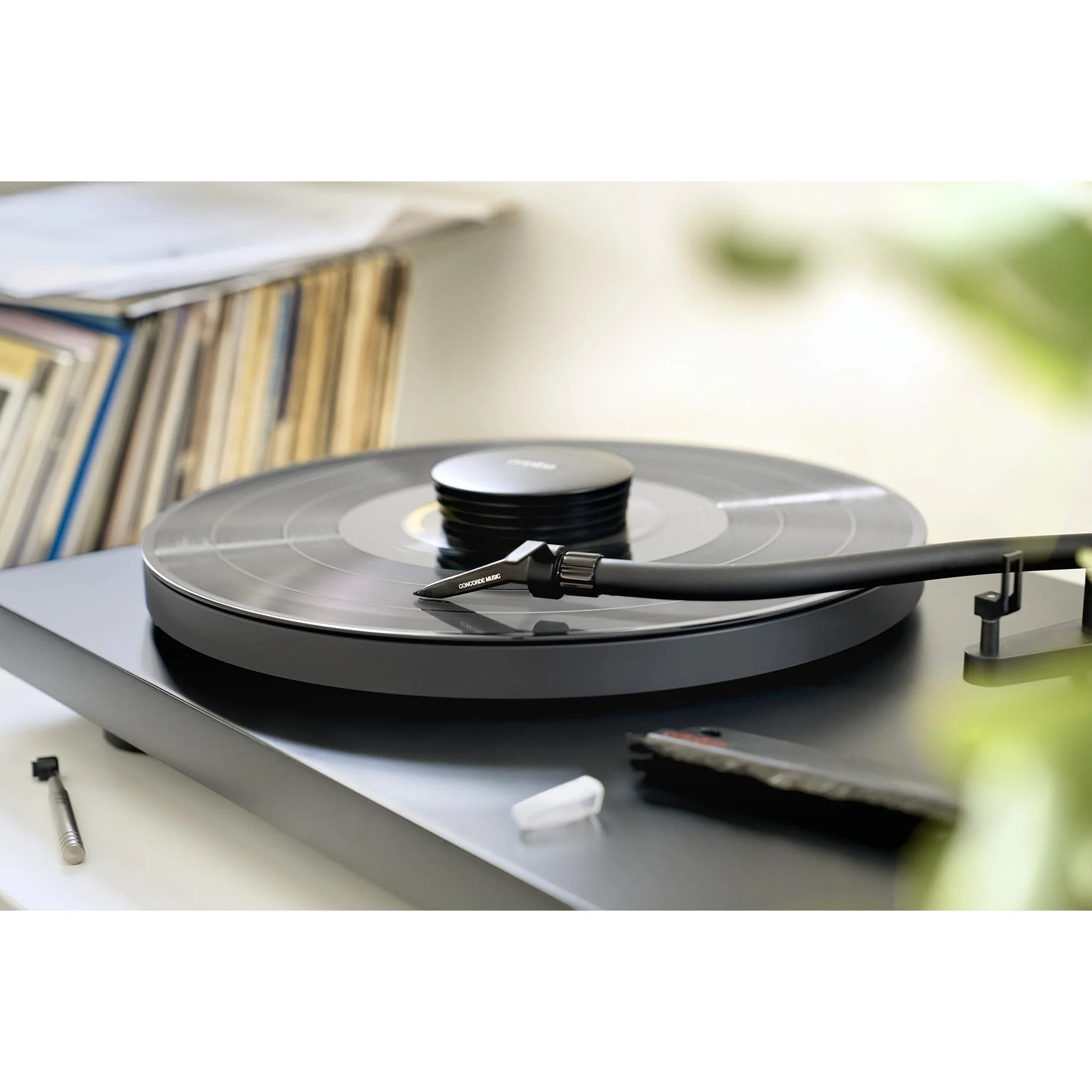

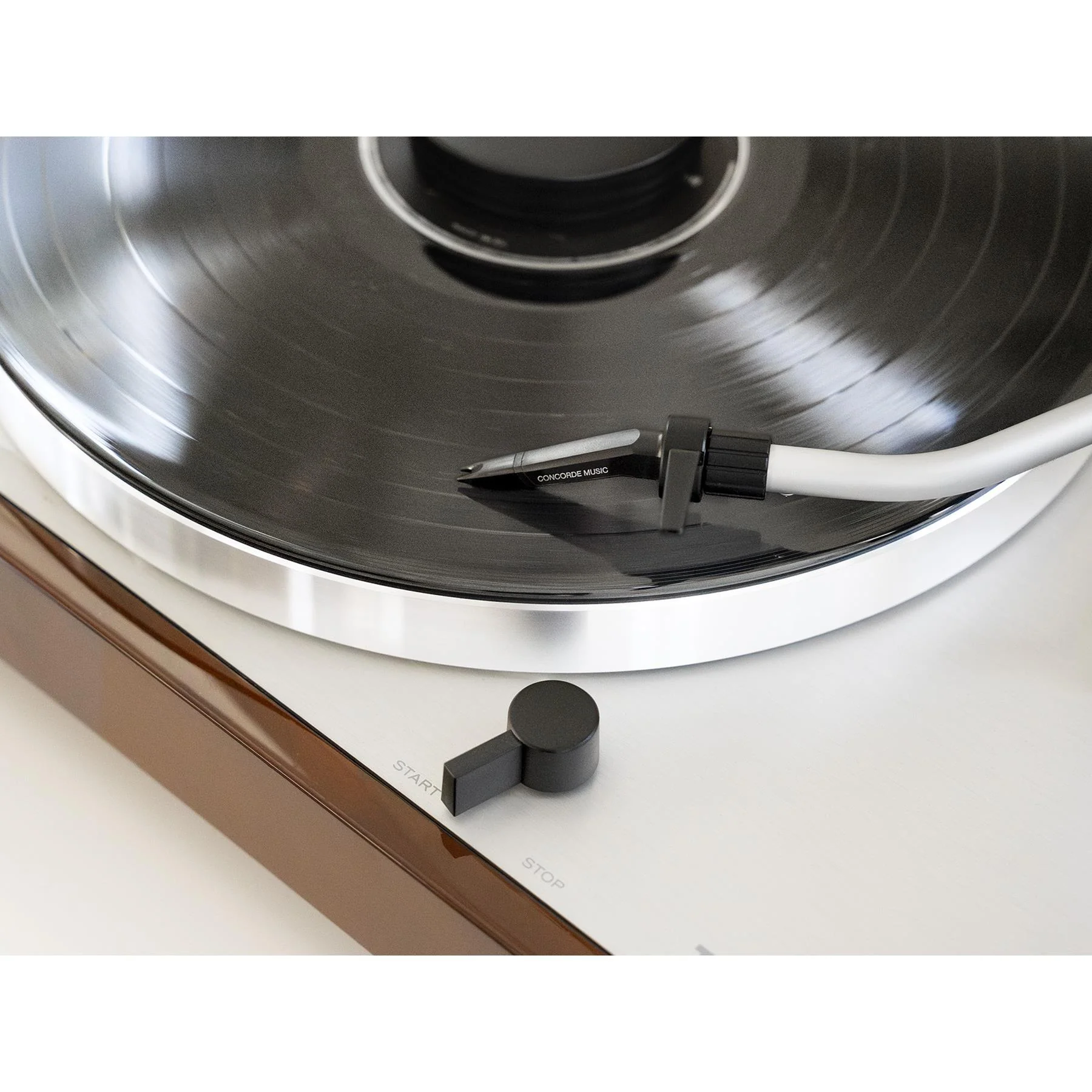

• Easy Installation: Effortlessly mountable on all S-shaped tonearms, requiring no tools for hassle-free setup, and compatible with all Concorde Music styli for seamless upgrades.
• Award-Winning Design: Inspired by Ortofon's rich legacy and recipient of the Danish Industrial Design Award, the Concorde Music series stands as an icon in the audio industry.
• Upgradeability: Elevate your listening experience by upgrading to the Concorde Music Black LVB 250 or any other stylus in the Concorde Music series for enhanced performance and versatility.
• In-House Rubber Production: Utilizes exclusive Ortofon rubber compounds for the stylus suspension, meticulously developed and produced in-house for optimal performance and durability.

Ortofon Concorde Music Black Specifications:

• Channel Balance at 1 kHz: 1 dB
• Output Voltage at 1 kHz, 5cm/sec: 6mV
• Channel Separation at 1 kHz: 26 dB
• Channel Separation at 15 kHz: 18 dB
• Frequency Response: 20 Hz - 20 kHz (+2 / 0 dB)
• Tracking Ability at 315Hz at Recommended Tracking Force: 80 µm
• Compliance, Dynamic, Lateral: 15 µm/mN
• Stylus Type: Shibata diamond on Aluminium cantilever
• Stylus Tip Radius: r/R 6/50 µm
• Tracking Force, Recommended: 1.8 g
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 1.27 kΩ
• Cartridge Color: Black/Black
• Cartridge Weight: 18 g
• Recommended Load Resistance: 47 kΩ
• Internal Inductance: 815 mH
• Recommended Load Capacitance: 150-300 pF

Immerse yourself in the true essence of music with the Ortofon Concorde Music Black. Transform your listening sessions into captivating journeys and rediscover your favorite tracks with unparalleled clarity and fidelity.
