Ortofon 2MR 78 Mono Cartridge for Low Profile Turntables | Play 78 RPM Shellac Records with Precision

Ortofon 2MR 78 Mono Cartridge for Low Profile Tonearms | Play 78 RPM Shellac Records with Precision

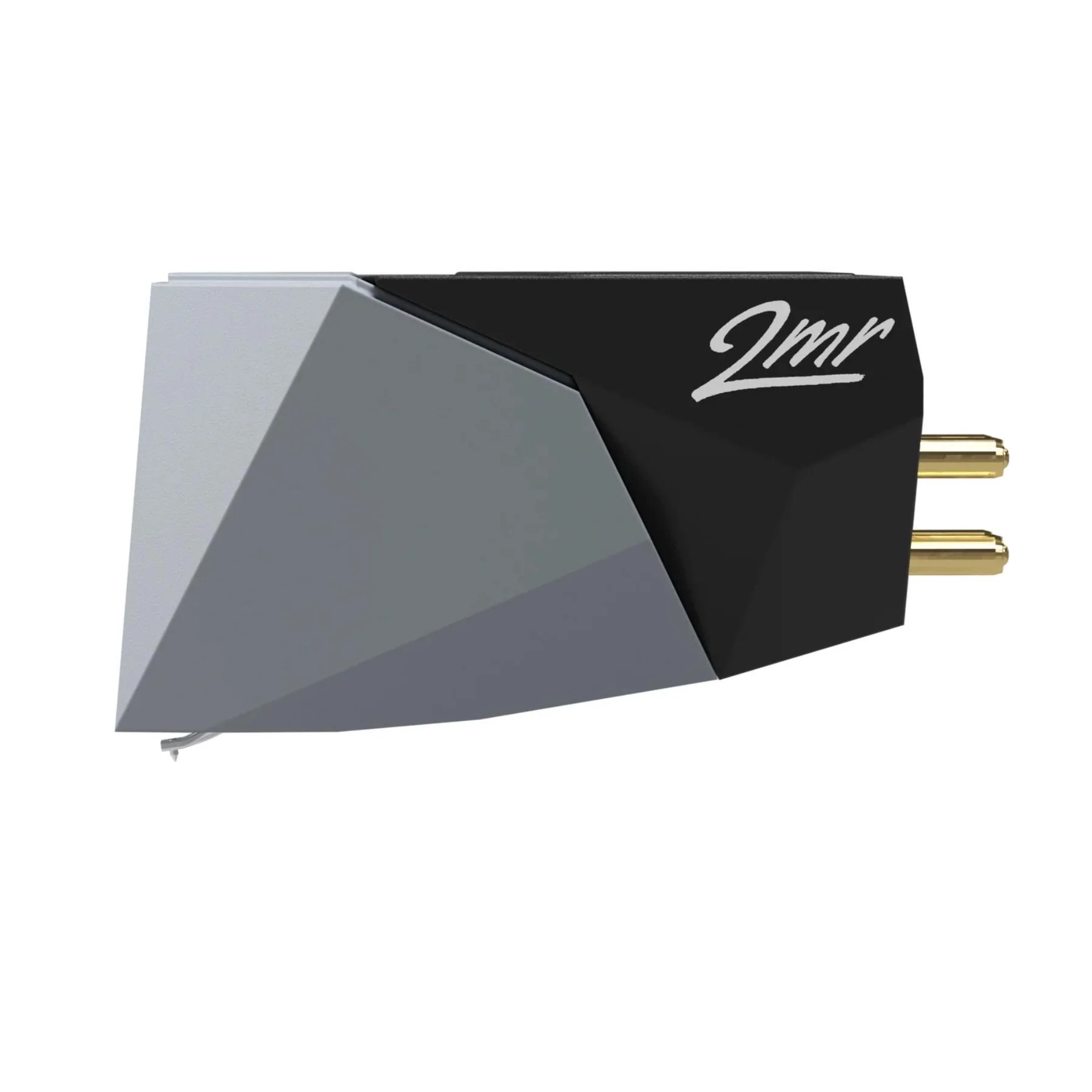

Step into the past and experience the timeless charm of mono vinyl records with the Ortofon 2MR 78 Mono Cartridge. Specifically engineered for playing 78 rpm shellac records, this cartridge delivers unparalleled precision and fidelity, allowing you to immerse yourself in the authentic nostalgia of mono playback.

Designed to seamlessly integrate with turntables and tonearms like Rega, the 2MR 78 features a narrow cartridge housing that matches the requirement for low-form factor cartridges. No modifications or spacers are needed under the tonearm, ensuring quick and easy mounting with just two screws.

Ortofon 2MR 78 Key Features:

• Specially designed cartridge housing for low-profile tonearms like Rega
• Narrow design for seamless integration without modifications
• Stylus tip with a Spherical diamond for optimal playback of 78 rpm shellac records
• High-performance motor system with quad coils and split pole pins
• Strapped output for true mono reproduction on stereo playback systems

Ortofon 2MR 78 Specifications:

• Output Voltage: 4 mV at 1 kHz, 5cm/sec
• Frequency Response: 20 Hz - 20 kHz (+3 / -1 dB)
• Tracking Ability: 70 µm at 315Hz (recommended tracking force)
• Compliance, Dynamic, Lateral: 18 µm/mN
• Stylus Type: Spherical
• Stylus Tip Radius: R 65 µm
• Tracking Force Range: 1.6-2.0g (16-20 mN), Recommended: 1.8 g (18 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 700 Ohm
• Cartridge Color: Black/Grey
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 350 mH
• Stylus Color: Grey
• Recommended Load Capacitance: 150-300 pF
• Replacement Stylus: Stylus 2M 78

Bring your cherished collection of 78 rpm shellac records to life with the Ortofon 2MR 78 Mono Cartridge. Order now and rediscover the magic of mono playback!

Ortofon 2MR 78 Downloads

Ortofon 2MR 78 User Guide
