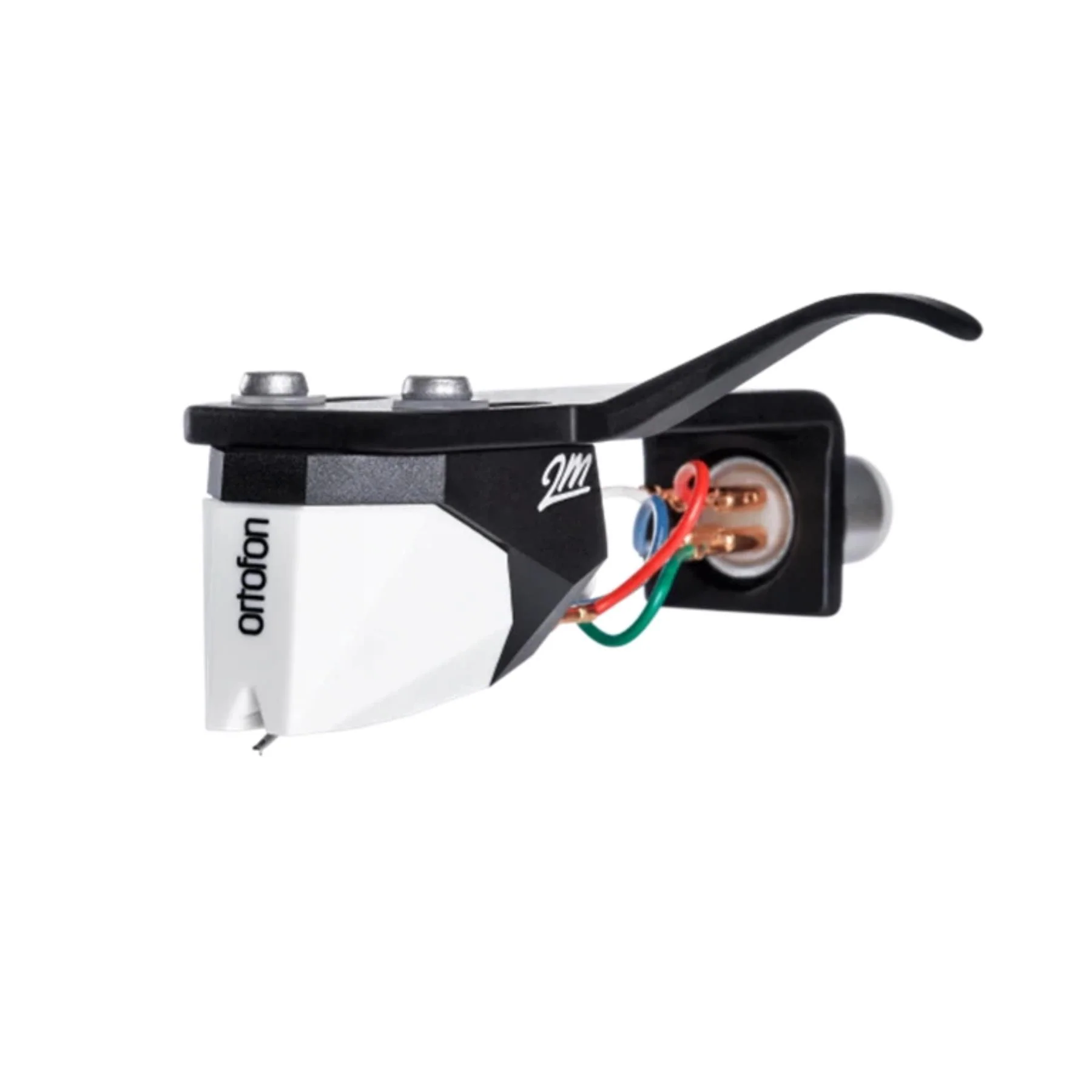

Ortofon 2M Mono Moving Magnet Cartridge Premounted on SH-4 Headshell

Ortofon 2M Mono Premounted on SH-4 Headshell

Immerse yourself in the authentic nostalgia of mono vinyl records with the Ortofon 2M Mono Premounted Cartridge on the classic SH-4 headshell. Crafted to perfection, this cartridge delivers an elevated mono experience, capturing the essence of vintage soundscapes effortlessly.

Compatibility: Designed for direct and easy mounting on S-shaped tonearms, the 2M Mono Premounted is a practical and elegant solution. The sturdy yet slim SH-4 headshell ensures seamless setup, featuring an ergonomic design for effortless handling.

Ortofon 2M Mono Premounted Features:

• Stylus tipped with an R 18µm Nude Spherical diamond for optimal playback of mono microgroove LP vinyl records.
• Enjoy true mono reproduction on any stereo playback system with strapped output technology.
• Designed as a tribute to the Beatles, ensuring high-quality, modern replay from the Mono Box Set.

Ortofon 2M Mono Premounted Specifications:

• Output Voltage: 4 mV at 1 kHz, 5cm/sec
• Frequency Response: 20 Hz - 20 kHz (+3 / -1 dB)
• Tracking Ability: 70 µm at 315Hz (recommended tracking force)
• Compliance: 18 µm/mN (dynamic, lateral)
• Stylus Type: Nude Spherical
• Tracking Force Range: 1.6-2.0 g (16-20 mN), Recommended: 1.8 g (18 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 700 Ohm
• Cartridge Color: Black/White
• Cartridge Weight: 7.2 g, Premounted Cartridge Weight: 16.7 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 350 mH
• Recommended Load Capacitance: 150-300 pF

Experience the timeless allure of mono vinyl records with the Ortofon 2M Mono Premounted Cartridge. Elevate your listening experience to new heights of authenticity and nostalgia.

Ortofon 2M Mono Premounted Downloads

Ortofon 2M 78 Premounted User Guide
Ortofon 2M Moving Magnet Cartridges Brochure
