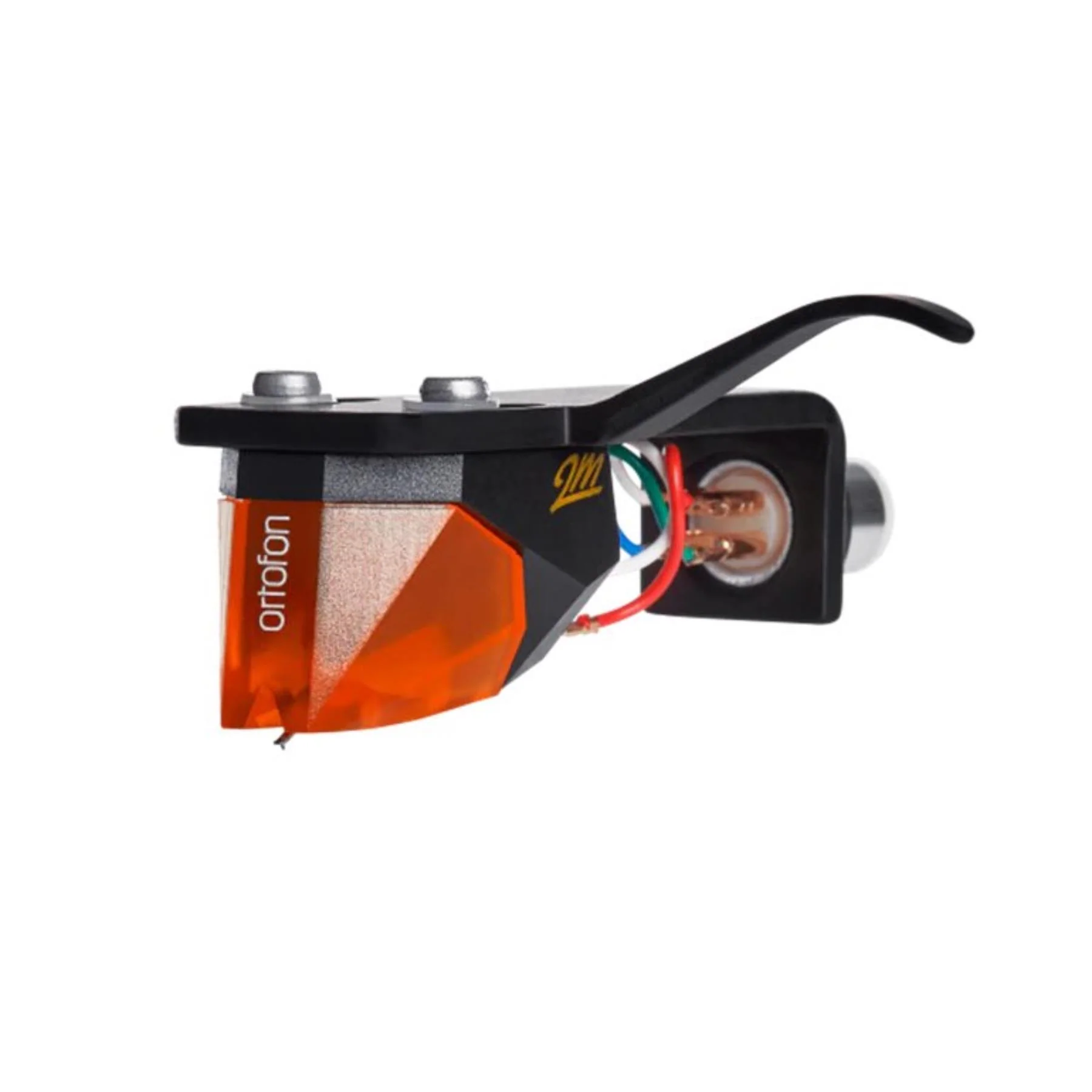

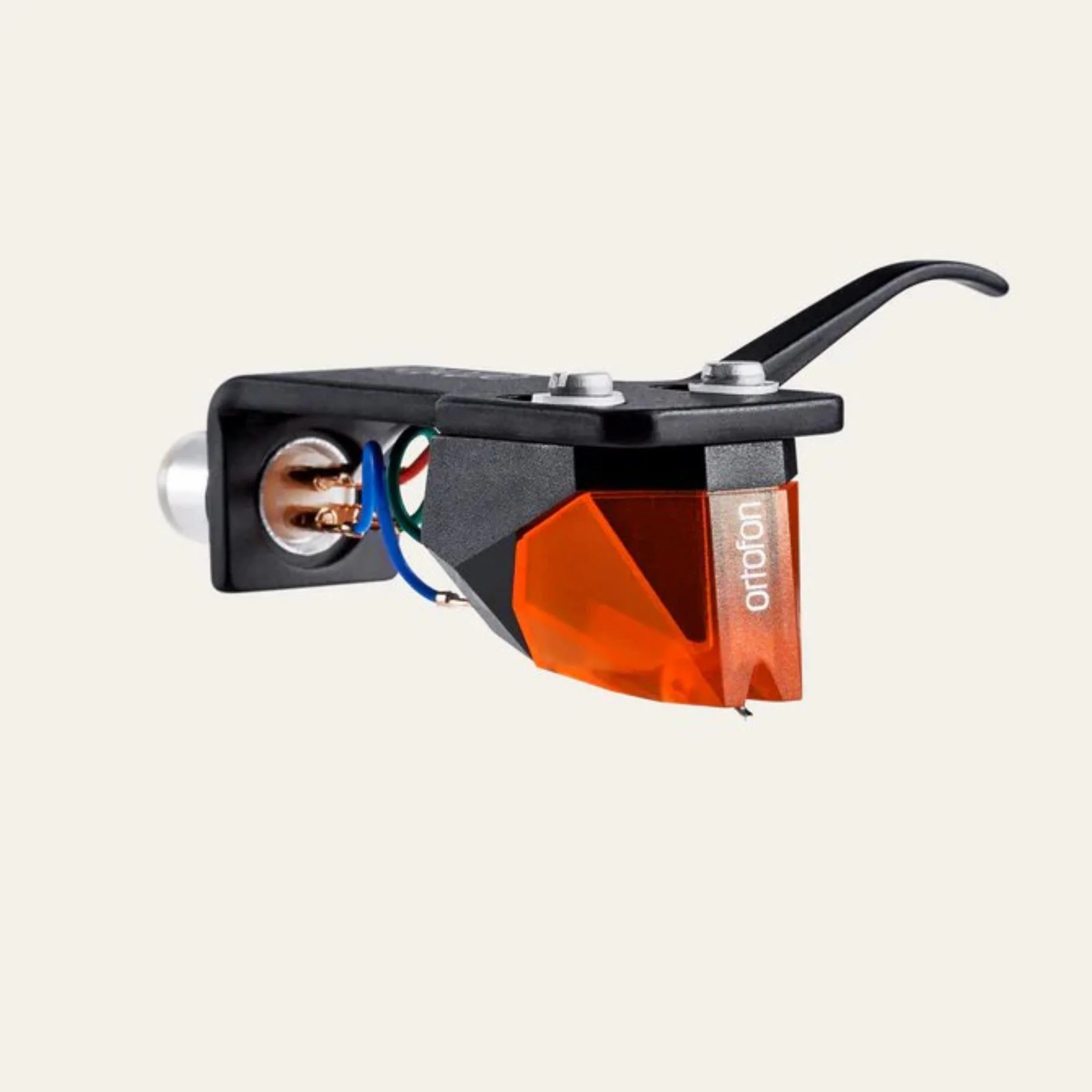

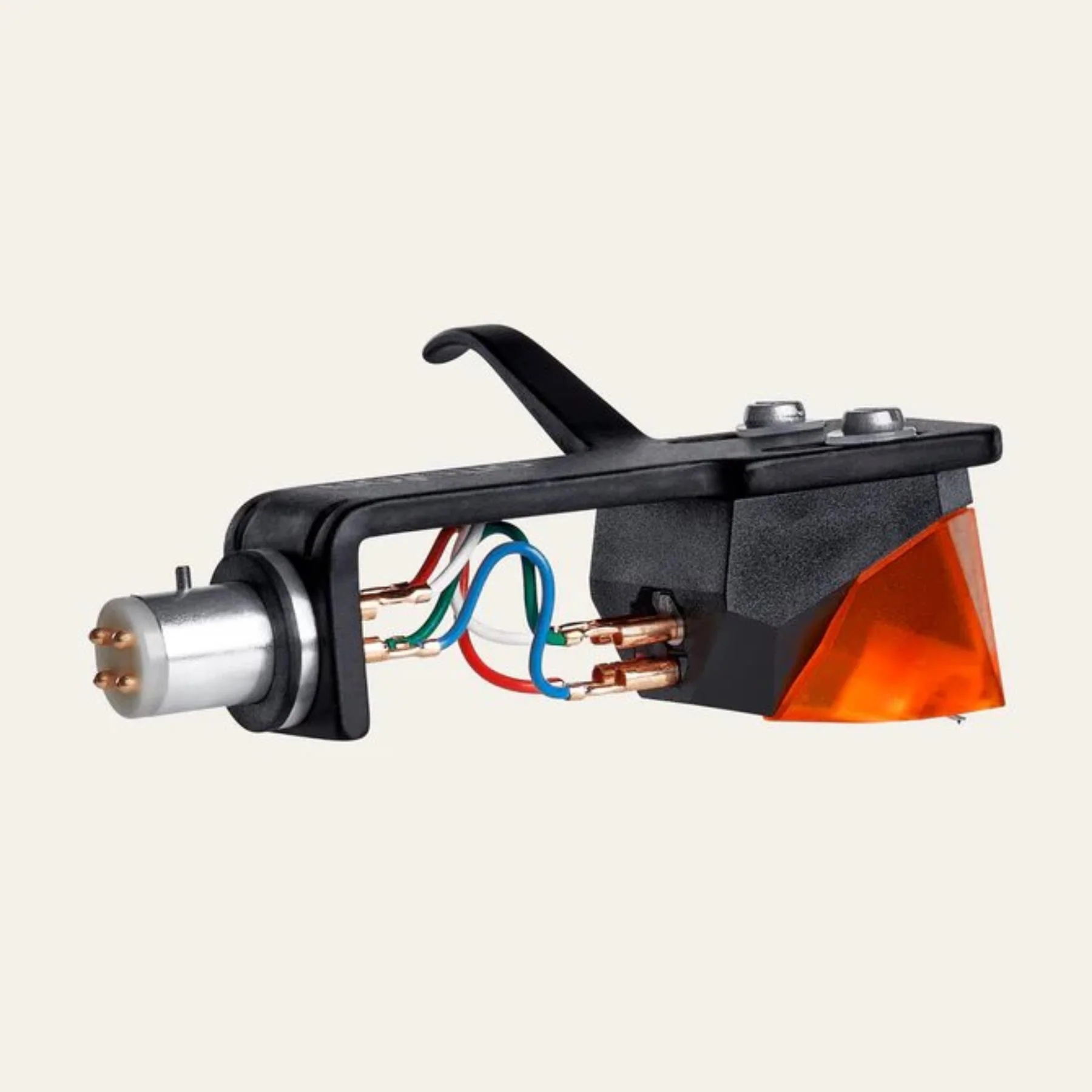

Ortofon 2M Bronze Premounted High-Fidelity Moving Magnet Cartridge

Ortofon 2M Bronze Premounted on SH-4 Headshell - High-Fidelity Cartridge

Elevate your listening experience with the Ortofon 2M Bronze Premounted, meticulously designed for unparalleled precision and sonic clarity. This premounted version comes with the classic SH-4 headshell for easy setup and high-quality performance.

Ortofon 2M Bronze Key Features:

• Nude Fine Line Stylus: The 2M Bronze features a Nude Fine Line diamond stylus, precisely engineered for demanding applications, ensuring accurate tracking of even the highest frequency information.

• Special Engine Design: Utilizing a special engine with quad coils, the 2M Bronze incorporates Ortofon's innovative split pole pins upgraded with silver-plated copper wire, pushing the boundaries of audio quality.

• Direct and Easy Mounting: Designed for S-shaped tonearms, the 2M Bronze Premounted provides a hassle-free installation experience, allowing you to enjoy your vinyl collection with minimal effort.

Explore the 2M Series: Immerse yourself in the world of high-fidelity sound with the 2M series. Crafted in Denmark with a commitment to excellence, each cartridge reflects our dedication to precision, drawing inspiration from the graceful facets of a diamond. Meticulously designed in collaboration with Danish Industrial designer Møller Jensen Design, the 2M series embodies timeless sophistication.

Ortofon 2M Bronze Premounted Specifications:

• Channel Balance (1 kHz): 1 dB
• Output Voltage (1 kHz, 5cm/sec): 5 mV
• Channel Separation (1 kHz): 26 dB
• Channel Separation (15 kHz): 15 dB
• Frequency Response: 20 Hz - 20 kHz (+2 / -0 dB)
• Tracking Ability (315Hz, Recommended Tracking Force): 80 µm
• Compliance, Dynamic, Lateral: 22 µm/mN
• Stylus Type: Nude Fine Line
• Stylus Tip Radius: r/R 8/40 µm
• Tracking Force Range: 1.4-1.7 g (14-17 mN)
• Tracking Force, Recommended: 1.5 g (15 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 1.2 kOhm
• Cartridge Color: Black/Bronze
• Cartridge Weight: 7.2 g
• Premounted Cartridge Weight: 16.7 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 630 mH
• Recommended Load Capacitance: 150-300 pF

Transform your vinyl listening experience with the Ortofon 2M Bronze Premounted, where precision meets perfection in every note.

Ortofon 2M Bronze Downloads

Ortofon 2M Bronze User Guide
Ortofon 2M Bronze Brochure / Data Sheet
