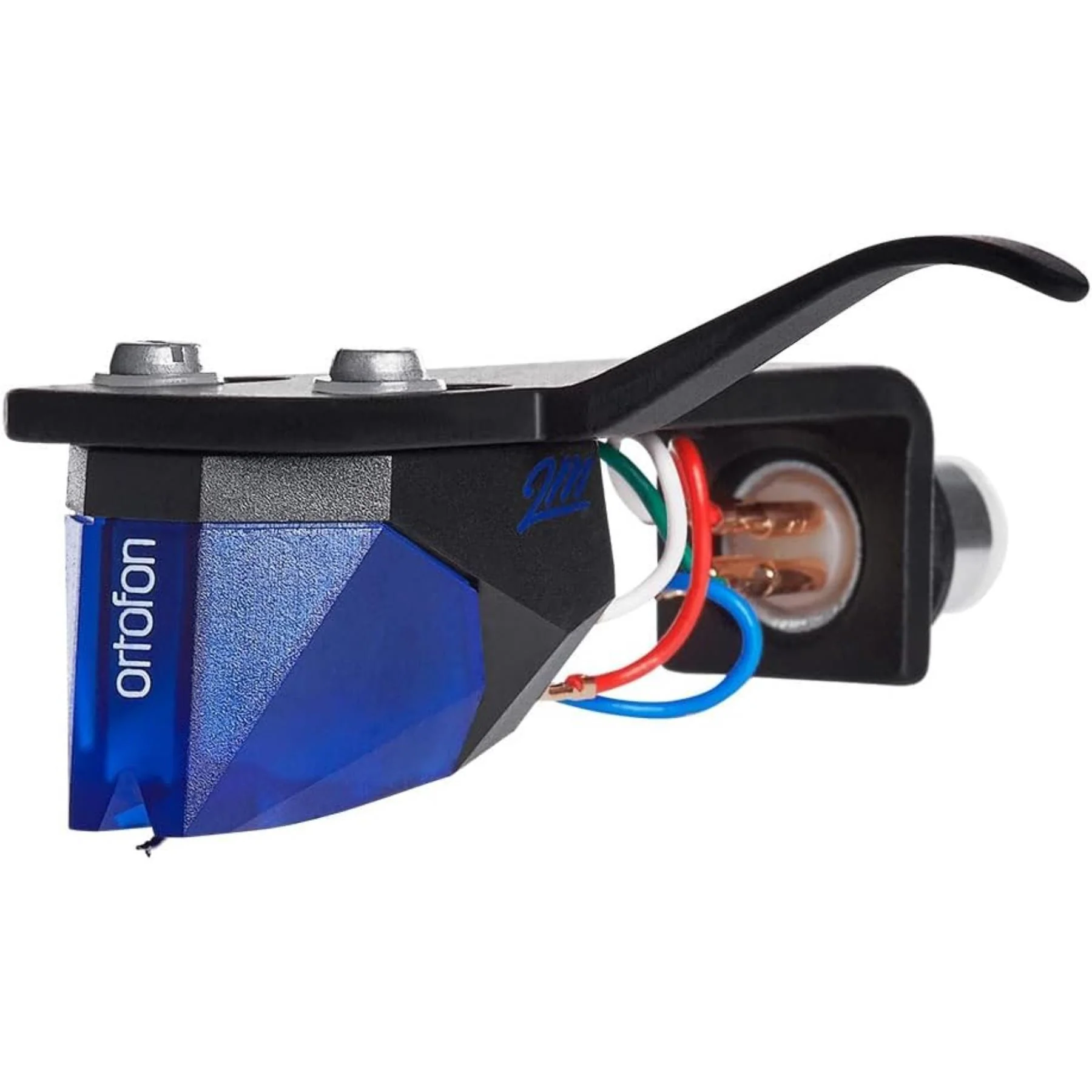

Ortofon 2M Blue Moving Magnet Cartridge Premounted on SH-4 Black Headshell
Ortofon 2M Blue Cartridge Mounted on SH-4 Headshell
Elevate your vinyl listening experience with the Ortofon 2M Blue Cartridge expertly mounted on the SH-4 Headshell. Boasting enhanced sound reproduction and a 5.5 mV output, this cartridge delivers unparalleled sonic accuracy and detail, ensuring every note is heard with clarity and precision.

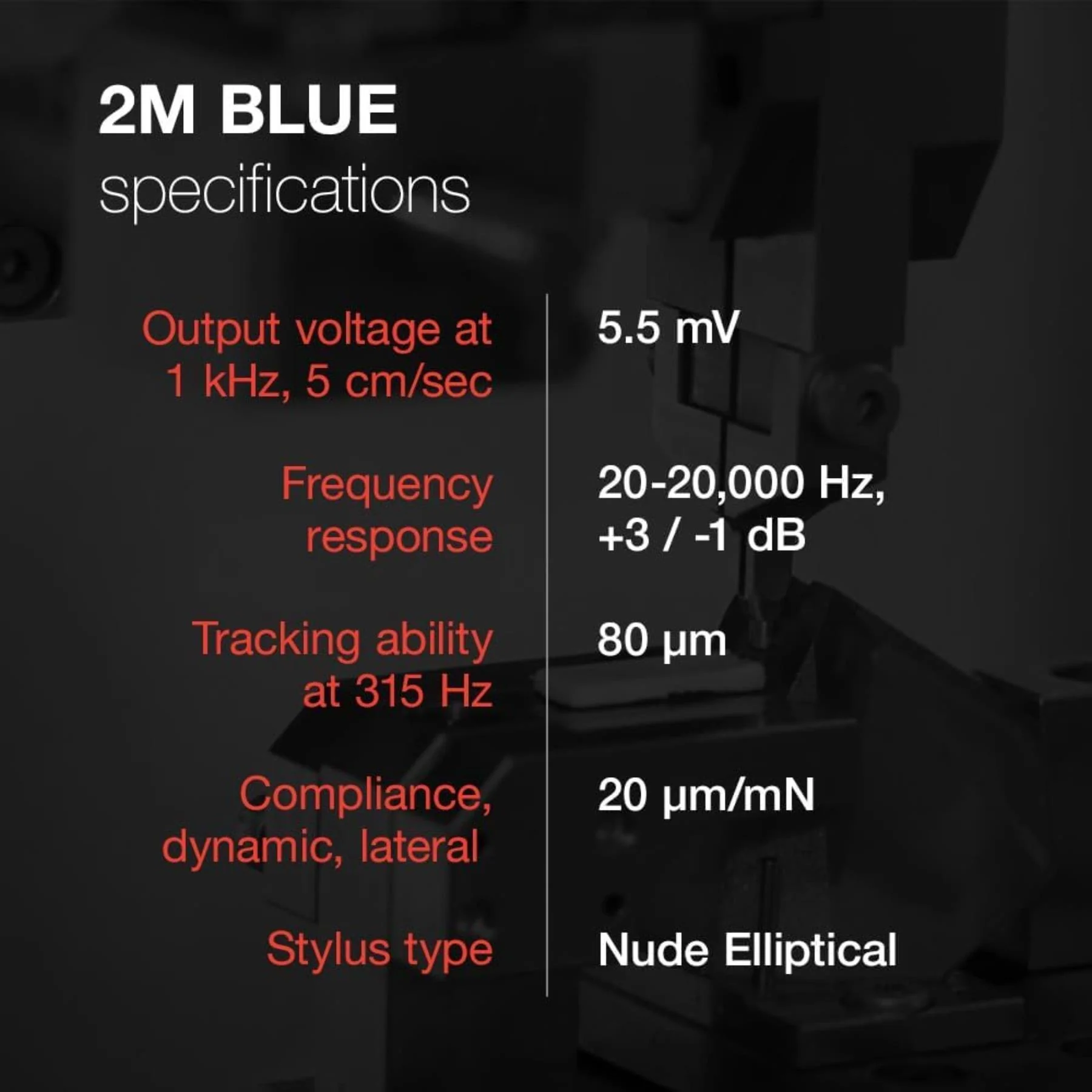

Ortofon 2M Blue Cartridge Mounted on SH-4 Headshell Specifications:
- Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 25 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20-20,000 Hz (+2 / -1 dB)
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 20 µm/mN

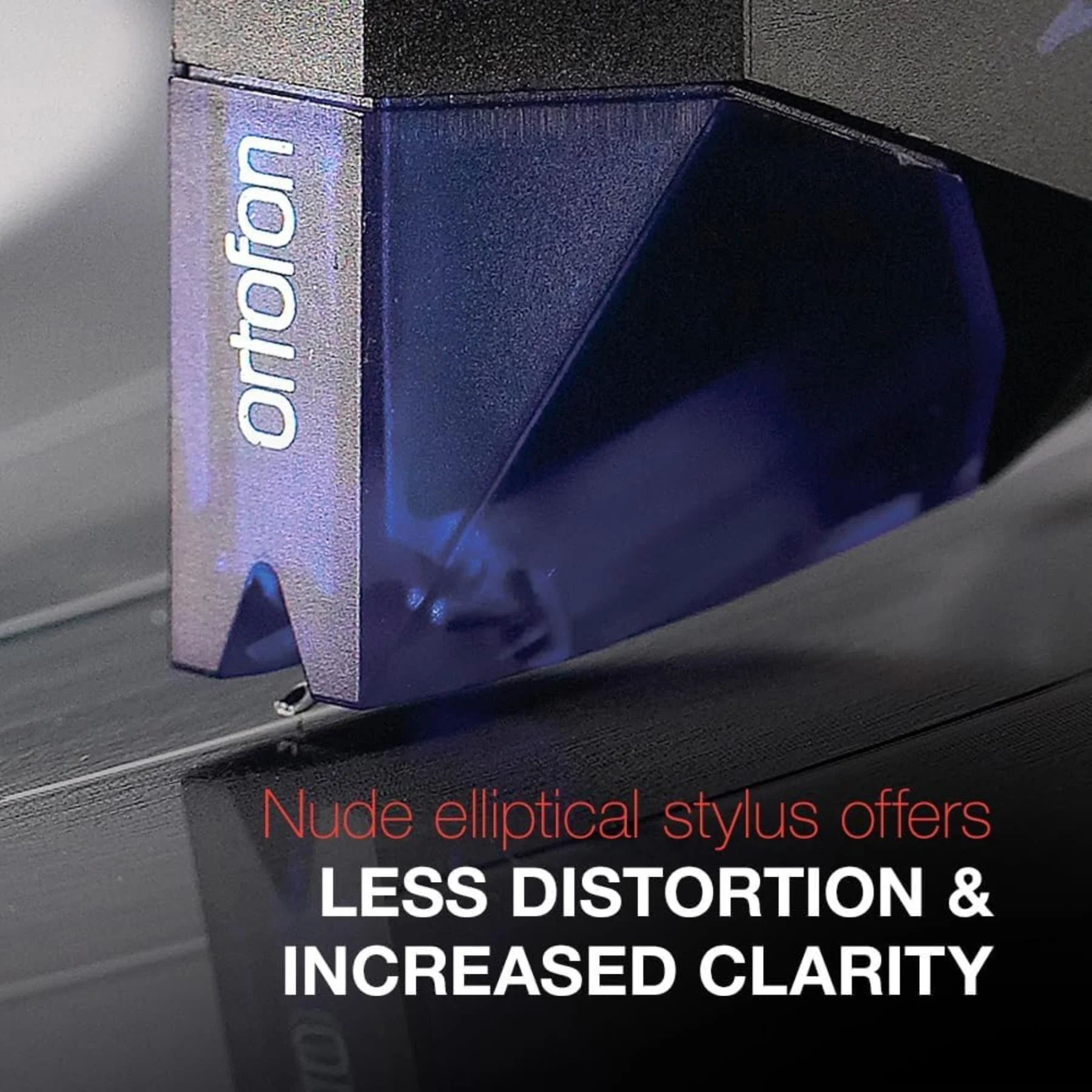

- Stylus type: Nude Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1.6-2.0 g (16-20 mN)
- Tracking force, recommended: 1.8 g (18 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.3 kOhm
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Cartridge color, body/stylus: Black/Blue
- Cartridge weight: 7.2 g
The Ortofon 2M Blue Cartridge, a pinnacle of audio engineering, features a nude elliptical diamond stylus and split pole pins with copper wire, enhancing dynamics and resolution while maintaining an open soundstage. Engineered with precision and designed for easy mounting, this cartridge is compatible with a wide range of turntables and phono preamps, ensuring a seamless integration into your audio setup.
Crafted in collaboration with renowned Danish industrial designer Møller Jensen Design, the 2M series exemplifies elegance and functionality. Inspired by the facets of a diamond, its sleek design embodies the pursuit of sonic perfection.
Discover the brilliance of the Ortofon 2M Blue Cartridge and elevate your vinyl listening experience today.
Ortofon 2M Blue Downloads
Ortofon 2M Blue User Guide
Ortofon 2M Blue Brochure / Data Sheet
