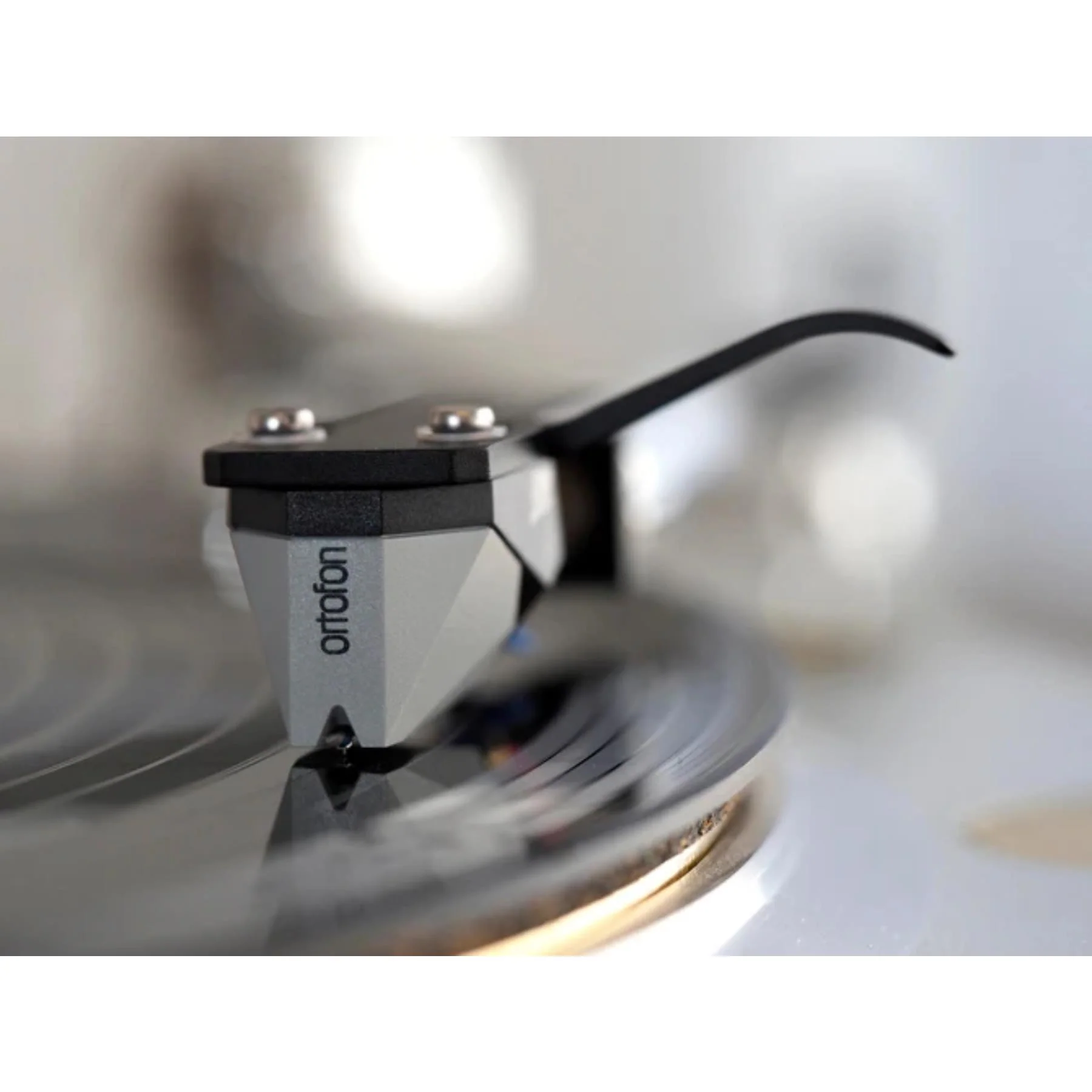

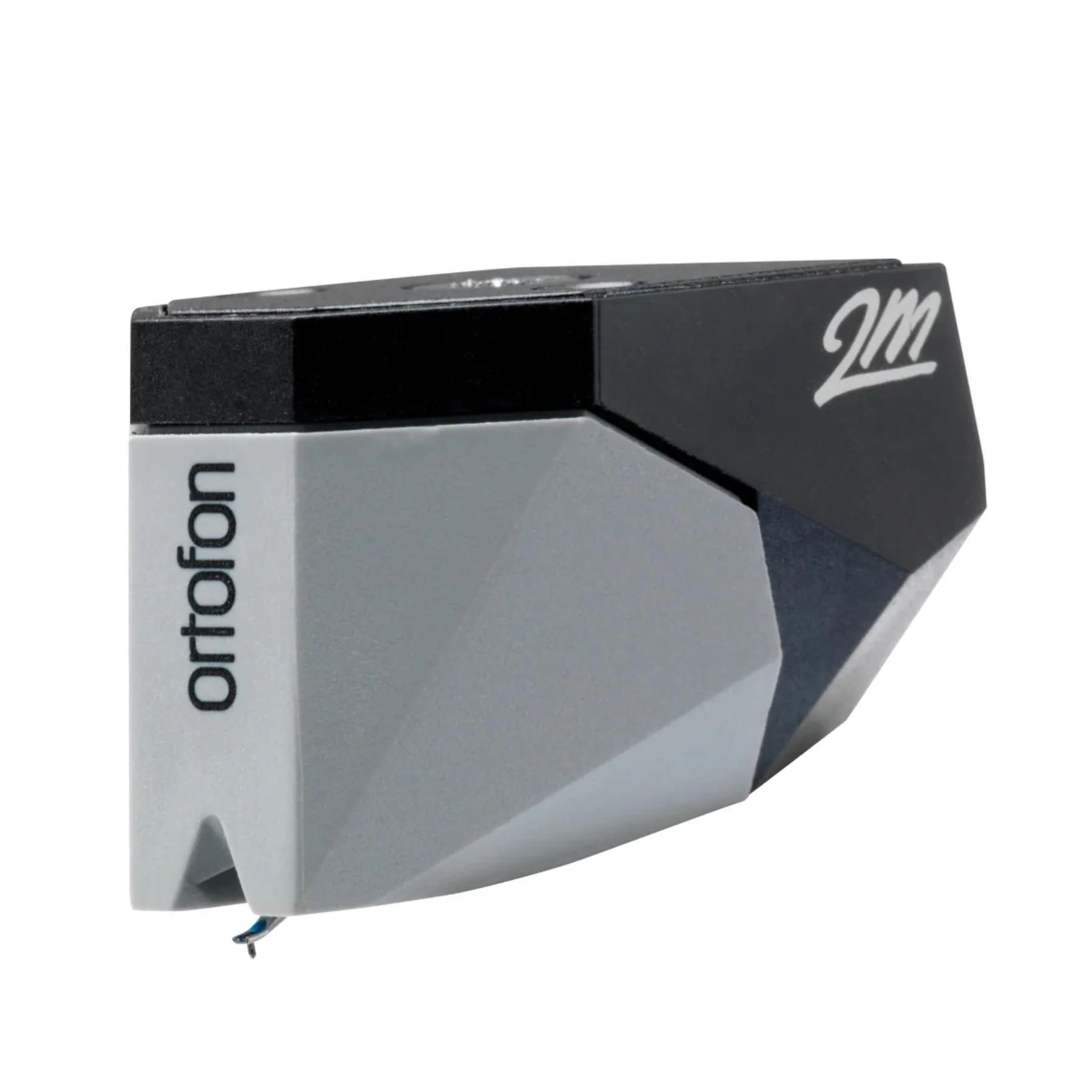

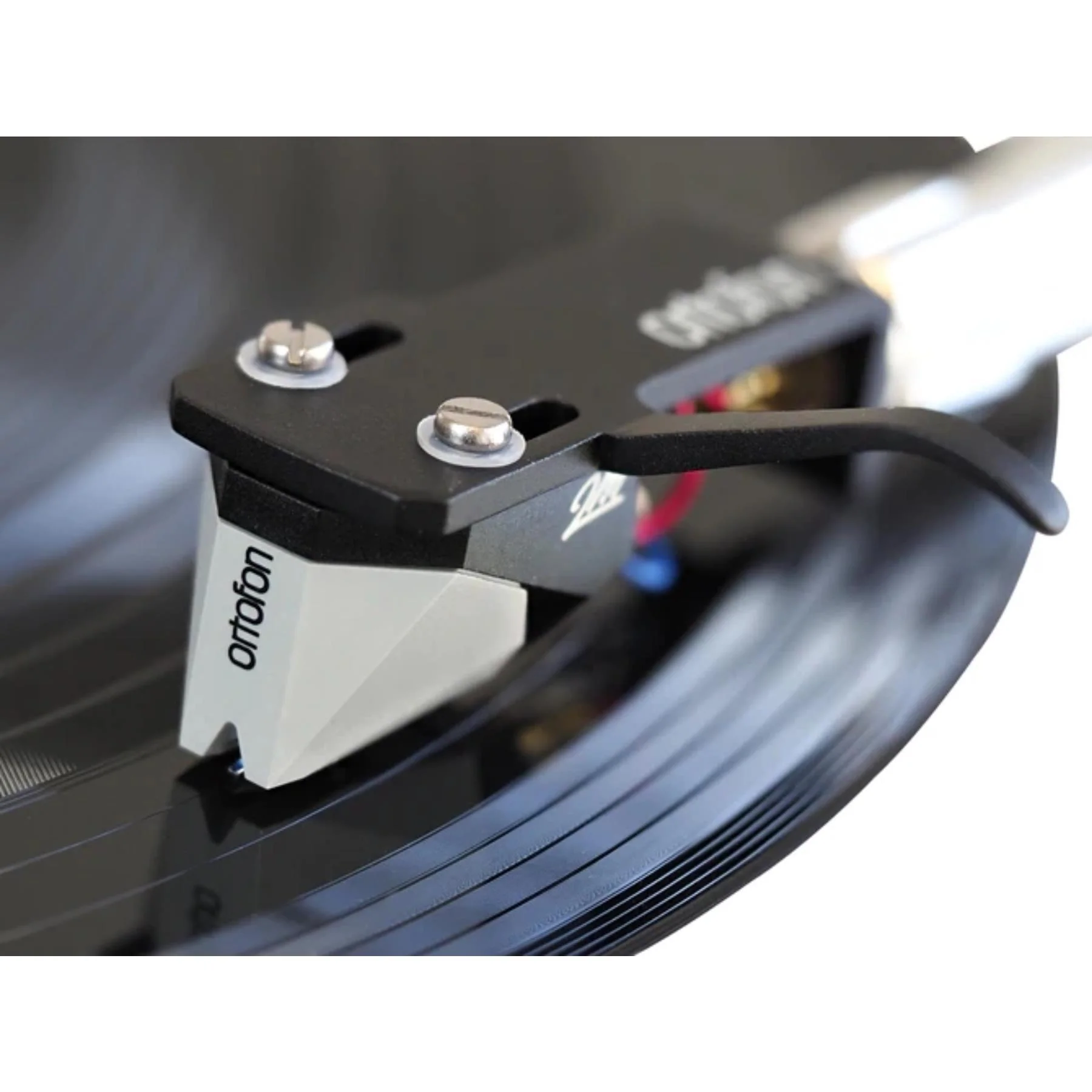

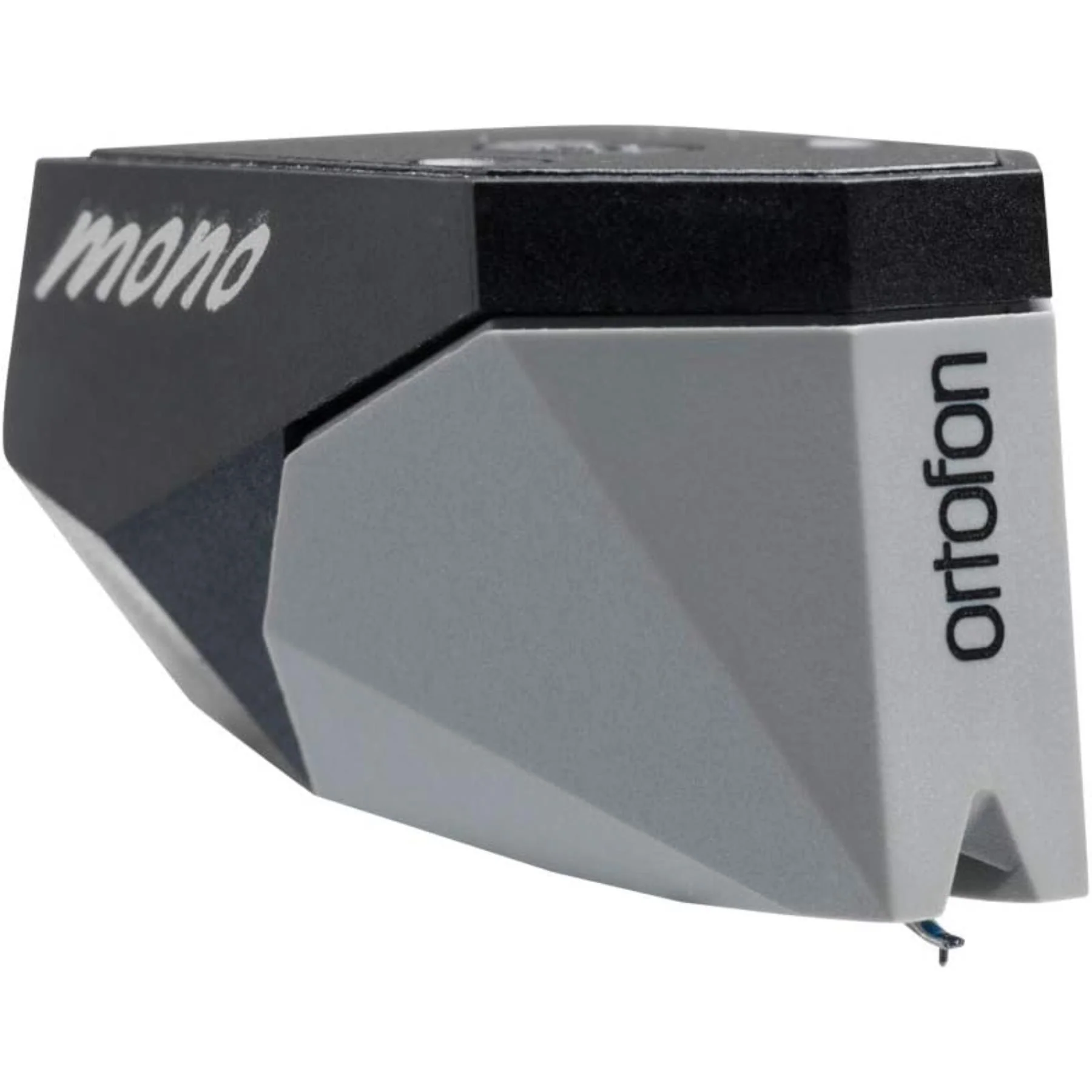

Ortofon 2M 78 Mono Moving Magnet Cartridge

Ortofon 2M 78 Mono Moving Magnet Cartridge

Experience the richness of your 78 rpm shellac records with the precision and authenticity of the Ortofon 2M 78 Mono Moving Magnet Cartridge. Crafted to deliver exceptional playback quality, this cartridge is designed to preserve the unique characteristics of your cherished collection.

Ortofon 2M 78 Key Features:

• Spherical diamond stylus tip optimized for 78 rpm shellac records
• Strapped output for true mono reproduction on any stereo playback system
• Easy mounting design compatible with most common turntables
• Available in four variants for versatile installation options

Ortofon 2M 78 Specifications:

• Output voltage at 1 kHz, 5cm/sec: 4 mV
• Frequency response: 20 Hz - 20 kHz (+3 / -1 dB)
• Tracking ability at 315Hz: 70 µm (recommended tracking force)
• Compliance, dynamic, lateral: 18 µm/mN
• Stylus type: Spherical
• Stylus tip radius: R 65 µm
• Tracking force range: 1.6-2.0g (16-20 mN), recommended 1.8 g (18 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 700 Ohm
• Cartridge color: Black/Grey
• Cartridge weight: 7.2 g (Premounted cartridge weight: 16.7 g)
• Recommended load resistance: 47 kOhm
• Internal inductance: 350 mH
• Recommended load capacitance: 150-300 pF

Elevate your listening experience with the Ortofon 2M 78 Mono Moving Magnet Cartridge, engineered to deliver unparalleled sonic accuracy and fidelity to your favorite 78 rpm recordings.

Ortofon 2M 78 Downloads

Ortofon 2M User Guide
Ortofon 2M Series Brochure
