Onkyo C-30 CD Player

Onkyo C-30 Icon Series Hi-Fi CD Player

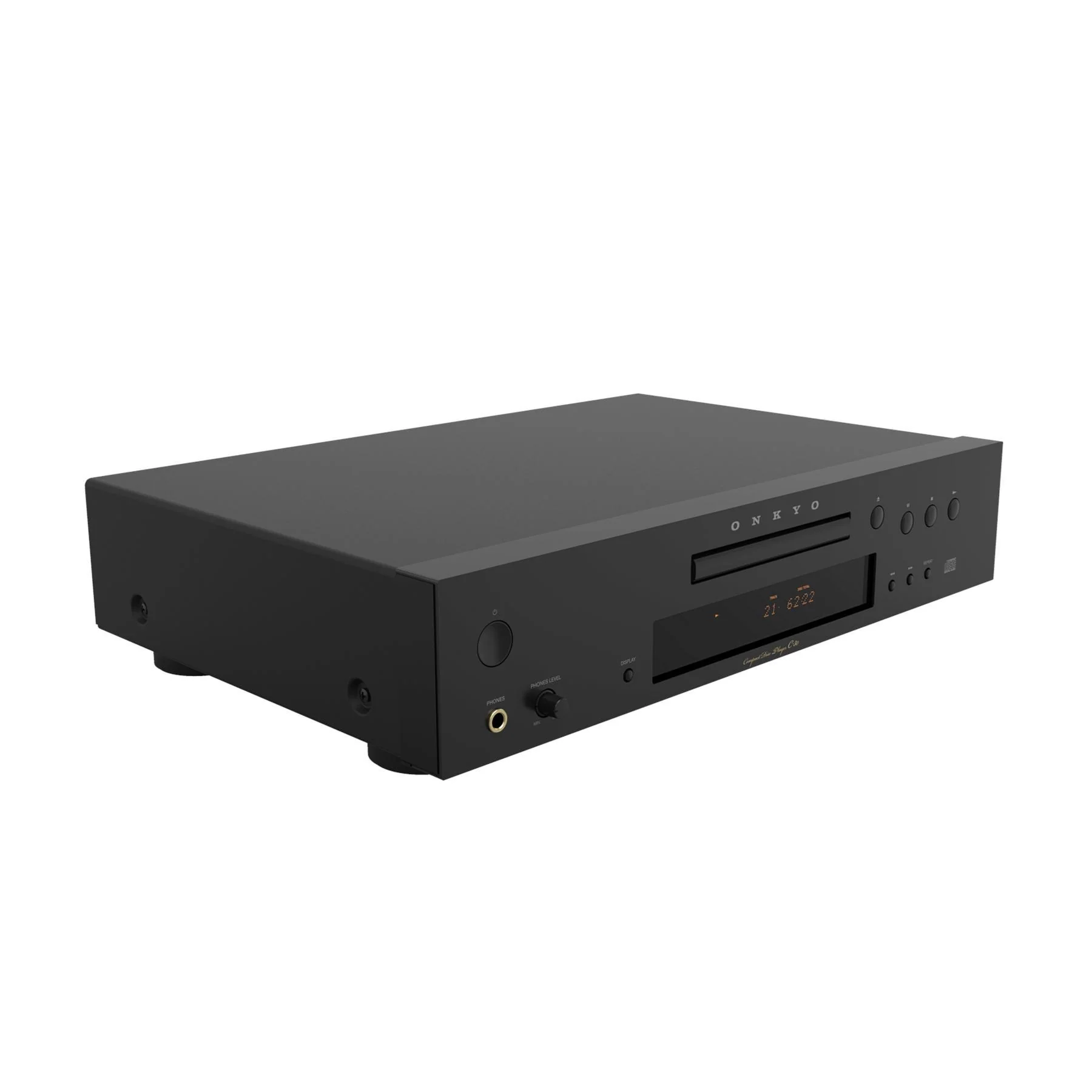

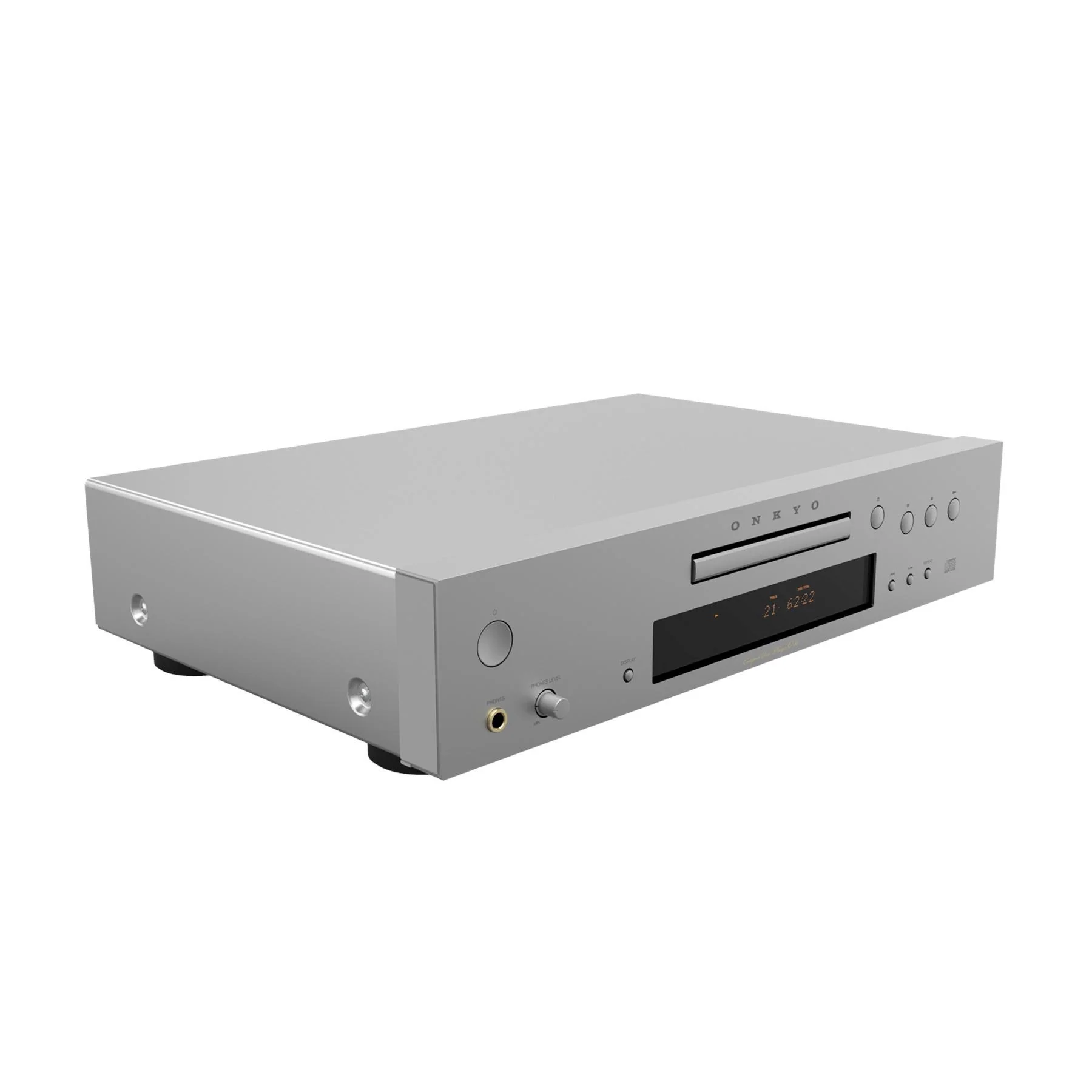

Meet the Onkyo C-30 - an audiophile-focused CD player that brings modern precision to a timeless format. Its exclusive VLSC (Vector Linear Shaping Circuit) filters pulse noise for a purer analog signal, while a high-precision ±10 ppm clock locks in stereo imaging and timing. A premium 32-bit/768 kHz stereo DAC, a fanless, vibration-resistant chassis with a blast-finished aluminum front panel, and gold-plated outputs round out a player built to reveal every nuance on your discs. Flexible connections (analog RCA, optical, and coaxial) and a front-panel headphone jack with level control make the C-30 effortless to integrate into any hi-fi system.

Onkyo C-30 Full Specifications:

• Product: Onkyo C-30 CD Player (Icon Series)
• Finishes & Model Nos.:

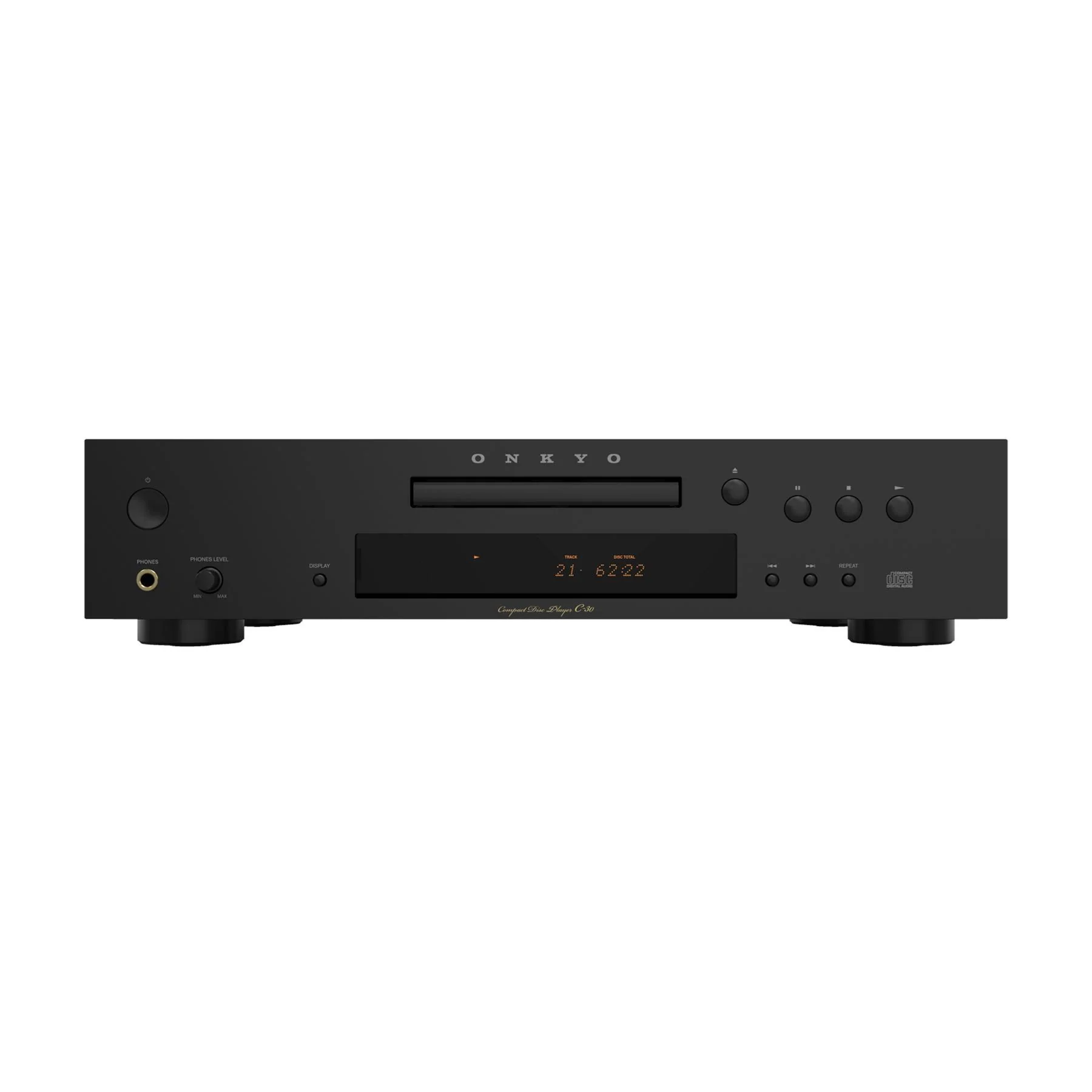

  • Black: C30BMMP — EAN 4573211155921

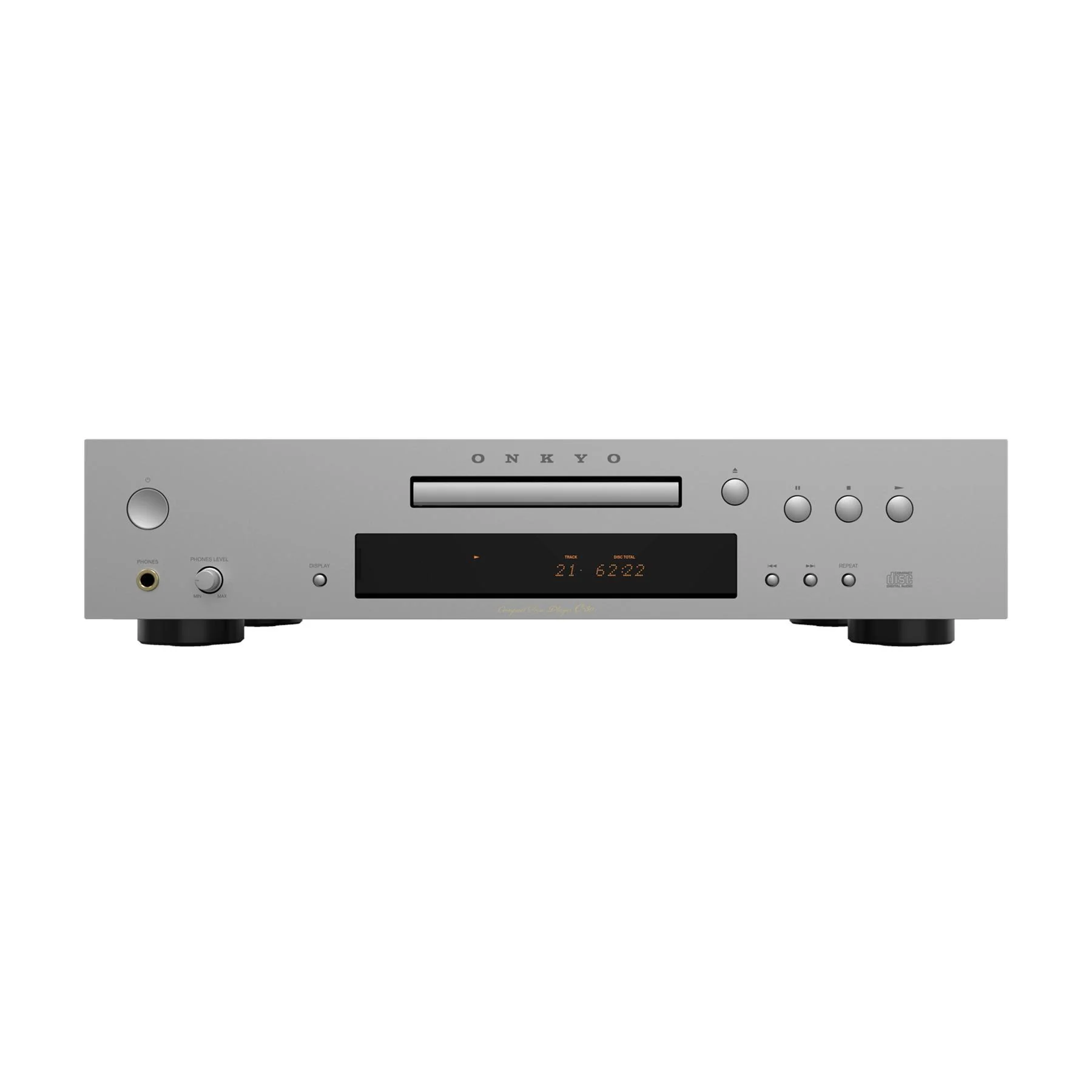

  • Silver: C30SMMP — EAN 4573211155938
• Core Technologies:
  • VLSC (Vector Linear Shaping Circuit) digital noise reduction
  • High-precision clock: ±10 ppm
  • Premium stereo DAC: 32-bit / 768 kHz
  • Fanless design; extruded aluminum heat sink for vibration suppression

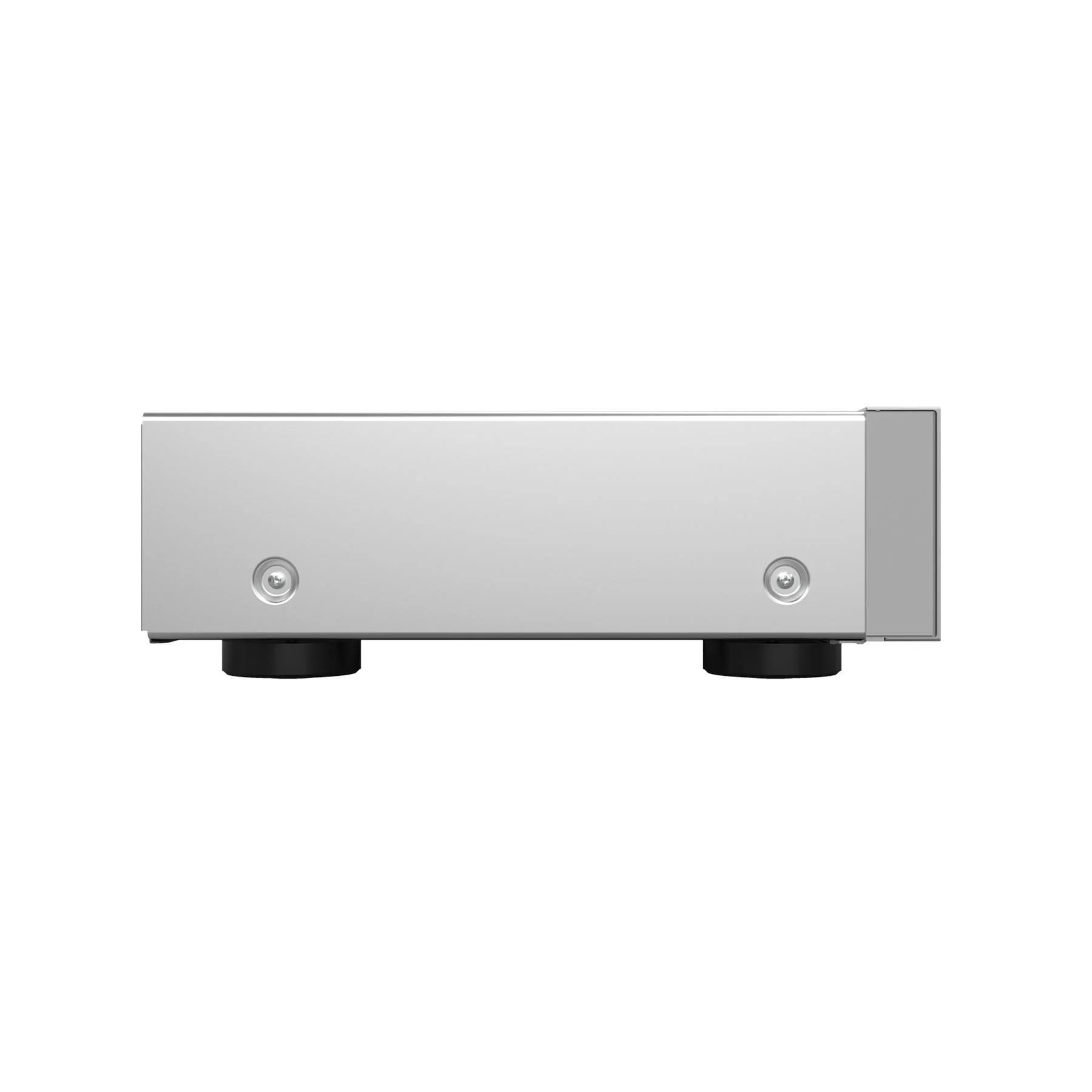

  • Flat, vibration-suppressing chassis; blast-finished aluminum front panel (sandblasted texture)
• Disc & File Support:
  • Discs: Audio CD, CD-R, CD-RW
  • Files on CD-R/CD-RW: MP3, WMA
  • MP3 disc structure: ISO9660 (Level 2), up to 99 folders (incl. root) and up to 499 files
• Playback Modes:
  • Random (shuffle)
  • Memory playback (programmed order) for Audio CDs and MP3 CDs
  • Repeat (all or one track)
  • Random + Repeat combination

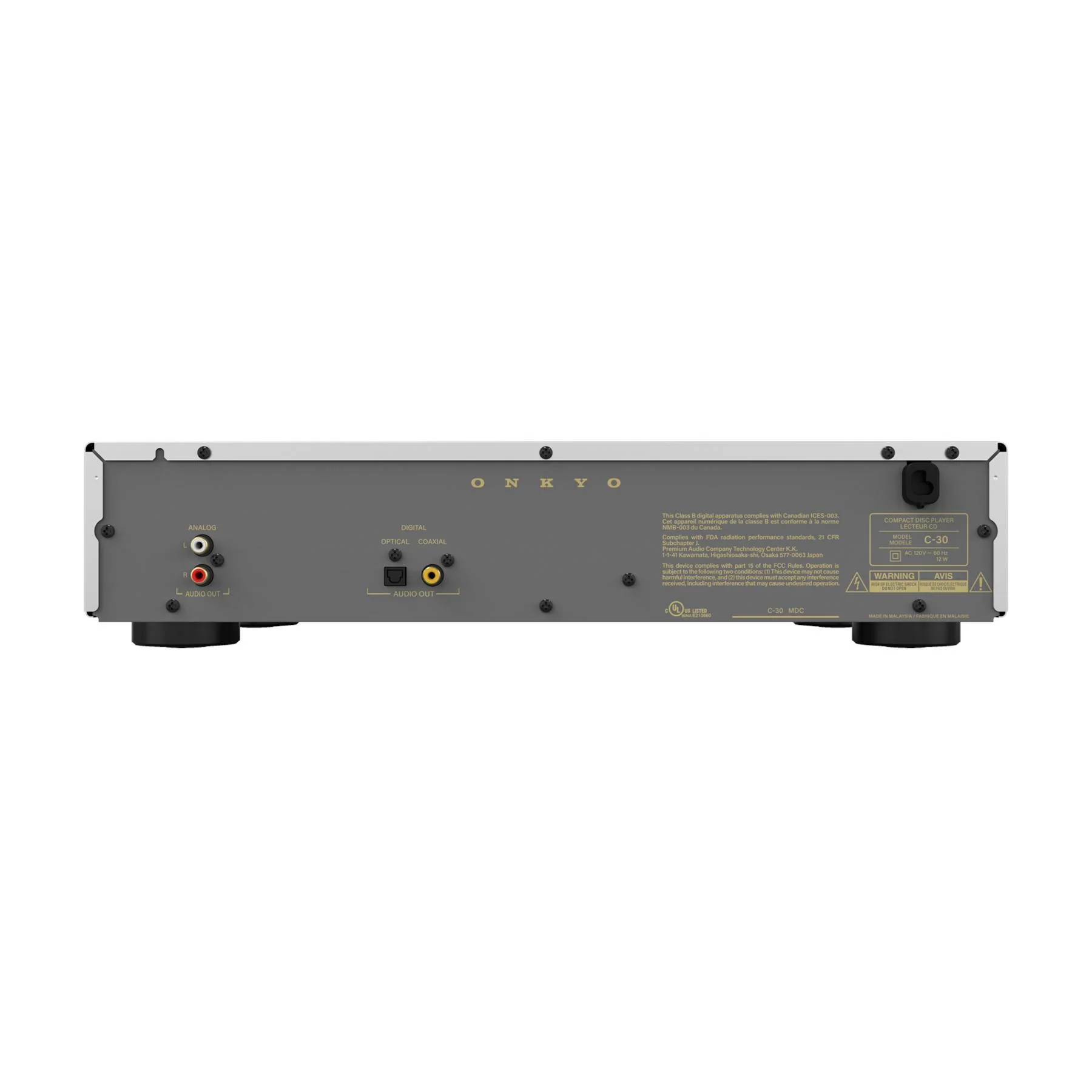

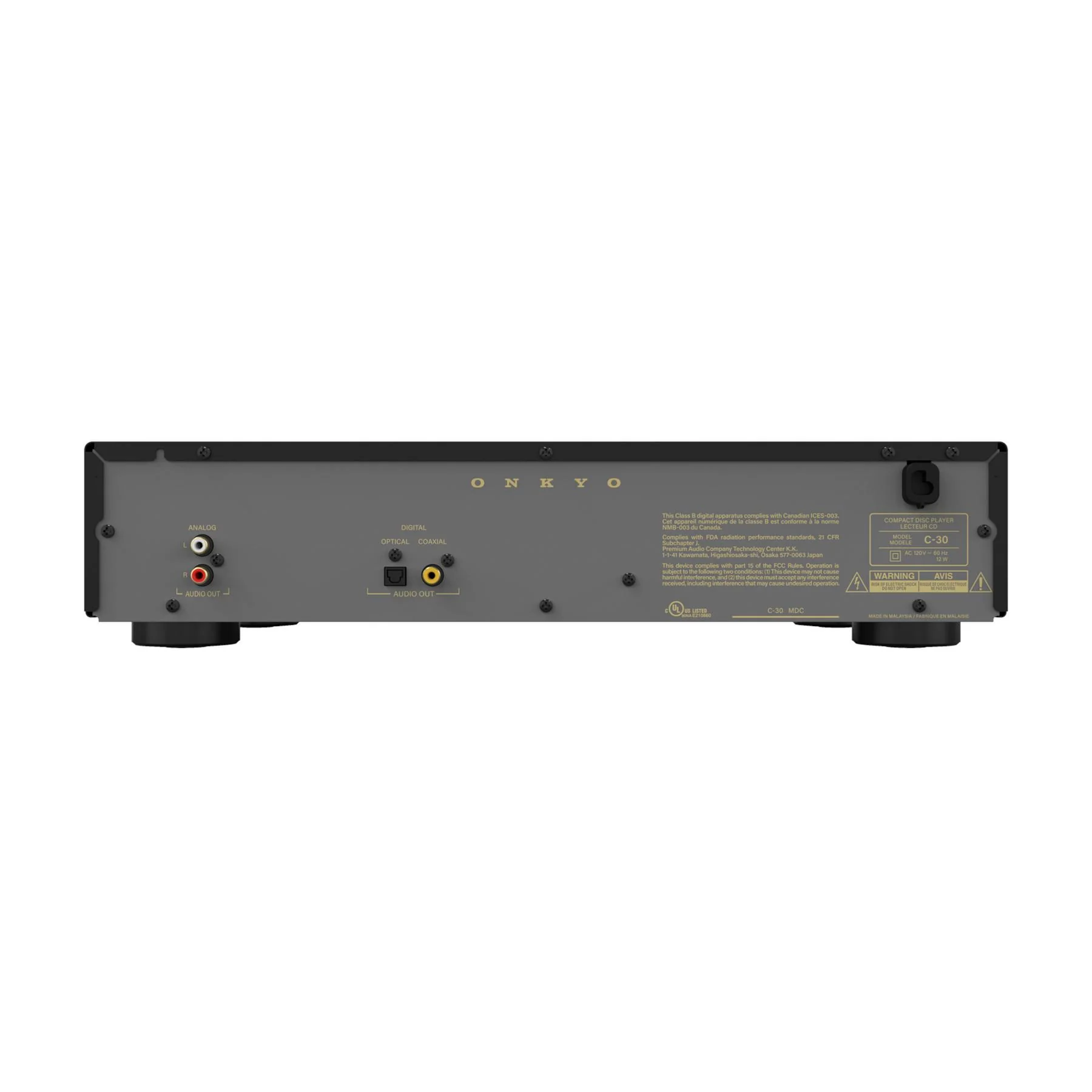

• Outputs:
  • Analog: Stereo RCA (gold-plated); Rated output 2.0 V (rms) / 540 Ω
  • Digital: Optical (TOSLINK) and Coaxial (RCA); PCM 16-bit/44.1 kHz
  • Digital output levels: Optical −22.5 dBm; Coaxial 0.5 Vp-p / 75 Ω
  • Headphone: Front-panel PHONES jack with PHONES LEVEL knob (gold-plated)
• Performance:
  • Frequency response: 4 Hz – 20 kHz
  • Dynamic range: 100 dB
  • THD: 0.004%
  • Signal-to-noise ratio: 103 dB
• Display/Information:
  • ID3 tag display for MP3 (TITLE/ARTIST/ALBUM)
  • Indicators for MEMORY, RANDOM, REPEAT, REPEAT 1
  • Display dimmer via remote
• Power:
  • North America: AC 120 V, 60 Hz — 12 W
  • Standby power: 0.2 W
• Environmental:
  • Operating temperature: 5 °C – 35 °C
  • Operating humidity: 5% – 85%
• Dimensions & Weight:
  • 435 × 100 × 305 mm (17 1/8 × 4 × 12 3/64 inches)
  • 5.3 kg (11.7 lbs)

Onkyo C-30 Q&A:

What disc formats and files does the C-30 support?

Audio CD, CD-R, and CD-RW; MP3 and WMA files on CD-R/CD-RW.

Can it play SACD or DVD-Audio discs?

No. It is designed for standard CDs and compatible MP3/WMA data discs.

What digital outputs are provided, and what signal do they carry?

Optical (TOSLINK) and coaxial (RCA) outputs deliver 16-bit/44.1 kHz PCM to an external DAC or amplifier.

Does it have a headphone output?

Yes, the front-panel PHONES jack includes a dedicated PHONES LEVEL volume control.

Which playback modes are available?

Random (shuffle), Memory (program), and Repeat (all or one), with the option to combine Random and Repeat.

What are the key audio performance specs?

Frequency response 4 Hz–20 kHz, dynamic range 100 dB, THD 0.004%, S/N ratio 103 dB, RCA output 2.0 Vrms/540 Ω.

What are the dimensions and weight?

435 × 100 × 305 mm (17 1/8 × 4 × 12 3/64 in); 5.3 kg (11.7 lb).

What’s included in the box?

Main unit, RC-995C remote, stereo audio cable, two AAA batteries (some models), and setup/safety documentation.

Onkyo C-30 Downloads:

Onkyo C-30 User Manual
Onkyo C-30 Specification Sheet
