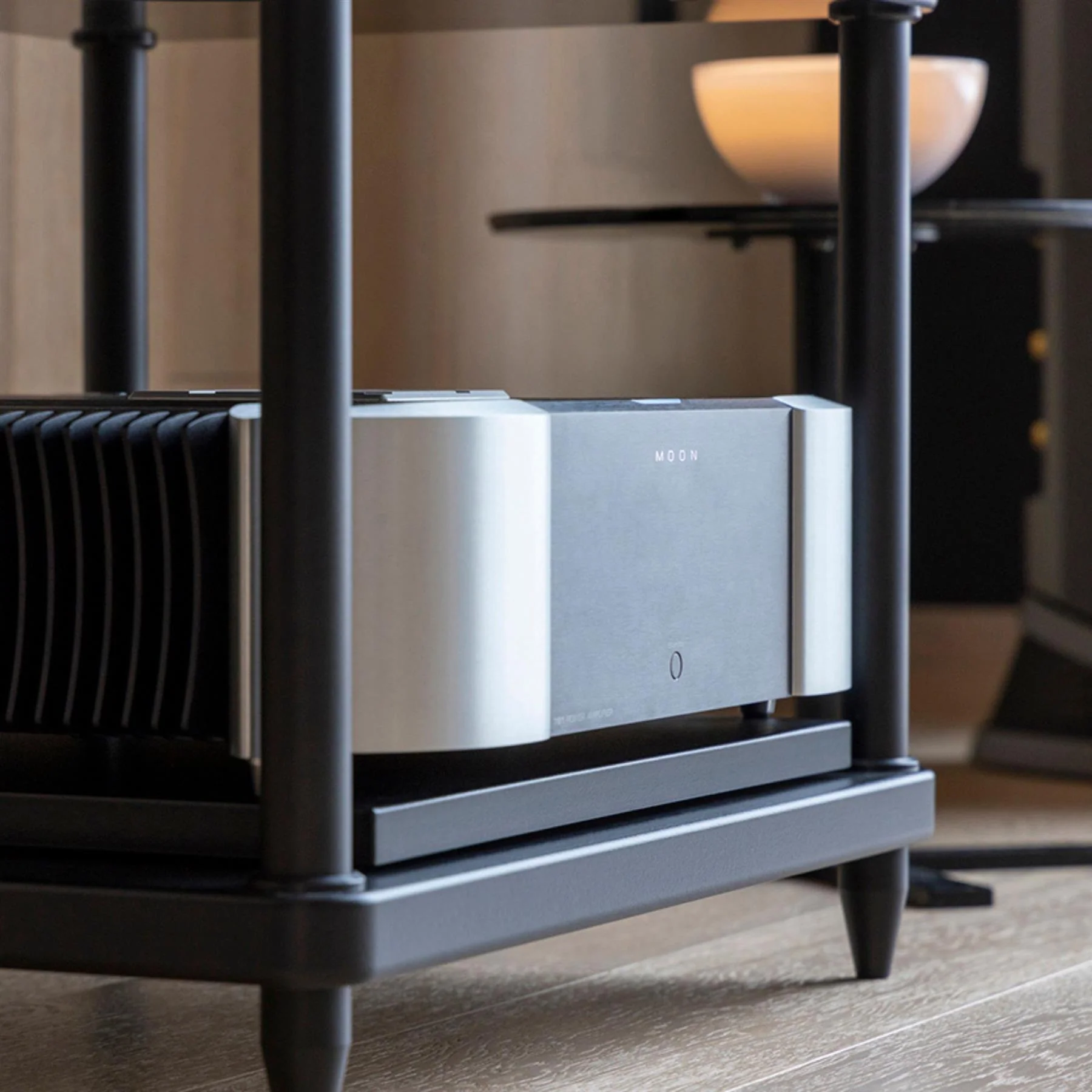

MOON North Collection 761 Power Amplifier

MOON 761 Power Amplifier (North Collection)

The MOON 761 Power Amplifier is a reference-grade, dual-mono stereo power amplifier built to deliver effortless authority, exceptional control, and true-to-source transparency in high-end audio systems. Designed to preserve the integrity of your preamp’s signal, the 761 combines MDCA (MOON Distortion-Cancelling Amplifier) architecture with a no-global-feedback approach to reduce distortion while keeping the presentation natural, dynamic, and fatigue-free. With 200W per channel into 8Ω, 400W into 4Ω, and the ability to switch into bridged mono for up to 600W into 8Ω, it drives demanding loudspeakers with unwavering stability and a confident grip—helped by a high damping factor for tight bass and precise transients.

Inside, the 761 is engineered like a true powerhouse: a dual-mono topology with two custom low-noise 700VA toroidal transformers and over 150,000 µF of power supply capacitance for fast current delivery and composure during musical peaks. Practical system integration is equally refined, offering balanced XLR and unbalanced RCA inputs, input selection, AC/DC coupling, a stereo/mono mode switch, 12V trigger connections, and MOONLink support via network ports. Efficient standby behavior (down to 1.25W in low-power standby) and robust internal protections make the MOON 761 a premium, long-term foundation for a no-compromise two-channel or mono-block-ready audiophile setup. The Moon 761 is part of ListenUp's Moon Power Amplifier Collection.

Check out ListenUp's REACH FOR THE MOON Trade-Up Program!

What It's Good At:

• Delivering high-current control and clean dynamics for demanding loudspeakers
• Producing a transparent, uncolored sound with MDCA and no global feedback design
• Offering stereo or bridged mono flexibility for system scaling and future upgrades
• Enhancing bass definition and speaker grip with a high damping factor (800)
• Seamless high-end integration with XLR/RCA inputs, 12V triggers, and MOONLink connectivity
• Staying ready for peak performance with efficient standby options and smart protection systems

MOON 761 Full Specifications:

• Product Type: Power Amplifier (Stereo; switchable to Mono/Bridged)
• Amplifier Topology: Dual-mono configuration (independent channel separation and power delivery)
• Amplification Architecture: MDCA – MOON Distortion-Cancelling Amplifier
• Feedback Design: No Global Feedback Design
• Output Power (Stereo 8 Ω): 200 W
• Output Power (Stereo 4 Ω): 400 W
• Output Power (Mono 8 Ω): 600 W
• Input Sensitivity: 1.1 V
• Input Impedance: 47 kΩ
• Gain: 31 dB
• Frequency Response: 2 Hz – 100 kHz (+0 dB / –3 dB)
• Crosstalk: –116 dB
• Signal-to-Noise Ratio: 117 dB
• Total Harmonic Distortion + Noise (@ 1 W): 0.002%
• Total Harmonic Distortion + Noise (@ 200 W): 0.001%
• Intermodulation Distortion: 0.002%
• Damping Factor: 800
• Power Supply: Two custom low-noise 700 VA toroidal transformers
• Power Supply Capacitance: Over 150,000 µF
• Inputs: Balanced XLR (differential) and Unbalanced RCA (single-ended)
• Input Selection: BAL./UNBAL. switch (activates balanced or unbalanced inputs)
• Coupling Control: AC/DC coupling switch (DC blocking option)
• Speaker Outputs: Binding posts (supports banana plugs, spades, and bare wire)
• Mode Control: Stereo/Mono (bridged monoblock via LEFT channel input for mono operation)
• MOONLink / Network: RJ-45 network connections (MOONLink compatibility; network extension; router connection)
• 12V Trigger: 12V Trigger IN and OUT (for standby synchronization and daisy-chaining)
• Standby Control: Front-panel standby toggle; rear standby mode switch (REG recommended option)
• Power Consumption (Idle): 55 W
• Power Consumption (Full Power Standby): 50 W
• Power Consumption (Low Power Standby): 1.25 W
• Fuse (120 V / 240 V): F 10A H 250V 3AG / F 6A H 250V 3AG
• Status Indicator: Multicolour LED indicator (status notifications)
• Chassis / Build Notes: Aluminium chassis; side-mounted heatsinks; shielded circuits; internal protections
• Shipping Weight: 79 lbs / 36 kg
• Dimensions (W x H x D): 18.95 x 5.53 x 17.53 in (48.1 x 14 x 44.5 cm)
• In the Box: Quick Start Guide; Power/AC cable; Ethernet cable / MOONLink connectivity cable; Spare fast-blow fuse; Warranty/registration info or card (Canada & USA only)

MOON 761 Q&A

What speakers pair well with the MOON 761?

The 761 is designed for demanding loudspeakers and challenging loads, delivering high current and strong control for stable, confident performance.

How much power does the MOON 761 deliver in stereo and mono?

It outputs 200W per channel into 8Ω, 400W per channel into 4Ω, and can be bridged to 600W into 8Ω in mono mode.

Does the MOON 761 support balanced and unbalanced connections?

Yes. It includes balanced XLR and unbalanced RCA inputs, with a switch to select which input is active.

What is MDCA and why does it matter?

MDCA is MOON’s distortion-cancelling amplifier architecture designed to reduce distortion without relying on global feedback, supporting clarity, stability, and natural dynamics.

Can I run two MOON 761 amplifiers as monoblocks?

Yes. Each unit can be switched to mono (bridged) mode, and the 12V trigger connections make synchronized standby behavior easy in multi-amp setups.

What is the AC/DC coupling switch used for?

The coupling switch can block DC at the input. AC coupling can be helpful if a preamp outputs DC (due to age or design) or if DC protection is triggered frequently.

How does MOONLink integration work on the 761?

MOONLink functionality is supported through RJ-45 network connections for compatible MOON products, helping streamline system communication and integration.

Does the MOON 761 have a low-power standby mode?

Yes. It supports low-power standby down to 1.25W, plus standby behavior options designed to balance readiness and efficiency.

MOON 761 Downloads:

MOON 761 Manual

MOON North Collection Video:
