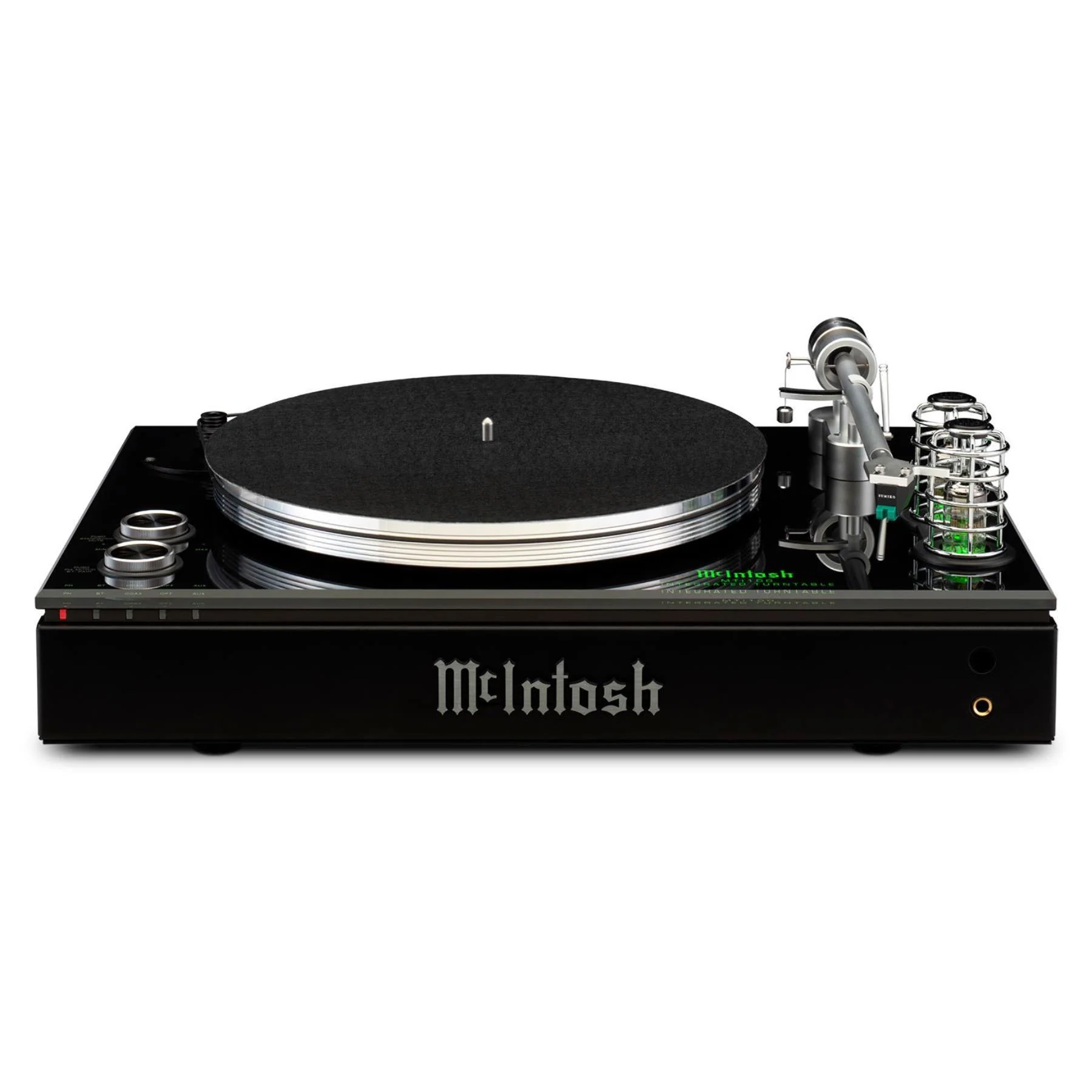

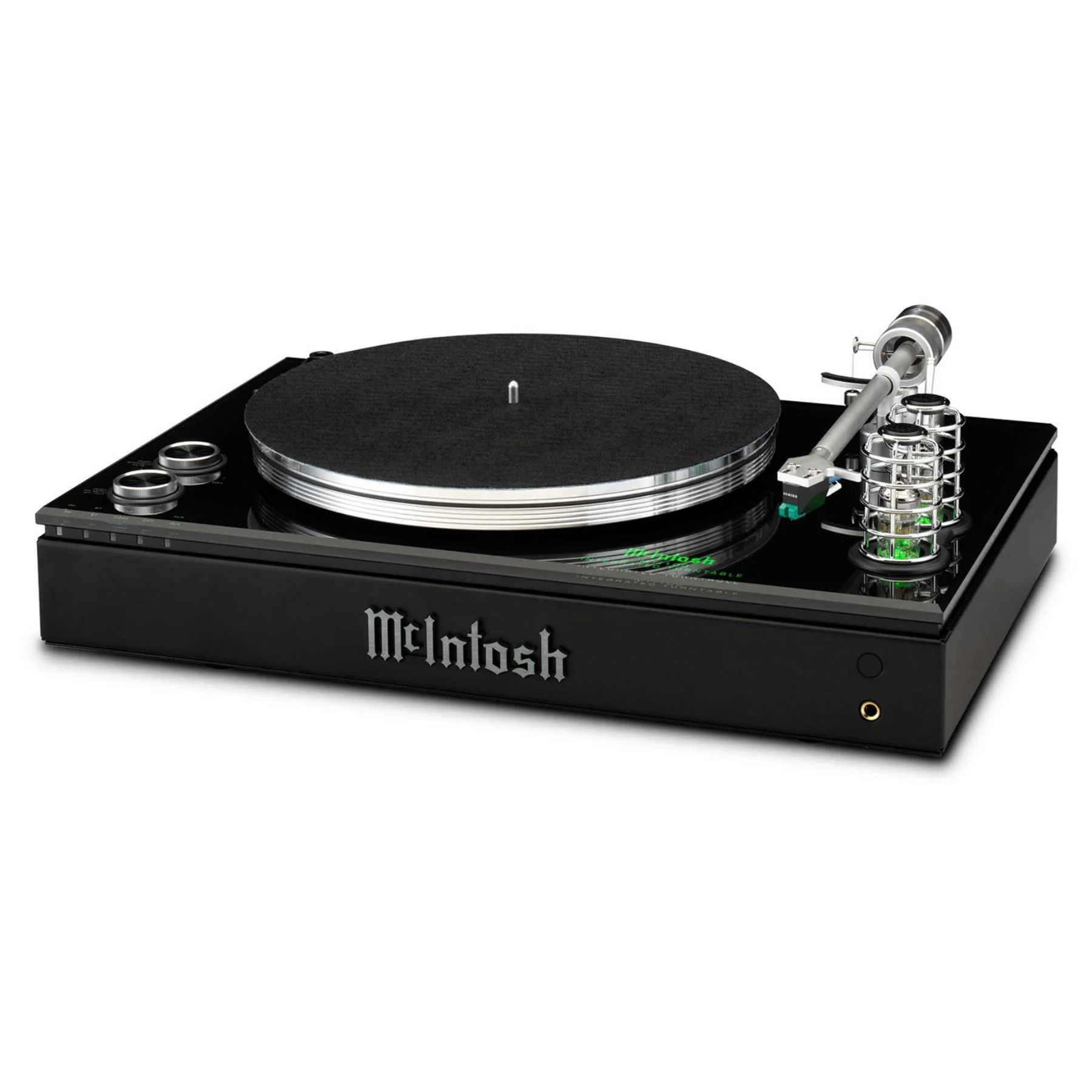

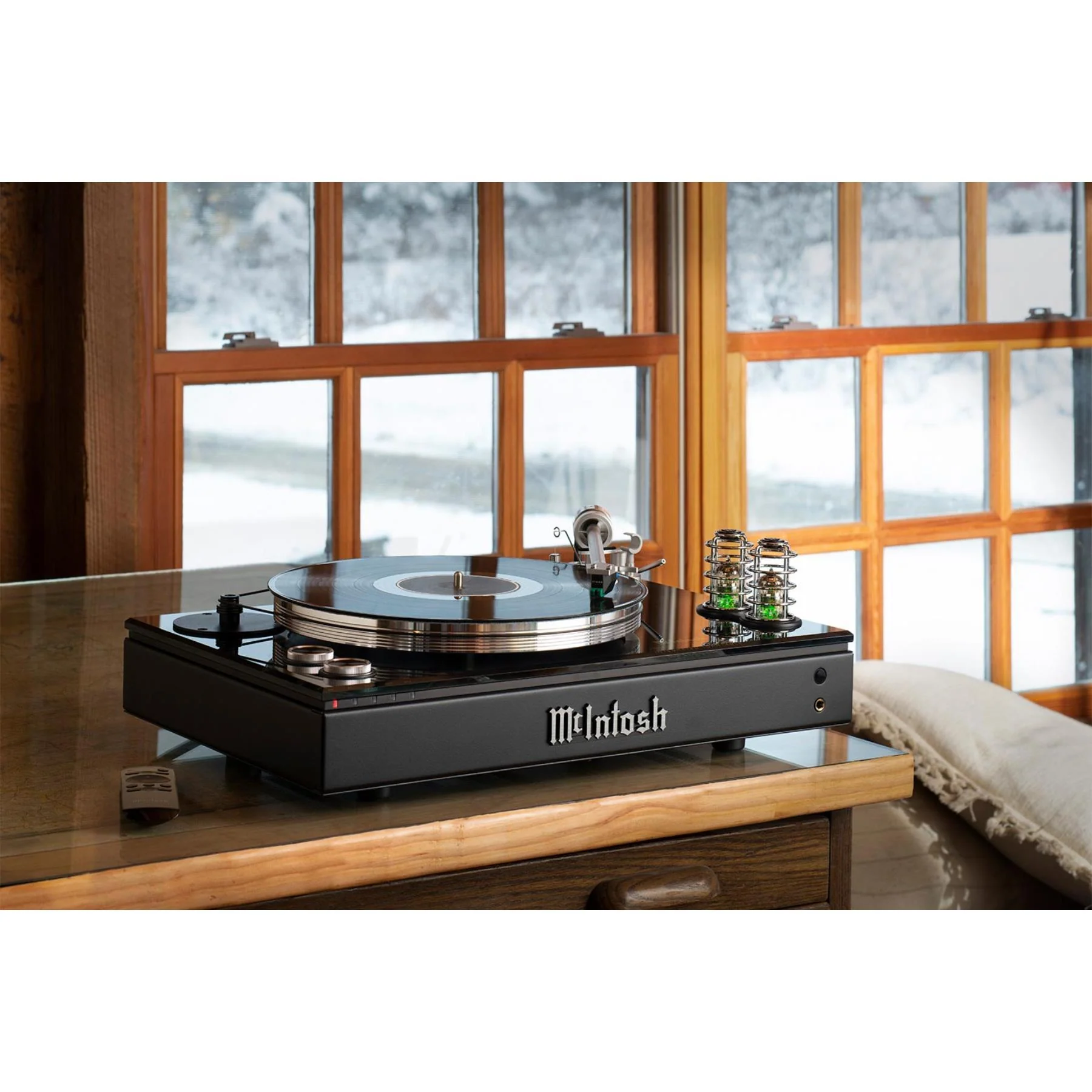

McIntosh MTI100 Integrated Turntable

McIntosh MTI100 Integrated Turntable

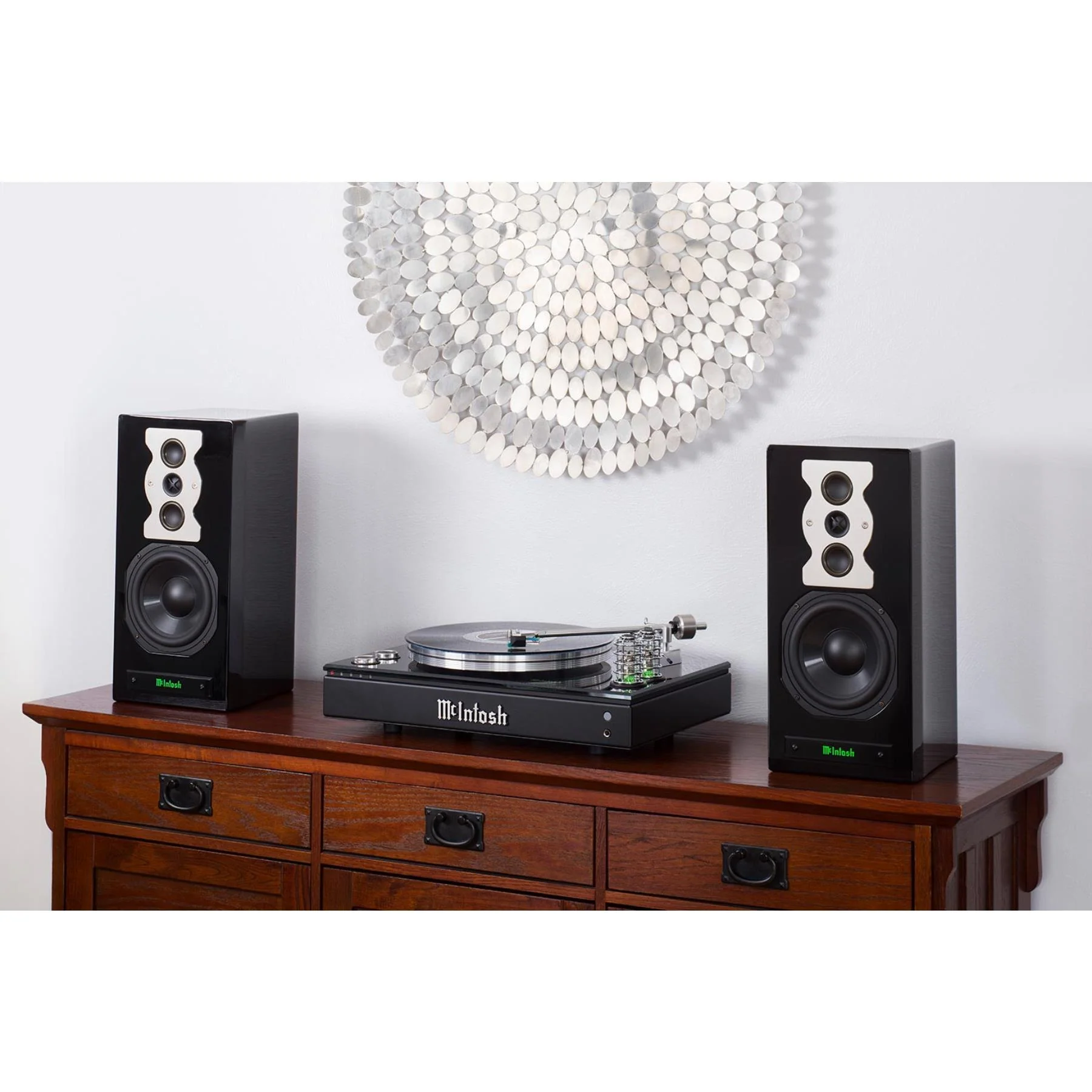

Elevate your home audio experience with the McIntosh MTI100 Integrated Turntable. This multifunctional marvel combines the elegance of a turntable with the power of a preamplifier and amplifier, all in one sleek unit. Perfect for modern lifestyles, it offers seamless connectivity via Bluetooth® and auxiliary inputs. Simply pair it with your favorite speakers to enjoy high-fidelity sound in any space.

McIntosh MTI100 Key Features:

• All-in-one design: Turntable, preamplifier, and amplifier in a single unit
• Bluetooth® and auxiliary inputs for versatile connectivity
• Premium construction: Machined aluminum platter and tonearm, reinforced by glass and metal plate for enhanced stability and noise reduction
• High-performance components: Sumiko Olympia Moving Magnet cartridge, Class D amplifier delivering 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms
• Flexible playback options: Supports both 33-1/3 and 45 rpm vinyl records, with manual speed change
• Seamless integration: Stream music wirelessly via High Definition Bluetooth 4.2 or connect external devices through analog and digital audio inputs
• Personalized listening: Headphone jack powered by McIntosh's High Drive headphone amplifier for immersive private listening experience

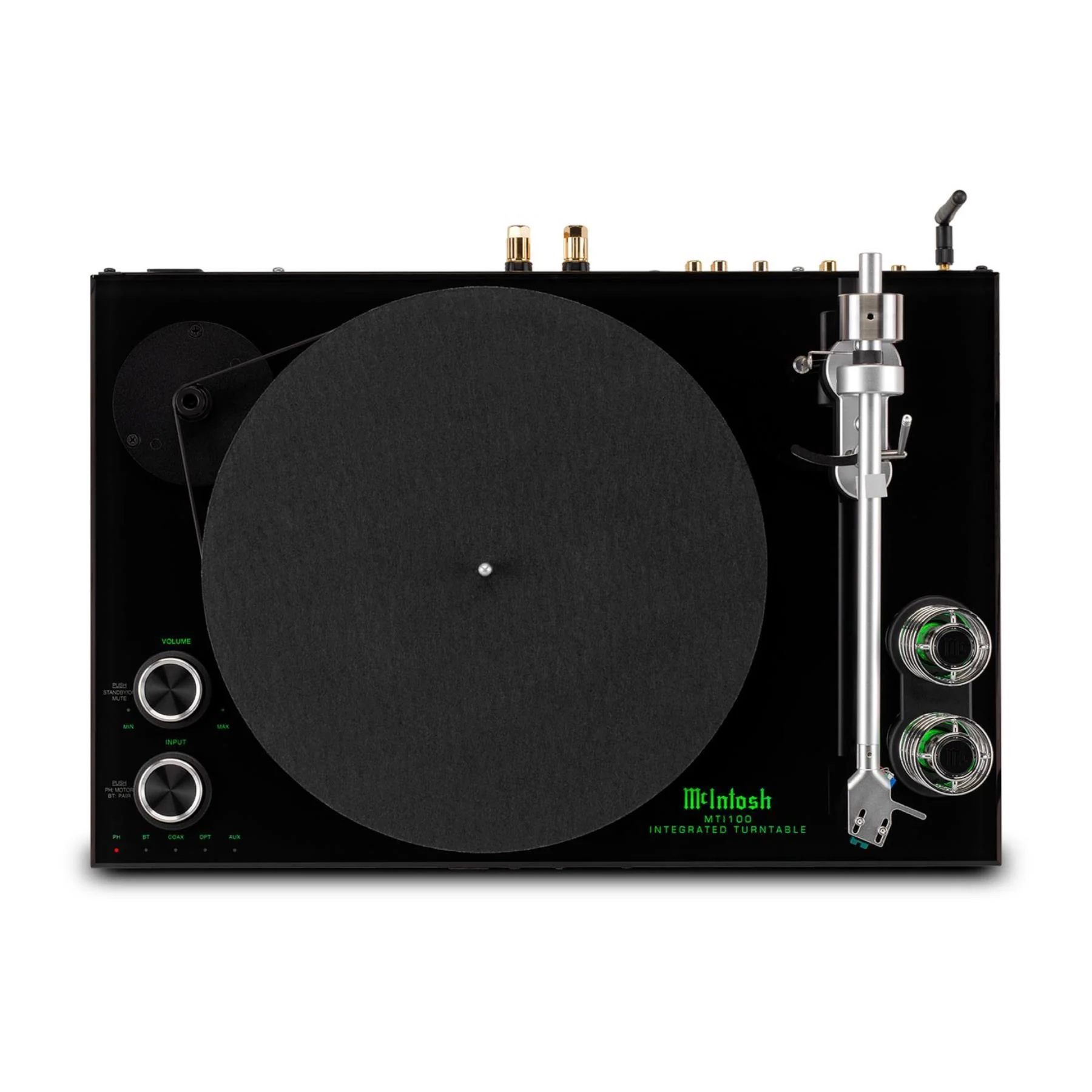

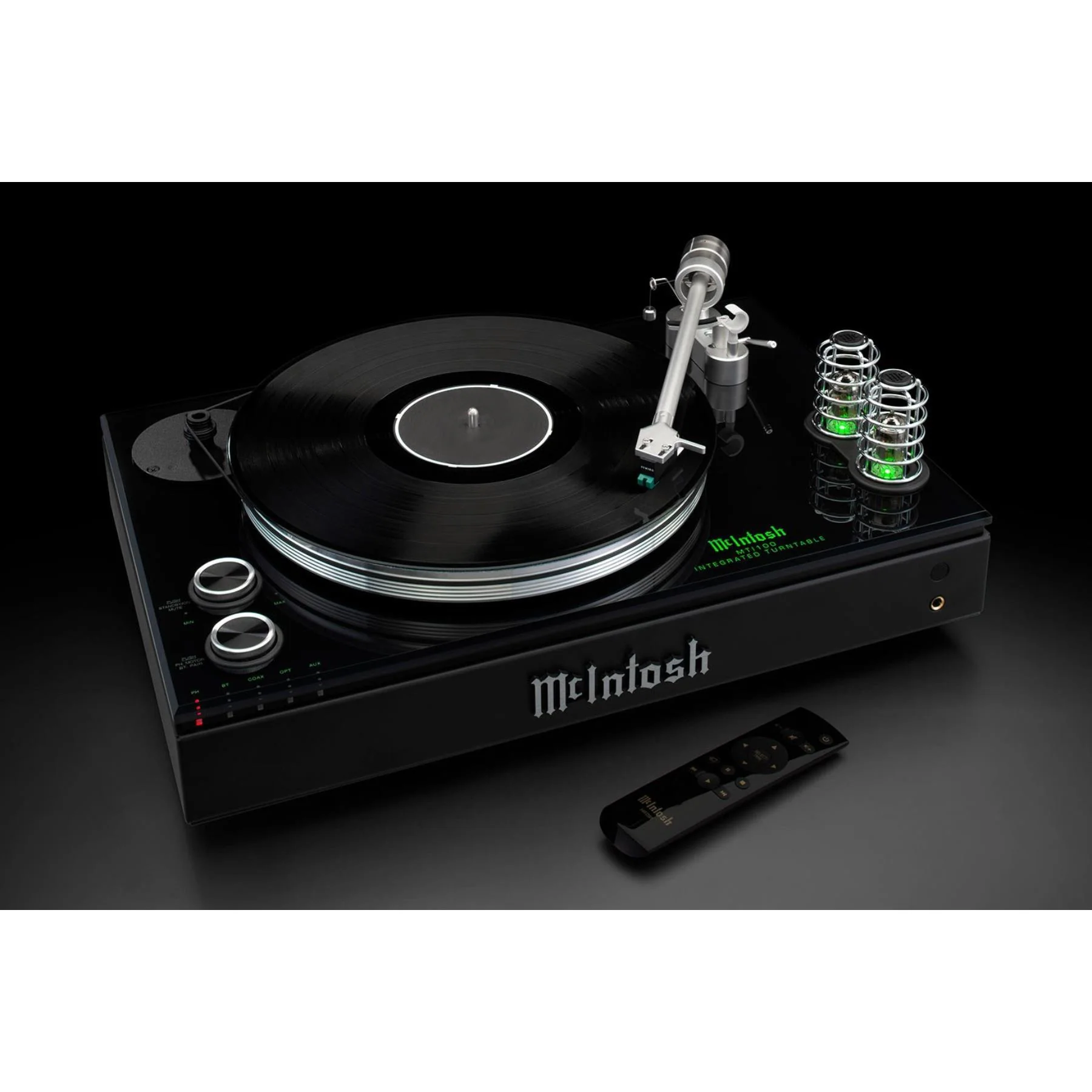

• Intuitive control: Easily adjust power, volume, and input selection via remote or front panel knobs

McIntosh MTI100 Specifications:

Cartridge:

• Type: Moving Magnet
• Output Level: 4mV at 1kHz
• Load Impedance: 47k Ohms
• Frequency Response: 12Hz to 30kHz
• Channel Separation: 30dB at 1kHz
• Compliance: 12 x 10-6 cm/dyne
• Recommended Tracking Force: 2.0 g
• Channel Difference: < 1dB at 1kHz
• Total Mass: 6.5 g
• Stylus: Elliptical
• Cantilever Material: Aluminum

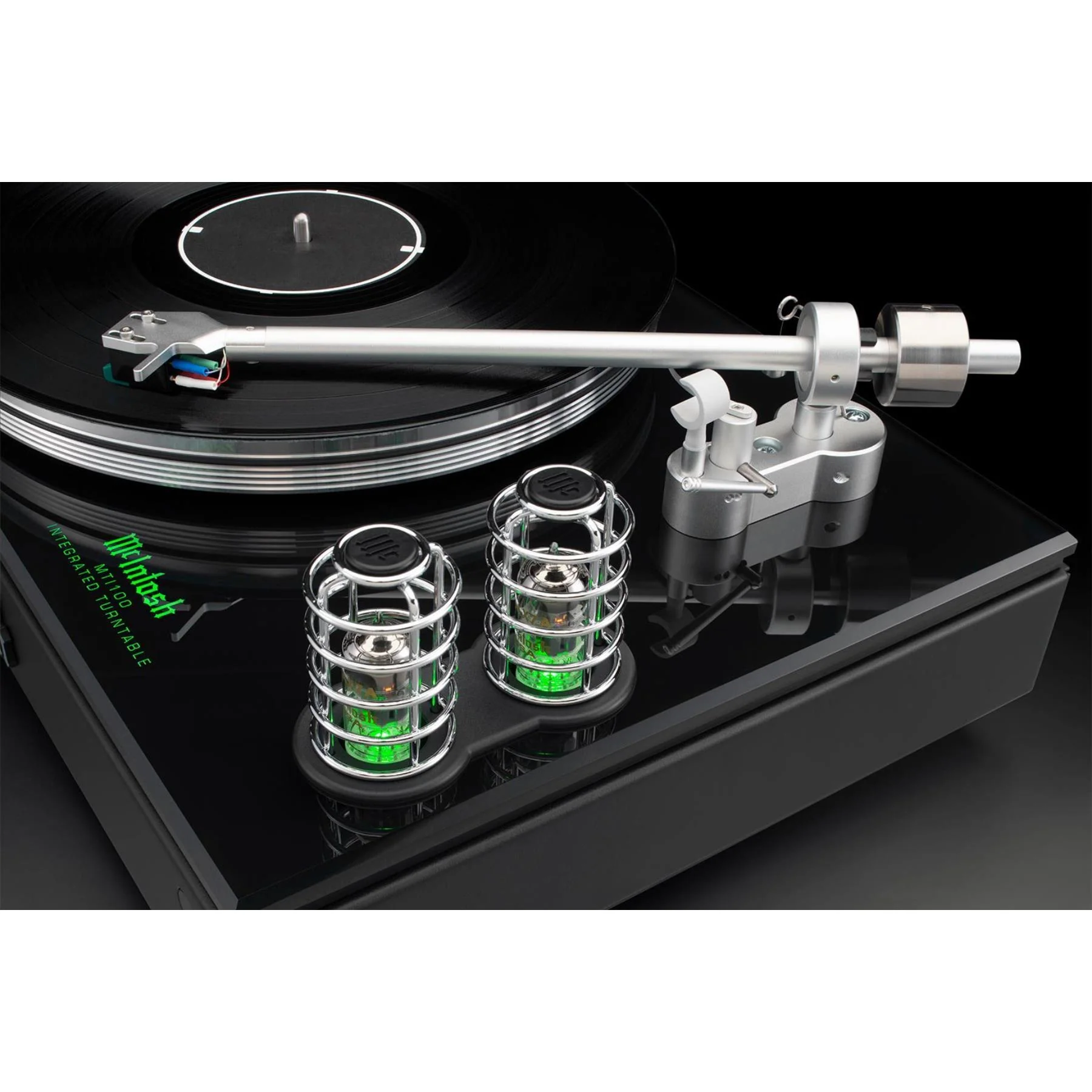

Tonearm:

• Bearing: Cardan arrangement with ball bearings (lateral), Sapphire/Tungsten (vertical)
• Arm Tube: Machined aluminum
• Counterweight: Concentric
• Adjustments: None

Turntable:

• Playback Speeds: 33-1/3 and 45 rpm
• Motor Type: Permanent magnet AC synchronous
• Speed Control: Manual via 2-speed pulley
• Platter: Aluminum
• Platter Bearing: Hardened steel shaft and axial ball arrangement
• Signal To Noise Ratio: 35dB - 40dB
• Wow & Flutter: 0.1%

Connectivity:

• Stereo Outputs Unbalanced: 1 (bridged to AMP IN)
• Stereo Inputs Unbalanced: 1
• Digital Coaxial Input: 1
• Digital Optical Input: 1
• Subwoofer Output: 1
• Wireless Input: High Definition Bluetooth 4.2

Electronic:

• Power Output per Channel: 50 Watts into 8 Ohms, 80 Watts into 4 Ohms
• Number of Channels: 2
• Speaker Impedance: 4 or 8 Ohms
• Total Harmonic Distortion: <0.2%
• Dynamic Headroom: 1.0dB (8 Ohms), 1.3dB (4 Ohms)
• Frequency Response: 20Hz to 20kHz (+0,-0.7dB)
• Signal To Noise Ratio (Moving Magnet): 75dB
• Signal To Noise Ratio (High Level): 90dB
• Damping Factor: >200 (8 Ohms), >100 (4 Ohms)
• Maximum Output (Unbalanced): 9V

General:

• Dust Cover: Not Included

Dimensions & Weight:

• Unit Dimensions: 19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)
• Unit Weight: 33.5 lbs (15.2 kg)
• Shipping Weight: 40.5 lbs (18.4 kg)
