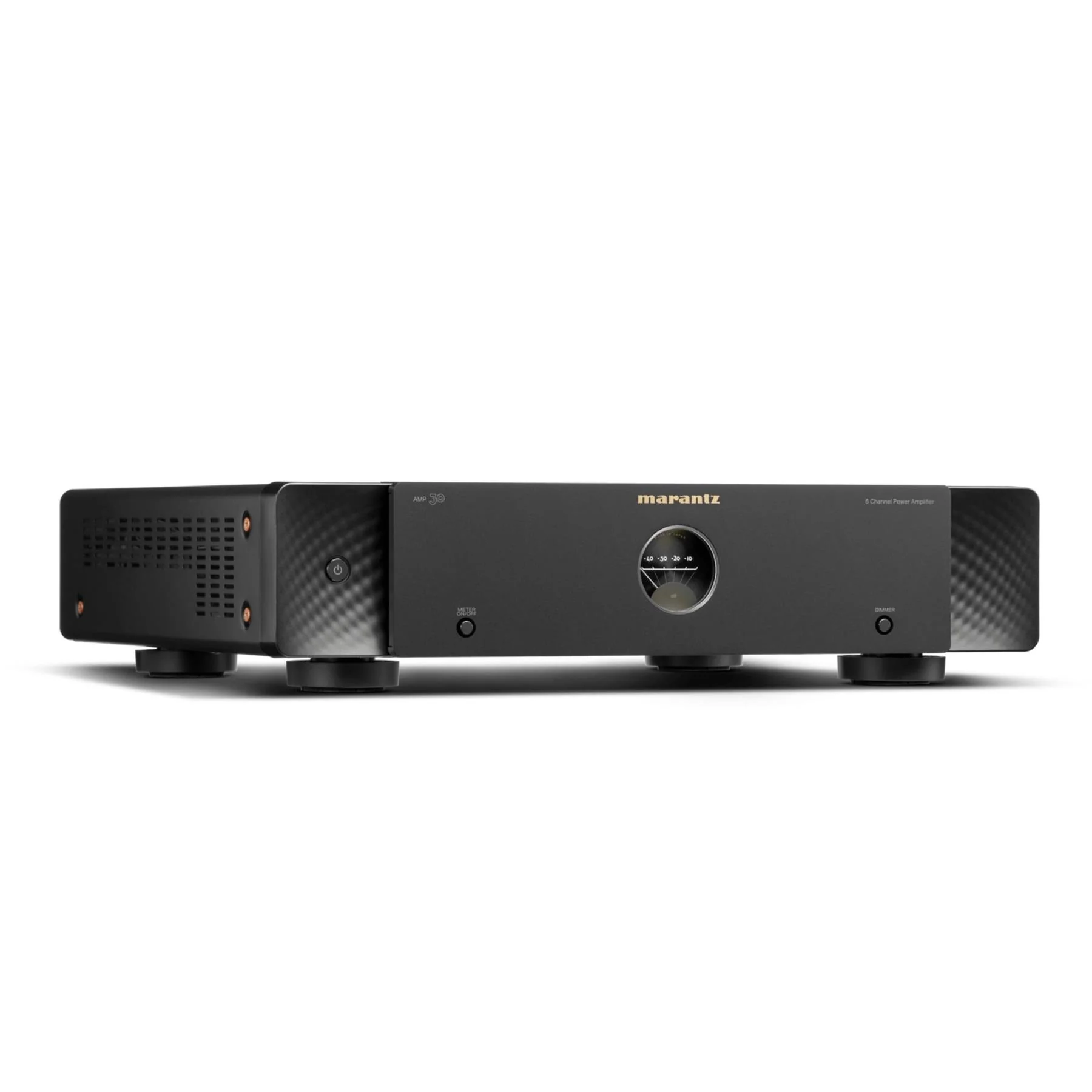

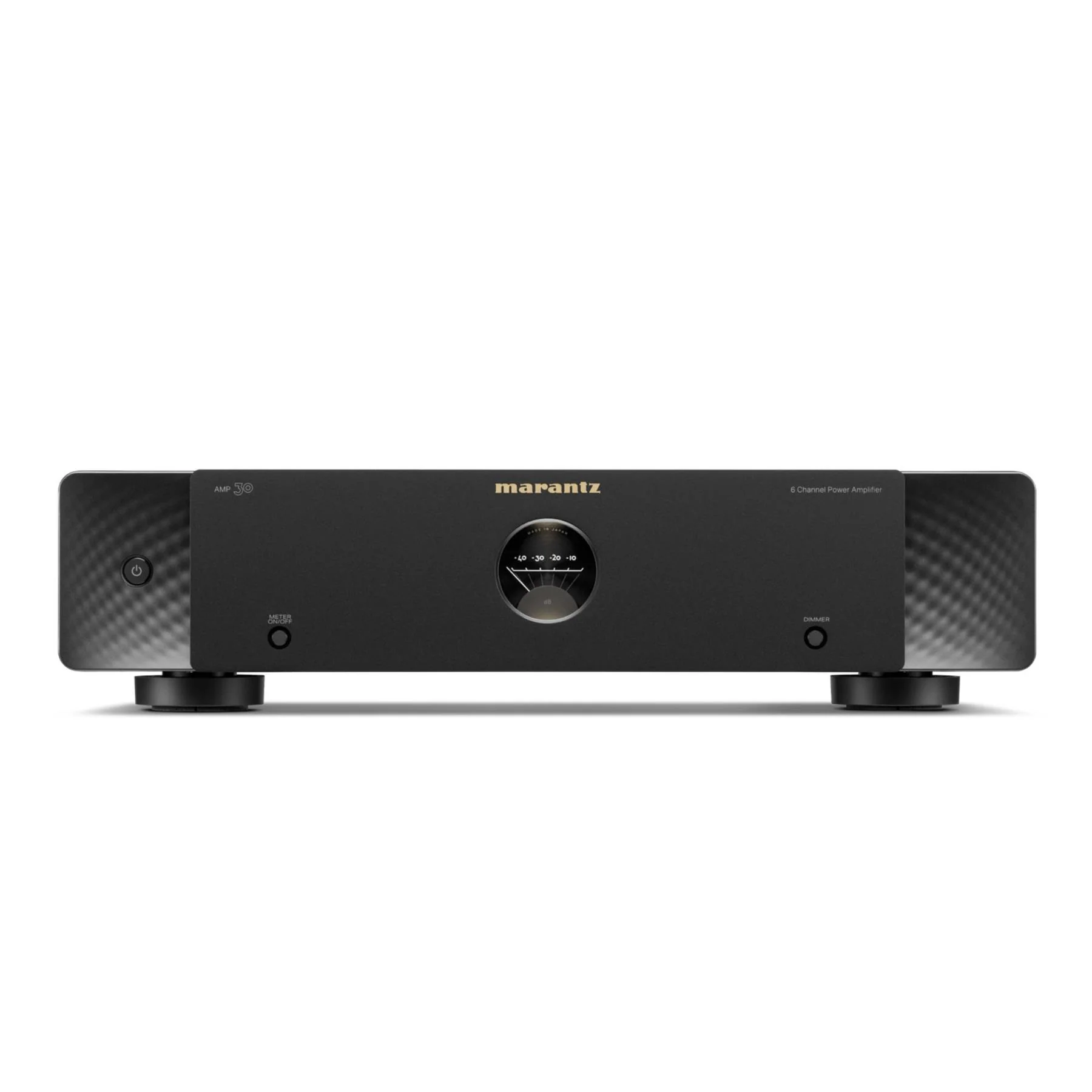

Marantz AMP 30 Slim 6-Channel Class D Power Amplifier

Marantz AMP 30 Power Amplifier

The Marantz AMP 30 is a remarkably powerful, slimline 6-channel home theater power amplifier designed to bring effortless dynamics, clarity, and control to immersive speaker systems. With high-efficiency, low-distortion Class D amplification and Marantz-exclusive HDAM technology, AMP 30 delivers the brand’s signature rich, warm presentation while providing the current and headroom modern surround formats demand. Rated at 200 watts per channel into 8Ω (and 400 watts per channel into 4Ω), it’s built to drive dedicated theaters with confidence—whether you’re powering a full surround bed, height channels, or demanding speakers that benefit from extra authority.

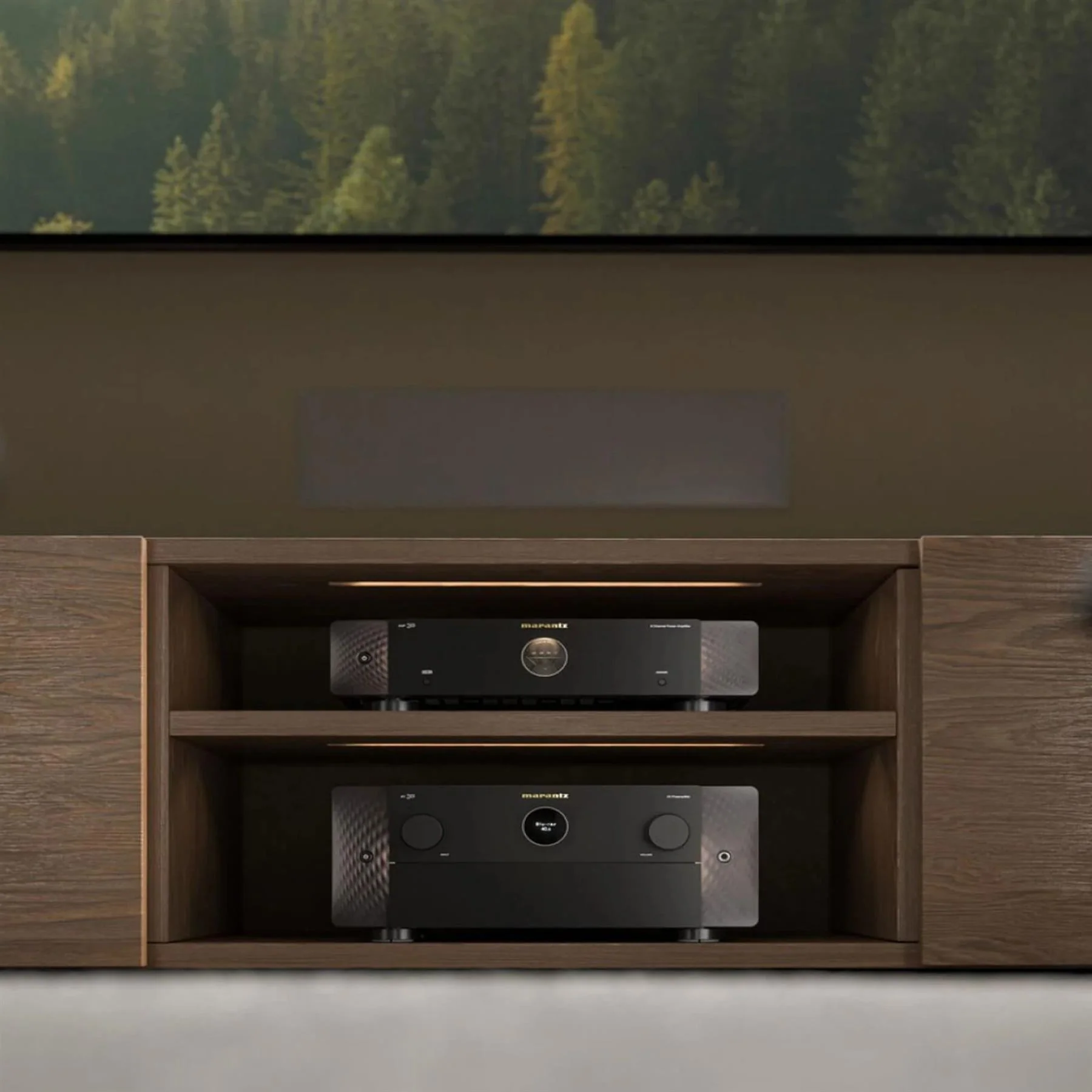

System building is where AMP 30 shines: pair it with the Marantz AV 30 or compatible Marantz AV receivers/separates for a cohesive, premium theater stack, then expand as your system grows by adding more AMP 30, AMP 20, or AMP 10 amplifiers. Flexible output modes—including Bi-Amp and BTL—let you tailor channel power for your layout, while balanced XLR inputs help reduce noise in high-performance installations. Finished with timeless Marantz design cues—like the iconic porthole analog level meter and soft side lighting—AMP 30 looks as refined as it sounds. The Marantz AMP 30 is part of ListenUp's Marantz AV Separates Collection.

What It's Good At:

• Driving premium home theater speaker systems with clean, high-current power and impressive dynamic impact
• Powering immersive setups with 6 slimline channels—ideal for dedicated theaters and expansion-focused builds
• Delivering Marantz’s signature musical voicing using exclusive HDAM and Current Feedback Amplification
• Reducing noise and improving signal integrity with balanced XLR connectivity for long cable runs and rack installs
• Adapting to advanced speaker configurations using Selectable Output Modes, including Bi-Amp and BTL
• Creating a unified Marantz stack experience when paired with Marantz AV separates using included control/link cabling

Marantz AMP 30 Full Specifications:

• Product Type: 6-Channel Power Amplifier (Slimline)
• Channels / Power Amps: 6 / Number of Power Amps: 6
• Amplification: High-efficiency, low-distortion Class D amplification
• Core Technologies: Marantz HDAM, Current Feedback Amplification
• Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive): Normal / BTL: 200W / 400W
• Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive): Normal: 400W
• Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive): Normal: 200W
• Selectable Output Modes: Bi-Amp Drive / BTL Drive: Yes / Yes
• BTL Capability (from product info): Three channels of 400W or six channels of 200W

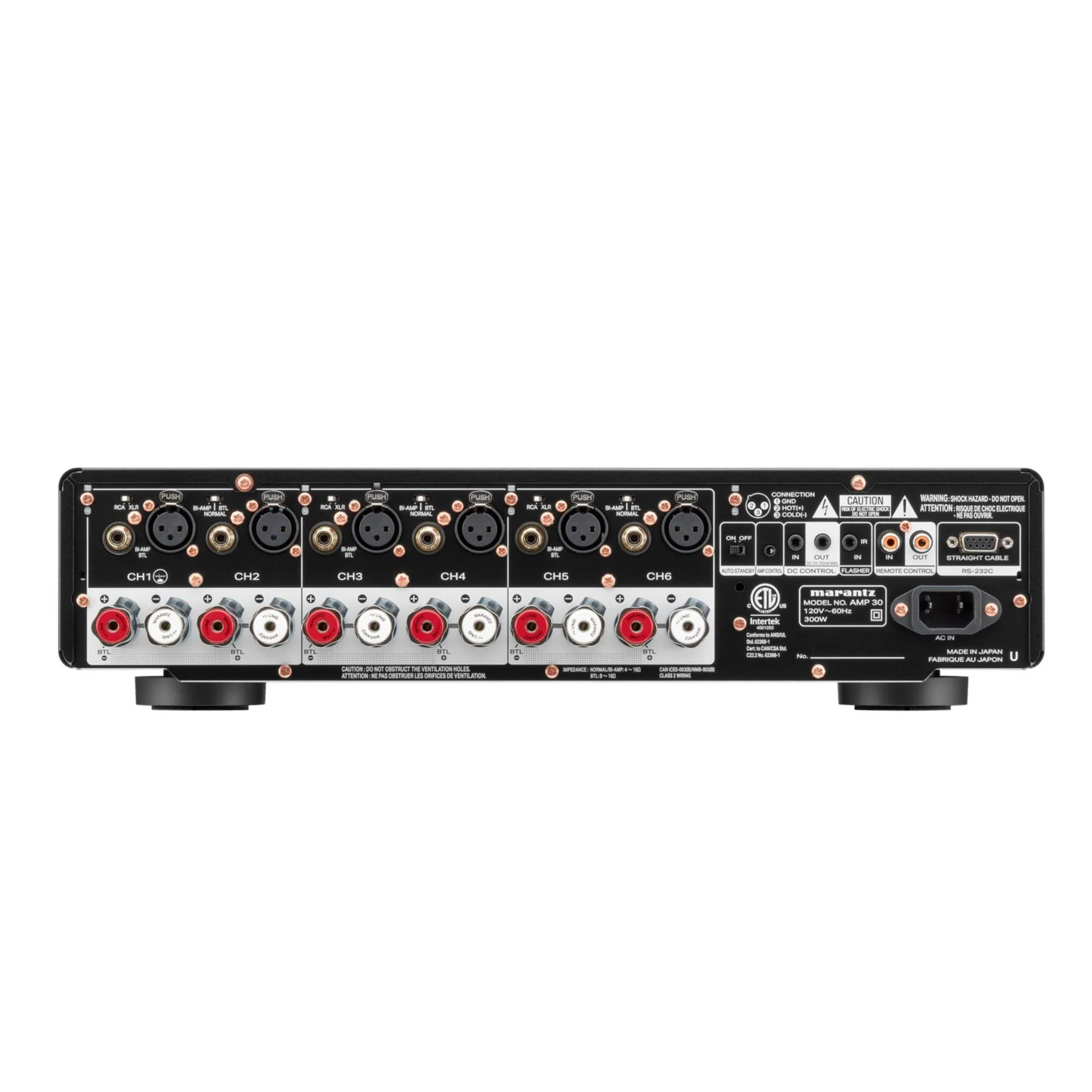

• Inputs (Main Amplifier In): Balanced & Unbalanced: 6ch (exclusive use by a selector switch)
• Balanced Input Type (from product info): XLR (balanced line level)
• Speaker Terminal: SPKT-1+
• Number of Speaker Terminals: 6
• Level Meter: Yes
• Front Display: Level Meter

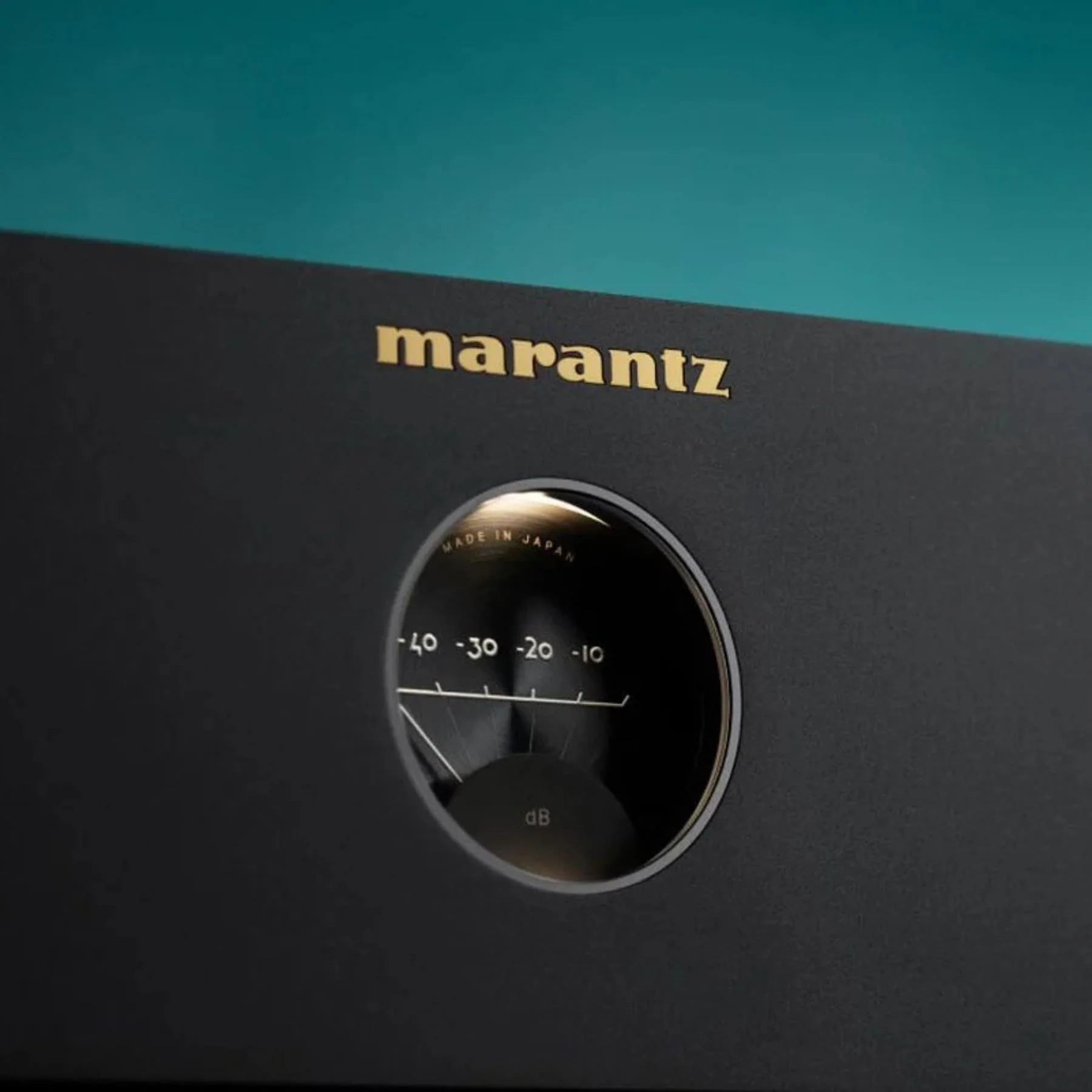

• Design Detail (from product info): Porthole with analog meter measures output
• Design Detail (from product info): Soft side lights illuminate the front panel
• RS232 Control: Yes
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Input / Output: 1 / 1
• Auto Power Off: Yes
• Metal Front Panel: Yes
• Power Consumption: 300W
• Power Consumption, No-Sound (ECO On / Off): 70W
• Standby Consumption: 0.2W
• Maximum Dimensions (W × D × H): 17.4 × 17.4 × 4.4 in.
• Weight: 22.0 lbs
• What’s in the Box: Main unit, quick start guide, AC cord, Amp control cable, Remote control cable
• Origin (from product page): Crafted in Shirakawa, Japan

Marantz AMP 30 Q&A:

What is the Marantz AMP 30 designed for?

AMP 30 is a slimline 6-channel power amplifier built to power dedicated home theater systems with high output, low distortion, and flexible configuration options.

How much power does AMP 30 deliver per channel?

It’s rated at 200W per channel into 8Ω and can deliver up to 400W per channel into 4Ω (rated conditions), providing strong headroom for dynamic movie soundtracks.

Can AMP 30 be used with an AV preamp like the Marantz AV 30?

Yes. AMP 30 pairs seamlessly with the Marantz AV 30 and other compatible Marantz AV receivers/separates to build an outstanding multi-channel theater system.

Does AMP 30 support balanced connections?

Yes. It includes balanced (XLR) and unbalanced inputs for all six channels, selectable via a switch, which helps optimize noise performance in higher-end installations.

What are Bi-Amp and BTL modes, and does AMP 30 support them?

Yes—AMP 30 supports both. Bi-Amp lets you power high- and low-frequency sections independently (with compatible speakers), while BTL allows higher-power channel pairing for specific configurations.

How can AMP 30 help me expand my home theater over time?

AMP 30 is designed for system growth—add additional Marantz power amplifiers (such as more AMP 30 units) to support larger speaker layouts and more immersive channel counts.

What control options are included for custom installation?

AMP 30 supports RS232 control, IR flasher input, Marantz Remote Bus, and DC trigger in/out (1/1), making it easy to integrate into smart racks and theater control systems.

What are the size and weight of AMP 30?

Maximum dimensions are 17.4 × 17.4 × 4.4 inches (W × D × H), and it weighs 22.0 lbs—ideal for premium racks where performance and space efficiency both matter.

Marantz AMP 30 Downloads:

Marantz AMP30 Info Sheet
