LUXMAN D-07X SACD/CD Player with DAC

LUXMAN D-07X SACD/CD Player

The LUXMAN D-07X is a high-end digital media player built to extract exceptional realism from CD and SACD playback while also serving as a powerhouse USB DAC for modern high-resolution audio. Inspired by the design approach of LUXMAN’s flagship D-10X, it pairs a robust LxDTM-i disc transport mechanism with refined digital processing and premium analog output stages to deliver a smooth, spacious, and highly detailed presentation. At its core, the D-07X uses dual ROHM BD34301EKV DAC chips in dual-monaural configuration, supported by precision clocking and selectable filtering for DSD/SACD, helping music sound natural, immediate, and engaging. With broad digital connectivity—including USB, coaxial, and optical inputs, plus both RCA and balanced XLR analog outputs—it fits equally well into reference stereo systems and high-resolution desktop/streaming setups.

The LUXMAN D-07X is part of ListenUp's LUXMAN CD Players Collection.

What It's Good At:

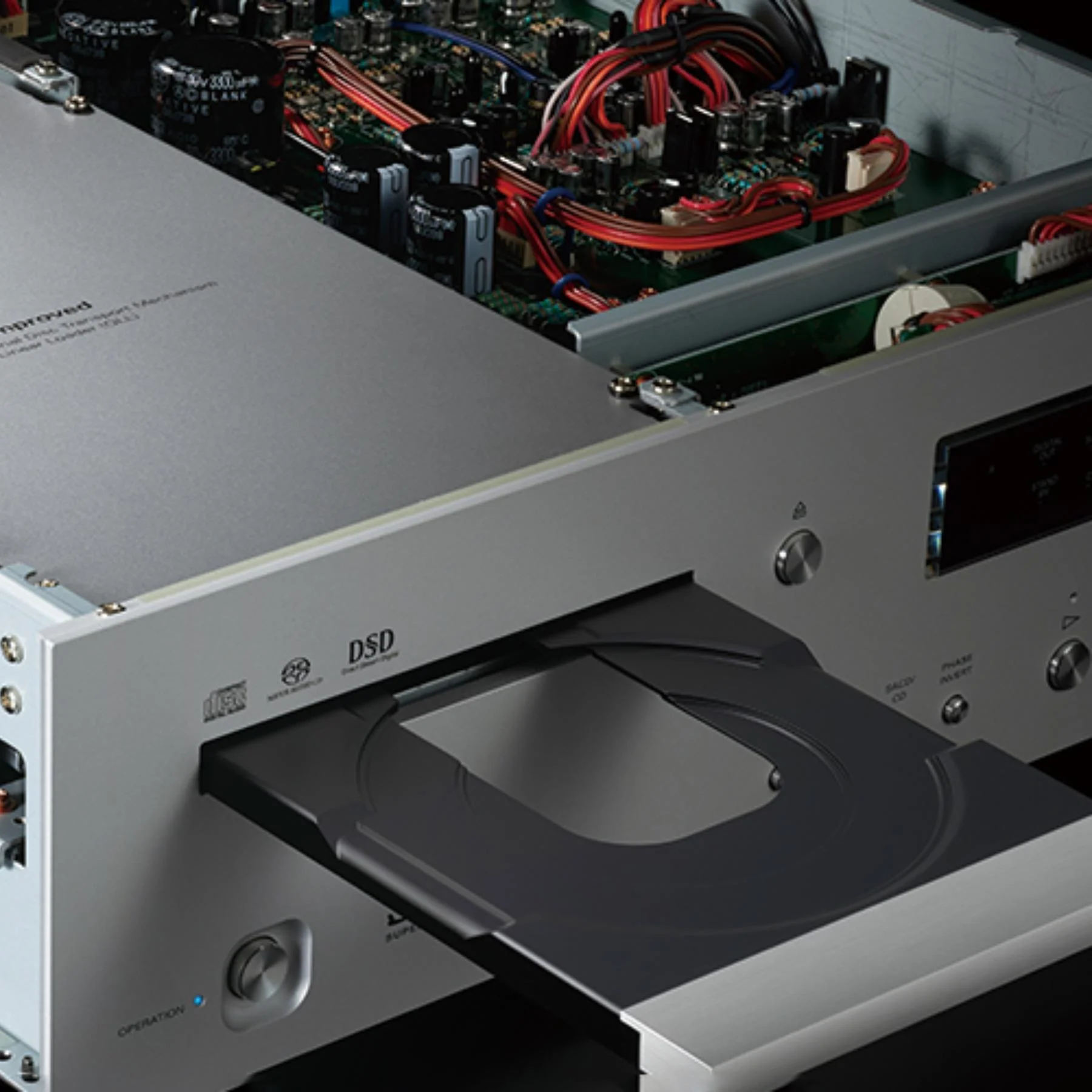

• Delivering premium CD/SACD playback with stable, low-vibration disc reading via the LxDTM-i transport
• Acting as a reference-grade USB DAC for hi-res playback up to PCM 768kHz/32-bit and DSD 22.4MHz
• Providing clean, dynamic analog output through a newly developed discrete buffer/I-V conversion stage
• Enhancing system flexibility with both gold-plated RCA and Neutrik shielded XLR outputs
• Supporting MQA decoding across key digital inputs for expanded disc and file playback options
• Improving system integration with trigger input/output for linking compatible components

LUXMAN D-07X Full Specifications:

• Supported discs: SACD, CD (CD-R, CD-RW, MQA-CD)
• Supported sampling frequencies:
  • USB input (PCM): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
  • USB input (DSD): 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
  • Coaxial / Optical input: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
• Analog output voltage / impedance:
  • Unbalanced: 2.4 V / 300 Ω
  • Balanced: 2.4 V / 600 Ω
  • For SACD / DSD: 2.3 V
• Frequency response:
  • CD: 5 Hz to 20 kHz (+0, -1.0 dB)
  • SACD: 5 Hz to 38 kHz (+0, -3.0 dB)
  • USB: 5 Hz to 47 kHz (+0, -3.0 dB)
• Total harmonic distortion:
  • CD: 0.0016 %
  • SACD: 0.0007 %
  • USB: 0.001 %
• S/N ratio (IHF-A):
  • CD: 122 dB
  • SACD: 125 dB
  • USB: 122 dB
• D/A converter: ROHM BD34301EKV (monaural mode) x 2
• Power supply: 230 V～(50 Hz) / 115 V～ (60 Hz)
• Power consumption: 37W
• Dimensions: 440(W) x 132(H) x 410(D) mm (front side knob of 2 mm and rear side terminal of 8 mm included in depth)
• Net weight: 17.0 kg
• Accessories: Remote control (RD-29), Power cable

LUXMAN D-07X Q&A:

What types of discs can the LUXMAN D-07X play?

The D-07X supports SACD and CD, including CD-R, CD-RW, and MQA-CD, making it ideal for both standard libraries and MQA-compatible disc collections.

Can the D-07X be used as an external DAC for a computer or music server?

Yes. Using the USB input, the D-07X functions as a high-performance DAC for a PC, Mac, or compatible audio server/NAS.

What high-resolution formats does the USB input support?

Over USB, it supports PCM up to 768kHz/32-bit and DSD up to 22.4MHz, covering a wide range of modern hi-res music files.

What digital inputs are available besides USB?

The D-07X includes coaxial and optical digital inputs, supporting PCM up to 192kHz (16/20/24-bit).

What analog outputs does the D-07X provide?

It offers both unbalanced RCA and balanced XLR analog outputs, making it easy to match a wide range of amplifiers and system configurations.

What is the benefit of the dual-monaural DAC design?

The dual-monaural configuration uses two ROHM BD34301EKV DAC chips to improve channel separation and refinement, supporting more precise imaging and cleaner musical detail.

How does the D-07X help reduce vibration and improve disc reading?

It uses the LxDTM-i transport mechanism with a robust structure and an integrated mounting approach designed to block external vibration and maintain stable signal reading.

Does it support system control with other components?

Yes. The D-07X includes trigger input/output terminals for linking remote control signals with compatible LUXMAN products.
