iFi Audio ZEN CAN Studio - Balanced Headphone Amplifier for Professional Monitoring

iFi Audio ZEN CAN Studio - Balanced Headphone Amplifier for Professional Monitoring

The iFi Audio ZEN CAN Studio is a high-performance, professional-grade headphone amplifier designed for musicians, audio engineers, and audiophiles who demand uncompromised sound quality. Whether you're mixing, monitoring, or mastering, this compact yet powerful amplifier delivers exceptional audio fidelity with its Class A balanced circuitry and custom OV op-amp, inherited from iFi's flagship iCAN model. With versatile connectivity options, including balanced 4.4mm, XLR, and TRS inputs, as well as unbalanced 3.5mm input, the ZEN CAN Studio seamlessly integrates into any studio, live, or home setup. Its robust output power ensures optimal performance with a wide range of headphones, making it an indispensable tool for critical listening applications.

What It’s Good At

• Delivering serious, clean headphone power (up to 2,000mW balanced) for planars, dynamics, and high-impedance cans
• Keeping sound natural and transparent with pure analogue circuitry (no DSP)
• Enhancing low-end weight and punch with XBass+—great for open-backs and leaner-tuned IEMs
• Expanding imaging and “out of the head” presentation with XSpace for a wider, speaker-like stage
• Improving competitive awareness and immersion with Game mode (clearer low-level effects and cues)
• Boosting speech intelligibility with Movie mode for streaming shows and films

Specifications

• Outputs:
  • Balanced 4.4mm headphone output
  • Unbalanced 1/4" headphone output
  • Balanced 4.4mm monitor output

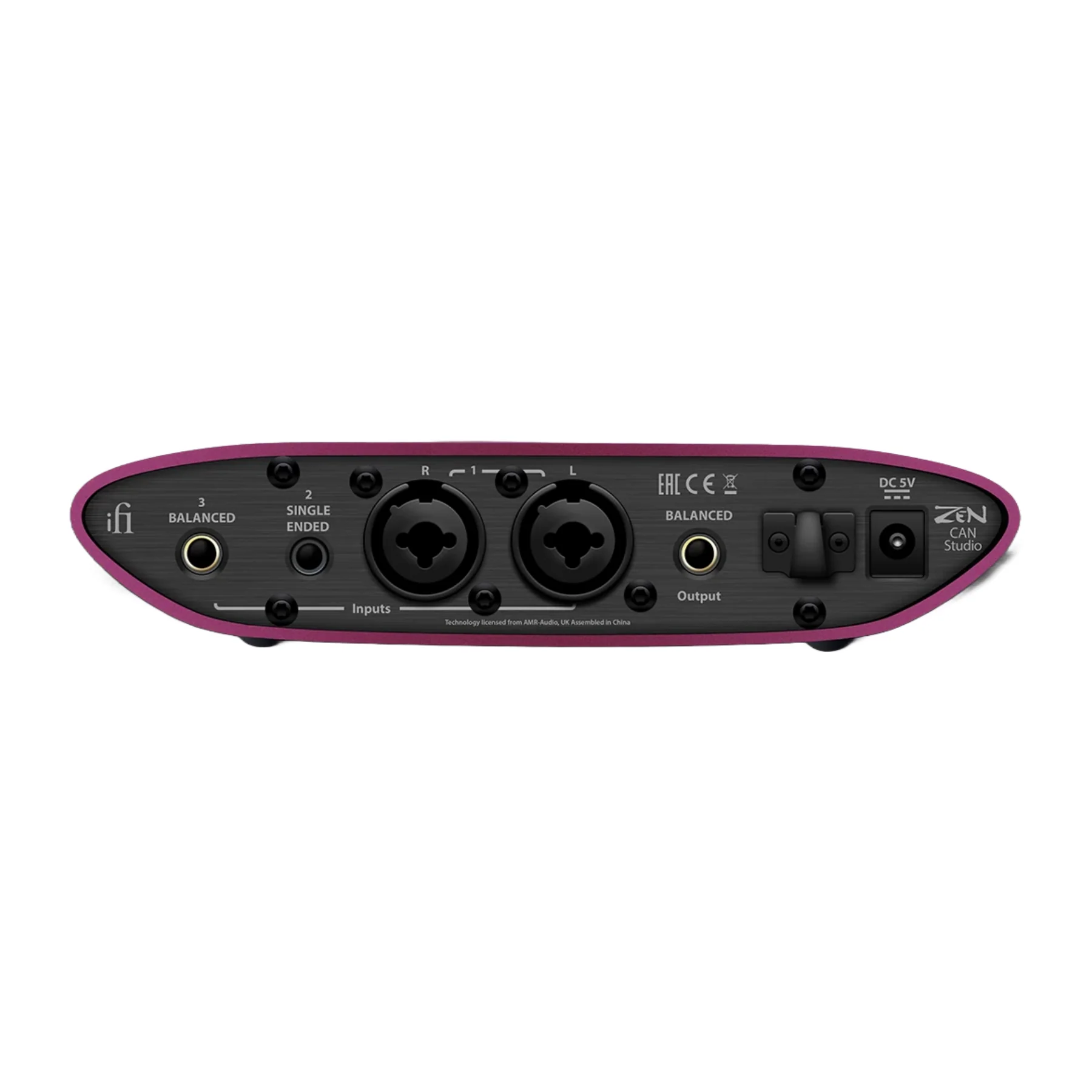

• Inputs:
  • Balanced 4.4mm input
  • Balanced XLR and 1/4" TRS inputs
  • Unbalanced 3.5mm input
• Gain Control:
  • Four-stage gain adjustment (+6 dB steps)
• Power Output:
  • 15.1V / 385mW @ 300 ohms
  • 7.2V / 1600mW @ 32 ohms
• Circuitry:
  • Class A balanced output with custom OV op-amp
  • FET-based switching for ultra-low distortion (0.0001%)
  • Stealth mode voltage conversion with LC filtering
• Mounting:
  • 5/8" underside mic stand socket
• Noise Control:
  • Sleep-mode MCU and LEDs to minimize internal noise

Key Features

• Class A Balanced Circuitry for Superior Audio Fidelity: The ZEN CAN Studio employs Class A balanced circuitry, providing a clean and detailed sound that's essential for critical listening tasks in professional audio environments.
• Custom OV Op-Amp Ensures Ultra-Low Distortion: Incorporating a custom-designed OV op-amp, the amplifier achieves an impressively low distortion rate of 0.0001%, ensuring accurate sound reproduction.

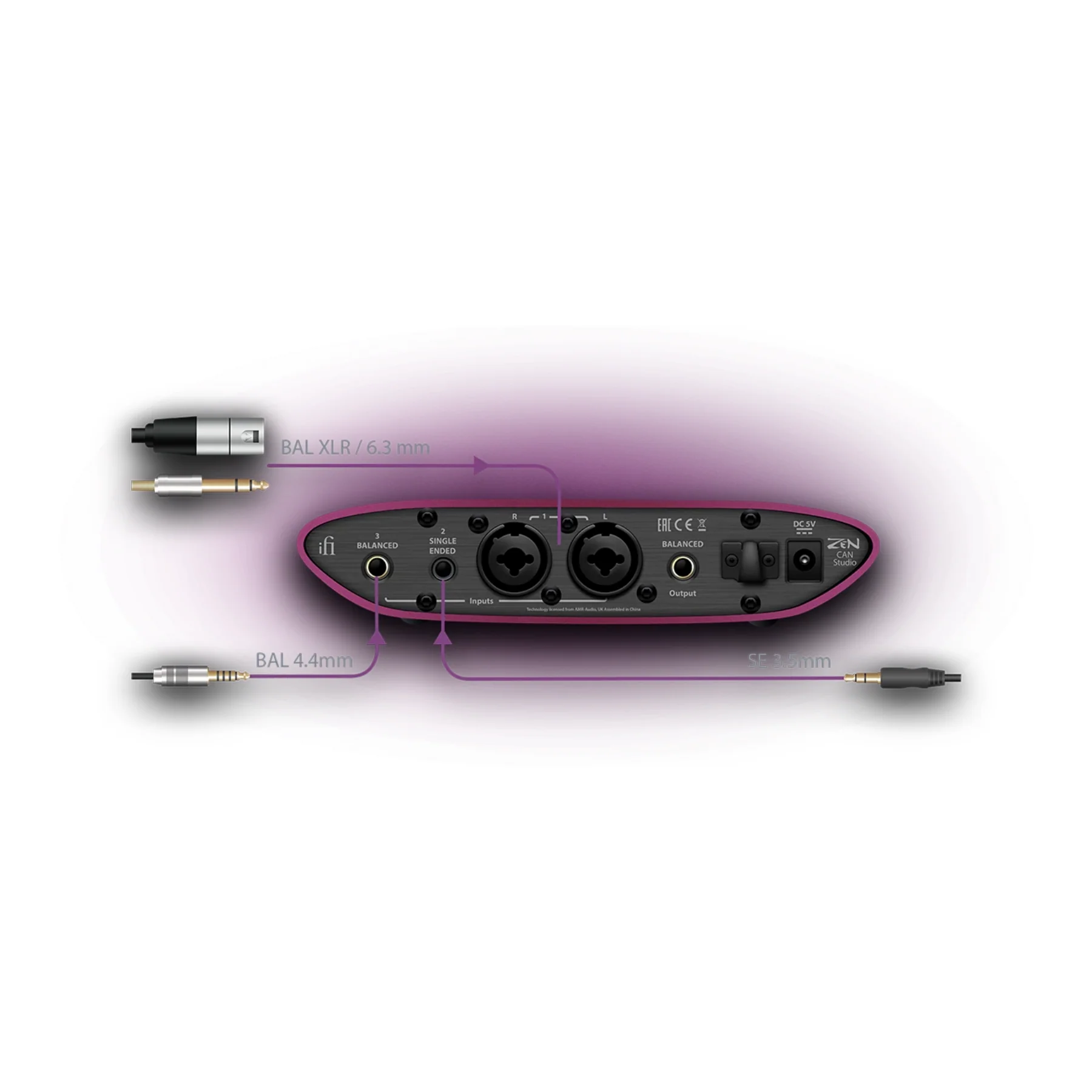

• Versatile Connectivity with Multiple Balanced and Unbalanced Inputs/Outputs: With balanced 4.4mm, XLR, and TRS inputs, as well as unbalanced 3.5mm input, the ZEN CAN Studio offers flexible connectivity options to suit various audio setups.
• High Output Power Suitable for a Wide Range of Headphones: Delivering up to 15.1V / 385mW at 300 Ohms and 7.2V / 1,600mW at 32 Ohms, this amplifier can drive both high-impedance and low-impedance headphones effectively.
• Four-Step Gain Adjustment for Optimal Headphone Matching: The amplifier features four gain settings (+6dB increments), allowing users to match the output to their specific headphones for optimal performance.
• Expandable Setup with ZEN One Studio D/A Converter: By pairing with the ZEN One Studio D/A converter, users can create a comprehensive audio interface and monitor controller setup, enhancing their audio production capabilities.

Q&A

Q: What headphones can the ZEN CAN Studio drive?
A: It can drive both high and low impedance headphones, thanks to four gain settings and up to 1,600mW output at 32 Ohms.

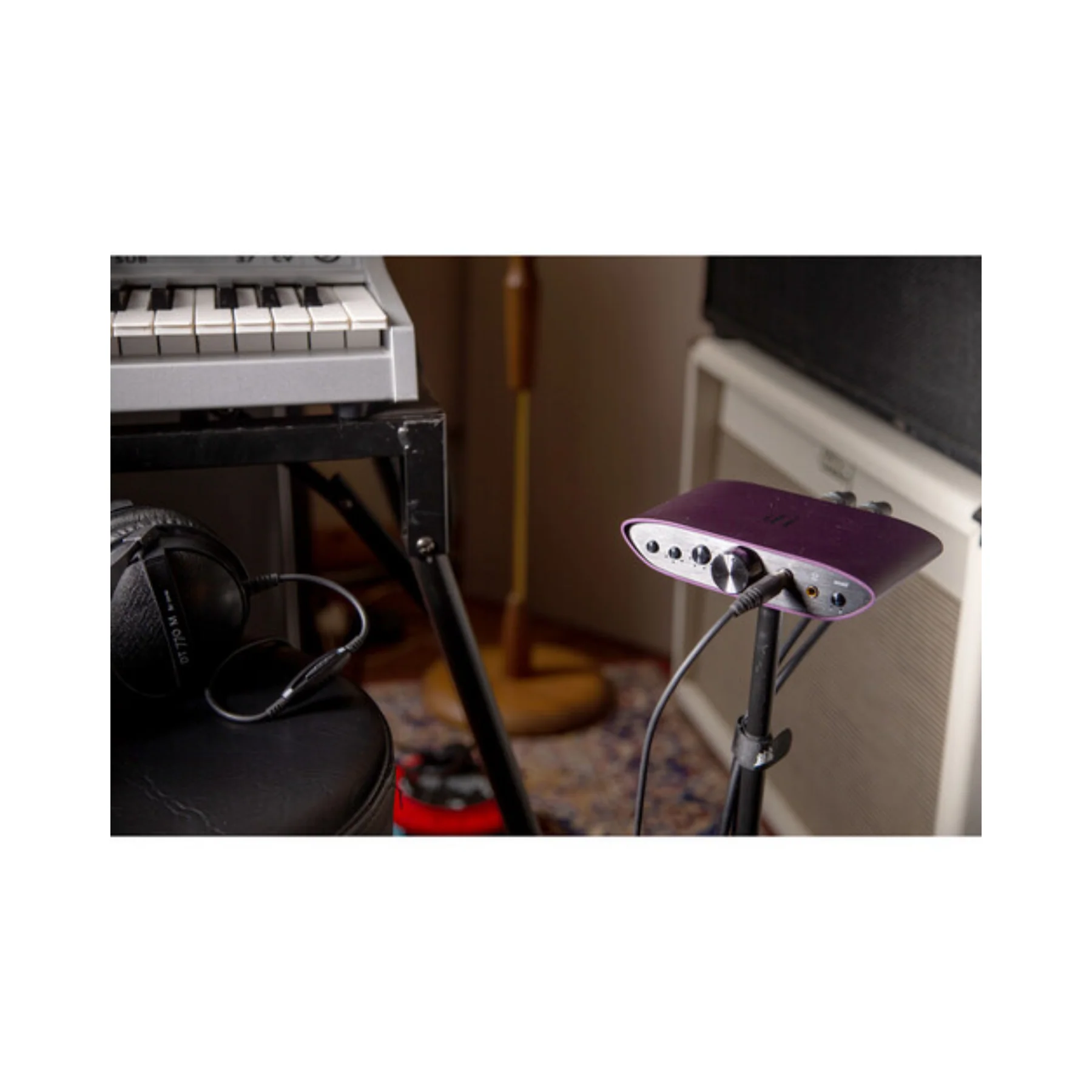

Q: Can it be mounted for live setups?
A: Yes, it includes a 5/8” underside socket for mounting on mic stands or in a rack.

Q: What is the main advantage of the balanced outputs?
A: They offer cleaner signal paths with less interference, and can be used to drive active near-field monitors.

Q: Is this amp suitable for live stage use with IEMs?
A: Absolutely. It’s built for both studio and live environments, making it perfect for personal monitoring.

Q: Does it work standalone or only with the ZEN One Studio?
A: It works perfectly on its own but can be paired with the ZEN One Studio for a complete interface and monitoring setup.
