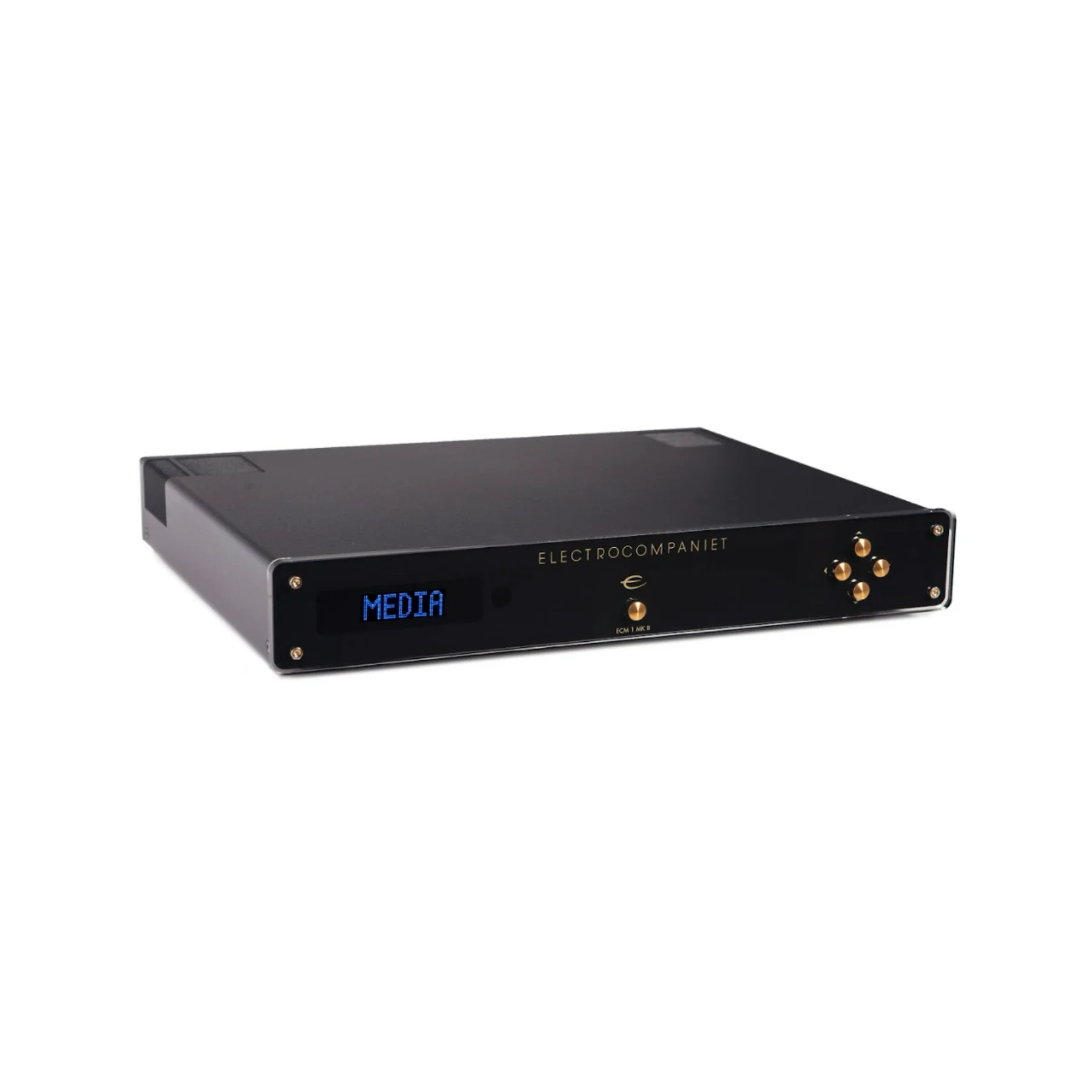

Electrocompaniet ECM 1 MKII High End DAC & Music Streamer

Electrocompaniet ECM 1 MKII High-End DAC & Music Streamer

The Electrocompaniet ECM 1 MKII redefines digital audio playback by combining a reference-class DAC with a fully integrated high-resolution music streamer. Designed for audiophiles and music enthusiasts alike, this all-in-one device features Electrocompaniet’s proprietary EC software engine, delivering lossless, DSD, and high-resolution playback with precision and warmth. With support for top streaming platforms like TIDAL Connect, Qobuz, and Spotify Connect, plus Apple AirPlay 2 and Bluetooth compatibility, the ECM 1 MKII ensures seamless integration into modern home audio systems. Its updated MKII design incorporates symmetrical analog output stages, dual Cirrus Logic DACs, and advanced connectivity, all wrapped in a sleek, future-proof chassis built for performance and versatility.

Specifications

• DAC Chips: Dual Cirrus Logic DACs, 192 kHz/24-bit per channel
• Analog Output Stage: Fully symmetrical high-end analog stage
• Output Impedance: 300 Ohms
• Noise Floor: Less than -145 dB (20Hz–20kHz)
• Frequency Response: 0.5 Hz – 48 kHz
• THD+N: Less than 0.0005%
• Upsampling: 192 kHz, 24-bit
• Streaming Services: TIDAL Connect, Qobuz, Spotify Connect, Roon Ready, Internet Radio
• Wireless Support: Apple AirPlay 2, DLNA, Bluetooth Streaming
• Network: Wi-Fi or LAN (Ethernet)
• Internal Storage: User-installable 2.5"/3.5" HDD or SSD (unlimited capacity)
• Control Interfaces: Android/iOS app, DLNA, UPnP
• Supported File Formats: WAV, MP3, AAC+, FLAC, DSD (up to DSD 128)
• Power Supply: 120V/240V, 50Hz/60Hz
• Power Consumption: 50 W (idle), 0.5 W (standby)
• Dimensions: 470 mm x 381 mm x 80 mm (18.5" x 14.99" x 3.14")
• Weight: 8.3 kg (18 lbs)

Expanded Key Features List

• Dual Cirrus Logic DACs: Provides 192 kHz/24-bit resolution per channel for transparent, high-fidelity audio conversion.
• Fully Symmetrical Analog Output: Ensures optimal signal integrity and superior sonic detail across the frequency range.
• In-House EC Software Engine: Offers seamless navigation and playback via Electrocompaniet's intuitive app with multi-room capabilities.
• Support for High-Resolution Formats: Stream and decode DSD (up to DSD 128), FLAC, WAV, and more with pristine accuracy.
• Integrated Music Streaming: Compatible with TIDAL Connect, Qobuz, Spotify Connect, and Roon Ready for easy access to premium music services.
• Bluetooth & AirPlay 2 Streaming: Stream wirelessly from any mobile device or Apple ecosystem with minimal setup.
• User-Upgradeable Internal Storage: Add your own 2.5"/3.5" hard drive or SSD with unlimited storage capacity for offline listening.
• Elegant MKII Design: Matches the latest Electrocompaniet aesthetics with upgraded mechanics and sonic refinements.

Q&A Section

Q: What makes the ECM 1 MKII different from other streamers?
A: The ECM 1 MKII combines high-end DAC performance with a built-in streamer and EC's proprietary software, offering premium sound and seamless app control.

Q: Can I stream music from TIDAL or Spotify?
A: Yes, it supports TIDAL Connect, Qobuz, and Spotify Connect natively, along with Roon Ready integration and internet radio.

Q: Is it compatible with Apple devices?
A: Absolutely. The ECM 1 MKII supports Apple AirPlay 2 for streaming from iPhones, iPads, and Macs.

Q: Does it have built-in storage?
A: It allows users to install their own 2.5"/3.5" hard drive or SSD for local music storage with unlimited capacity.

Q: What audio formats does the ECM 1 MKII support?
A: It plays WAV, MP3, AAC+, FLAC, and DSD files (up to DSD 128), ensuring compatibility with virtually any high-resolution format.

Q: How do I control playback?
A: Use the Electrocompaniet remote app for iOS/Android or any DLNA/UPnP-compatible controller for full control of music playback and streaming.

Q: What type of DAC is used in this unit?
A: The ECM 1 MKII uses dual Cirrus Logic DAC chips, processing each channel independently at 192 kHz/24-bit resolution.

Q: Can it be integrated into a multi-room system?
A: Yes, it works with EC Living systems and other compatible devices for synchronized multi-room playback.
