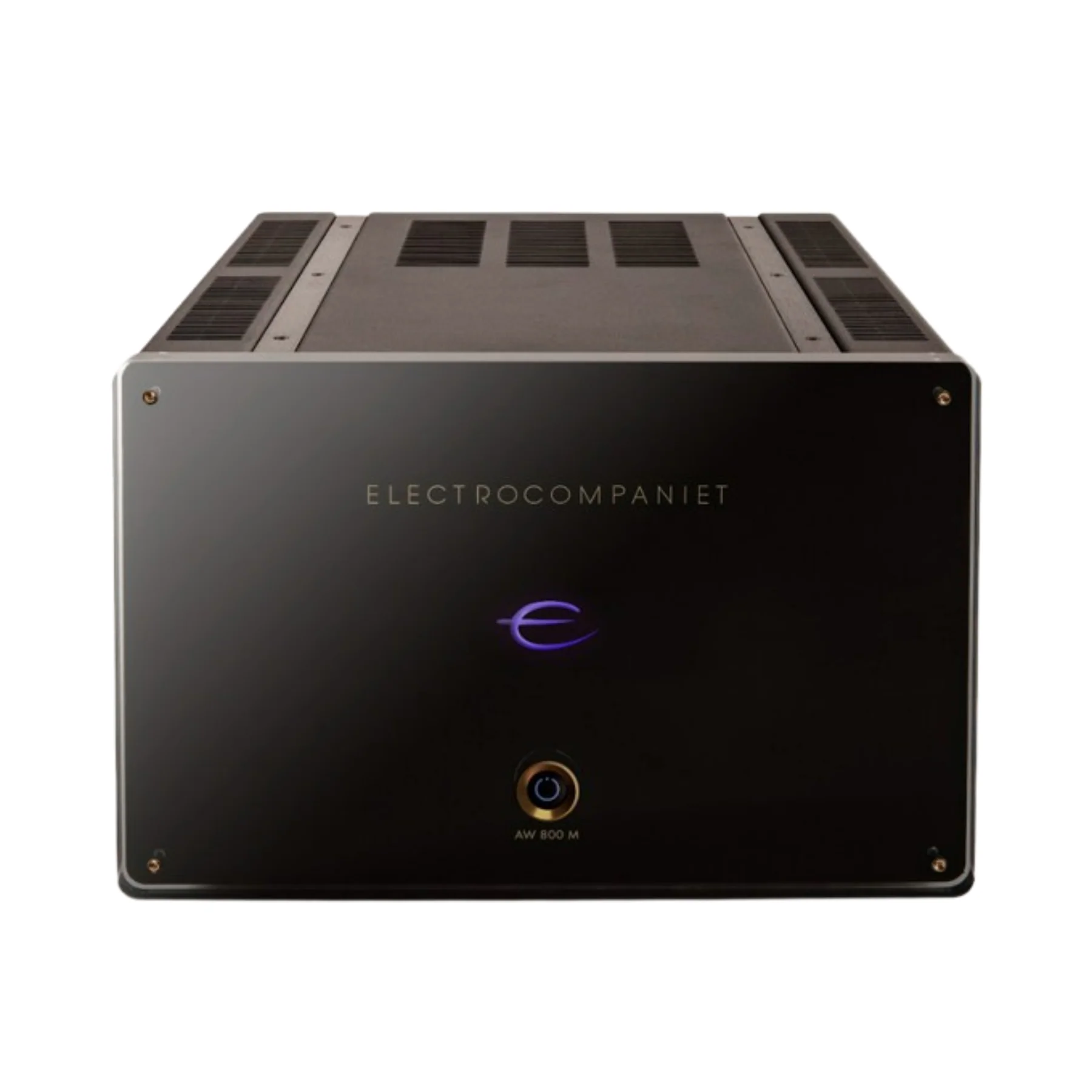

Electrocompaniet AW 800M Nemo 2 Switchable Power Amp (Pair)

Electrocompaniet AW 800M NEMO 2 Reference Monoblock Power Amplifier

The Electrocompaniet AW 800M NEMO 2 is the brand’s most powerful and advanced power amplifier, designed as the successor to the legendary AW 600 NEMO. This flagship monoblock amplifier delivers extraordinary power, precision, and sonic purity, making it a reference-grade solution for the most demanding high-end audio systems. Built in Norway with Electrocompaniet’s signature design philosophy, the AW 800M preserves the company’s globally recognized sound signature while pushing performance to new levels.

At its core is Electrocompaniet’s direct-coupled high open-loop bandwidth topology, enhanced with ultra-high bandwidth amplifier stages and an extremely fast slew rate. A newly engineered output stage isolates the input and driver stages from the load, allowing the amplifier to deliver immense power while maintaining exceptional control and ultra-low distortion. The result is a remarkably clean, dynamic, and detailed soundstage with effortless musical realism.

The AW 800M features a significantly upgraded power supply with massive filtering capacity and twin toroidal transformers designed to eliminate noise and deliver stable, high-current output. With versatile operating modes including mono, stereo, and bi-amping, this amplifier offers unmatched flexibility for system configuration. Finished with Electrocompaniet’s elegant matte chassis and precision-machined aluminum accents, the AW 800M stands as a true statement piece in both performance and design.

Specifications

• Amplifier Type: Reference high-end power amplifier
• Design Topology: Direct-coupled high open-loop bandwidth amplifier topology
• Operating Modes: Mono, Stereo, Bi-amping
• Input Impedance: 330 kΩ
• Frequency Response (Input Filter Active): 0.5 – 220 kHz
• Frequency Response (Input Filter Disabled): 0.5 – 1.1 MHz
• Voltage Gain (Mono, Balanced Input): 35 dB (x56)
• Voltage Gain (Stereo, Balanced Input): 29 dB (x28)
• Input-Referred Noise (20–20 kHz): < 2 μV
• Signal-to-Noise Ratio (1W / 8Ω, 20–20 kHz): 95 dB
• Signal-to-Noise Ratio (Full Power Output): 122 dB
• Slew Rate (Input Filter Disabled): 270 V/μs
• DC Output Voltage: < 5 mV
• Total Harmonic Distortion + Noise (THD+N): 0.0006%
• Intermodulation Distortion (IMD): 0.001%
• Damping Factor (8Ω Load): > 1000
• Power Supply Filtering: 210,000 µF
• Transformers: Dual toroidal transformers with magnetic and electrostatic shielding
• Mains Power Input: DC and RF filtered
• Ground Reference: Reinforced internal grounding system
• Protection: DC, overload, and temperature protection
• Power Consumption (Standby): < 0.5 W
• Rated Output Power (Stereo 8Ω): 2 × 300 W
• Rated Output Power (Stereo 4Ω): 2 × 600 W
• Rated Output Power (Stereo 2Ω): 2 × 1000 W
• Rated Output Power (Mono 8Ω): 800 W
• Rated Output Power (Mono 4Ω): 1500 W
• Rated Output Power (Mono 2Ω): 2200 W
• Trigger Input / Output: Yes
• Auto Power-Down: Switchable
• Feature Lighting: Adjustable
• Mains Voltage: User-selectable 115V / 230V
• Isolation Feet: SOUNDCARE® SuperSpikes™
• Chassis Construction: Modular chassis with aluminum reinforcement rods
• Finish: Matte luxury finish with redesigned front plate and 3D logo
• Country of Manufacture: Norway
• Weight: 55 kg / 122 lbs
• Width: 406 mm / 15.98 in
• Depth: 488 mm / 19.21 in
• Height: 292 mm / 11.49 in

What It's Great At

• Delivering immense reference-grade power for demanding high-end loudspeakers
• Producing ultra-low distortion with exceptional dynamic control
• Creating an expansive, silent soundstage with remarkable clarity and precision
• Providing flexible system configuration with mono, stereo, and bi-amping modes
• Maintaining Electrocompaniet’s iconic warm yet highly detailed sound signature
• Integrating into luxury audio systems with a refined Scandinavian design

Expanded Key Features List

• Flagship Reference Amplifier: The AW 800M replaces the legendary AW 600 NEMO and represents Electrocompaniet’s most powerful and advanced amplifier ever built.
• High Open-Loop Bandwidth Topology: A direct-coupled amplifier architecture with ultra-high bandwidth stages ensures precise signal reproduction and extremely low distortion.
• Ultra-Fast Slew Rate: With a slew rate of 270 V/μs, the amplifier responds instantly to musical transients for greater detail and realism.
• Advanced Output Stage Isolation: The redesigned output stage isolates the input and driver circuits from the load, simplifying feedback and maintaining a clean signal path.

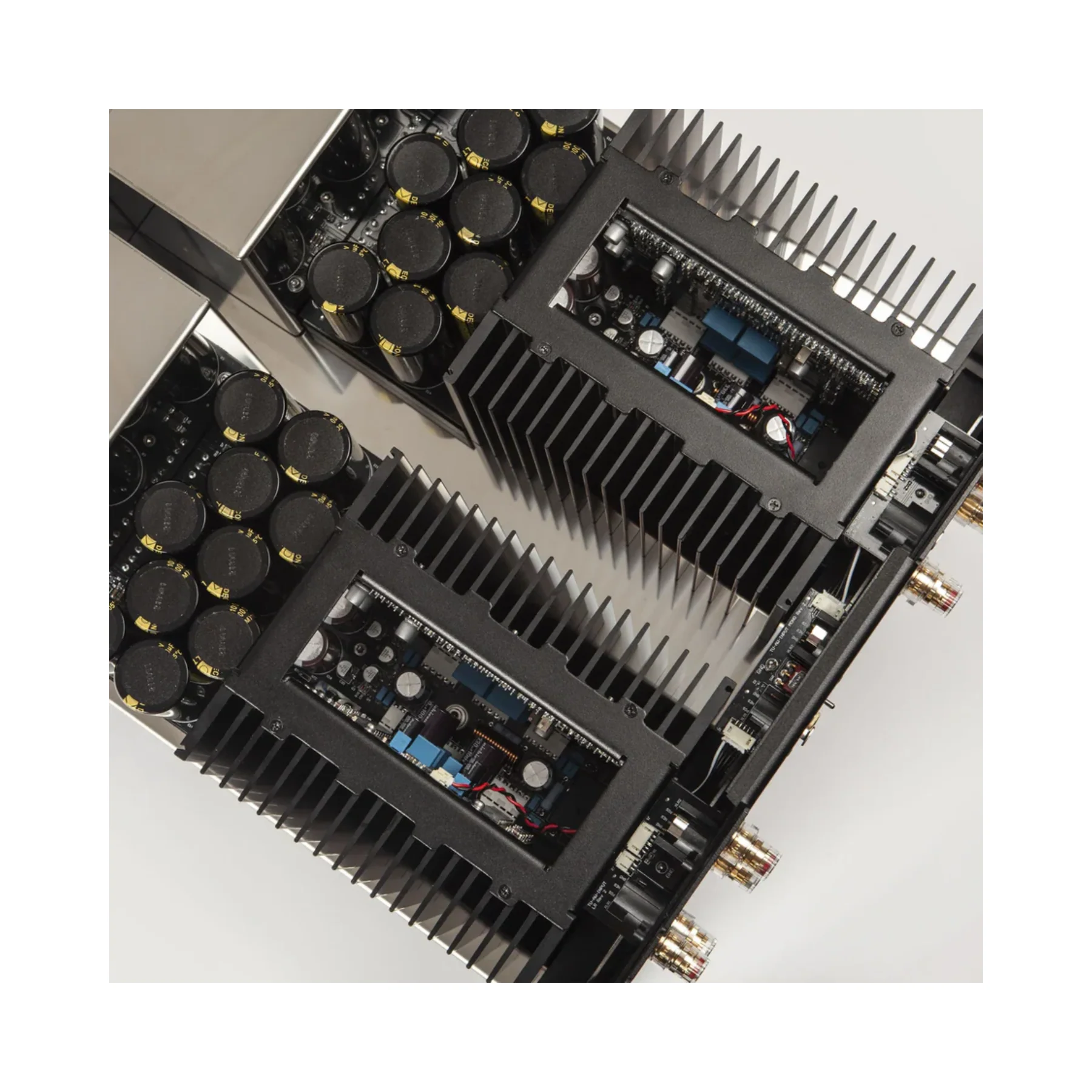

• Massive Power Supply Design: A 210,000 µF filtered power supply with dual shielded toroidal transformers ensures stable, high-current delivery and minimal noise.
• Versatile Operating Modes: Switch between mono, stereo, or bi-amping operation to tailor the amplifier to different speaker setups and system upgrades.
• Noise-Free Signal Path: Reinforced internal grounding and filtered power inputs eliminate RF and DC interference for an exceptionally quiet background.
• Luxury Scandinavian Construction: A fully redesigned modular chassis with brushed aluminum reinforcement rods and matte finish provides both structural strength and timeless aesthetics.
• Integrated Isolation Technology: Included SOUNDCARE® SuperSpikes™ feet protect surfaces while reducing vibration for improved audio performance.
• Convenient System Integration: Features including trigger input/output, auto power-down, adjustable lighting, and selectable mains voltage make the amplifier easy to integrate into advanced systems.

FAQ Section

Q: What is the Electrocompaniet AW 800M NEMO 2?
A: It is Electrocompaniet’s flagship reference power amplifier, designed to deliver extreme power, ultra-low distortion, and exceptional sound quality for high-end audio systems.

Q: How powerful is the AW 800M amplifier?
A: In mono mode it delivers up to 800 W into 8Ω, 1500 W into 4Ω, and 2200 W into 2Ω, providing enormous headroom for demanding loudspeakers.

Q: Can the amplifier operate in different modes?
A: Yes, it supports mono, stereo, and bi-amping configurations, allowing flexible system setups and easy future upgrades.

Q: What makes the AW 800M’s power supply special?
A: It features 210,000 µF of filtering and dual shielded toroidal transformers that provide clean, stable power while minimizing electrical noise.

Q: What is the benefit of the high slew rate?
A: The 270 V/μs slew rate allows the amplifier to react quickly to dynamic changes in music, improving transient response and overall clarity.

Q: Where is the AW 800M manufactured?
A: The amplifier is designed and manufactured in Norway, reflecting Electrocompaniet’s long-standing tradition of Scandinavian engineering and craftsmanship.

Q: Does the amplifier include protection circuits?
A: Yes, it includes DC, overload, and temperature protection systems to safeguard both the amplifier and connected speakers.

Q: What are SOUNDCARE® SuperSpikes™?
A: They are specialized isolation feet included with the amplifier that reduce vibration while protecting surfaces from damage.
