Classé Delta Mono - Power Amplifier
Classe Delta MONO: Monaural Amplifier - Uncompromising Power and Clarity
The Classe Delta MONO is a high-fidelity monaural amplifier designed to deliver exquisite sound and unmatched performance. It's a perfect blend of innovative technology, premium-grade materials, and meticulous craftsmanship.
Effortless Power and Unmatched Control
Delta MONO boasts a unique design that combines the initial 35 watts of pure Class A amplification for unmatched sound quality with over 300 watts of total power (reaching 1000 watts at 2 ohms). This ensures effortless control over any loudspeaker, driving even the most demanding speakers with precision and authority.
Experience the Purity of Sound
Delta MONO prioritizes sonic clarity. It delivers an expansive dynamic range with incredibly low noise, ensuring every detail of your music is reproduced with unparalleled precision and naturalness. Get ready to rediscover your favorite songs with a whole new level of detail and depth.
A Statement Piece for Any Audiophile's Dream System

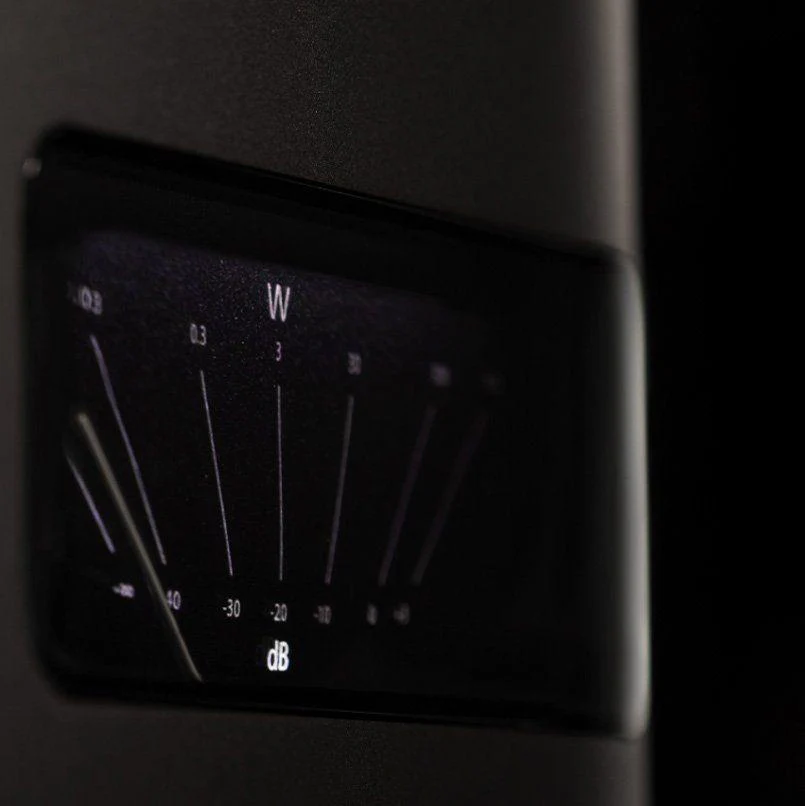

The Delta MONO doesn't just sound incredible, it looks it too. Classé continues its tradition of monumental design with a unique and stylish enclosure crafted from premium materials. The illuminated VU meter adds a touch of elegance while providing valuable output feedback.
Unmatched Versatility for Easy Integration
Thanks to Classe's innovative ICTunnel cooling technology, the Delta MONO can be stacked or rack-mounted with ease, unlike conventional amplifiers. This unique cooling system ensures optimal performance regardless of configuration, extending the lifespan of your amplifier and guaranteeing a lifetime of unparalleled audio experiences.
Classe Delta MONO Specifications
-
Overall Dimensions:
- Width: 17.50 in (444 mm)
- Depth: 19.37 in (492 mm)
- Height: 8.74 in (222 mm)
-
Weight:
- Gross Weight: 111.6 lbs (50.6 kg)
- Net Weight: 97.7 lbs (44.3 kg)
-
General Specifications:
- Frequency Response:
- (-3dB, 50Ω source impedance)
- 1Hz – 650kHz
- Continuous Output Power:
- (at 1kHz, 0.1% THD+N)
- 35W / 8Ω (Pure Class-A Operation)
- 300W / 8Ω
- 600W / 4Ω
- 1000W / 2Ω (with AC line held constant)
- Harmonic Distortion:
- (measurement bandwidth: 500kHz, 25Vrms in 4Ω or 8Ω)
- <0.0016% at 1kHz
- <0.0018% at 10kHz
- <0.0028% at 20kHz
- (measurement bandwidth: 90kHz, 25Vrms in 4Ω or 8Ω)
- <0.0005% at 1kHz
- <0.0006% at 10kHz
- <0.0015% at 20kHz
- Peak Output Voltage:
- (nominal AC line)
- 148Vp-p into 8Ω
- 156Vp-p no load
- Input Impedance:
- (at 1kHz, BAL / SE)
- 82kΩ
- Voltage Gain:
- (at 1kHz, BAL / SE)
- 29dB
- Intermodulation Distortion:
- (SMPTE 4:1) (8Ω or 4Ω, BAL / SE)
- <0.001%
- (CCIF) (8Ω or 4Ω, BAL / SE)
- <0.002%
- Signal-to-Noise Ratio:
- (A wtd in parenthesis) (22kHz BW)
- 117dB (119.5dBA)
- Slew Rate: 72V / μs
- Output Impedance:
- 0.01Ω (100Hz), 0.011Ω (1kHz),
- 0.015Ω (10kHz)
- Damping Factor:
- (at 1kHz, ref 8Ω)
- 700
- Frequency Response:
Classe Delta Mono Manual
