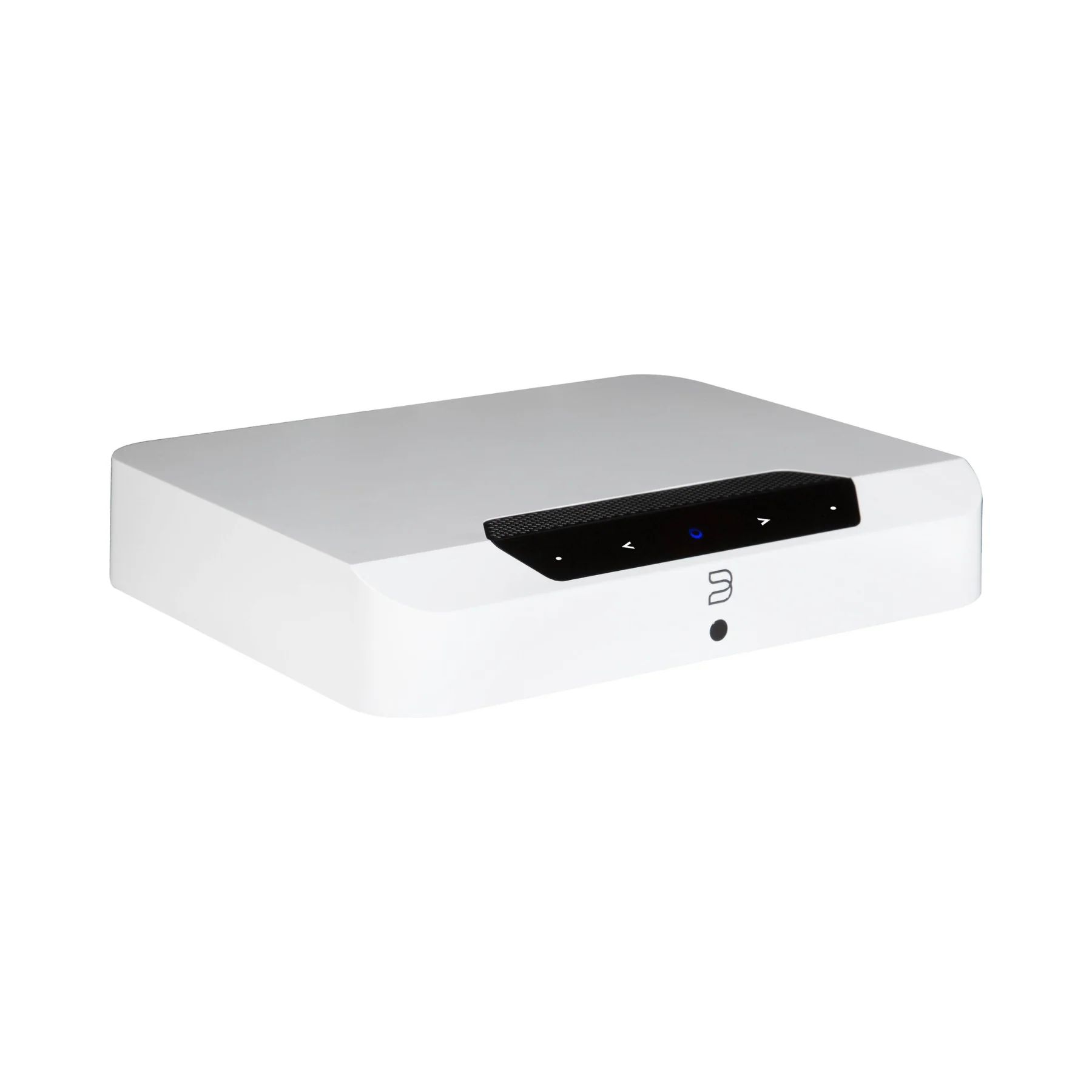

Bluesound Powernode Edge Streaming Amplifier

Bluesound POWERNODE EDGE Streaming Amplifier

The Bluesound POWERNODE EDGE is a compact, modern wireless music streaming amplifier that turns any pair of passive speakers into a powerful, high-resolution HiFi system. Built on the BluOS multi-room platform, it combines DirectDigital™ amplification, a robust quad-core processor, and broad streaming compatibility so you can play everything from major services to your personal library with fast, app-driven control. Add easy TV integration via HDMI eARC, connect wired sources through the combo analog/optical input, and expand your setup with a dedicated subwoofer output—all while keeping the amp discreetly out of sight with the included multi-orientation wall-mount bracket. With support for 24-bit/192 kHz playback, DSD256, AirPlay 2, and two-way Bluetooth® aptX™ HD, the POWERNODE EDGE is an ideal “just add speakers” solution for rooms where you want premium sound without a full-size rack of gear. The Bluesound POWERNODE EDGE is part of ListenUp's Bluesound NODE Music Streaming Collection.

What It's Good At:

• Powering passive speakers with authority using 40W x 2 of DirectDigital™ amplification for clean, dynamic sound
• Streaming hi-res audio throughout the home with BluOS multi-room control and broad service support
• Simple TV hookup with HDMI eARC for an easy, high-quality living room or bedroom setup
• Flexible source connectivity via combo mini-TOSLINK/3.5mm analog input, USB-A media playback, and Gigabit Ethernet
• Private listening without extra hardware using Bluetooth headphone output (plus two-way transmit/receive Bluetooth)
• Space-saving installs with a compact chassis, capacitive touch controls, and an included wall-mount bracket

Bluesound POWERNODE EDGE Full Specifications:

• Model / SKU: N230
• Wireless Speaker: No
• Rated Power Output: 40W x 2 (8 Ohms)
• IHF Dynamic Power: 80W (4 Ohms) / 50W (8 Ohms)
• Minimum Impedance: 4 Ohms
• Amplification: DirectDigital™
• Native Sampling Rates: up to 192 kHz
• Bit Depth: 16–24
• DSD Support: DSD256
• Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
• Supported Hi-Res Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
• Signal-to-Noise Ratio: -91dBA (listed)
• Signal-to-Noise Ratio: 91dBA (also listed)
• Audio Controls & EQ: BluOS Controller App
• Operating System: BluOS
• Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
• 3rd-Party Integrations: AirPlay 2, Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Roon Ready, Dirac Live Ready
• App Controller Operating System: iOS, Android, Windows, macOS
• Album Art Supported: JPG, PNG
• Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron, Josh.ai
• Voice Control Integrations: Amazon Alexa Skills
• Music Services & Internet Radio: 23+
• BluOS Home Theater: Yes – rear surround channels
• HDMI Input: HDMI eARC
• Optical/Analog Input: Combo – Mini TOSLINK / Stereo 3.5mm
• Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
• Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
• Bluetooth Quality: Bluetooth 5.0 aptX HD
• Bluetooth Connectivity: Two-Way (transmit & receive)
• Headphone Output: Bluetooth only
• USB IN: Type A (Fat32 Formatted)
• IR Input: 3.5mm Jack
• IR Optical Built In: IR Sensor Built In (front panel) with IR Remote Learning
• Speaker Terminals: 5-Way Binding Post
• Status Indicator: LED
• Volume Control Buttons: Touch Slider LED
• Preset Buttons: In-App
• Play/Pause Button: Touch LED
• Previous/Next Track Buttons: Touch LED
• Processor: ARM® Cortex™-A53, Quad-Core, 1.8GHz per core
• Power Supply: Universal bi-pin AC cord input (100–240AC)
• Finish: Black/White; Matte Satin Paint
• Max Power Consumption: 210W
• Product Weight: 1.37 kg / 3.02 lbs
• Product Dimensions: 219 x 44.5 x 193 mm (8.6 x 1.75 x 7.6 in)
• Shipping Dimensions: 300 x 300 x 95 mm (11.8 x 11.8 x 3.74 in)
• Shipping Weight: 2.62 kg / 5.78 lbs
• Operating Environment: 0°C to 40°C
• Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
• Included Accessories: 120V AC Power Cord; 230V AC Power Cord; Ethernet Cable; TOSLINK Optical to 3.5mm Mini Adapter; Metal Mounting Bracket; Metal Mounting Screw; Rubber Mount Attachment; Safety/Warranty Guide; Quick Setup Guide

Bluesound POWERNODE EDGE Q&A:

Q: Can the POWERNODE EDGE power passive speakers on its own?

A: Yes. It’s a “just add speakers” solution with a built-in DirectDigital™ amplifier rated at 40W x 2 (8 Ohms), designed to drive passive speakers without a separate amp.

Q: How do I connect the POWERNODE EDGE to my TV?

A: Use the HDMI eARC connection for a clean, simple TV hookup that routes your television audio through your speakers.

Q: Does it support high-resolution audio playback?

A: Yes. It supports up to 24-bit/192 kHz playback, includes DSD256 support, and plays common hi-res formats such as FLAC, WAV, and AIFF.

Q: What streaming and ecosystem features does it support?

A: It runs BluOS for multi-room streaming and supports popular integrations including AirPlay 2, Spotify Connect, Tidal Connect, Qobuz Connect, and Roon Ready.

Q: Can I use headphones with the POWERNODE EDGE?

A: Yes. Headphone output is supported via Bluetooth, and Bluetooth is two-way for both transmitting to headphones and receiving audio.

Q: What wired inputs are available for other sources?

A: It includes a combo input that supports mini-TOSLINK optical and stereo 3.5mm analog, plus USB-A for playback from FAT32-formatted drives.

Q: Can I add a subwoofer?

A: Yes. The unit includes a subwoofer output, making it easy to build a compact 2.1 system.

Q: Is it suitable for custom installs or smart-home control systems?

A: Yes. It supports integrations with systems like Control4, Crestron, ELAN, RTI, URC, Lutron, and Josh.ai, and it also includes IR learning.

Bluesound POWERNODE EDGE Downloads:

Bluesound POWERNODE EDGE Manual
Bluesound POWERNODE EDGE Data Sheet
Bluesound POWERNODE EDGE Quick Start Guide
