Advance Paris X-A220 EVO Power Amplifier

Advance Paris X-A220 EVO Power Amplifier

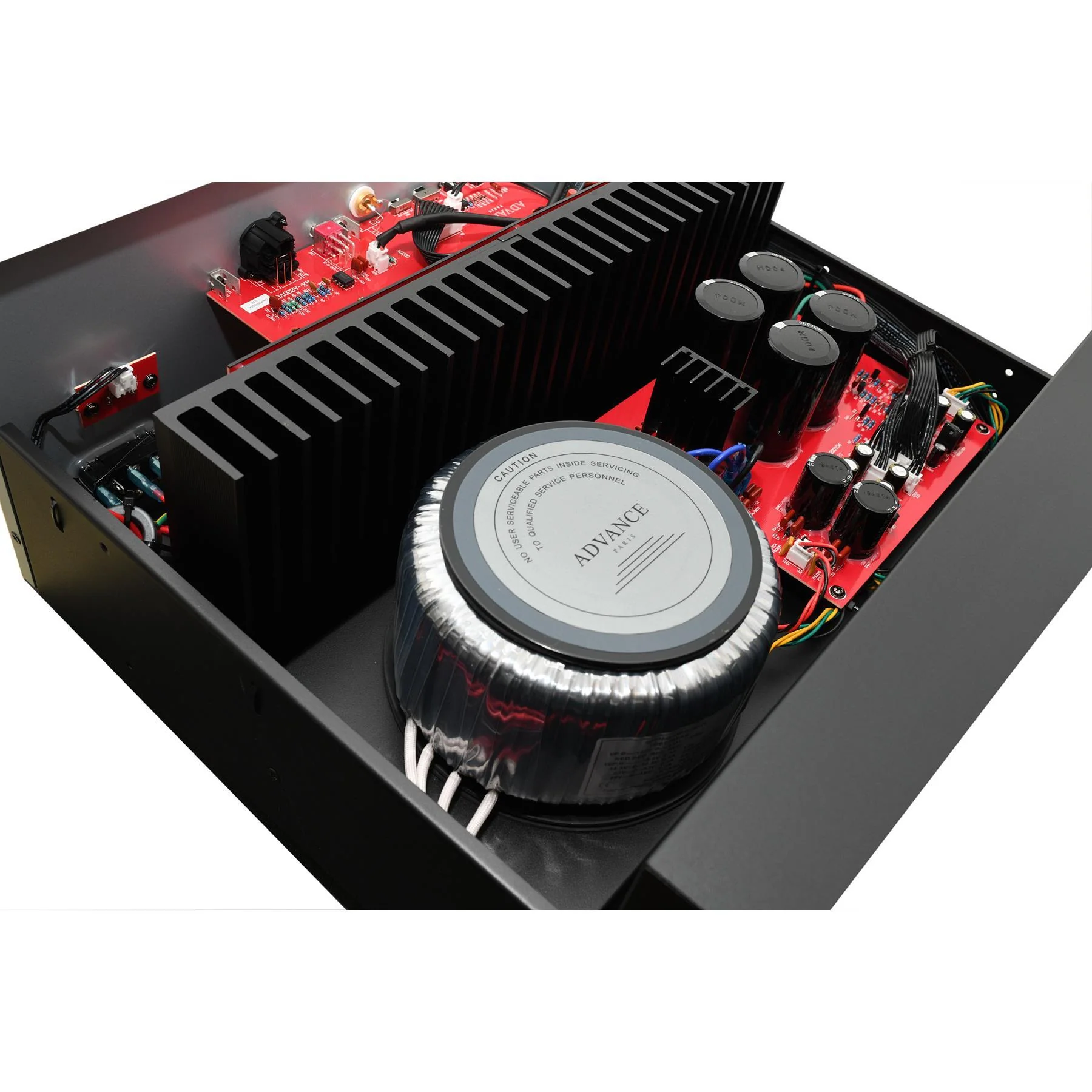

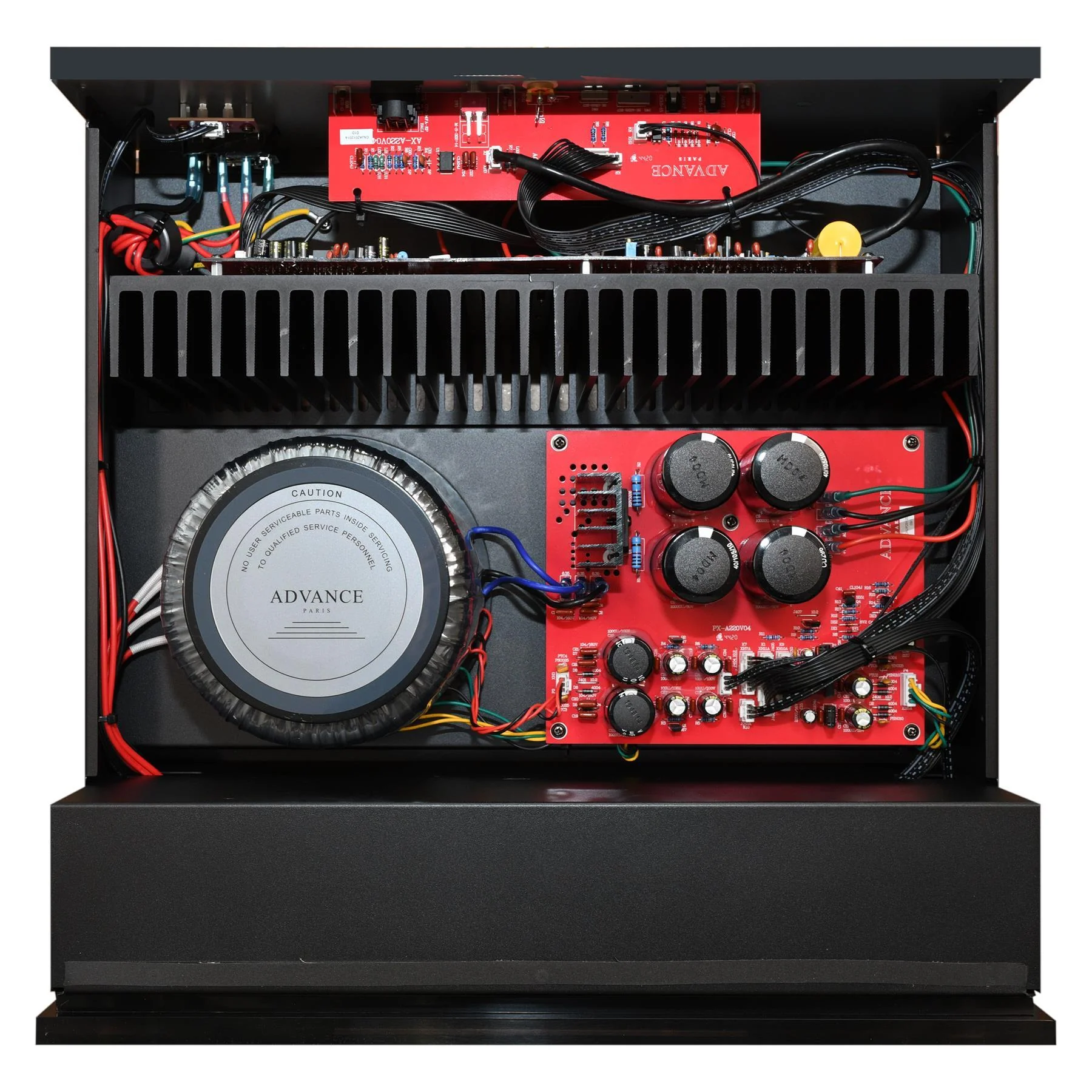

The Advance Paris X-A220 EVO Power Amplifier is a high-performance monophonic amplifier, delivering an impressive 220W at 8 ohms. When paired with the X-P700 preamplifier, the X-A220 EVO creates a deeply immersive and musical Hi-Fi system. This amplifier showcases our commitment to premium craftsmanship, with steel frames, methacrylate fronts, and an imposing VU meter that combines aesthetics with ergonomic functionality. The interior layout is thoughtfully organized, utilizing high-quality components and a powerful 700 VA toroidal transformer, complemented by four 10,000 µF capacitors for optimal power stability. With the ability to switch between Class A and Class AB modes via a convenient switch, the X-A220 EVO offers versatility and precision for audiophiles seeking top-tier performance.

What It’s Good At

• Delivering high-output, high-control performance for demanding speakers (220W/8Ω, 350W/4Ω)
• Preserving low-level detail and smoothness with High Bias “Class A on the first Watt” operation
• Producing wideband, articulate sound with extended frequency response (10 Hz – 80 kHz)
• Keeping noise low and dynamics high with strong measured performance (SNR > 100 dB, separation > 80 dB)
• Anchoring a premium separates system—especially as a matched pair with the X-P700 preamp

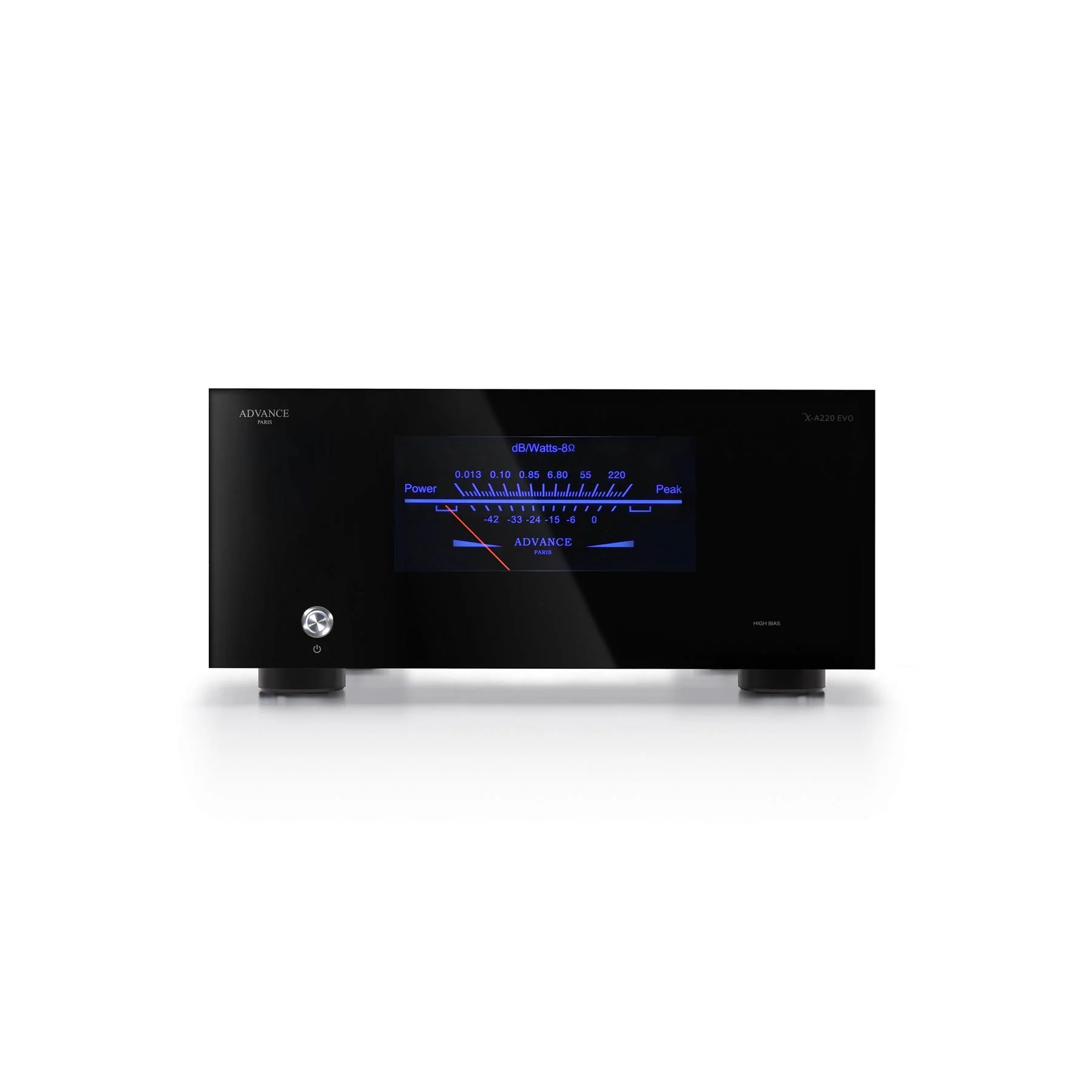

• Adding visual and build-quality appeal with a bold VU meter and rigid steel/methacrylate construction

Advance Paris X-A220 EVO Specifications:

• Output Power (8Ω): 1 x 220 W RMS
• Output Power (4Ω): 1 x 350 W RMS
• Bandwidth: 10 Hz - 80 kHz
• Distortion: < 0.08%
• Signal-to-Noise Ratio: > 100 dB
• Channel Separation: > 80 dB
• Input Impedance (Unbalanced): 32 KΩ
• Input Impedance (Balanced): 38 KΩ
• Mains Voltage: 115-230V
• Standby Power Consumption: < 0.5W
• Max Power Consumption: 500W
• Transformer Power: 700W
• Transformer Type: Toroidal
• Height: 200 mm
• Width: 430 mm
• Depth: 450 mm
• Net Weight: 21 Kg
• Product Type: Power block
• VU-Meter: Yes

Advance Paris X-A220 EVO Q&A:

What type of amplifier is the Advance Paris X-A220 EVO?

It’s a monophonic power amplifier (monoblock), meaning one unit powers one speaker channel. For stereo, you’ll use a pair.

How much power does the X-A220 EVO deliver?

It outputs 1 x 220W RMS into 8Ω and 1 x 350W RMS into 4Ω, providing strong headroom and speaker control.

What does the High Bias mode do?

When engaged, High Bias runs the amplifier in “Class A” on the first Watt for added finesse at low listening levels, then automatically transitions to Class AB when more power is needed.

Is this a good match for harder-to-drive speakers?

Yes. With 350W RMS into 4Ω and a substantial power supply, it’s built to maintain control and dynamics with demanding loads.

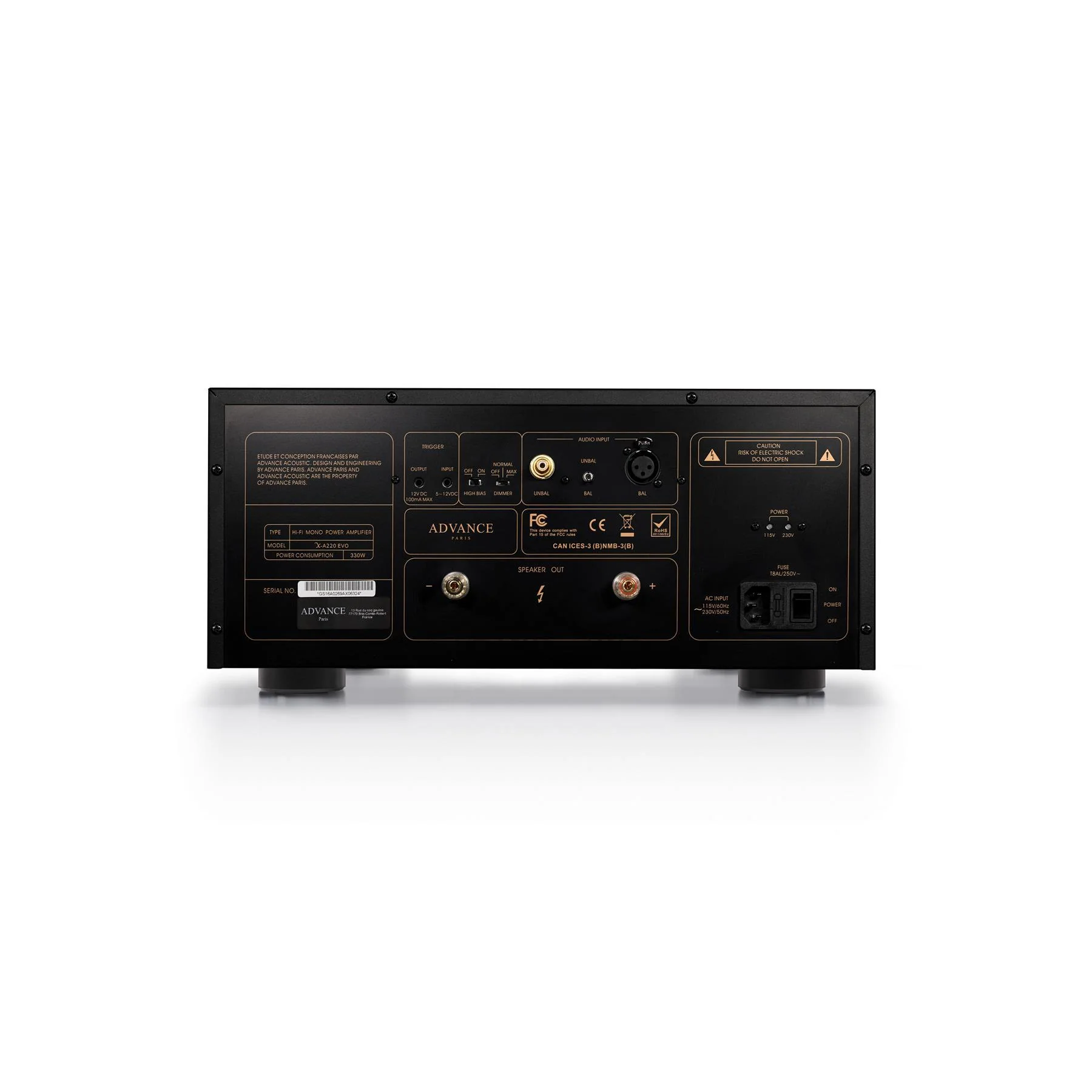

What inputs does it support?

The specs list asymmetric and symmetrical input impedance values (32 KΩ and 38 KΩ respectively), indicating support for both connection types with proper system matching.

Does it include a VU meter?

Yes—there’s a built-in VU meter for visual monitoring and classic high-end styling.

What are the key physical specs for fit and placement?

The chassis measures 430 mm (W) x 450 mm (D) x 200 mm (H) and weighs 21 Kg, so plan for a sturdy shelf with ventilation.

What preamp pairing is recommended?

A pair of X-A220 EVO monoblocks paired with the Advance Paris X-P700 preamplifier is presented as a highly musical system option at exceptional value.

Advance Paris X-A220 EVO Downloads:

Advance Paris X-A220 EVO User Manual
Advance Paris X-A220 EVO Technical Data
