Advance Paris X-A160 EVO Power Amplifier
Advance Paris X-A160 EVO Power Amplifier
The Advance Paris X-A160 EVO Power Amplifier, a high-performance amplifier designed to bring out the best in your Hi-Fi setup. Building on the successful schematics of the MAA 1000, the X-A160 EVO is equipped with a reinforced power supply, advanced power transistors, and an ultra-rigid, compartmentalized chassis to effectively eliminate any interference. This amplifier combines finesse with power, delivering 160 W per channel in class AB and capable of running the first Watts in class A for optimized sound. Audiophile-grade components ensure precision and dynamic range, letting you enjoy your music in vivid detail.
What It’s Good At
- Delivering high-current drive for demanding speakers and dynamic music
- Adding Class A sweetness at low levels with Hi-Bias, plus Class AB control for peaks

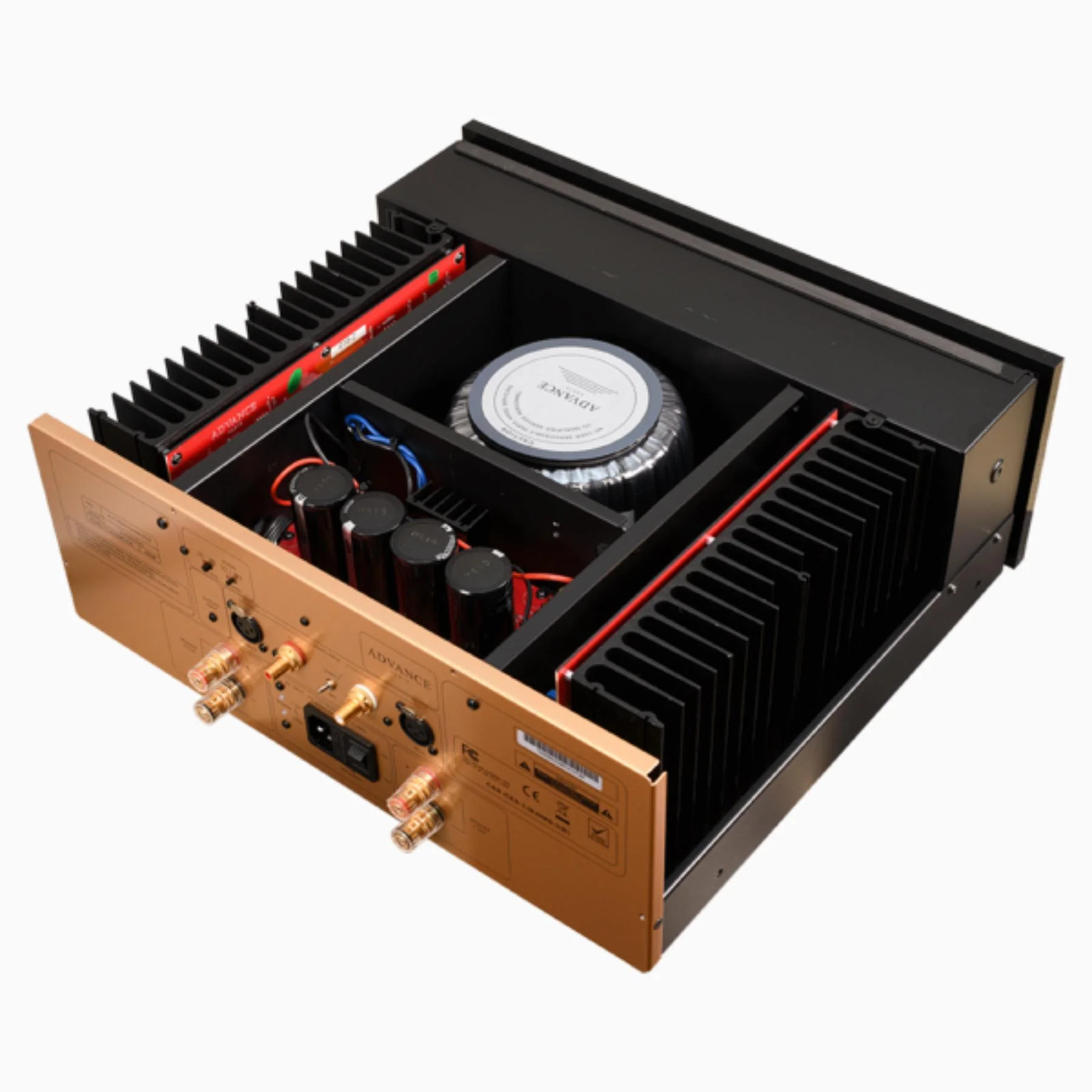

- Preserving detail and separation with a shielded, compartmentalized chassis layout
- Producing clean, wide-bandwidth sound that stays composed at higher volumes

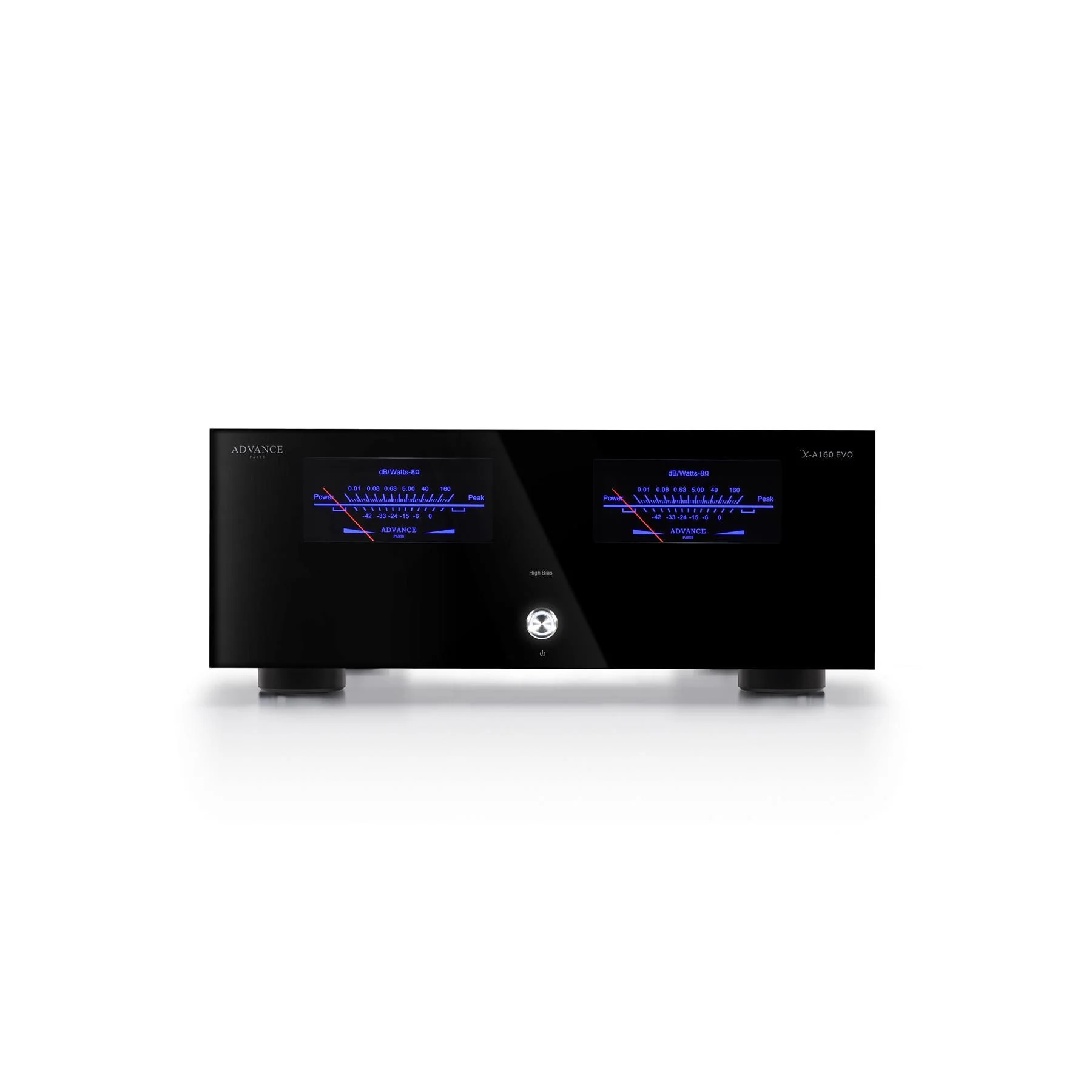

- Providing a premium, classic hi-fi look with built-in VU meters
- Supporting long listening sessions with low standby power consumption
Advance Paris X-A160 EVO Specifications:
- Output Power (8Ω): 2 x 160 W RMS
- Output Power (4Ω): 2 x 240 W RMS
- Bandwidth: 10 Hz - 80 kHz
- Distortion: < 0.07%
- Signal-to-Noise Ratio: > 120 dB
- Channel Separation: > 80 dB
- Input Impedance Unbalanced: 20 KΩ
- Input Impedance Balanced: 38 KΩ
- Mains Voltage: 115-230V
- Standby Power Consumption: < 0.5W
- Max Power Consumption: 500W
- Transformer Power: 700W (Toroidal)
- Dimensions (H x W x D): 160 x 440 x 430 mm
- Net Weight: 19 kg
- Product Type: Power Amplifier Block
- VU Meter: Yes
Advance Paris X-A160 EVO Q&A:
- What type of amplifier is the Advance Paris X-A160 EVO?
- It’s a high-power stereo amplifier designed for audiophile playback, using a robust power supply and high-current output stage for strong speaker control.
- How much power does the X-A160 EVO output?
- It delivers 2 x 160W RMS into 8Ω and 2 x 240W RMS into 4Ω, providing ample headroom for dynamic music and many speaker types.
- Does it run in Class A or Class AB?
- It operates in Class AB, and also offers a Hi-Bias mode that runs the first watts in Class A before automatically switching to Class AB at higher demands.
- What’s the benefit of the compartmentalized chassis?
- The rigid, compartmentalized construction helps shield circuits and reduce interference between sections, supporting cleaner, more stable performance.
- Does it have VU meters?
- Yes—built-in VU meters provide real-time visual feedback and a classic hi-fi aesthetic.
- How quiet is it in terms of background noise?
- The specified signal-to-noise ratio is > 120 dB, supporting a low-noise presentation and improved perceived detail.
- What are the physical dimensions and weight?
- It measures 440 mm (W) x 430 mm (D) x 160 mm (H) and weighs 19 kg.
- What is the standby power consumption?
- Standby consumption is rated at < 0.5W, helping reduce energy use when not playing music.
Advance Paris X-A160 EVO Downloads:
Advance Paris X-A160 EVO User Manual
Advance Paris X-A160 EVO Technical Data
