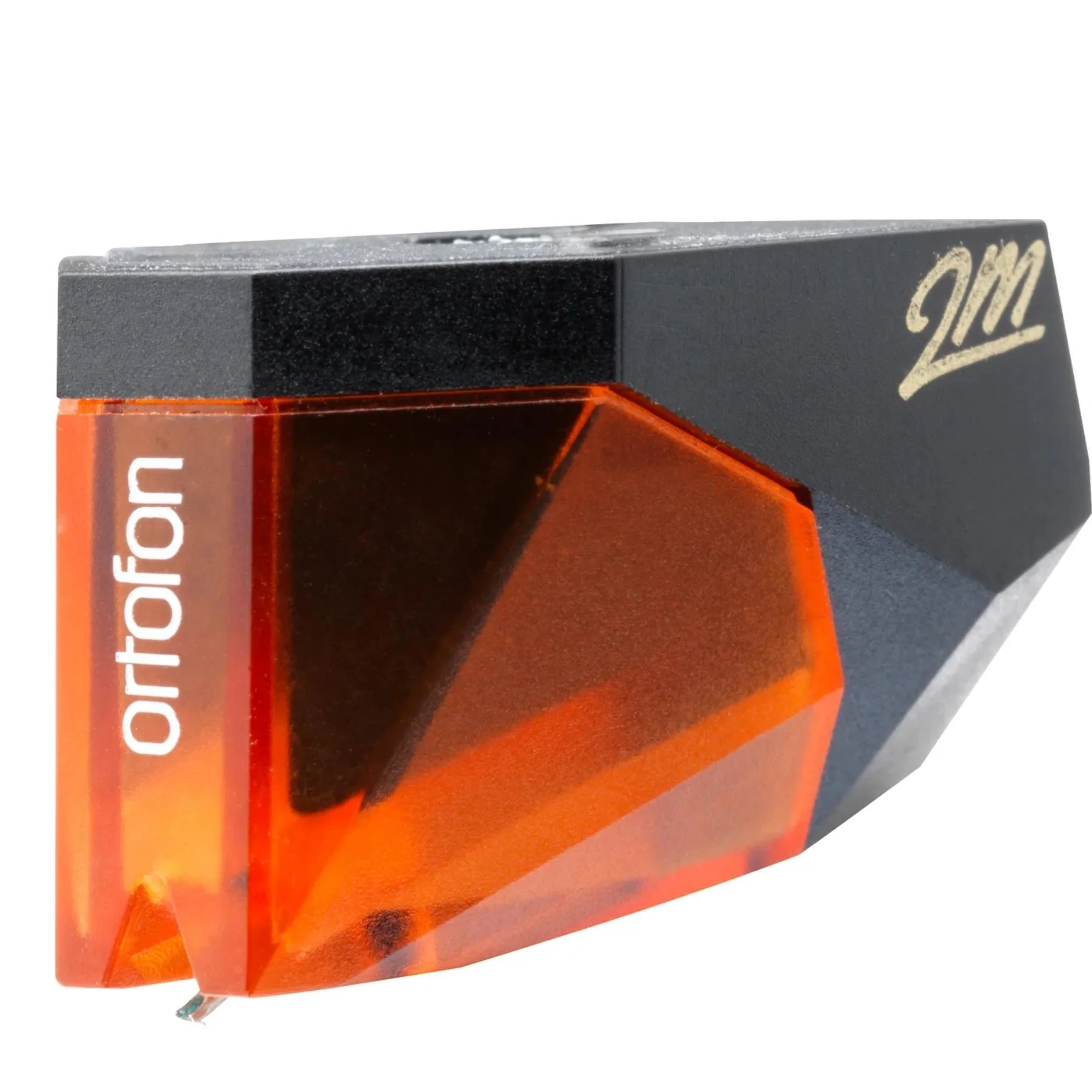

Ortofon 2M Bronze Moving Magnet Cartridge

Ortofon 2M Bronze Moving Magnet Cartridge - Experience High Fidelity Sound

Rediscover your vinyl collection with the Ortofon 2M Bronze Moving Magnet Cartridge. Designed for audiophiles seeking precision and clarity, the 2M Bronze delivers an unparalleled listening experience. Crafted with Ortofon's signature attention to detail, this cartridge is engineered to capture every nuance of your favorite records, allowing you to fall in love with your music all over again.

Ortofon 2M Bronze Key Features:

• Nude Fine Line diamond stylus for exceptional tracking and detail retrieval
• Unique engine design with silver-plated copper wire for enhanced performance
• Developed with precision and expertise in Denmark
• Designed in collaboration with renowned industrial designer Møller Jensen Design for both style and functionality
• Available in various configurations to suit different turntables and tonearms

Ortofon 2M Bronze Specifications:

• Channel balance at 1 kHz: 1 dB
• Output voltage at 1 kHz, 5cm/sec: 5 mV
• Channel separation at 1 kHz: 26 dB
• Channel separation at 15 kHz: 15 dB
• Frequency response: 20 Hz - 20 kHz (+/- 2 dB)
• Tracking ability at 315Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 22 µm/mN
• Stylus type: Nude Fine Line
• Stylus tip radius: r/R 8/40 µm
• Tracking force range: 1.4-1.7 g (14-17 mN)
• Tracking force, recommended: 1.5 g (15 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 1.2 kOhm
• Cartridge color: Black/Bronze
• Cartridge weight: 7.2 g
• Premounted cartridge weight: 16.7 g
• Recommended load resistance: 47 kOhm
• Internal inductance: 630 mH
• Recommended load capacitance: 150-300 pF

Enhance your listening experience with the Ortofon 2M Bronze Moving Magnet Cartridge. Immerse yourself in the rich, detailed sound that only true high fidelity can provide.

Ortofon 2M Bronze Downloads

Ortofon 2M Bronze User Guide
Ortofon 2M Bronze Brochure / Data Sheet
