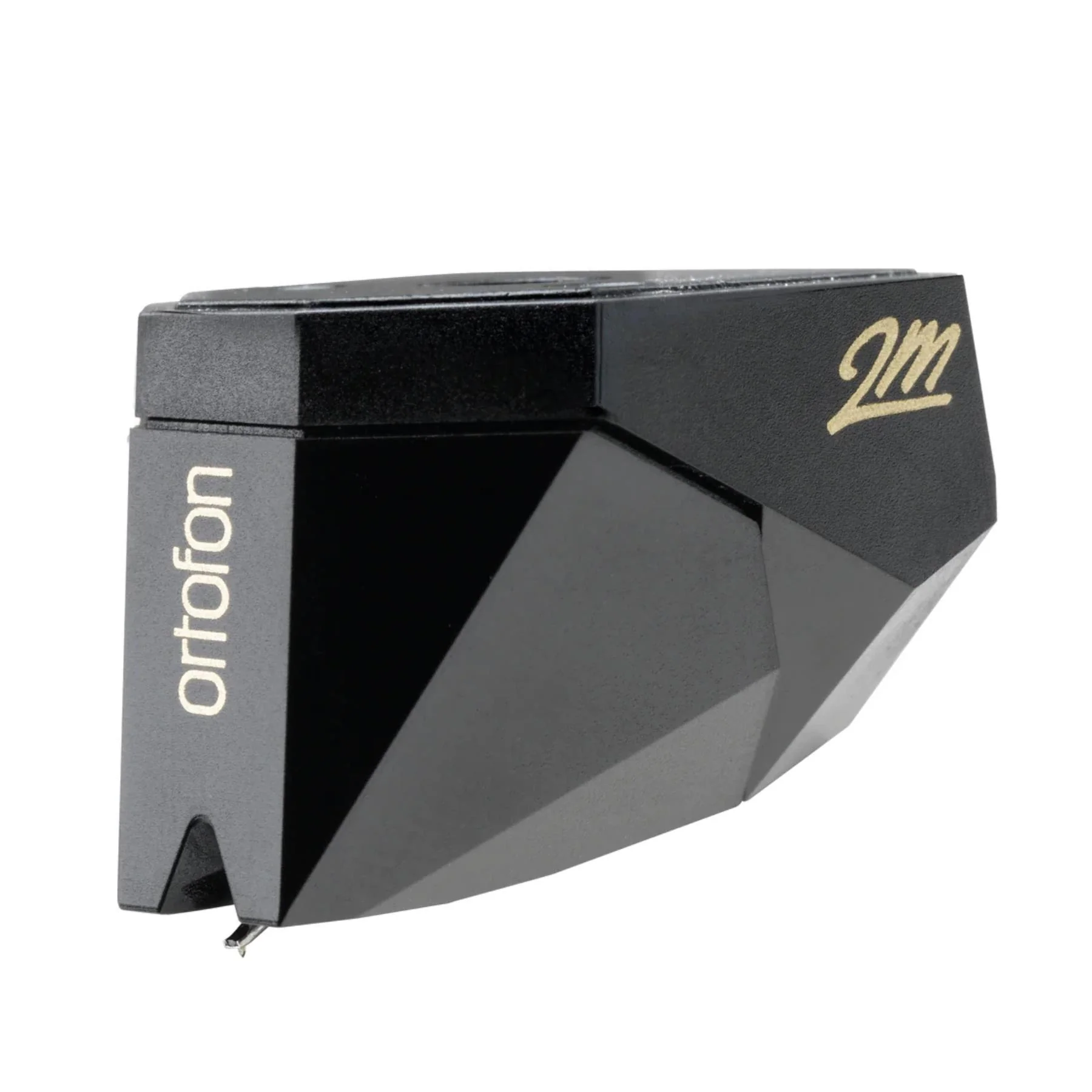

Ortofon 2M Black Moving Magnet Cartridge

Ortofon 2M Black Moving Magnet Cartridge

Experience the pinnacle of audio precision with the Ortofon 2M Black Moving Magnet Cartridge. Designed as the flagship of the renowned 2M series, this cartridge delivers unparalleled sound fidelity, capturing every nuance and detail with exceptional clarity. Rediscover your favorite records as if the artist were performing live in your room.

Ortofon 2M Black Key Features:

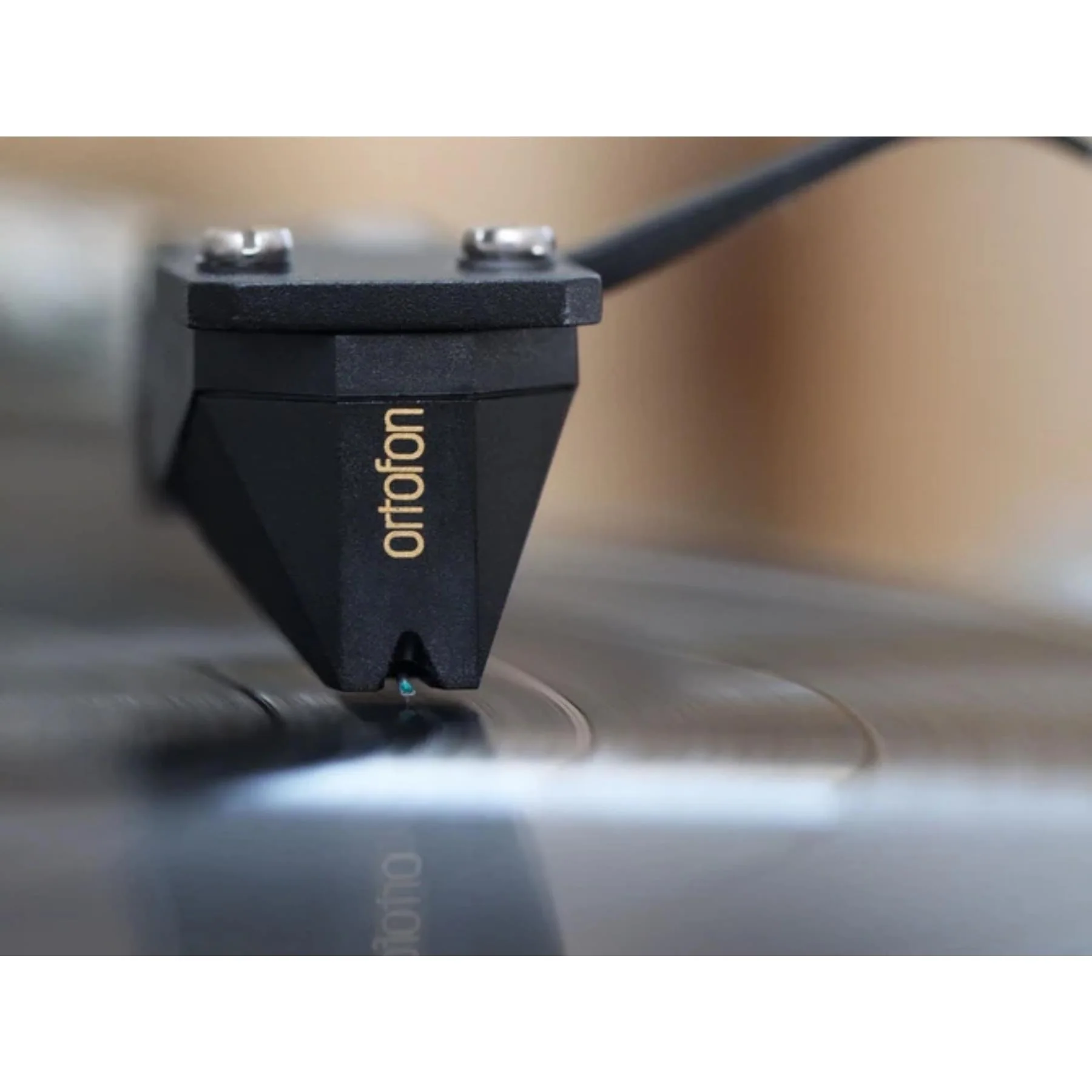

• Shibata Diamond Stylus: Crafted with a Shibata diamond stylus, the 2M Black ensures optimal contact with the record groove, enabling precise tracking and detailed reproduction across the entire frequency spectrum.
• Danish Craftsmanship: Each cartridge is meticulously designed and handcrafted in Denmark, reflecting Ortofon's commitment to quality and innovation.
• Split Pole Pins Technology: Featuring Ortofon's proprietary split pole pins upgraded with silver-plated copper wire, the 2M Black boasts enhanced performance and longevity.

Explore the Lineup:

• Versatile Compatibility: The 2M series is engineered for easy mounting and compatibility with a wide range of turntables, ensuring seamless integration into your audio setup.

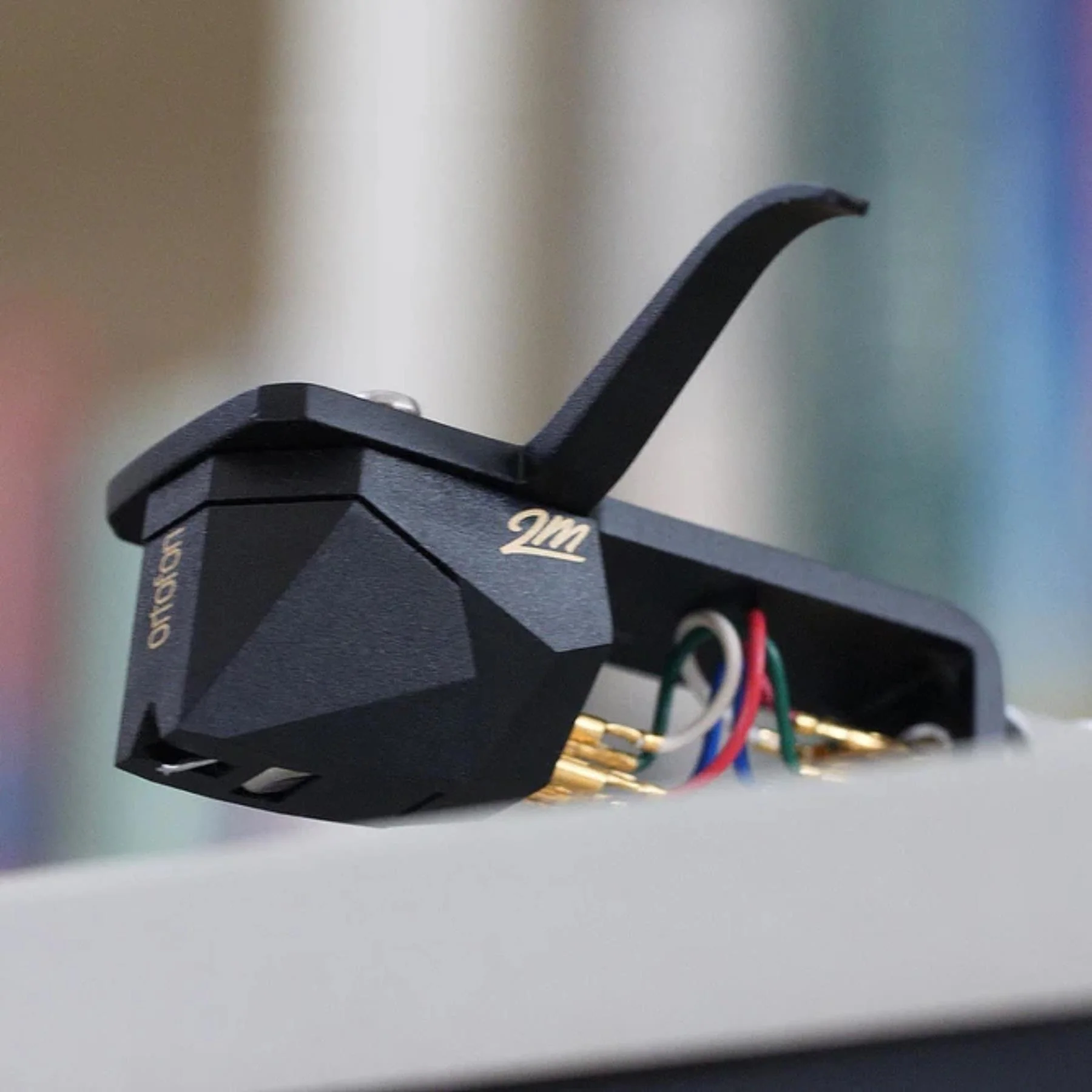

• Variant Configurations: Choose from four different product variants, including the 2M Premounted for easy installation on S-shaped tonearms and the 2MR tailored for Rega turntables and tonearms.

Ortofon 2M Black Specifications:

• Channel Balance at 1 kHz: 1 dB
• Output Voltage at 1 kHz, 5cm/sec: 5 mV
• Channel Separation at 1 kHz: 26 dB
• Channel Separation at 15 kHz: 15 dB
• Frequency Response: 20 Hz - 20 kHz (±2 dB)
• Tracking Ability at 315Hz: 80 µm (recommended tracking force)
• Compliance, Dynamic, Lateral: 22 µm/mN
• Stylus Type: Nude Shibata
• Tracking Force Range: 1.4-1.7 g (14-17 mN)
• Tracking Force, Recommended: 1.5 g (15 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 1.2 kOhm
• Cartridge Color: Black/Black
• Cartridge Weight: 7.2 g
• Premounted Cartridge Weight: 16.7 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 630 mH
• Recommended Load Capacitance: 150-300 pF

Elevate your listening experience with the Ortofon 2M Black Moving Magnet Cartridge – the ultimate choice for audiophiles seeking uncompromising performance and sonic excellence.

Ortofon 2M Black Downloads

Ortofon 2M Black Userguide
Ortofon 2M Black Brochure/Data Sheet
