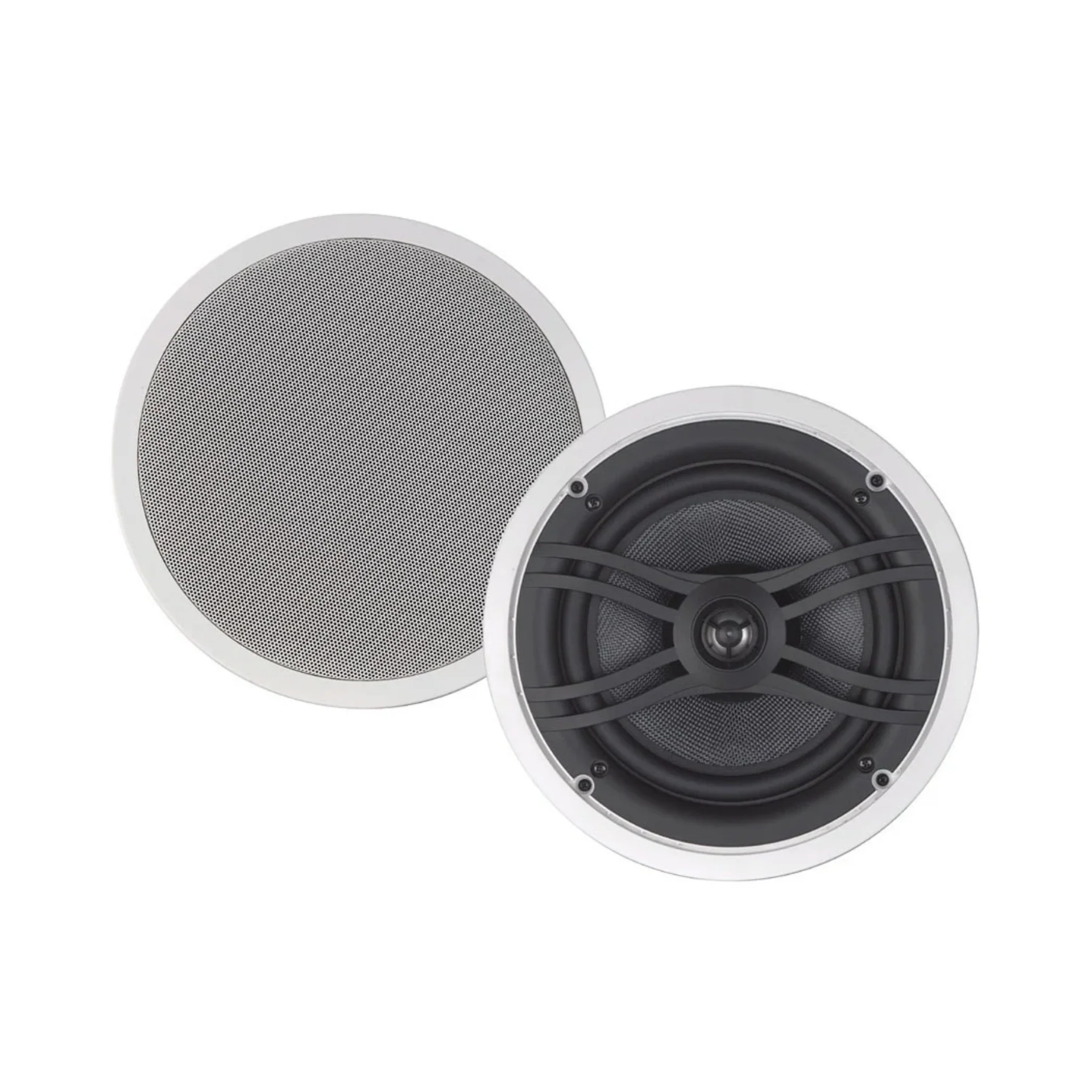

Yamaha NS-IW560C In Ceiling Speaker (Pair)

Yamaha NS-IW560C In Ceiling Speaker

Custom Installation, Superior Audio Quality, and Easy Setup

The NS-IW560C delivers professional audio quality with high-grade materials such as Kevlar for the woofer and Titanium for the tweeter. It’s designed for easy installation, featuring gold-plated push-type speaker terminals, paintable grilles and frames, a cut-out template, and a protective cover.

Adjustable Tweeter

The tweeter and midrange driver can be adjusted to direct high-frequency sounds toward the main listening area. Simply press the edge of the tweeter to change its direction.

Low Distortion, High Capacity Crossover Network

Equipped with a high-quality, customized crossover network, the NS-IW560C ensures optimal sound performance by minimizing distortion and preserving the clarity of transient sounds.

Other Features

• New natural sound ceiling speaker system, ideal for custom installations
• High-capacity, high-quality customized crossover network
• 8" Kevlar cone woofers
• 1" Titanium dome tweeter
• Swivel tweeter
• Gold-plated push-type speaker terminals
• 150W maximum input capability
• Paintable grill with protective cover included

Specifications

• Recommended Usage: In-Ceiling Front/Surround Speakers
• Type: 2-Way In-Ceiling
• Woofers: 8" Kevlar Cone Woofer
• Tweeters: 1" Titanium Dome Tweeter
• Swivel Tweeter and Midrange Driver: Yes (tweeter)
• Paintable Grill with Protective Cover Included: Yes
• Frequency Response: 45Hz - 28kHz
• Sensitivity: 88dB / 2.83V / 1m
• Input Power (Maximum / Nominal): 150W / 50W
• Impedance: 8 Ohms
• Product Dimensions (W x H x D): 10-9/32" x 4-13/32"
• Mounting Depth: 3-23/32"
• Product Weight (each): 4.5lbs
