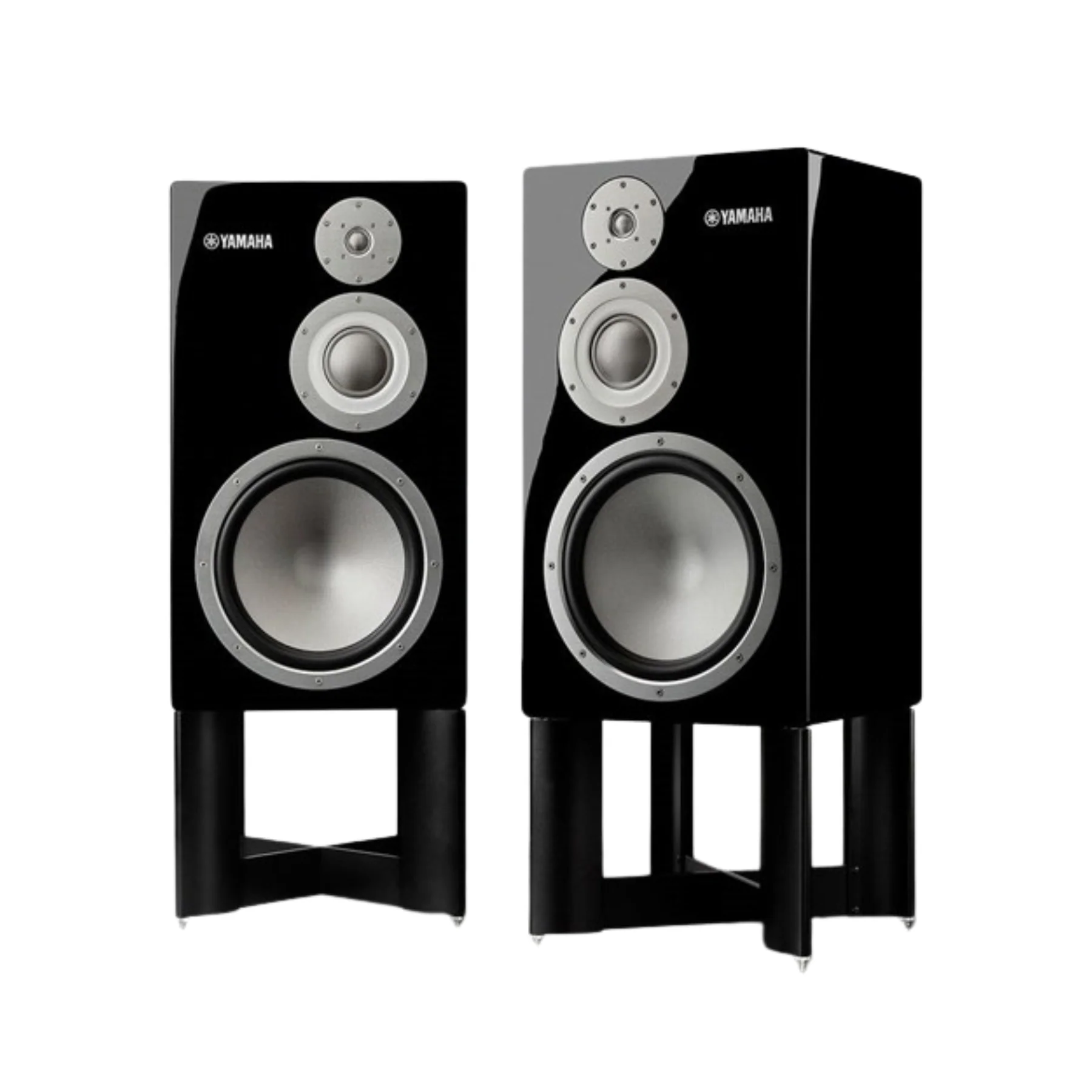

Yamaha NS-5000 Bookshelf Speaker Pair With Stands

Yamaha NS-50000 Bookshelf Speakers Pair With Stands

Introducing the NS-5000, our flagship 3-way bookshelf speaker system that redefines the standard for performance and quality in the realm of Hi-Fi audio.

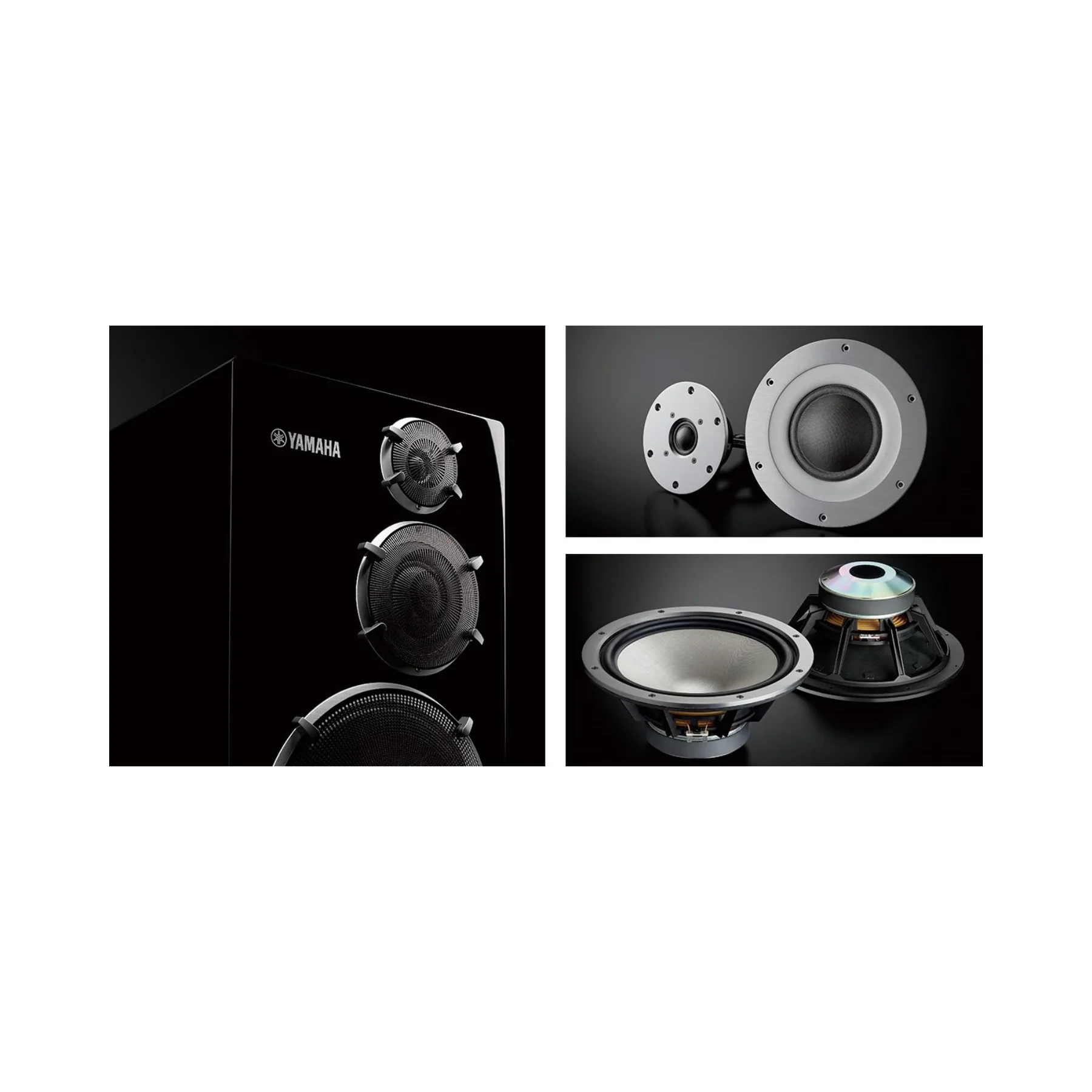

At its core, the NS-5000 features newly developed diaphragms crafted with a synthetic fiber known as ZYLON, renowned for its exceptional strength and optimal elasticity. Coated with Yamaha's proprietary monel alloy, these diaphragms ensure a remarkably flat frequency response and unified tone color throughout the entire frequency range, achieving a level of accuracy and clarity that rivals materials like beryllium. This technological advancement not only enhances the transparency and openness of the sound but also provides a comfortable and immersive listening experience.

Innovative R.S. (Resonance Suppression) Chambers, strategically mounted behind the tweeter and midrange drivers, effectively eliminate unwanted tube resonance. This patented design utilizes specially shaped tubes that cancel out resonance, reducing the need for excessive sound-absorbing material within the enclosure. As a result, each speaker unit maintains a precise frequency response, preserving the subtle nuances and dynamics of the original recording with unparalleled fidelity.

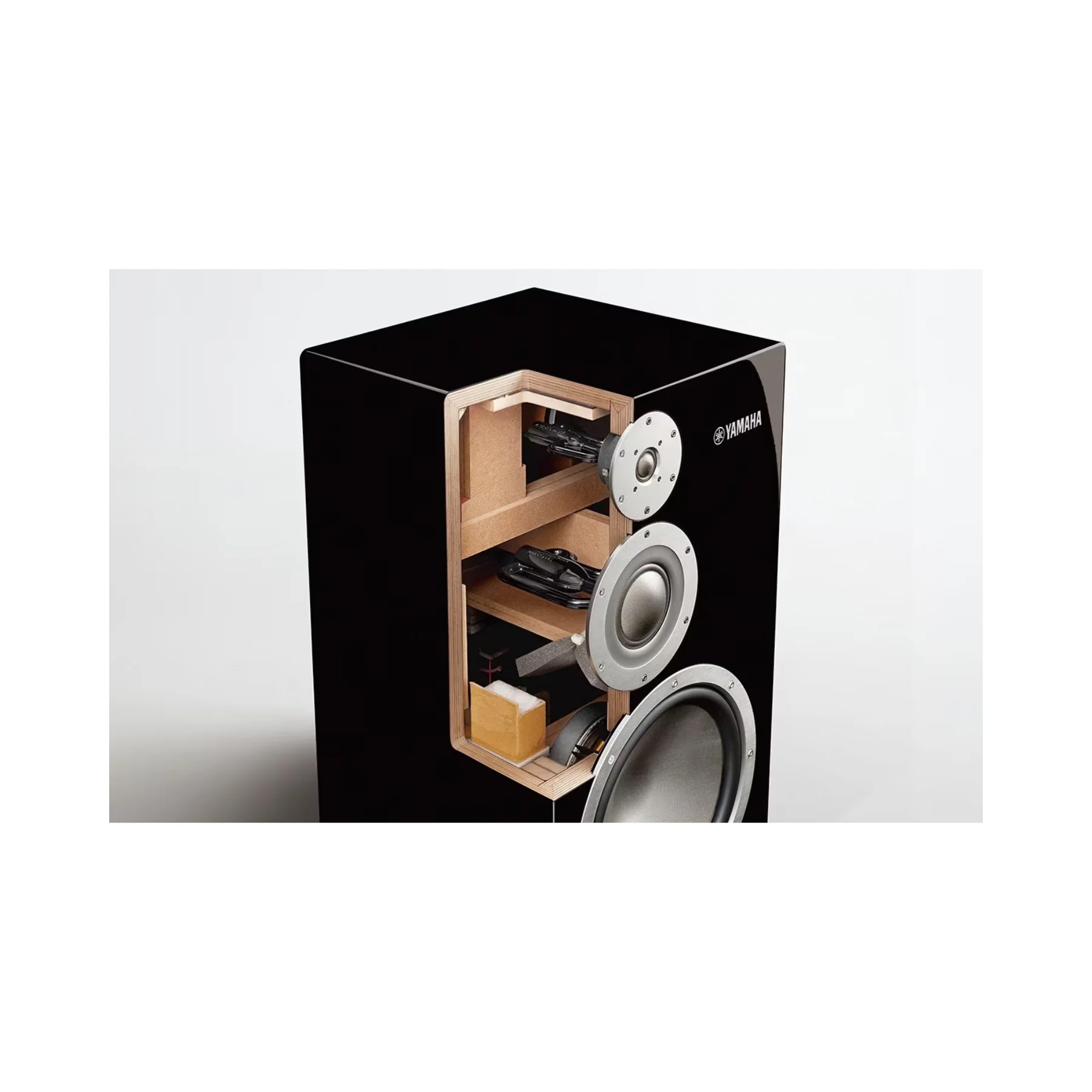

Drawing inspiration from Yamaha's iconic NS-1000M, the NS-5000 adopts a 12" 3-way bookshelf design meticulously crafted from laminated plywood made of Japanese white birch sourced from Hokkaido. The enclosure, reinforced with crosspieces and utilizing a Twisted Flare Port for enhanced bass performance, is engineered to minimize box ringing and port noise. This construction not only ensures structural rigidity but also enhances signal-to-noise performance, delivering clear and detailed sound reproduction across the entire frequency spectrum.

Further enhancing its appeal, the NS-5000 boasts a luxurious glossy black piano finish, meticulously applied using the same techniques as Yamaha grand pianos. This finish not only adds a touch of elegance but also contributes to the overall rigidity of the enclosure, reducing vibrations and further enhancing sound quality.

Completing the package is a sophisticated Frequency-Dividing Network, meticulously designed with high-quality components such as Mundorf's MCap SUPREME EVO capacitors and MResist SUPREME attenuator. This network ensures precise signal transmission and minimal loss of sound data, maintaining the integrity of the audio signal from input to output.

In summary, the NS-5000 represents Yamaha's commitment to pushing the boundaries of audio technology while honoring its rich heritage in Hi-Fi excellence. It stands as a testament to uncompromising craftsmanship and innovation, offering audiophiles a speaker system that delivers unparalleled performance and an immersive listening experience that transcends expectations.

NS-5000 Specs

• Type: 3-way bookshelf bass-reflex type
• Woofers: 12" cone type
• MidRange Driver: 3-1/4" dome type
• Tweeter: 1-1/4" dome type
• Frequency Response: 26 Hz - 40 kHz (-10 dB), up to 100 kHz (-30 dB)
• Nominal Input Power: 200 W
• Maximum Input Power: 600 W
• Sensitivity: 88 dB / 2.83 V/1 m
• Crossover Frequencies: 750 Hz / 4.5 kHz
• Impedance: 6 ohms (minimum 3.5 ohms)
• Dimensions (W x H x D): 15-1/2" x 27-1/8" x 15" (with speaker terminals)
• Weight: 77.2 lbs. / unit
